8 Gigabit PoE Ports und 2 Gigabit SFP Slots
Port 1&2 10/100/1000Base-T RJ45(IEEE 802.3bt) PoE 90W
Port 3 bis 8 unterstützt IEEE 802.3at Power over Ethernet (PoE+)
Konform zu IEEE802.3af/at/bt
Unterstützt L2 Management, wie QoS, VLAN, MSTP, Portmanagement und PoE-Management
Unterstützt ERPS for Ring-Topologien
6KV surge protection, 8KV contact /15KV air ESD protection
Unterstützt DIN-Schienen-, Wand- oder Desktop-Montage
Arbeitstemperaturbereich von -40°C bis 75°C

Der LevelOne IGP-1061 Layer2 Managed Gigabit-PoE-Industrial-Switch, bietet 8 PoE 10/100/1000Base-T Ports und 2 Gigabit SFP Ports, um Hochgeschwindigkeitsnetzwerke in unternehmenskritischen Umgebungen zu ermöglichen. Mit der industriellen Standard-DIN-Schienen-Montage und den gut sichtbaren Status-LEDs ist eine einfache Überwachung der Port-Verbindungsaktivität möglich. Außerdem unterstützen die SFP-Steckplätze steckbare Module, so dass Sie aus einer Vielzahl von Transceivern wählen können. Dieser Switch ist ein Power Sourcing Equipment (PSE) und entspricht vollständig dem IEEE802.3af/at/bt PoE-Standard mit einem maximalen Leistungsbudget von 90 W an Port 1 und 2. Er trägt dazu bei, die Kosten für die Infrastrukturverkabelung drastisch zu senken, da die elektrische Verkabelung entfällt und weniger USVen benötigt werden.

General
Farbe Schwarz

Features
L2 Features :
1. Port configuration
● Auto-negotiation
● Flow Control
● Port Mirror
● Traffic statistics

2. Link Aggregation :
● Static link aggregation
● LACP
● Algorithm based on Source/Destination MAC
● Algorithm based on Source/Destination IP
● 8 groups
● 8 ports per group

3. MAC Table :
● Aging Time
● Static MAC address
● Dynamic MAC address management

4. VLAN :
● 4K Active VLANs
● 4K VID
● 802.1Q Tag VLAN
● Port VLAN
● Protocol VLAN
● MAC VLAN
● Management VLAN
● Voice VLAN
● Q-in-Q

5. ACL :
● 64 ACLs
● L2, L3 e L4
● Time-based ACL

6. Spanning tree :
● 802.1D Spanning Tree Protocol (STP)
● 802.1w Rapid Spanning Tree Protocol (RSTP)
● 802.1s Multiple Spanning Tree Protocol (MSTP)
● Loop Guard
● Root Guard
● TC-BPDU Guard
● BPDU Guard
● BPDU Filter

7. Ring protocol :
● MSTP/EAPS/ERPS

8. Multicast :
● 256 groups
● IGMP v1/v2/v3
● Fast Leave
● Multicast VLAN
● Static Multicast
● Multicast Filter
● IGMP Statistics
● MLD Snooping

9. PoE management :
● Support total power consumption control
● Support single port PoE ON/OFF
● Support port output priority

10. QoS :
● 4 priority queues
● CoS port-based
● CoS 802.1p-based
● CoS DSCP-based
● Scheduling algorithms SP, WRR, SP+WRR
● Storm Control (Broadcast, Multicast, Unknown Unicast)
● Bandwidth control per port

Other Features :
● DHCP Relay
● DHCP Client
● DHCP Snooping
● DHCP Option 82
● SNTP Client
● BOOTP Client

Maintenance :
● Ping and Tracert
● System log (Local and Remote)
● Memory and CPU Monitoring
Verwaltung Management :
● SNMP v1/v2c/v3
● RMON 4 grupos
● WEB (HTTP/HTTPS)
● CLI (Telnet, Console, SSHv1/v2)
● Firmware upgrade via console/web/TFTP
● Configuration Backup/Reload
● All possible configurations in the CLI must exist in the WEB interface
● LLDP
Sicherheit Security :
● Port Security
● MAC address filter
● ARP Association (Manual, ARP scanning, DHCP snooping)
up to 200 entries
● ARP Protection
● DoS (Denial of Service)
● Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type
● 802.1x Autentication (port-based e MAC-based)
● TACACS/TACACS+ Autentication
● RADIUS Autentication
● DHCP Filter
● Guest VLAN
● SSLv2/SSLv3/TLSv1
● SSHv1/SSHv2
● Restriction of WEB access based on: IP Address, And. MAC and Port
● Port Isolation
● Local User Name Password Authentication (2 levels)
● Loopback detection

Verschiedenes
Grade Industrial
Data rate Gigabit Ethernet
PoE Supported Ja
Manageable Ja
Fanless Ja
Concurrent ports 10,00 Ports
PoE Power Budget 360,00 Watts
Non-disclosure
Embedded-System VxWorks

Others
Zulassungen und Konformität
● CE
● RoHS
Operating humidity 0% RH ~ 95% RH
Operating temperature -40°C ~ 75°C
Storage humidity 0% RH ~ 95% RH
Storage temperature -40°C ~ 85°C
Lieferumfang
● IGP-1061
● Power Terminal Block
● Console Cable
● Din-rail Mount Kit
● Quick Installation Guide
● Declaration of Conformity

Physical Specifications
Produktgewicht (kg) 0.5
Dimensions (W x D x H) 165 x 115 x 50 mm

System specifications
Energieverbrauch
● 5W (without PoE)
● 380W (full loading PoE on)
MTBF 338,634 hrs
Port Configuration 8*10/100/1000 RJ-45(PoE), 2*1000 Mbps SFP
Standards
● IEEE 802.3 10-BASE-T, Ethernet
● IEEE 802.3u 100-BASE-TX, Fast Ethernet
● IEEE 802.3ab 1000Base-T Gigabit Ethernet
● IEEE 802.3z 1000Base-X Gigabit Ethernet
● IEEE802.3x Flow Control and Back Pressure
● IEEE802.3af
● IEEE802.3at
● IEEE802.3bt

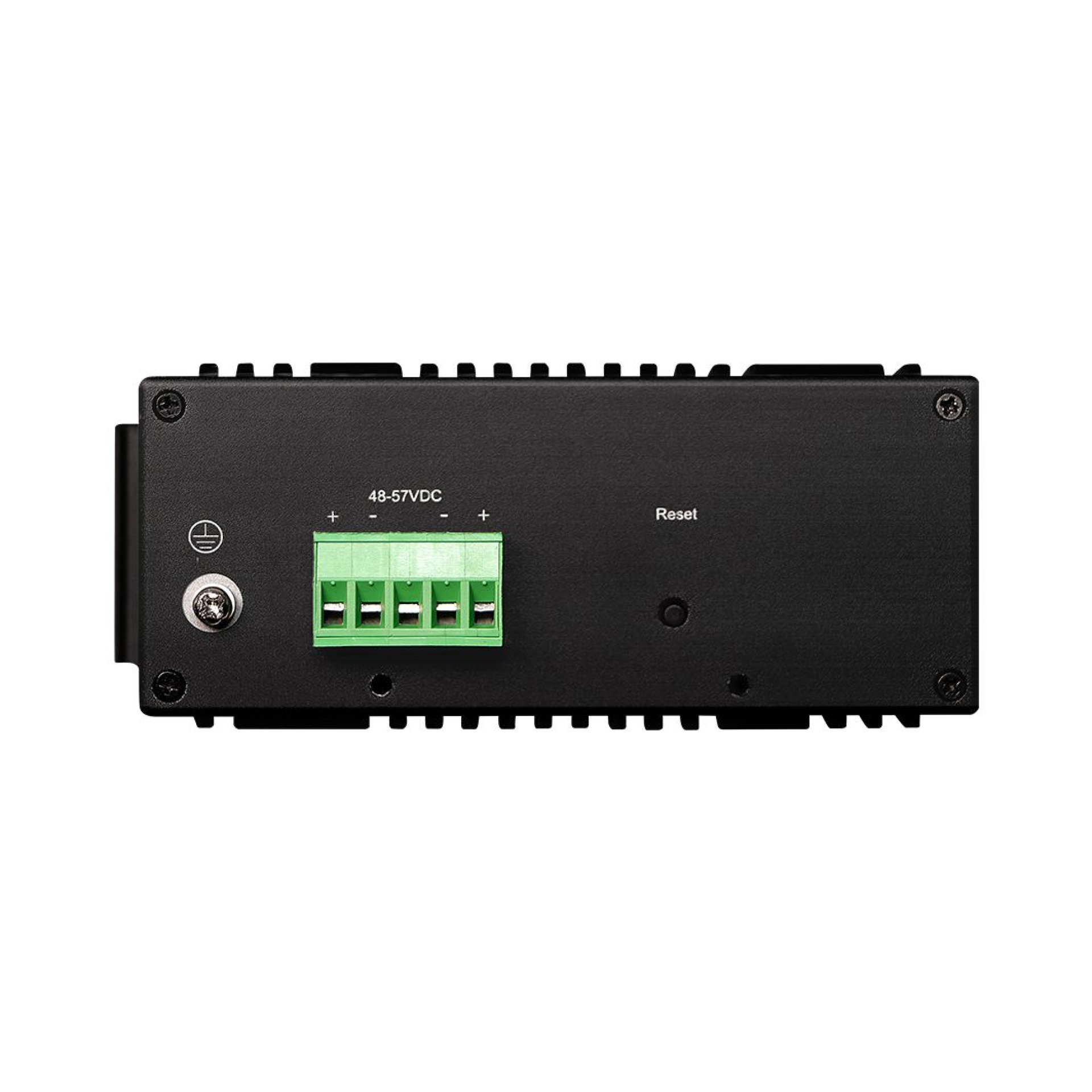

Stromversorgung Input: DC 48~57V
Akustisches Geräusch (dB) 0 dB
Pinbelegung und Polarität 1/2 (+), 3/6 (-)
Befestigung Desk mount, DIN rail mount
Flash-Speichergröße 128 MB
Arbeitsspeichergröße 1024 MB
MAC-Adresstabelle 8 K
Jumbo-Frames (KB) 10 KB
Indikator
● Power : Red
● Act/Link : Green
● PoE : Yellow
Paketpuffer 1 Mbits
Backplane (Gbit/s) 20 Gbps
