FEP-1601, 16-Port Fast Ethernet PoE+ Switch, DIP, different PoE Variants

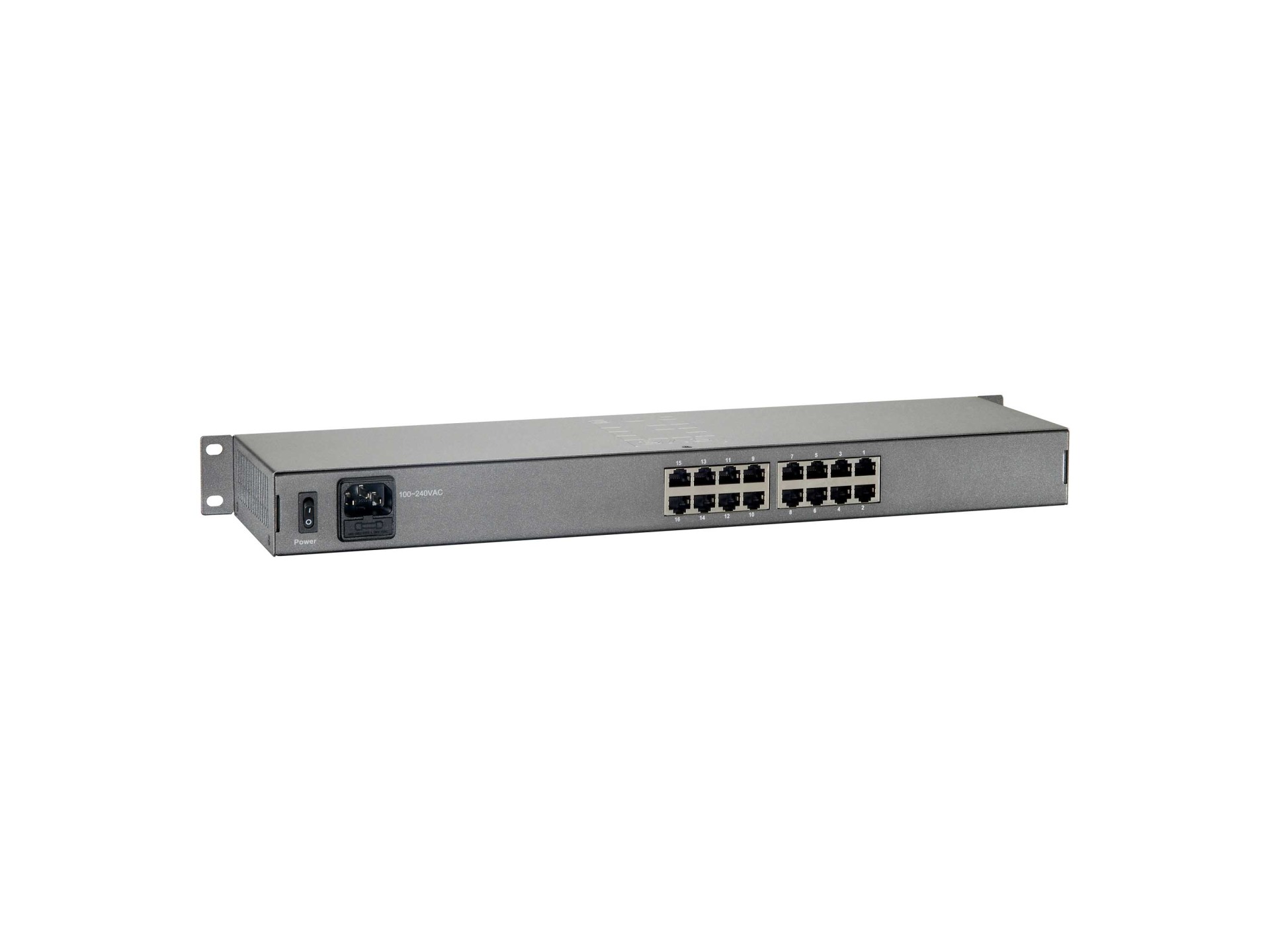

16-Port Fast Ethernet PoE+ Switch (120W)
Item number:
FEP-1601W120
EAN no.:
4015867199848
Product information for 16-Port Fast Ethernet PoE+ Switch (120W)
16-Port Fast Ethernet PoE+ Switch
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing (L x W x H): 480 x 118 x 44 mm
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing (L x W x H): 480 x 118 x 44 mm
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 118.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 44.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of ports 10/100 Mbps RJ45: | 16 |
| Number of ports PoE: | 16 |
| Power over Ethernet (PoE): | Other |
| Width: | 480.0 mm |
Variants
| Item no. | Name | Max. PoE-Budget | |
|---|---|---|---|
| FEP-1601 | 16-Port Fast Ethernet PoE+ Switch (250W) | 250 W | |
| FEP-1601W120 | 16-Port Fast Ethernet PoE+ Switch (120W) | 120 W | |
| FEP-1601W150 | 16-Port Fast Ethernet PoE+ Switch (150W) | 150 W |
