FEP-1612, 16-Port Fast Ethernet PoE+ Switch, different PoE Variants

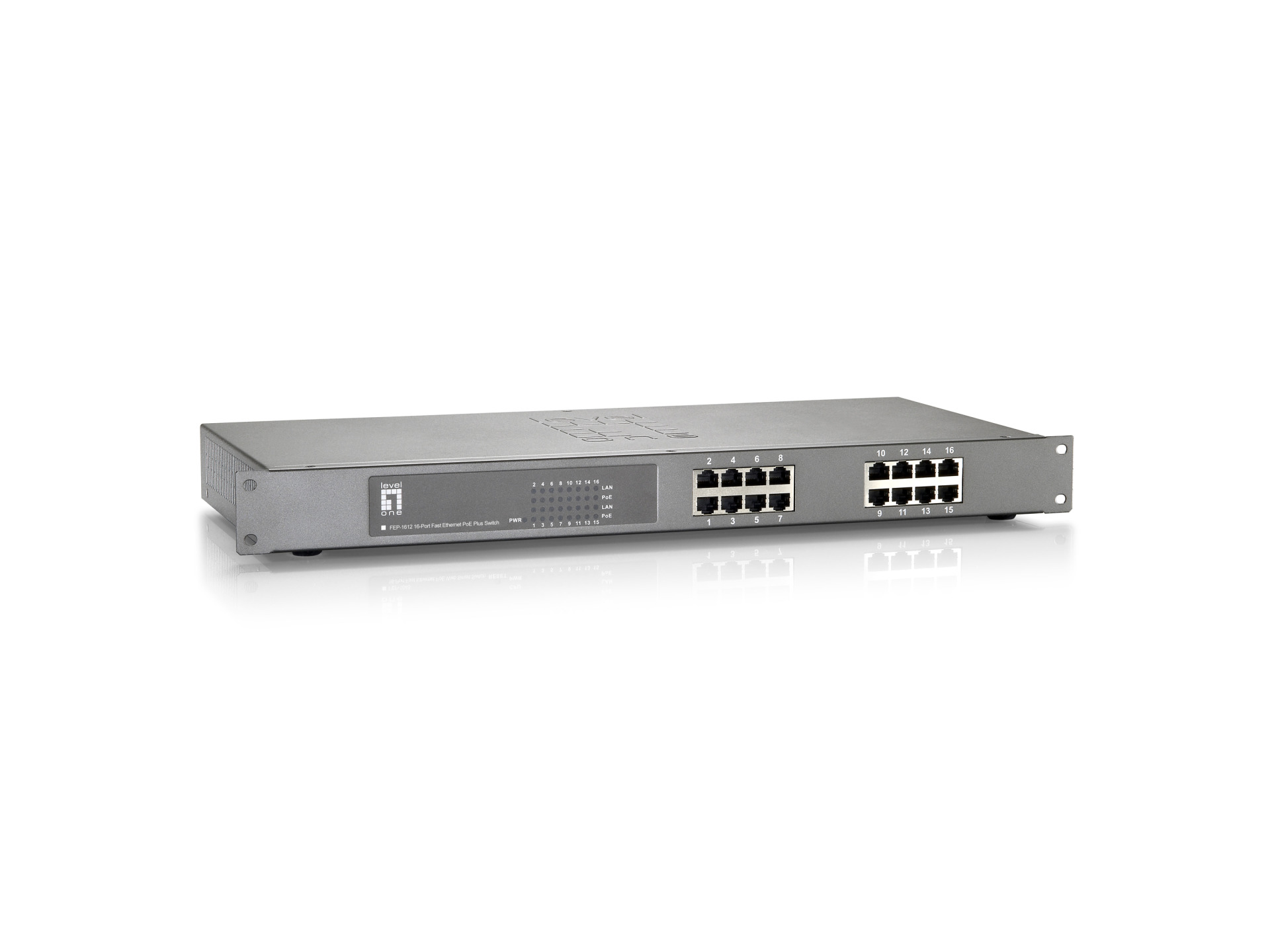

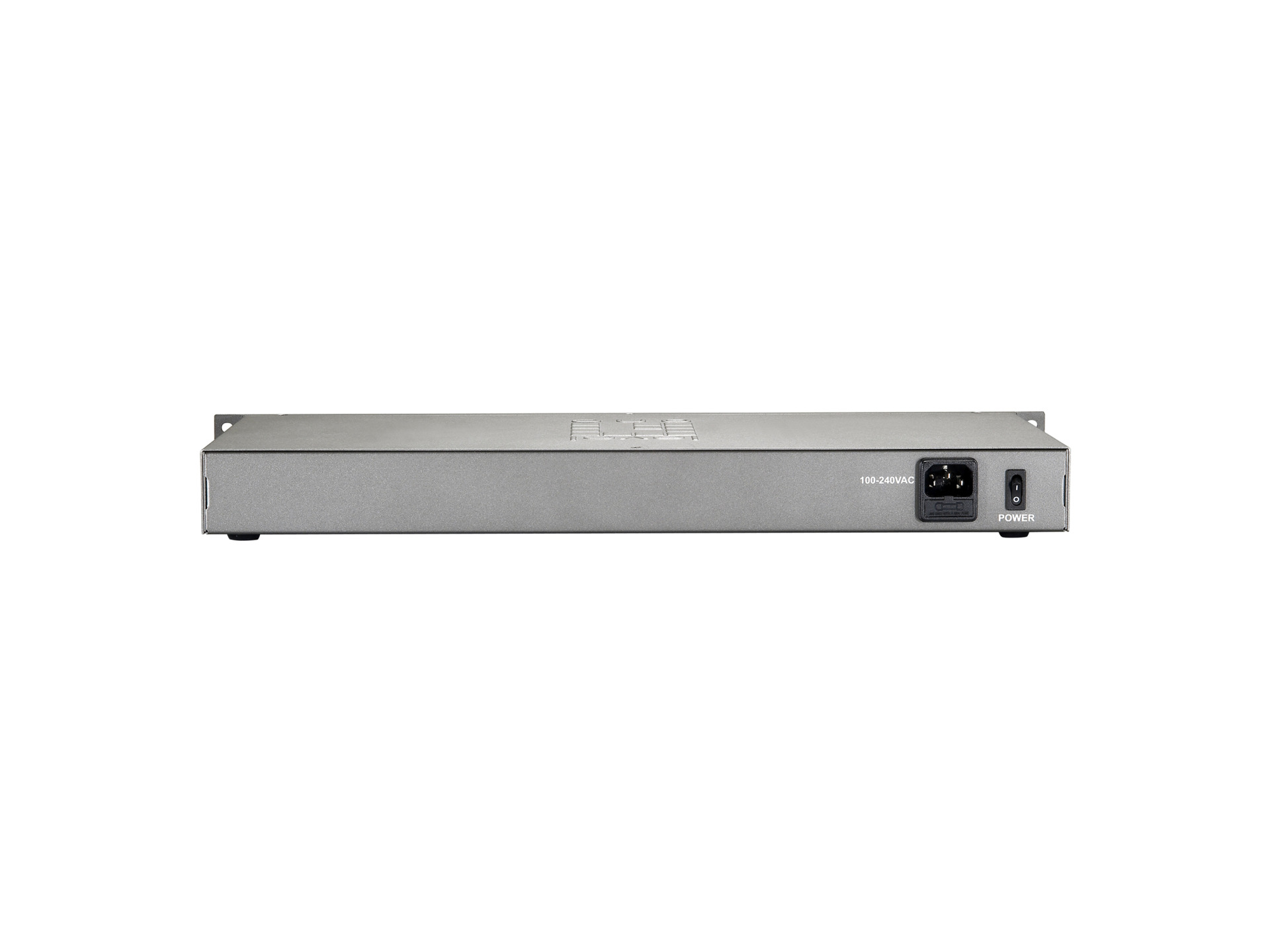

16-Port Fast Ethernet PoE+ Switch (480W)
Item number:
FEP-1612
EAN no.:
4015867170137
Product information for 16-Port Fast Ethernet PoE+ Switch (480W)
16-Port Fast Ethernet PoE+ Switch
PoE: IEEE-802.3af / at PoE compliance
PoE+ up to 30W per port with Auto-PoE detection
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing with fan (L x W x H): 480 x 200 x 44 mm
PoE: IEEE-802.3af / at PoE compliance
PoE+ up to 30W per port with Auto-PoE detection
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing with fan (L x W x H): 480 x 200 x 44 mm
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 200.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 44.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of ports 10/100 Mbps RJ45: | 16 |
| Number of ports PoE: | 16 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 480.0 mm |
Variants
| Item no. | Name | Max. PoE-Budget | |
|---|---|---|---|
| FEP-1612W120 | 16-Port Fast Ethernet PoE+ Switch (120W) | 120 W | |
| FEP-1612W380 | 16-Port Fast Ethernet PoE+ Switch (380W) | 380 W | |
| FEP-1612 | 16-Port Fast Ethernet PoE+ Switch (480W) | 480 W |
