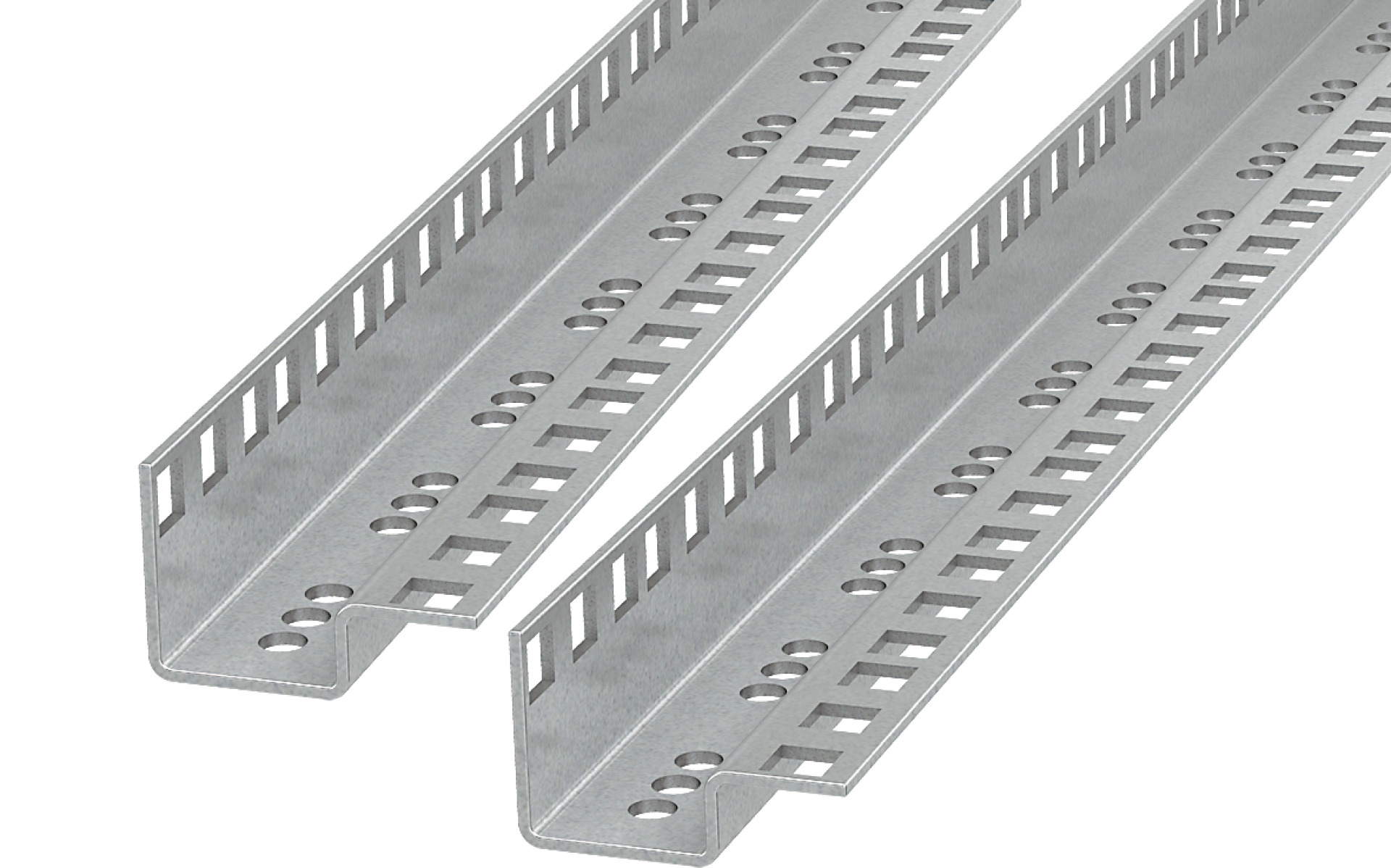

19" Profile Rail for PRO, Set 2 Pieces
19" Profile Rail for 18U, Set 2 Pieces, for PRO
Item number:
PRO-PRO18
EAN no.:
4049759219376
Product information for 19" Profile Rail for 18U, Set 2 Pieces, for PRO
For Retrofitting in network and server cabinets PRO

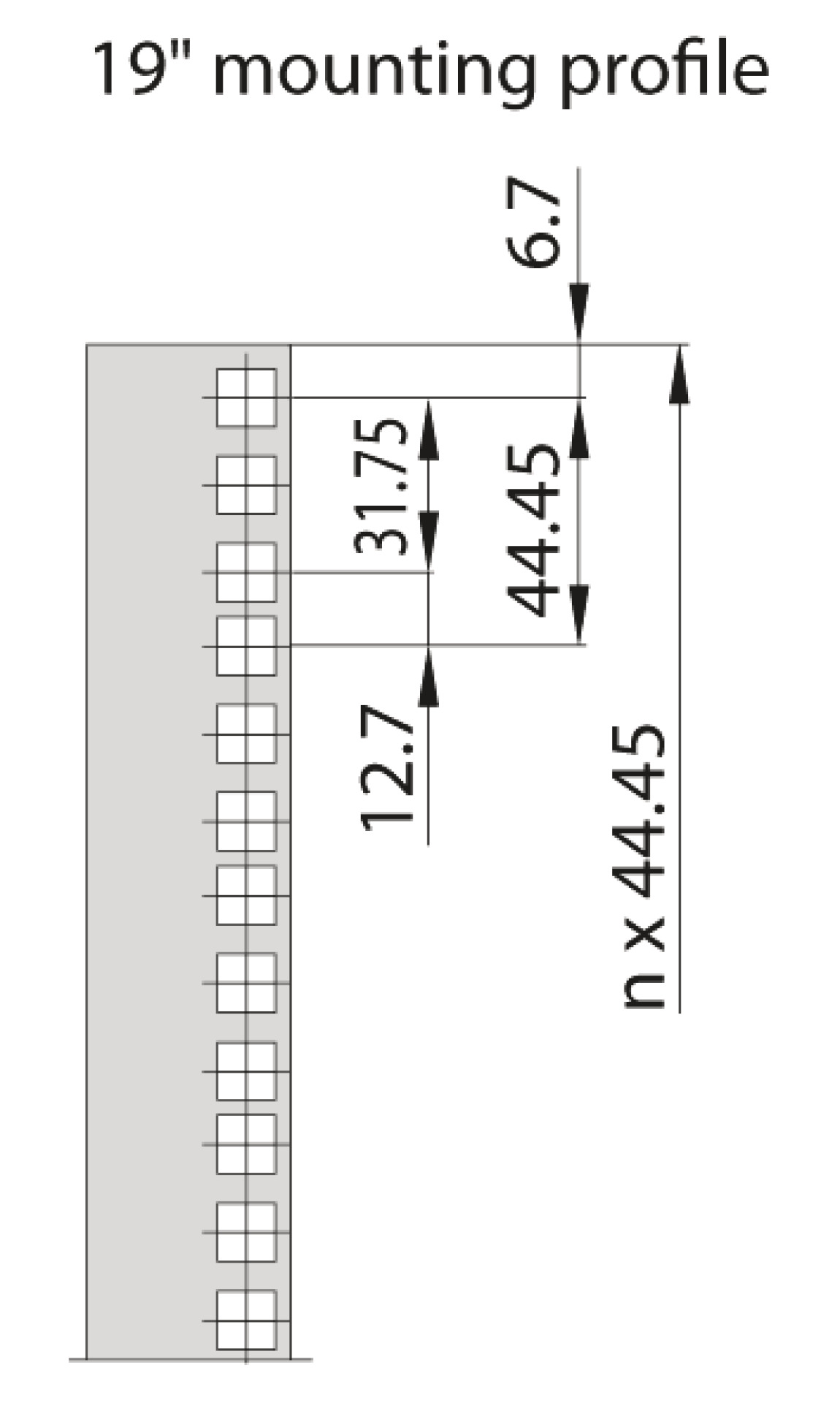

Double-contrariwise numbering of the rack units
For cabinet width 800 mm outriggers are necessary for mounting
Material steel, galvanised
Double-contrariwise numbering of the rack units
For cabinet width 800 mm outriggers are necessary for mounting
Material steel, galvanised
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Material: | Steel |
| Model: | 482.6 mm (19 inch) |
| Mounting method: | Screw mounting |
| Stepless mounting: | True |
| Surface finishing: | Zinc coated |
Variants
| Item no. | Name | Number of height units | Länge | |
|---|---|---|---|---|
| PRO-PRO47 | 19" Profile Rail for 47U, Set 2 Pieces, for PRO | 47 U | 2089 mm | |
| PRO-PRO42 | 19" Profile Rail for 42U, Set 2 Pieces, for PRO | 42 U | 1867 mm | |
| PRO-PRO24 | 19" Profile Rail for 24U, Set 2 Pieces, for PRO | 24 U | 1067 mm | |
| PRO-PRO18 | 19" Profile Rail for 18U, Set 2 Pieces, for PRO | 18 U | 800 mm |
