19" Wall Housing IP55, Glass Door, Depth 600 mm, RAL7035
![](https://www.efb-elektronik.de/media/54/c8/95/1652202157/100kg.jpg)
19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035
Item number:
691709IP55.2G
EAN no.:
4049759222024
Product information for 19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembled
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable

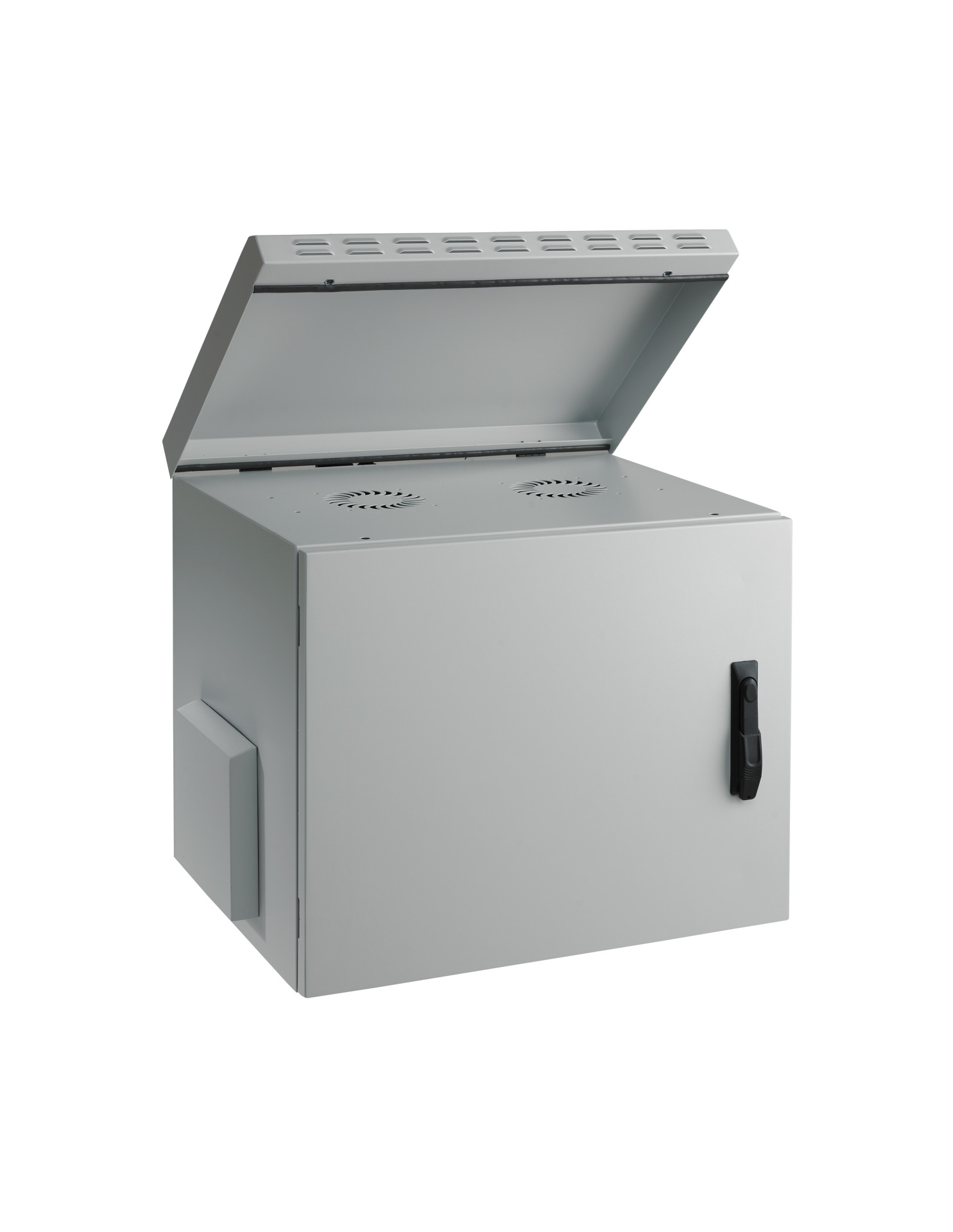

Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)
Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)

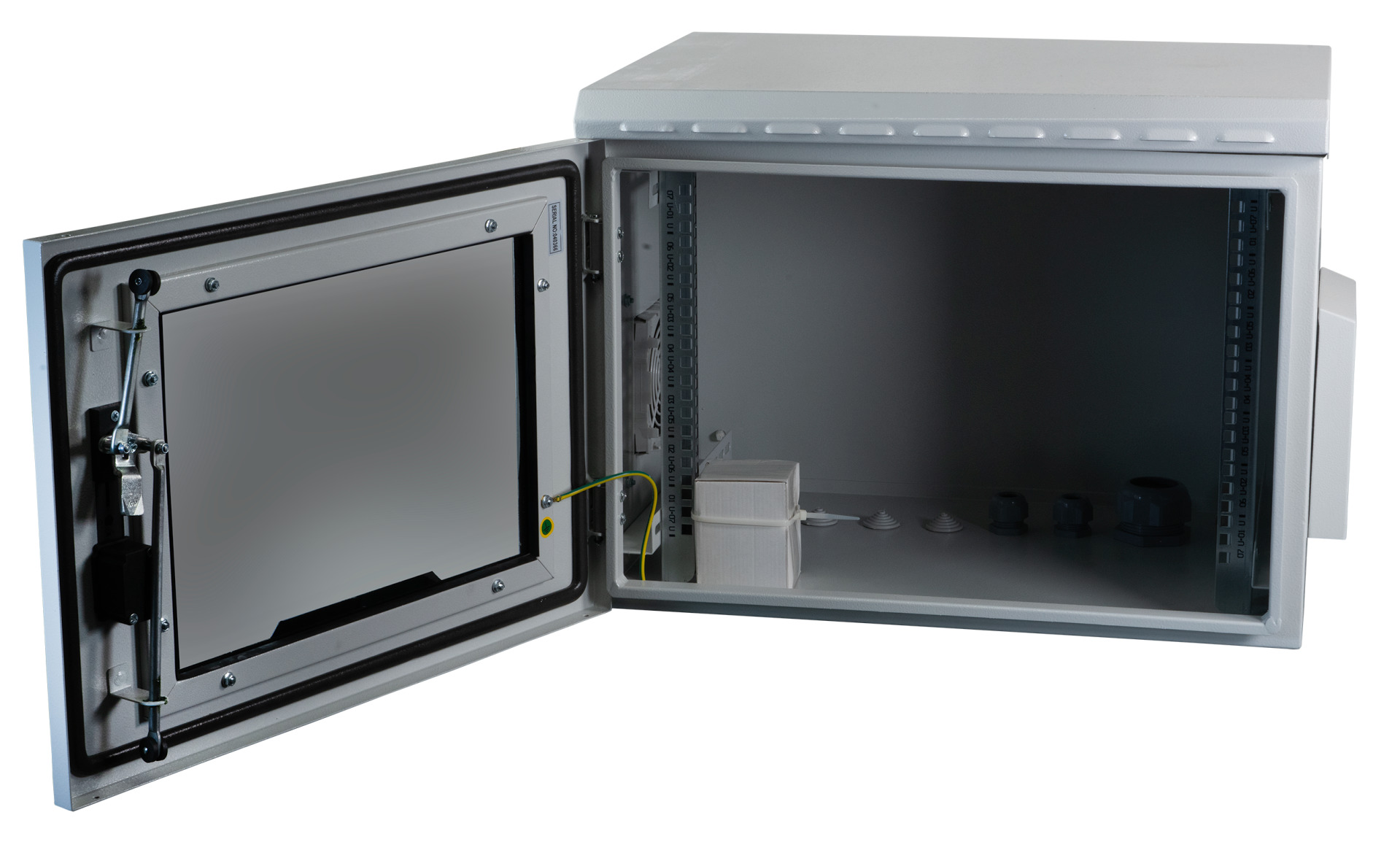

Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable
Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)
Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)
Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key
Technical properties
Degree of protection: | IP55 |
---|---|
Demountable: | True |
Material: | steel |
Model: | With permanent frame |
Modular spacing: | 482.6 mm (19 inch) |
Mounting level: | Front and rear |
Number of cartons: | 1 |
Number of doors: | 1 |
Surface finishing: | powder coating |
Type of profile rail: | L-shaped |
Type of ventilation: | Passive |
With earthing: | True |
With front door: | True |
With roof plate: | True |
With sidewall: | True |
Variants
Item no. | Name | Width | Max. Load | Depth | Colour | Max. Load Capacity | Height | Number of height units | RAL-Nummer | |
---|---|---|---|---|---|---|---|---|---|---|
691707IP55.2G | 19" Wall Housing IP55, 7U, Glass Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | 600 mm | grey | 100 kg | 450 mm | 7 U | 7035 | |
691709IP55.2G | 19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | 600 mm | grey | 100 kg | 540 mm | 9 U | 7035 | |
691712IP55.2G | 19" Wall Housing IP55, 12U, Glass Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | 600 mm | grey | 100 kg | 670 mm | 12 U | 7035 | |
691716IP55.2G | 19" Wall Housing IP55, 16U, Glass Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | 600 mm | grey | 100 kg | 850 mm | 16 U | 7035 | |
691720IP55.2G | 19" Wall Housing IP55, 20U, Glass Door, Depth 600 mm, RAL7035 | 600 mm | 100 kg | 600 mm | grey | 100 kg | 1040 mm | 20 U | 7035 |
