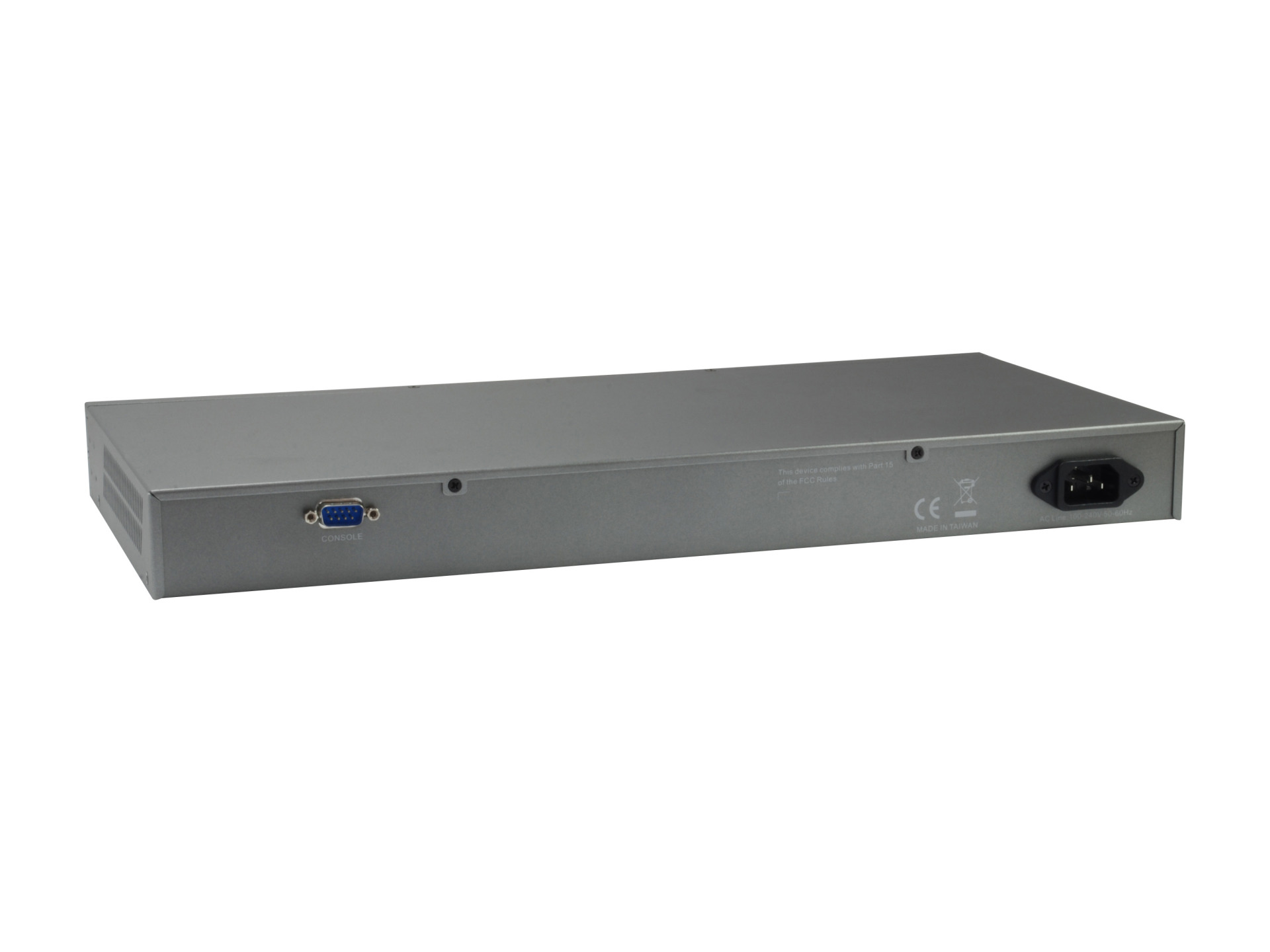

GTP-2881, 28-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE
28-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 185W, 4x 10GbE SFP+
Item number:
GTP-2881
EAN no.:
4015867195161
Product information for 28-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 185W, 4x 10GbE SFP+
24x Gigabit PoE Ports + 4x 10-Gigabit SFP+ slots
SFP+ slots support MiniGBICs for 10Gigabit 10GBaseX
PoE: IEEE-802.3af / at PoE compliance with PoE detection
IEEE-802.1d/w/s Spanning Tree Protocol (STP) and Port mirroring
Management: SNMP, WEB, RMON, Telnet and TFTP management
Features: IPv4/IPv6, port-based VLAN, IEEE 802.1Q VLAN-tagging and GVRP
IP Multicast Filtering with IGMP Snooping V1 / V2 / V3
L3 Features: Static Route, DHCP Server, ARP
Port-based IEEE-802.1X-authentification over access list (ACL) with over 512 entries
IEEE 802.3ad LACP for automatic port-aggregation
Metal housing (W x D x H): 442 x 221 x 44 mm
SFP+ slots support MiniGBICs for 10Gigabit 10GBaseX
PoE: IEEE-802.3af / at PoE compliance with PoE detection
IEEE-802.1d/w/s Spanning Tree Protocol (STP) and Port mirroring
Management: SNMP, WEB, RMON, Telnet and TFTP management
Features: IPv4/IPv6, port-based VLAN, IEEE 802.1Q VLAN-tagging and GVRP
IP Multicast Filtering with IGMP Snooping V1 / V2 / V3
L3 Features: Static Route, DHCP Server, ARP
Port-based IEEE-802.1X-authentification over access list (ACL) with over 512 entries
IEEE 802.3ad LACP for automatic port-aggregation
Metal housing (W x D x H): 442 x 221 x 44 mm
Technical properties
| 10 Gigabit Ethernet: | True |
|---|---|
| Depth: | 442.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 44.0 mm |
| Layer 2: | True |
| Layer 3: | True |
| Manageable: | True |
| Management: | L3 lite |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of 10/100/1000 Mbps RJ45-Ports: | 24 |
| Number of ports 10 Gbps Mini GBIC: | 4 |
| Number of ports PoE: | 24 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Temperature range: | 0 – 45 °C |
| Width: | 211.0 mm |
