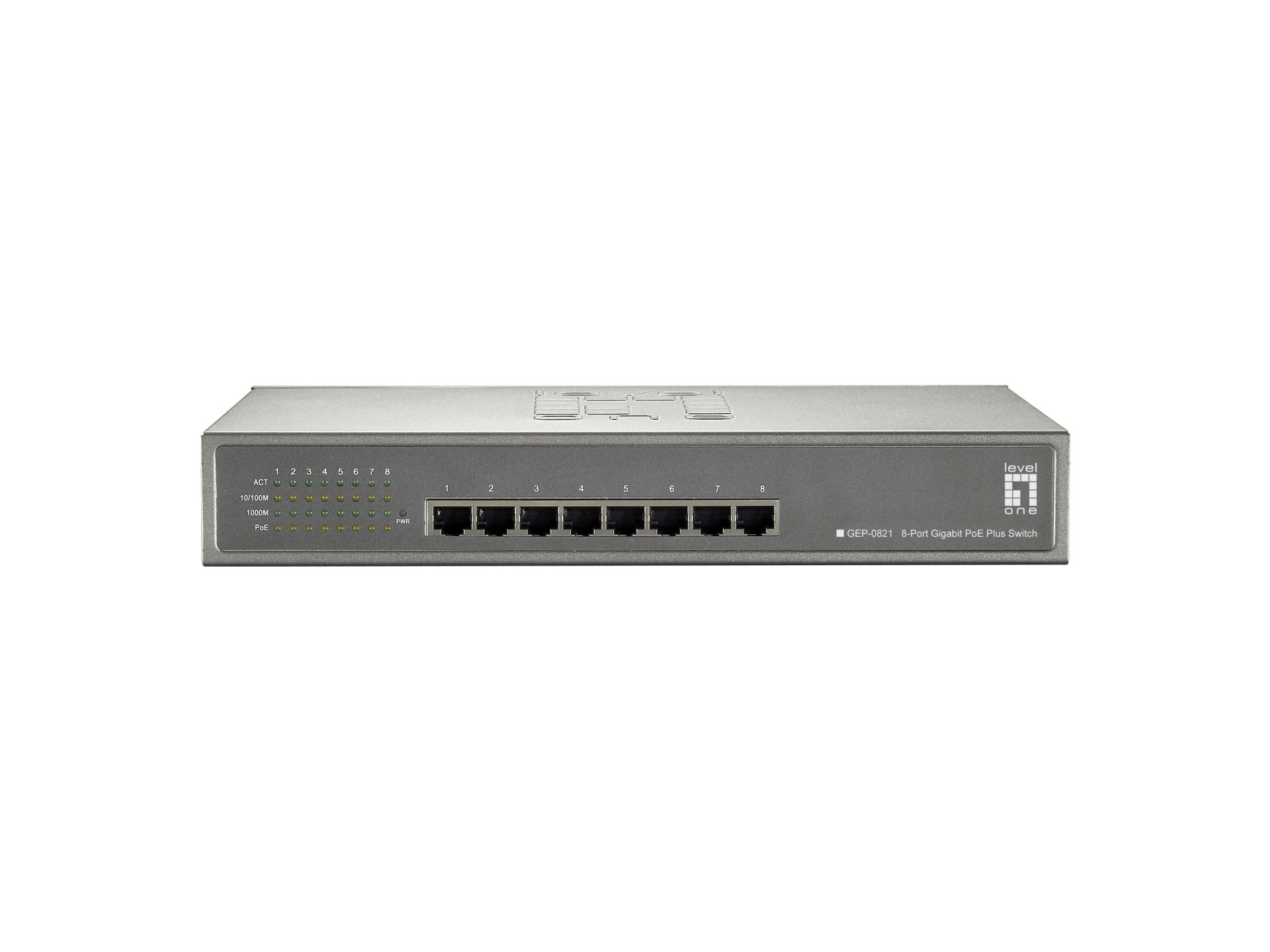

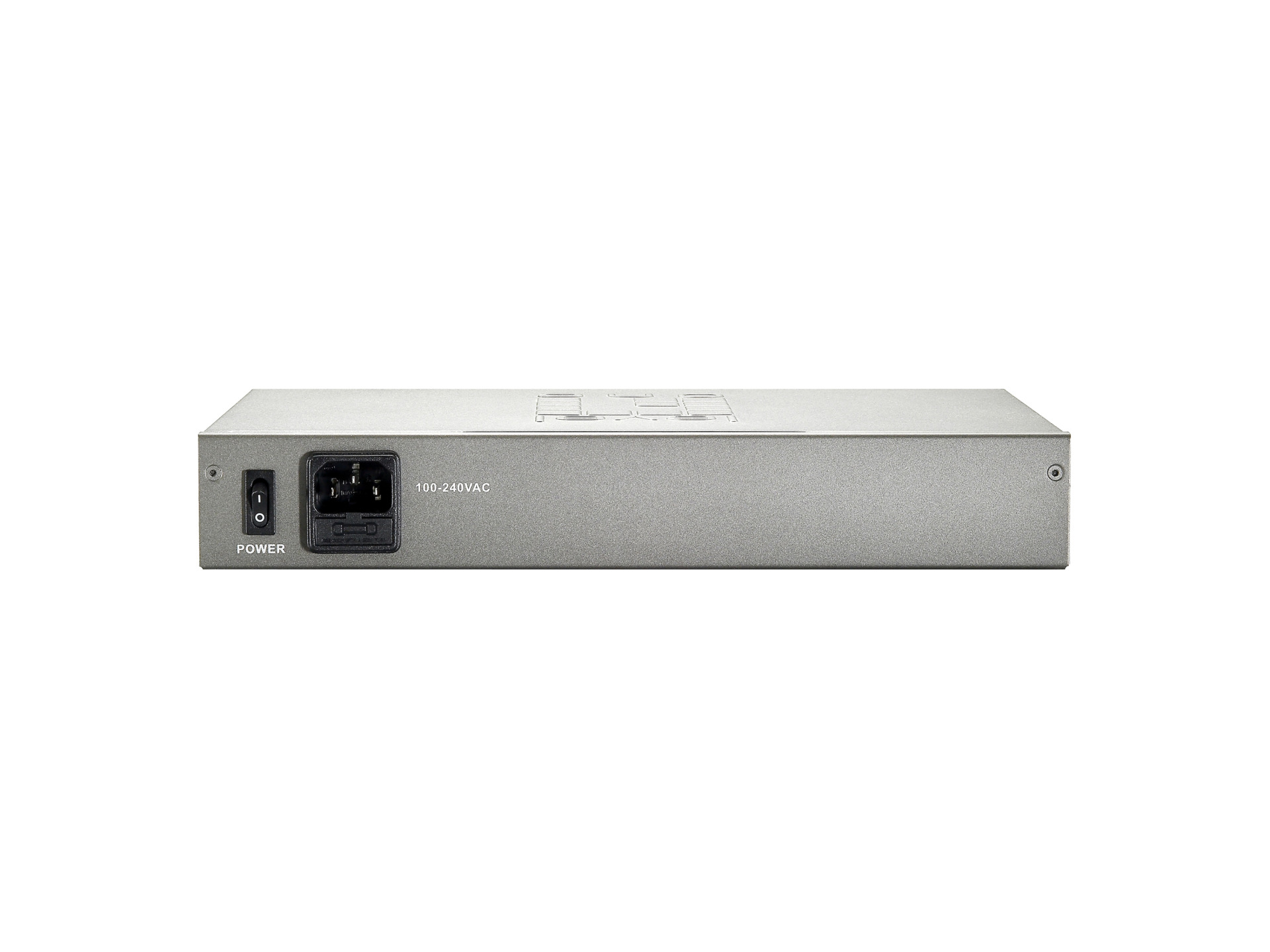

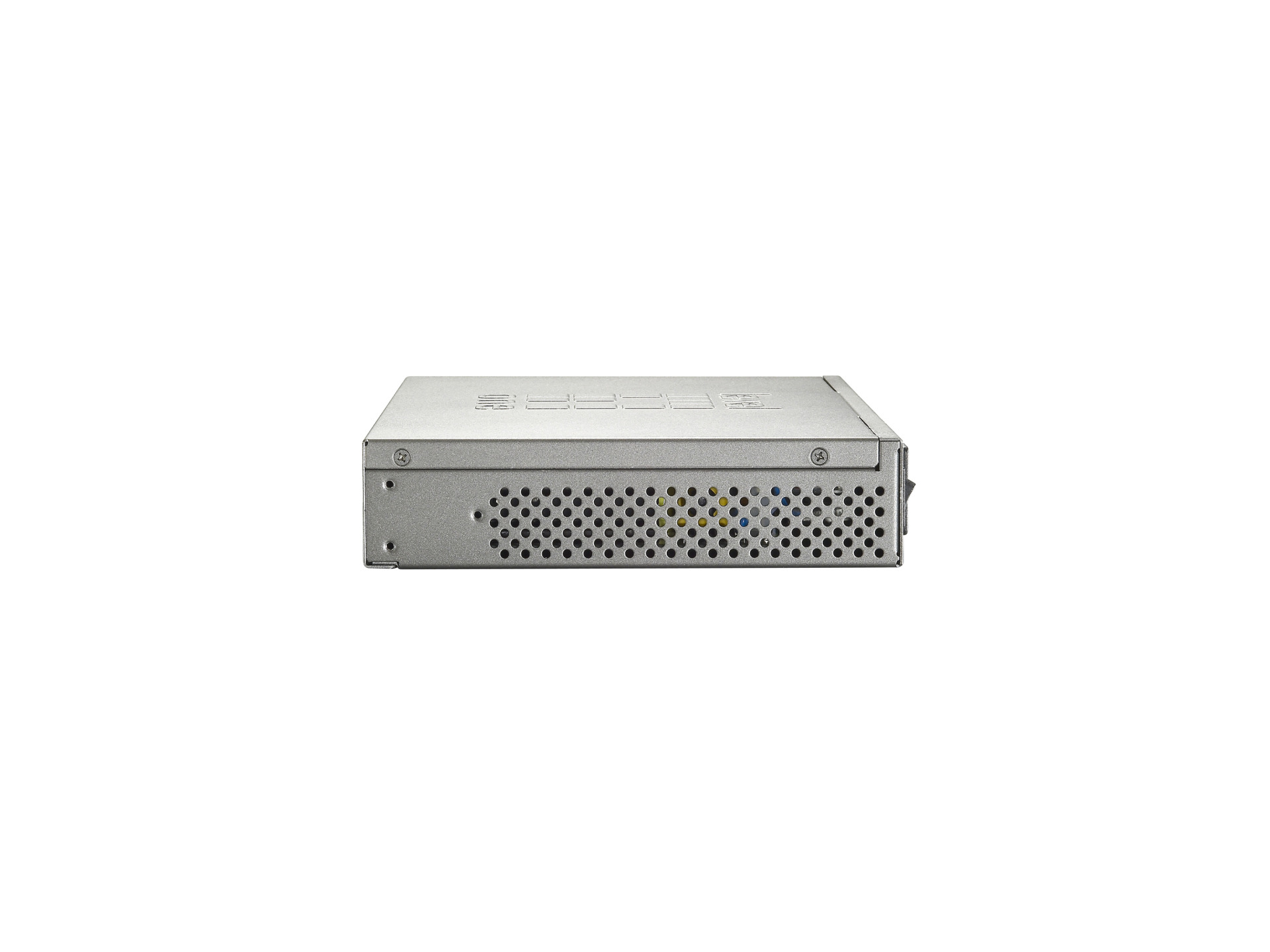

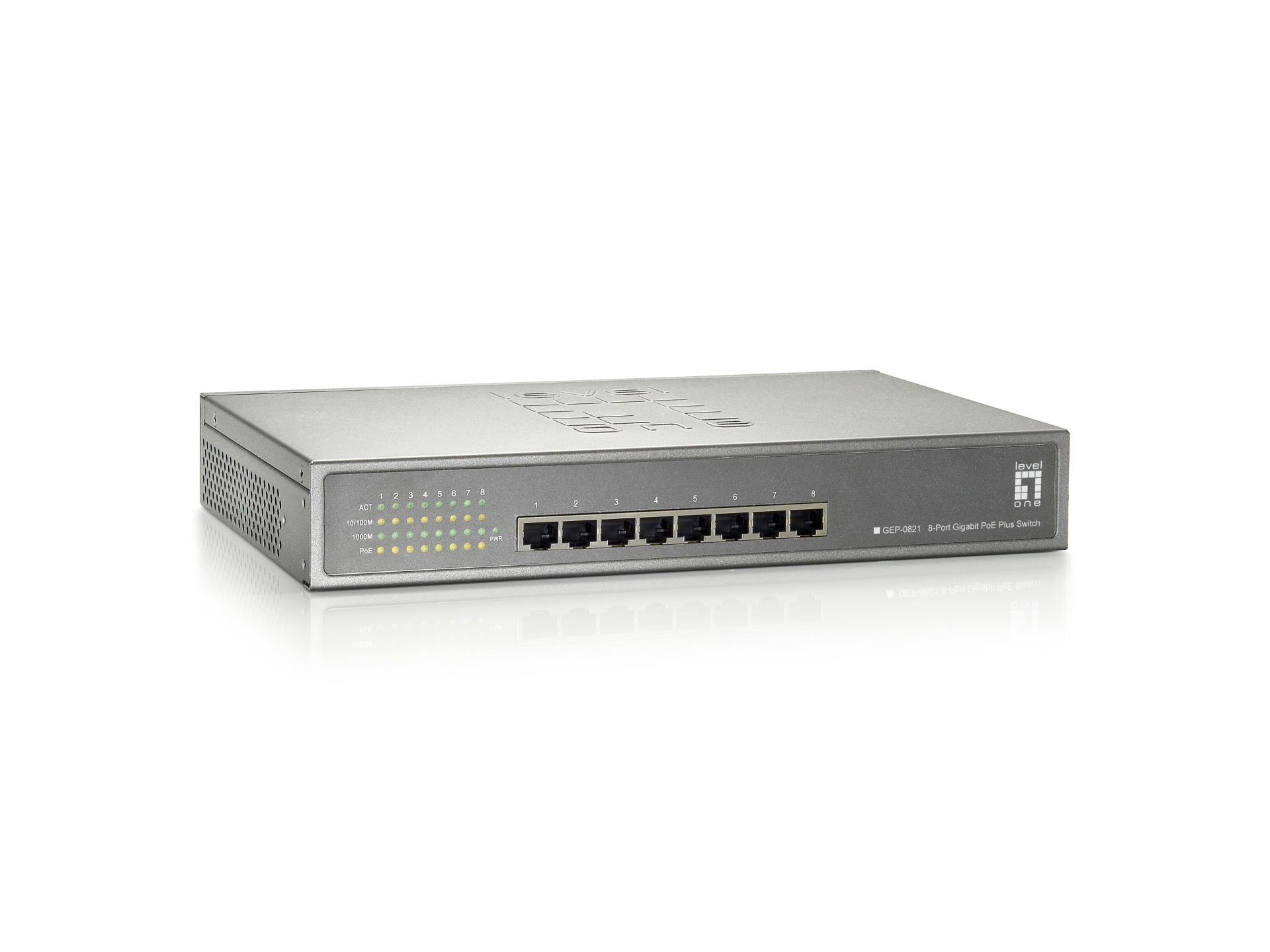

GEP-0821, 8-Port Gigabit Ethernet PoE+ Switch (123.2W)
8-Port Gigabit Ethernet PoE+ Switch (123.2W)
Item number:
GEP-0821
EAN no.:
4015867163849
Product information for 8-Port Gigabit Ethernet PoE+ Switch (123.2W)
The LevelOne GEP-0821 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 123.2W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an affordable solution for PoE deploying infrastructure.
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 185.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 44.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of 10/100/1000 Mbps RJ45-Ports: | 8 |
| Number of ports PoE: | 8 |
| PoE Port: | 8 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 280.0 mm |
