Outdoor cable A-DQ(ZN)B2Y OM3 12G (1x12)
A-DQ(ZN)B2Y OM3 12G (1x12),Fca 3000N PE black 8.5mm
Item number:
55212.3OM3-SA
Product information for A-DQ(ZN)B2Y OM3 12G (1x12),Fca 3000N PE black 8.5mm

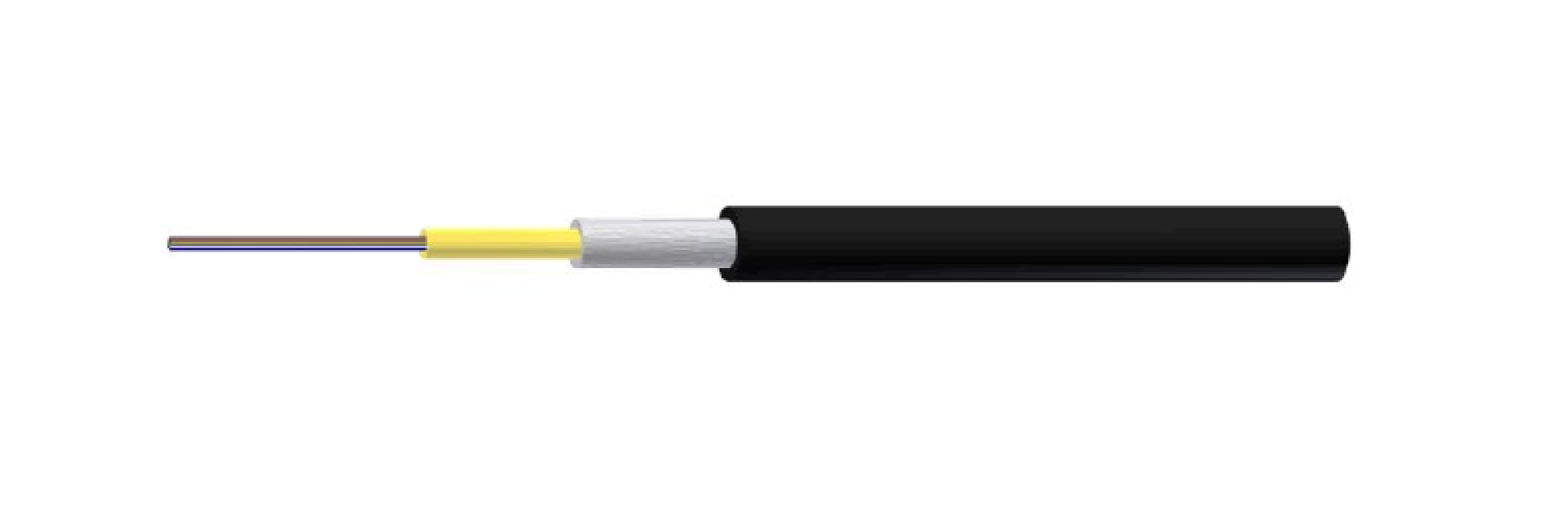

Cable for external laying in pipes or cable ducts

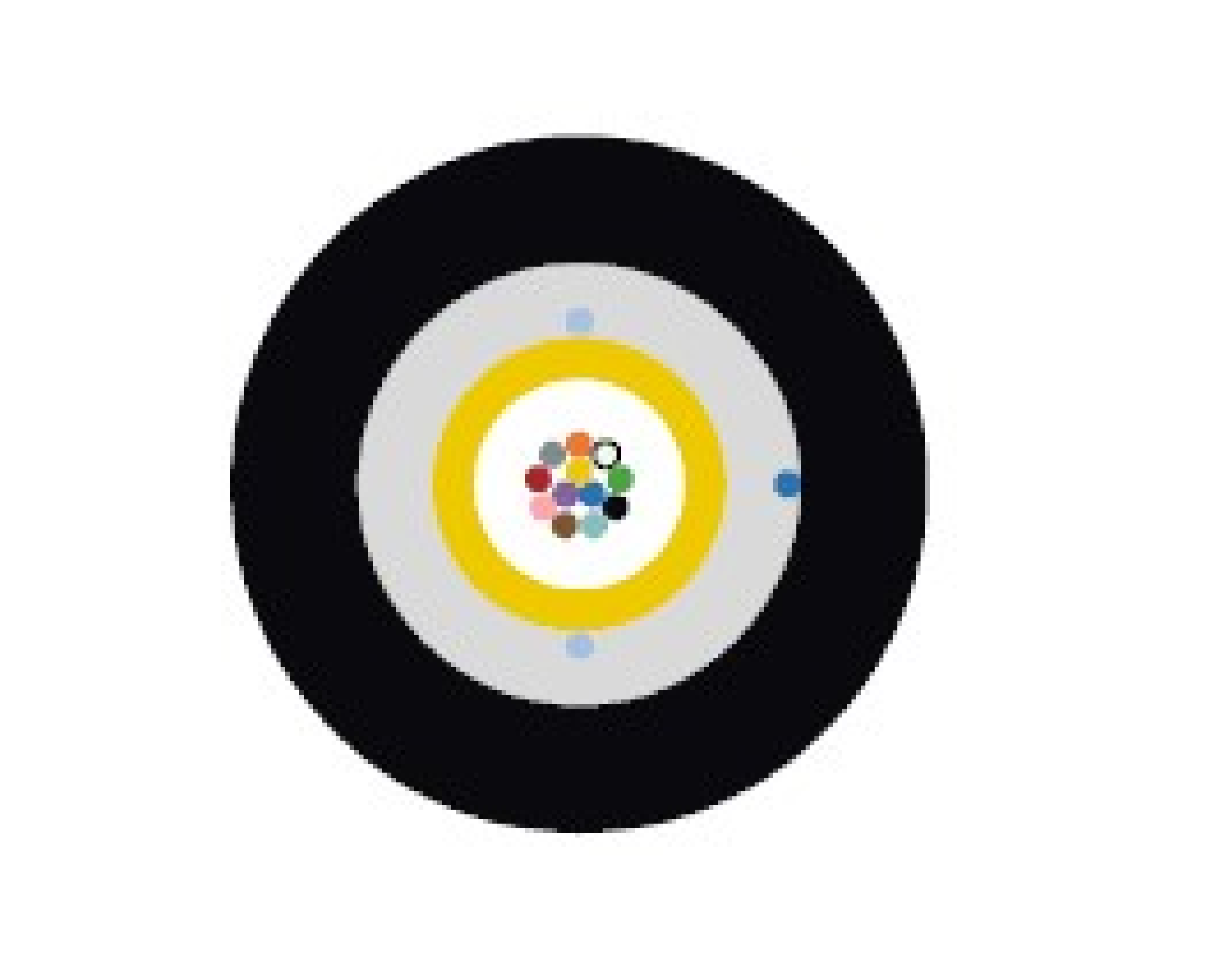

Up to 24 color-coded optical fibers in a gel-filled central loose tube
Swelling elements to achieve longitudinal watertightness
Glass rovings as reinforcement and increasing tensile force
Optional tear thread for opening the cable jacket
Outer jacket made of black polyethylene, UV and weather resistant
The cable diameter may vary
Up to 24 color-coded optical fibers in a gel-filled central loose tube
Swelling elements to achieve longitudinal watertightness
Glass rovings as reinforcement and increasing tensile force
Optional tear thread for opening the cable jacket
Outer jacket made of black polyethylene, UV and weather resistant
The cable diameter may vary
Technical properties
| Application: | Outside |
|---|---|
| Colour outer sheath: | black |
| Crush resistance: | 2000 N/dm |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Jacket Material: | Polyethylene (PE) |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 70 °C |
| Temperature Range (Storage): | -30 – 70 °C |
| Type of tube: | Central tube |
Variants
| Item no. | Name | Number of fibres | Construct | Category | Brandlast | VDE-Bezeichnung | Kabel Ø | Zugkraft Verlegung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|
| 55212.3OM3 | A-DQ(ZN)B2Y OM3 12G (1x12),Fca 3000N PE black 8.5mm | 12 | 12G ( 1 x 12 ) Multimode OM3 | OM3 | 1,7 MJ/m | A-DQ(ZN)B2Y | 8,5 | 3000 N | 65 kg/km | |
| 55212.3OM3-SA | A-DQ(ZN)B2Y OM3 12G (1x12),Fca 3000N PE black 8.5mm | 12 | 12G ( 1 x 12 ) Multimode OM3 | OM3 | 1,7 MJ/m | A-DQ(ZN)B2Y | 8,5 | 3000 N | 65 kg/km |
