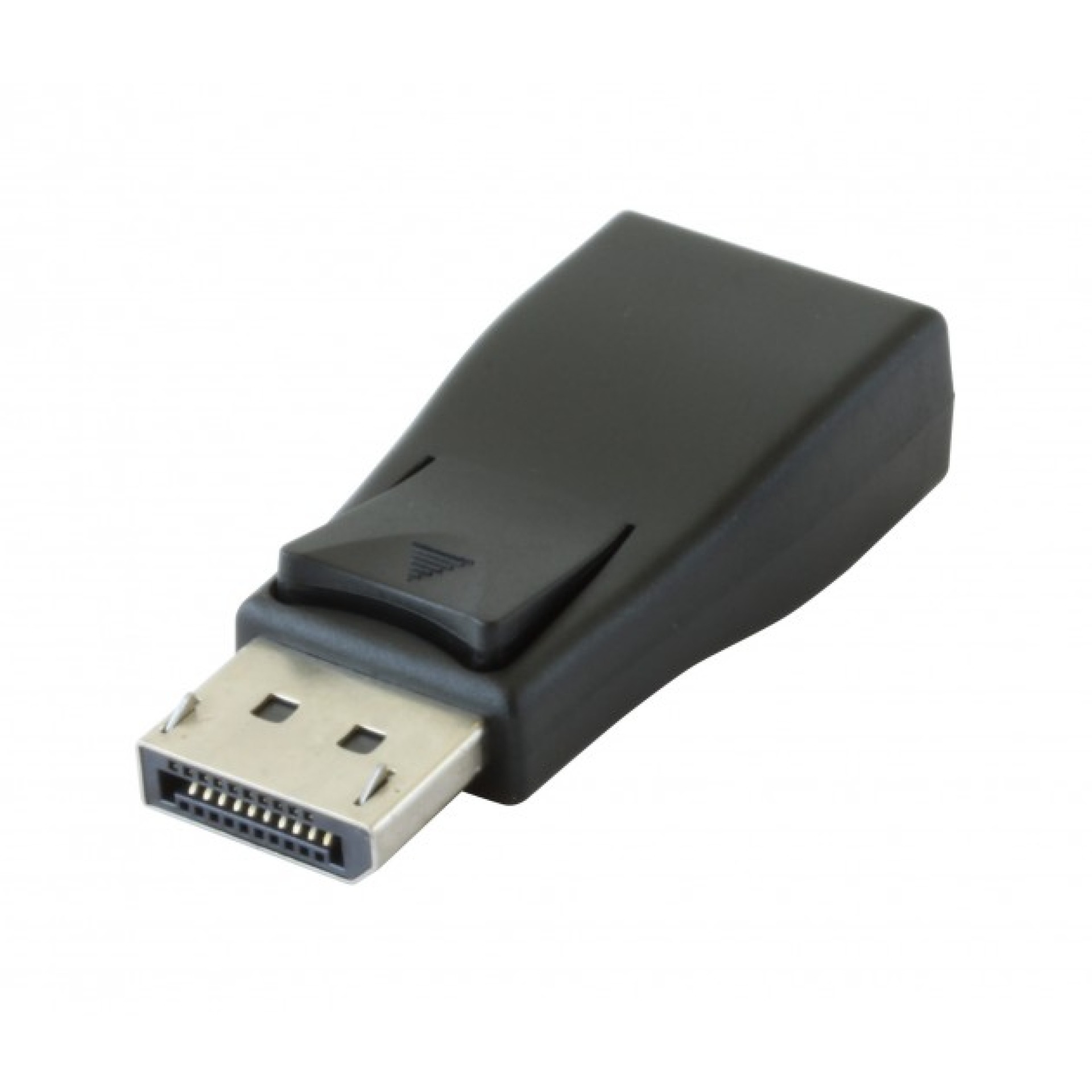

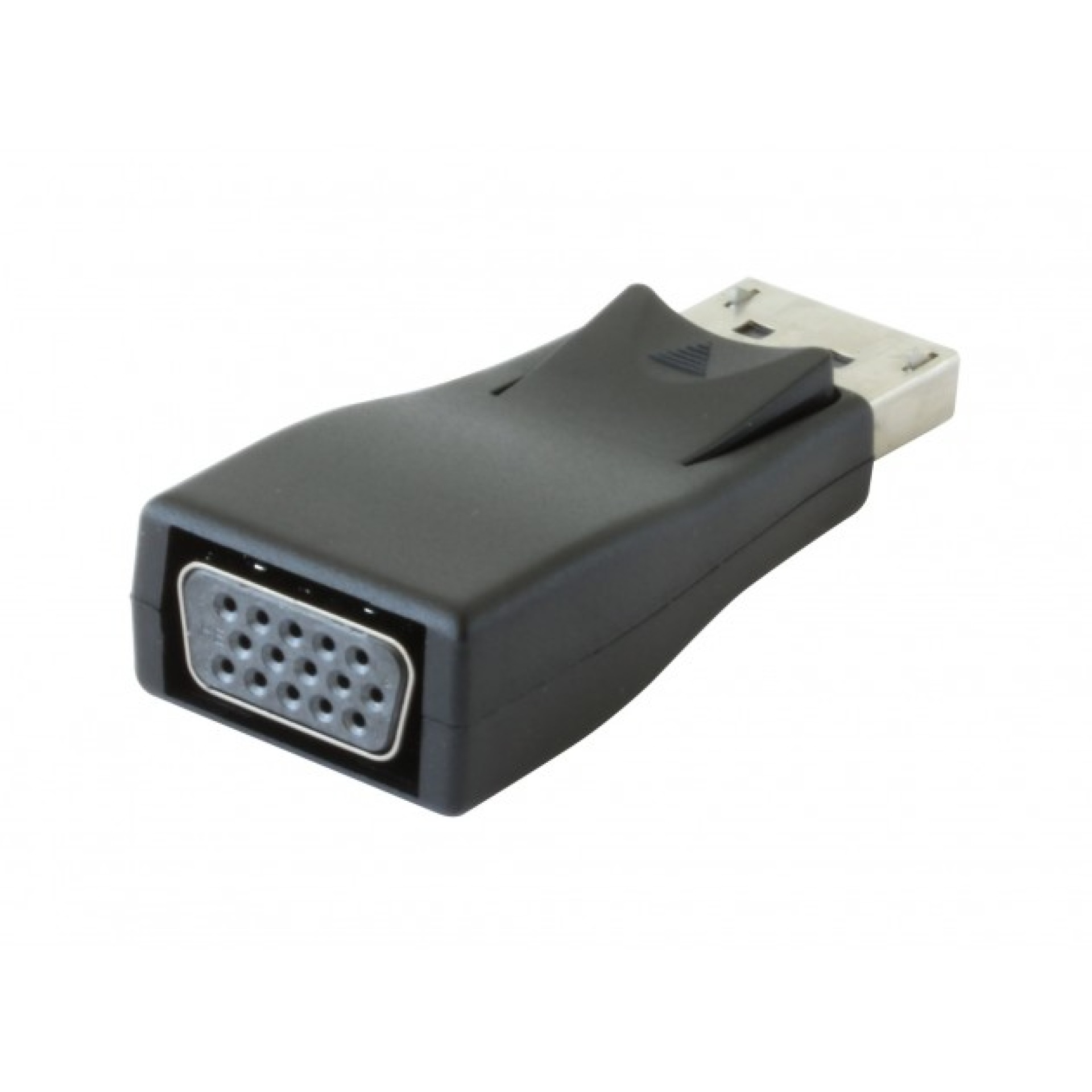

Adapter - DisplayPort 1.2 male to VGA compact female

Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Adapter - DisplayPort 1.2 male to VGA compact female
Item number: IADAP-DSP-230T
EAN no.: 8051128105827
Piece
Log in as a customer
Description

Product information for Adapter - DisplayPort 1.2 male to VGA compact female

  • DisplayPort to VGA converter to interface the new generation of PCs and notebooks equipped with DisplayPort to conventional VGA monitor as CRT, LCD and projectors

    • Technical Specifications
  • Compatible with VESA DisplayPort 1.2 standard with backward compatibility 1.1a
  • Compatible with VESA and DP v1.3 standard
  • 2 lanes of high speed differential input with configurable speed: 1.62Gbps or 2.7Gbps
  • Supports Spread Spectrum (SSC)
  • Supports resolution with pixel rates up to180MHz
  • Supports resolutions up to WUXGA (1920x1200@60HZ@60Hz reduced blanking, 24bpp)
  • VGA VESA compliant VSIS V1R2 clock jitter specification
  • Sleep mode and low-consumption automatic connection and disconnection of the monitor
  • Supports DDC
  • EDID pass-through from PC source to display
  • Wide Spread Spectrum (de-spreading) for EMI reduction
  • Operates at low power consumption - Active 400mW, standby mode 12mW
  • Display resolution: 1920x1200 (WUXGA-R), 60Hz, 8bpc: 154MHz, 1920x1080P, 60Hz, 10bpc: 144MHz
  • Vertical Frequency Range: 50 / 60Hz
  • Video Bandwidth: 162MHz mechanical
  • Colour: Black

    • Connections
  • DisplayPort Male for connection to the source
  • VGA F to connect to monitors with VGA Cable M / M (If you use the DisplayPort Coupler F / F, please use a DisplayPort cable with 20-pin connected)

    • Dimensions
  • Dimensions (L x W x H): 54 x 23 x 12 mm

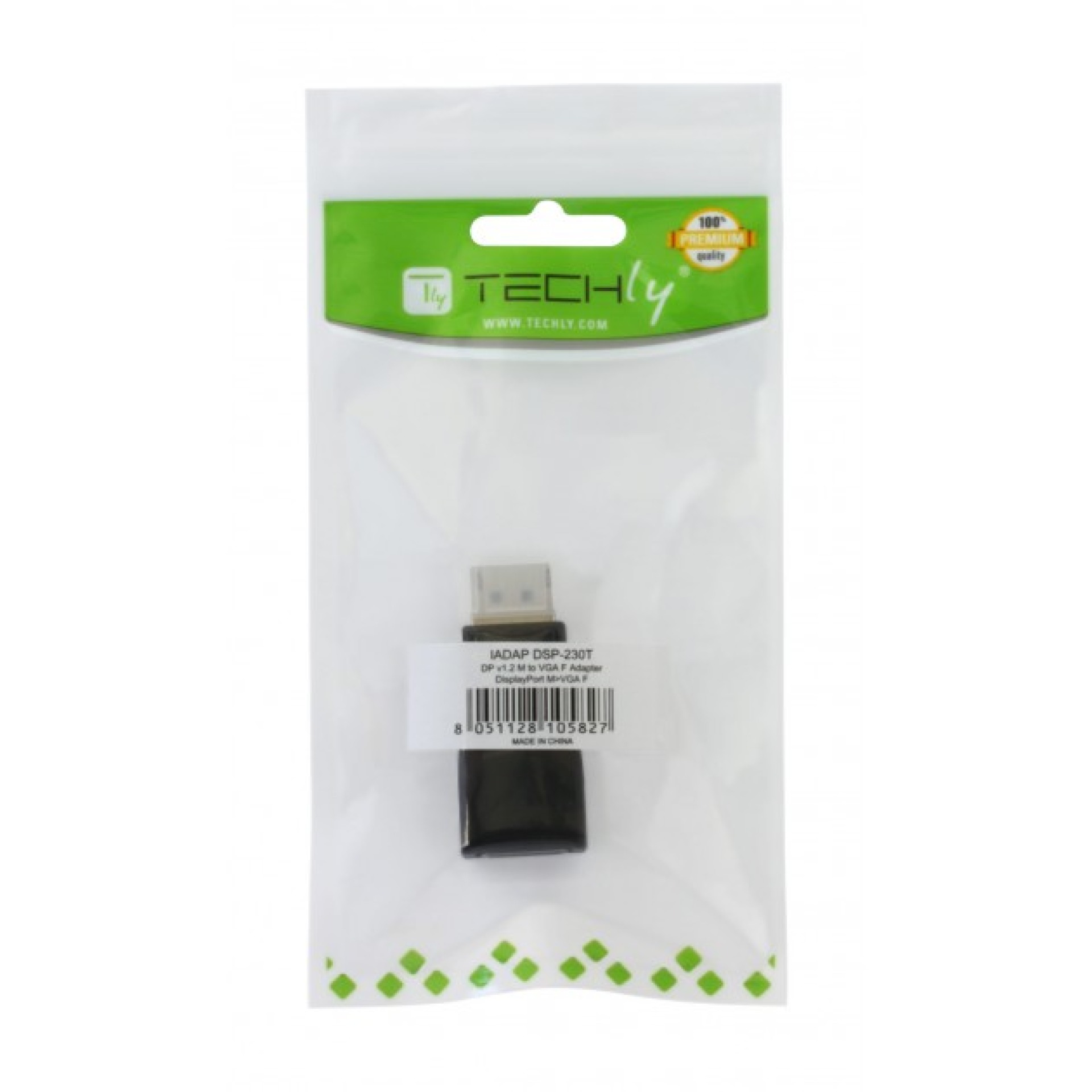

    • Package Contents
  • DisplayPort V.1.2 M to VGA F Adapter
    • Technical properties

    Technical properties

    Connection type connection 1: jack
    Connection type connection 2: plug
    Type of connector connection 1: Other
    Type of connector connection 2: Other
