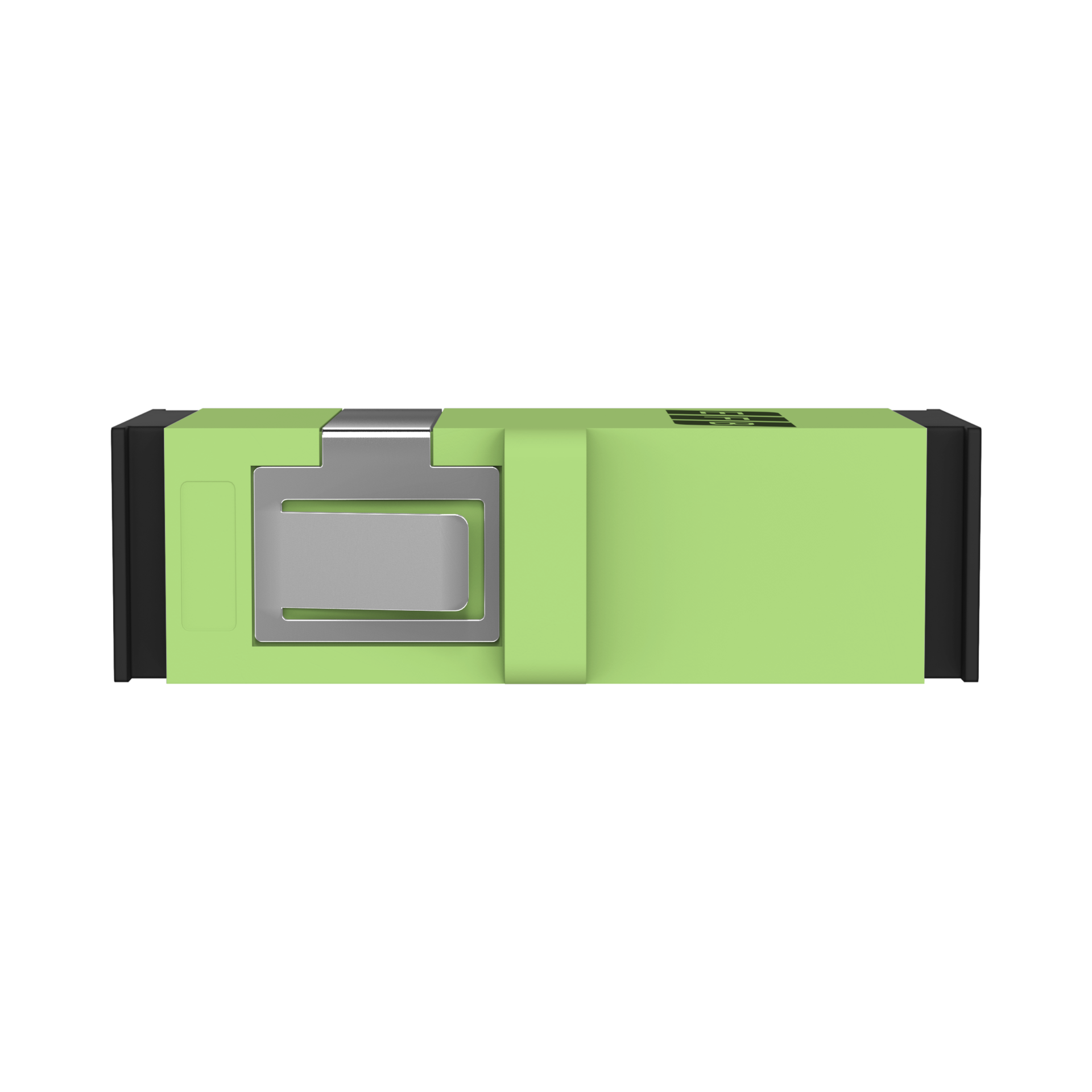

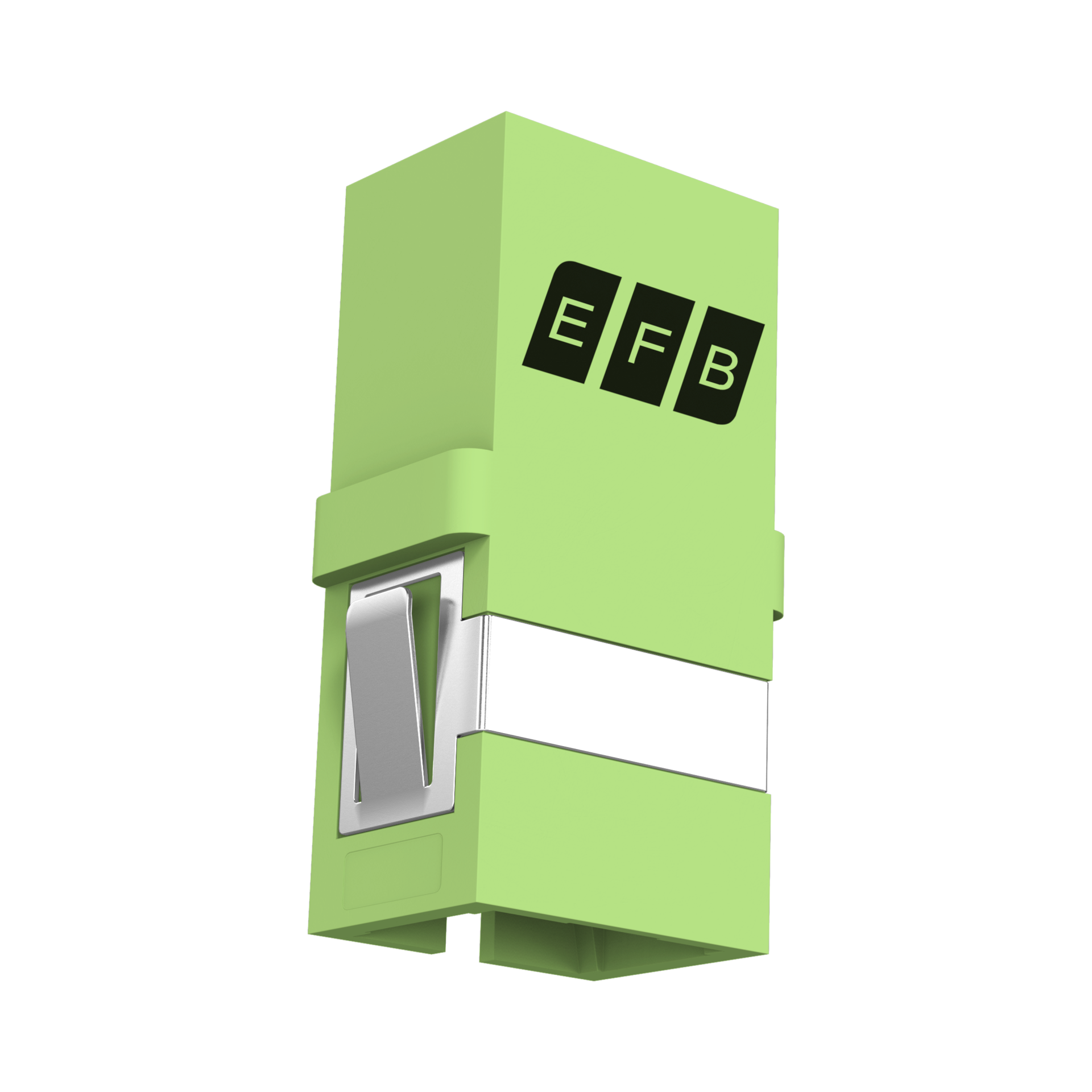

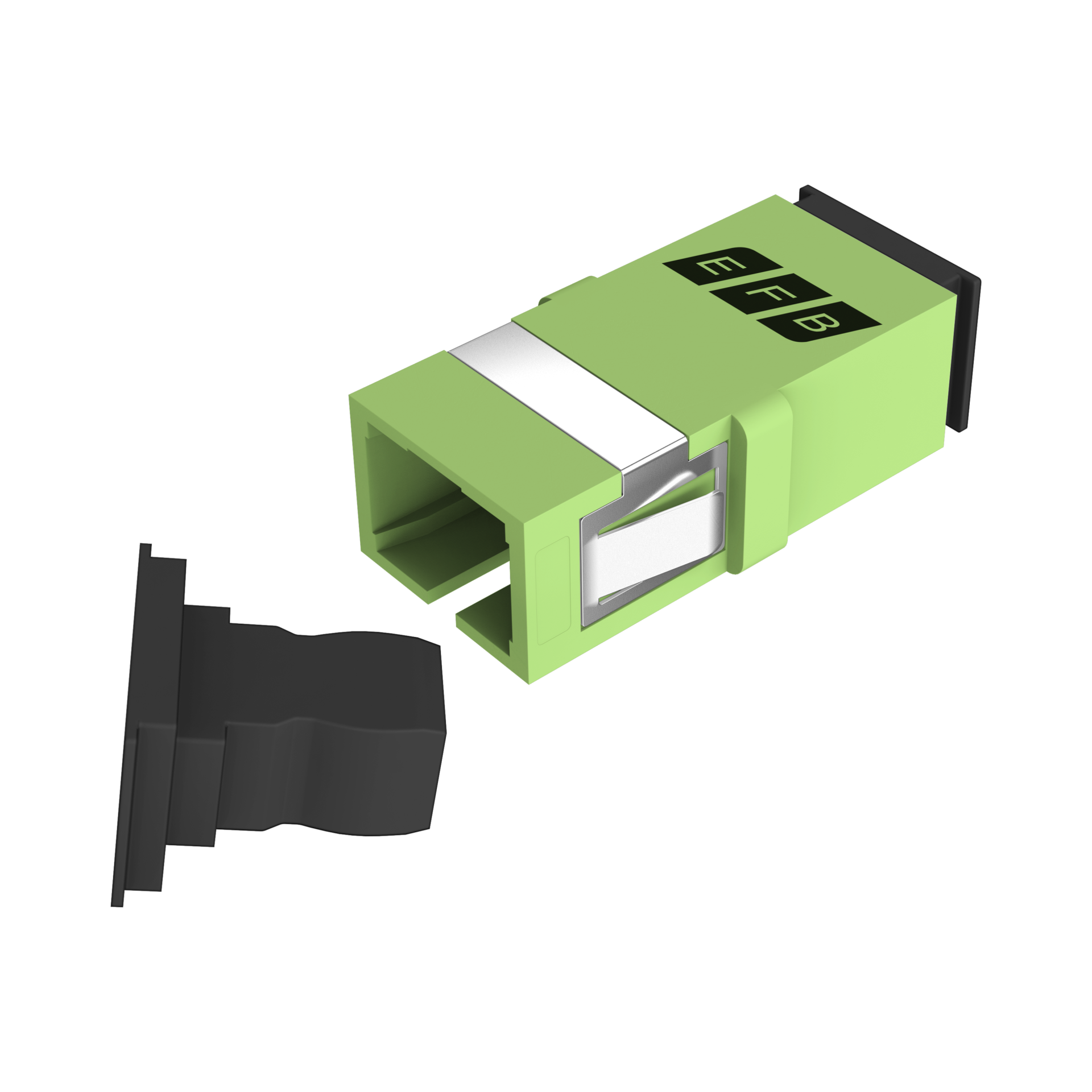

SC Simplex Adapter without flansch, Plastic housing
Adapter SC Simplex Adapter OM5 lime green flangeless
Item number:
53513.1OM5
EAN no.:
4049759224943
Product information for Adapter SC Simplex Adapter OM5 lime green flangeless
• Flangeless adapter are good for high density and could be used as keystone modules
in consumption with keystone adapter frames
in consumption with keystone adapter frames
Technical properties
| Conform to Standard: | IEC61754-4 |
|---|---|
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.2 mm |
| Internal Shutter: | False |
| Length: | 27.5 mm |
| Material housing: | plastic |
| Material sleeve: | ceramic |
| Operating Temperature: | -40 – 85 °C |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | SC |
| Type of connector connection 2: | SC |
| Type of fastening: | snap-in |
| Type of housing: | flangeless |
| Width: | 14.7 mm |
