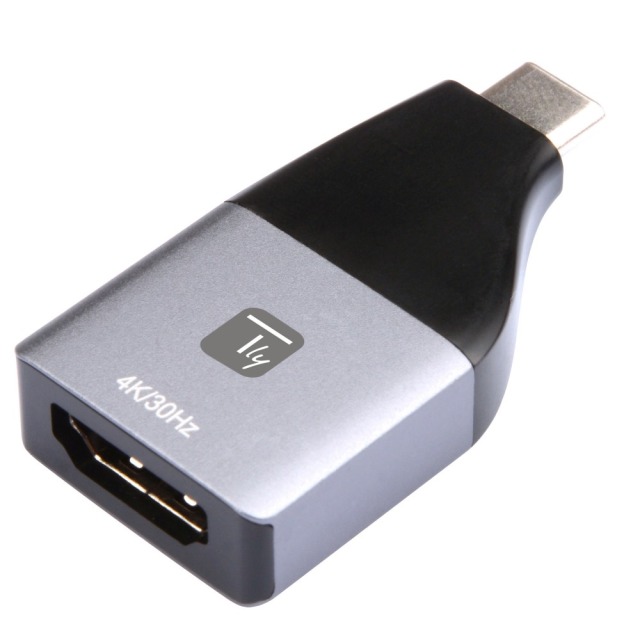

Adapter USB-C M to HDMI F 4Kx2K 30Hz
Adapter USB-C M to HDMI F 4Kx2K 30Hz
Item number:
IADAP-USBC-HDMI4K
Product information for Adapter USB-C M to HDMI F 4Kx2K 30Hz

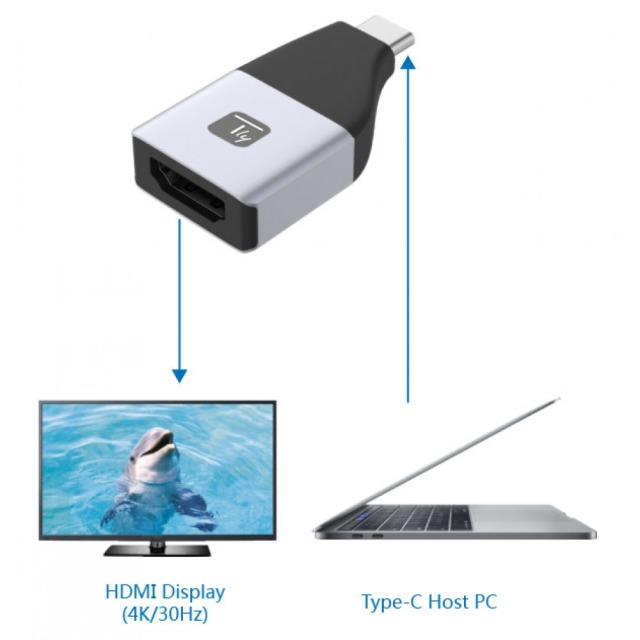

IADAP USBC-HDMI4K is a USB-C™ to HDMI adapter which allows you to transmit signals from your host PC to an HDMI monitor. This adapter enables to output HDMI video with max resolution 4k/30Hz. It can work on all USB-C™ and Thunderbolt™ 3 host that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Features
Input connector: male USB-C™
USB-C™ supports DP1.2 Alt mode
Output connector: HDMI
Supports:
HDMI max 4K/30Hz
6/8/10/12 bit color depth output
Output pixel format RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2
HDCP 2.2 and HDCP 1.4
Technical specifications
Input connector: male USB-C™
Output connector: female HDMI
HDMI resolution: 4Kx2K@30Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85% RH (without condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90% RH (without condensation)
Power Source: Bus Power
Dimensions: 40 x 23,1 x 9,6 mm
Certifications: FCC, CE
Package contents
USB-C™ to HDMI Adapter 4Kx2K@30Hz
Features
Input connector: male USB-C™
USB-C™ supports DP1.2 Alt mode
Output connector: HDMI
Supports:
HDMI max 4K/30Hz
6/8/10/12 bit color depth output
Output pixel format RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2
HDCP 2.2 and HDCP 1.4
Technical specifications
Input connector: male USB-C™
Output connector: female HDMI
HDMI resolution: 4Kx2K@30Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85% RH (without condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90% RH (without condensation)
Power Source: Bus Power
Dimensions: 40 x 23,1 x 9,6 mm
Certifications: FCC, CE
Package contents
USB-C™ to HDMI Adapter 4Kx2K@30Hz
Technical properties
| Connection 1: | USB-C |
|---|---|
| Connection 2: | HDMI (HDMI-A) |
| Connection type connection 1: | plug |
| Connection type connection 2: | jack |
| screened: | True |
