Audio Extractor HDMI SPDIF + RCA R/L
Audio Extractor HDMI SPDIF + RCA R/L
Item number:
IDATA-HDMI-EA
EAN no.:
8054529025732
Product information for Audio Extractor HDMI SPDIF + RCA R/L
IDATA-HDMI-EA lets you extract the audio signal from the HDMI source and convert it to analog RCA SPDIF + R / L audio.

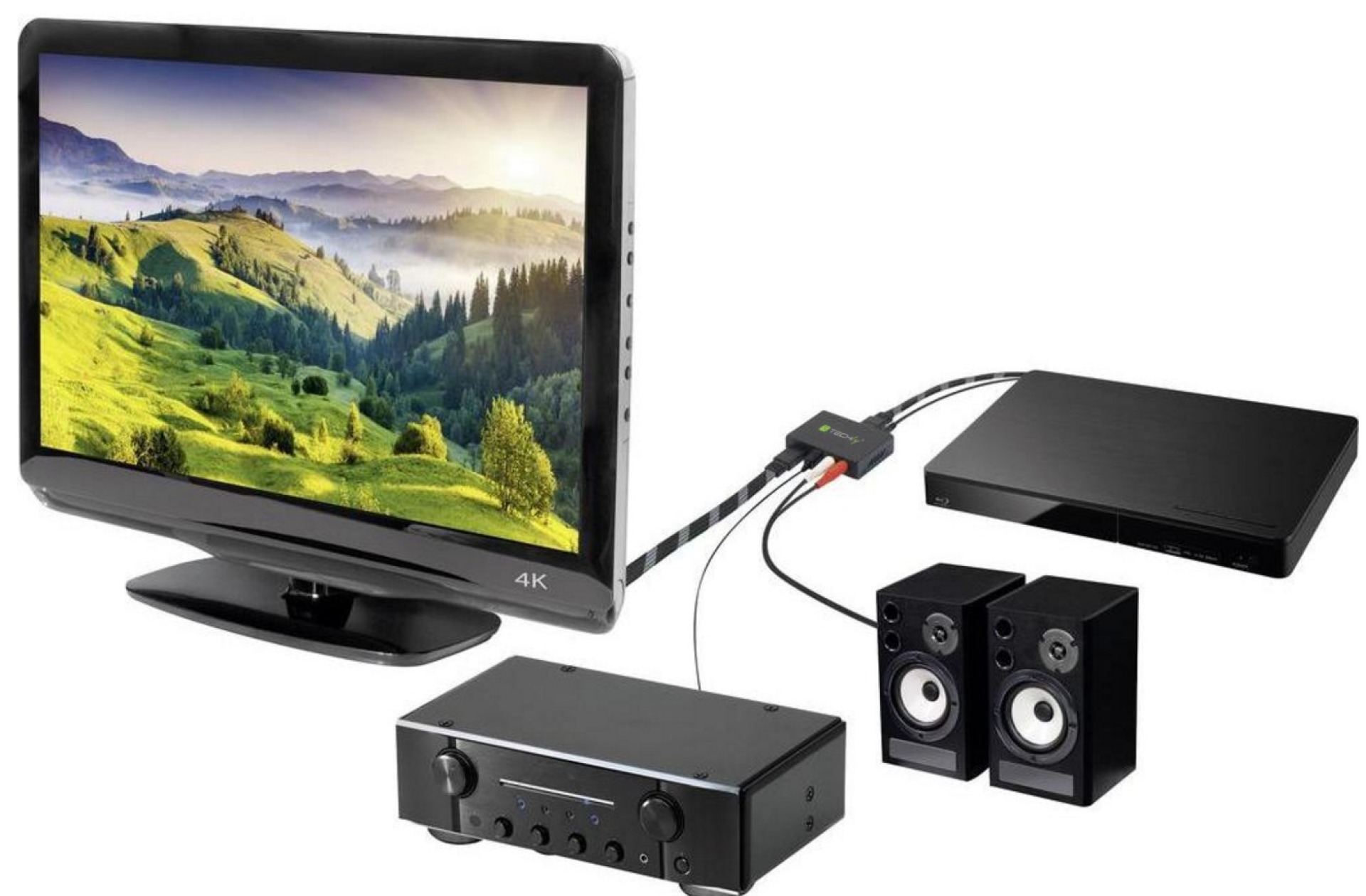

It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signals to external speakers.

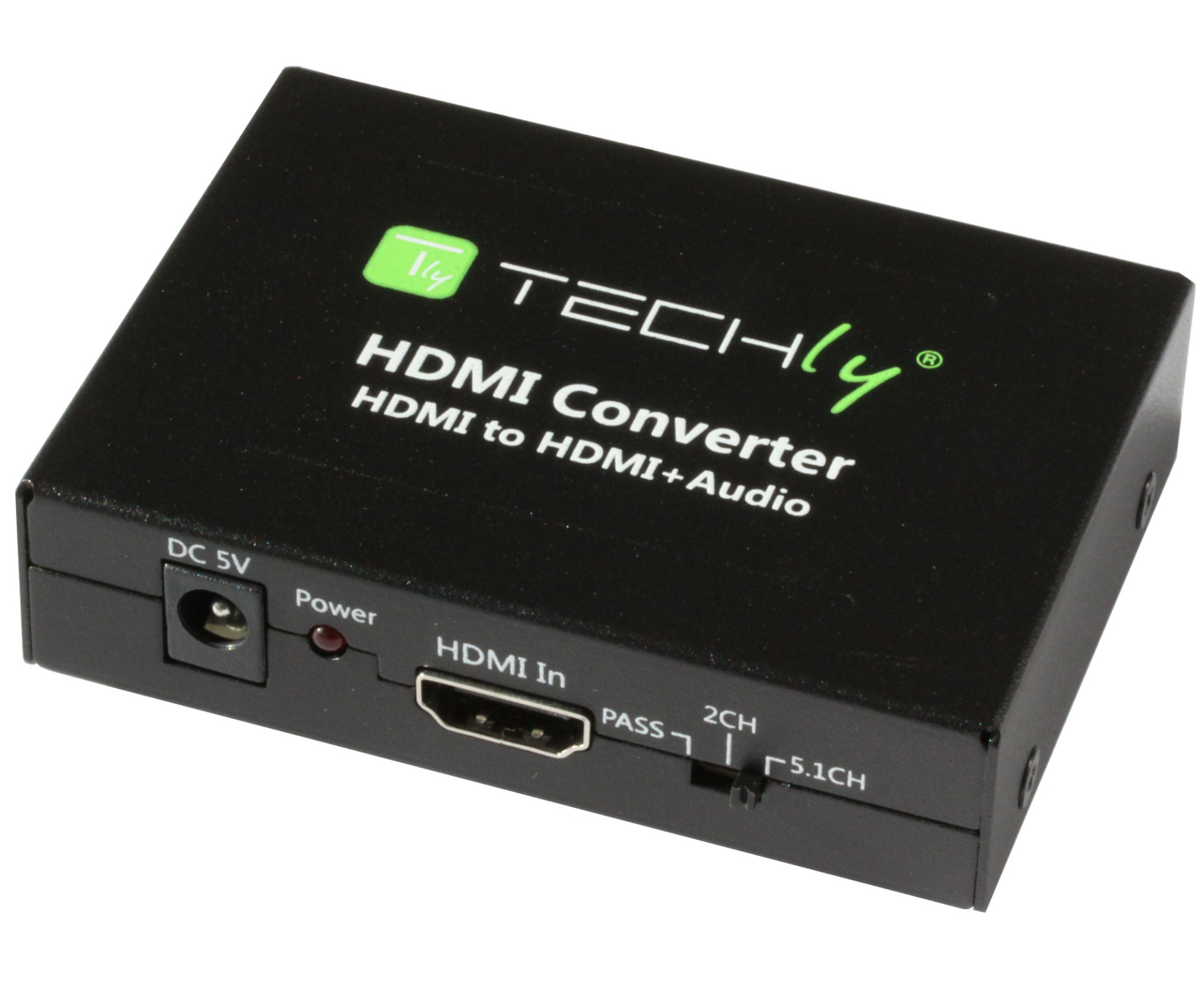

Sound mode
• ADV: The HDMI signal (audio + video) is simply looped-through via the device, no division is made between video and audio
• 2.0CH: the HDMI signal is converted to Toslink and RCA (stereo, R / L)
• 5.1CH: conversion according to Toslink 5.1 (Dolby Digital 5.1)
Features
• Separates by the HDMI audio signal and provides the separately
• HDMI audio conversion Toslink and RCA audio (R / L)
• The HDMI video signal is looped-through output devices
• Supports resolutions up to 1080p (50 / 60Hz)
• With LED activity indicator
• Quick installation
• 5V 1A power supply included
Technical Specifications
• HDMI Resolution: 24/50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
• Color video format supported: 24bit deep color 30bit, 36bit

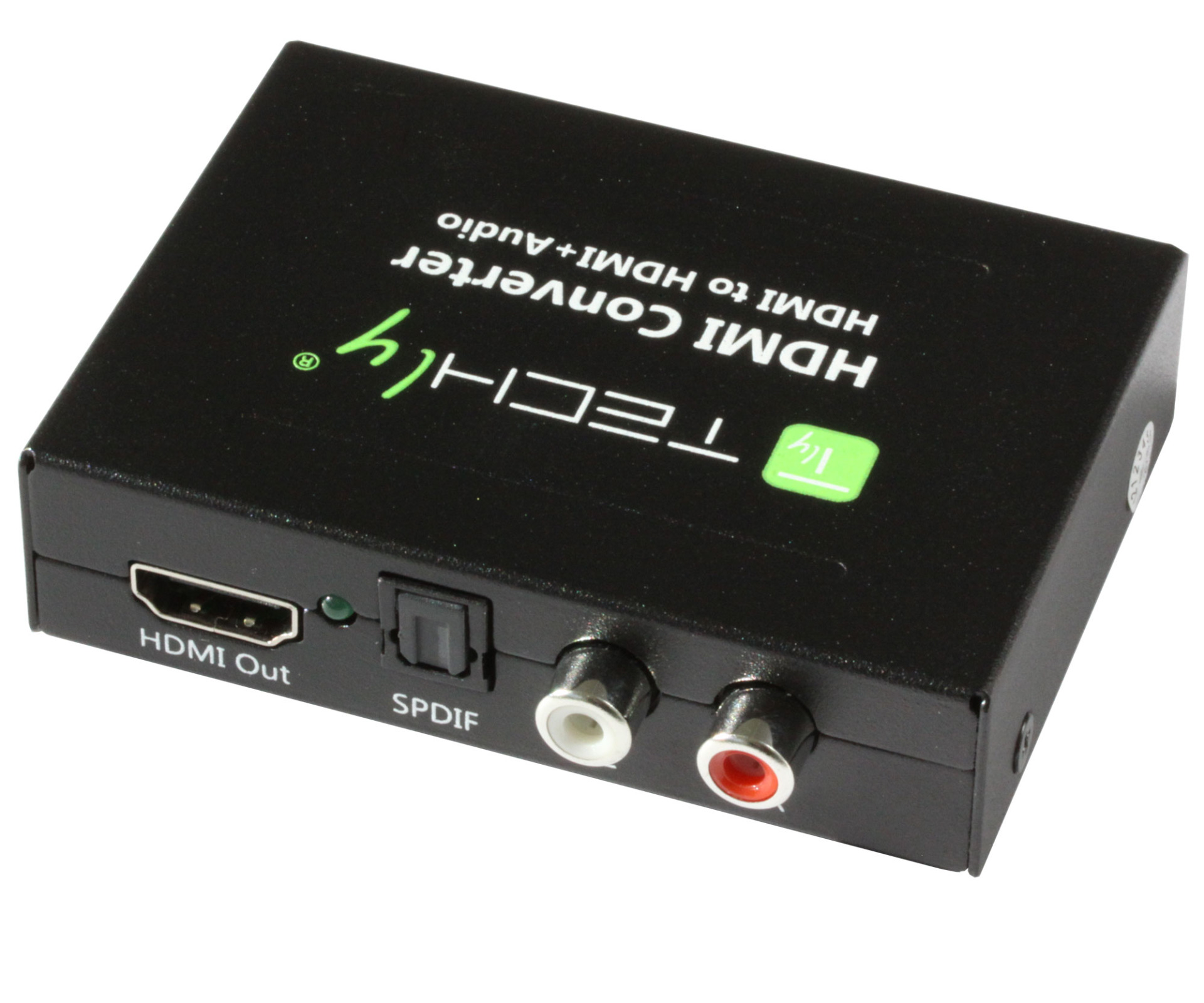

• Audio Outputs: L / R + SPDIF
• Video bandwidth: 225MHz / 6.75Gbps
• HDMI input cables Distance: ≤15m AWG26
• HDMI output cable distance: ≤ 20m AWG26
• Maximum Operating Current: 500mA
Power Supply
• Input: AC (50 / 60Hz)
• 100V-240V
• Output: DC5V / 1A
Environmental Features
• Operating temperature: -15 / +55 ° C
• Operating Humidity: 5/90% non-condensing
Dimensions
• Width: 84.5 mm
• Depth: 61.8 mm
• Height: 21 mm
• Weight: 135 g
Certifications
• EC
• FCC
• WEEE
Package Contents
• Audio Extractor IDATA-HDMI-EA
• 5V 1A
• Information Sheet
