19'' Co-Location Racks PRO 800 x 1000 mm, F+R 1-Part

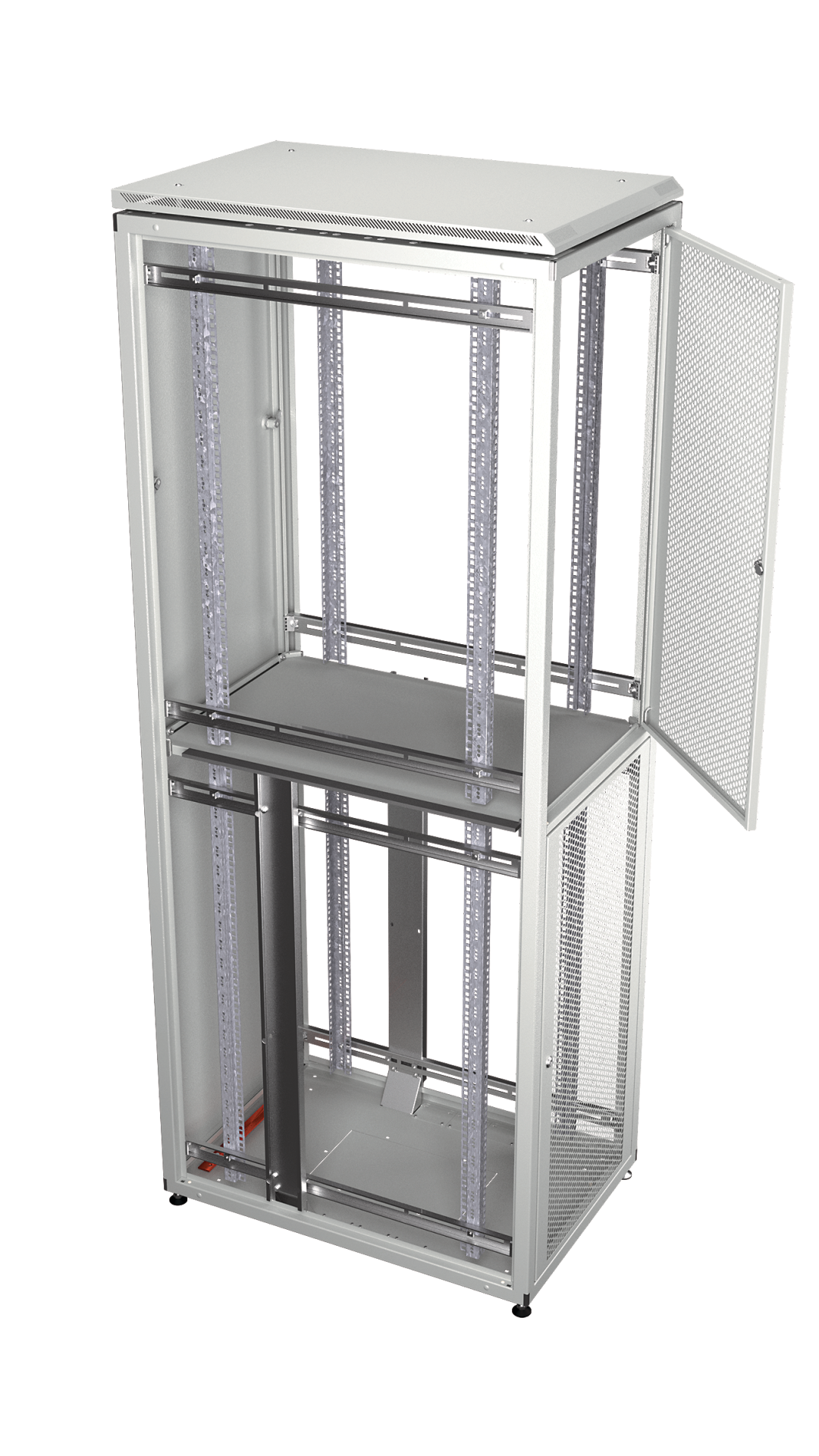

Co-Location Rack PRO, 2 x 20U, 800x1000 mm, F+R 1-Part Perforated, RAL9005
Item number:
PRO-CL2-4280TS.P1
EAN no.:
4049759259846
Product information for Co-Location Rack PRO, 2 x 20U, 800x1000 mm, F+R 1-Part Perforated, RAL9005
19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated

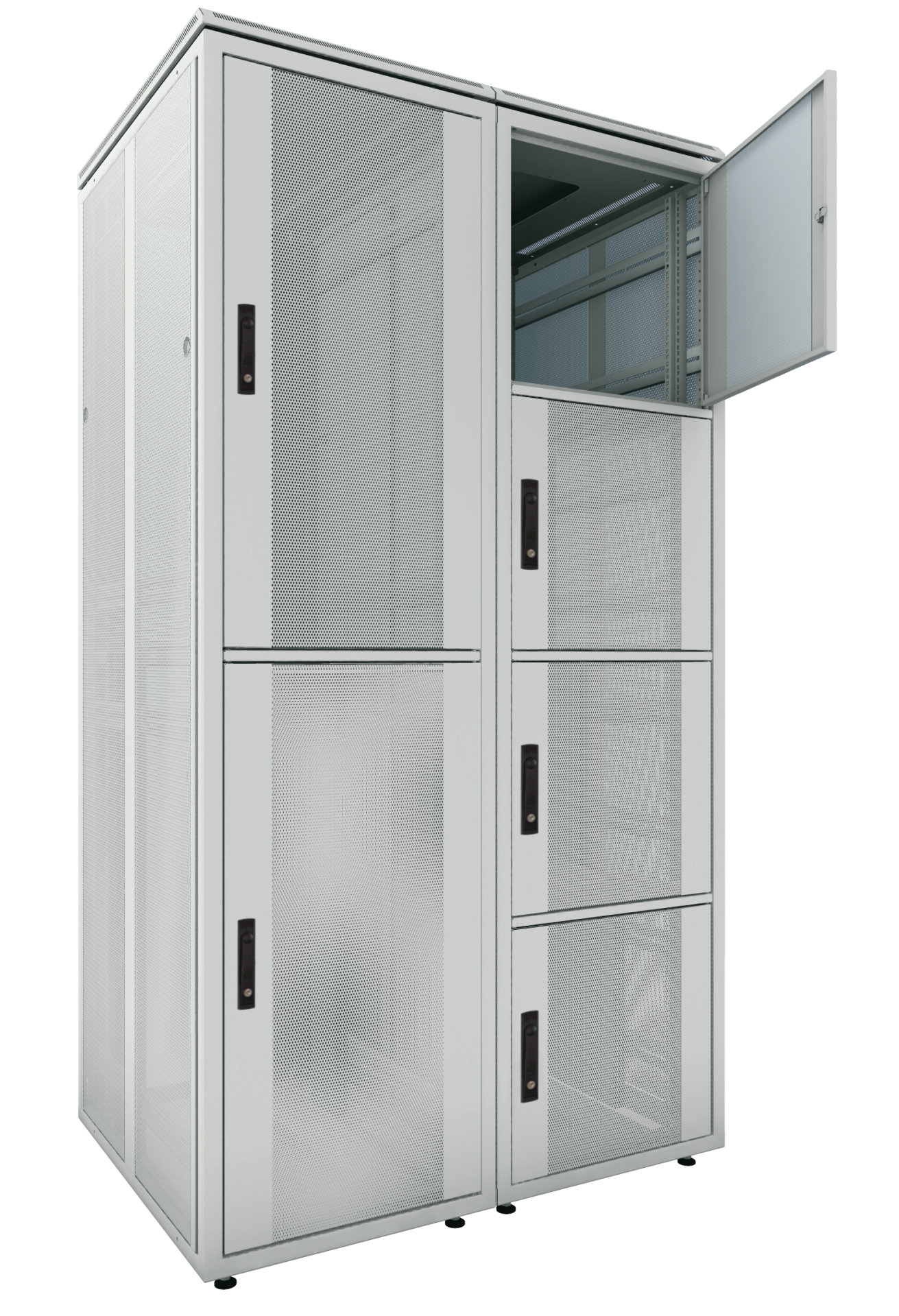

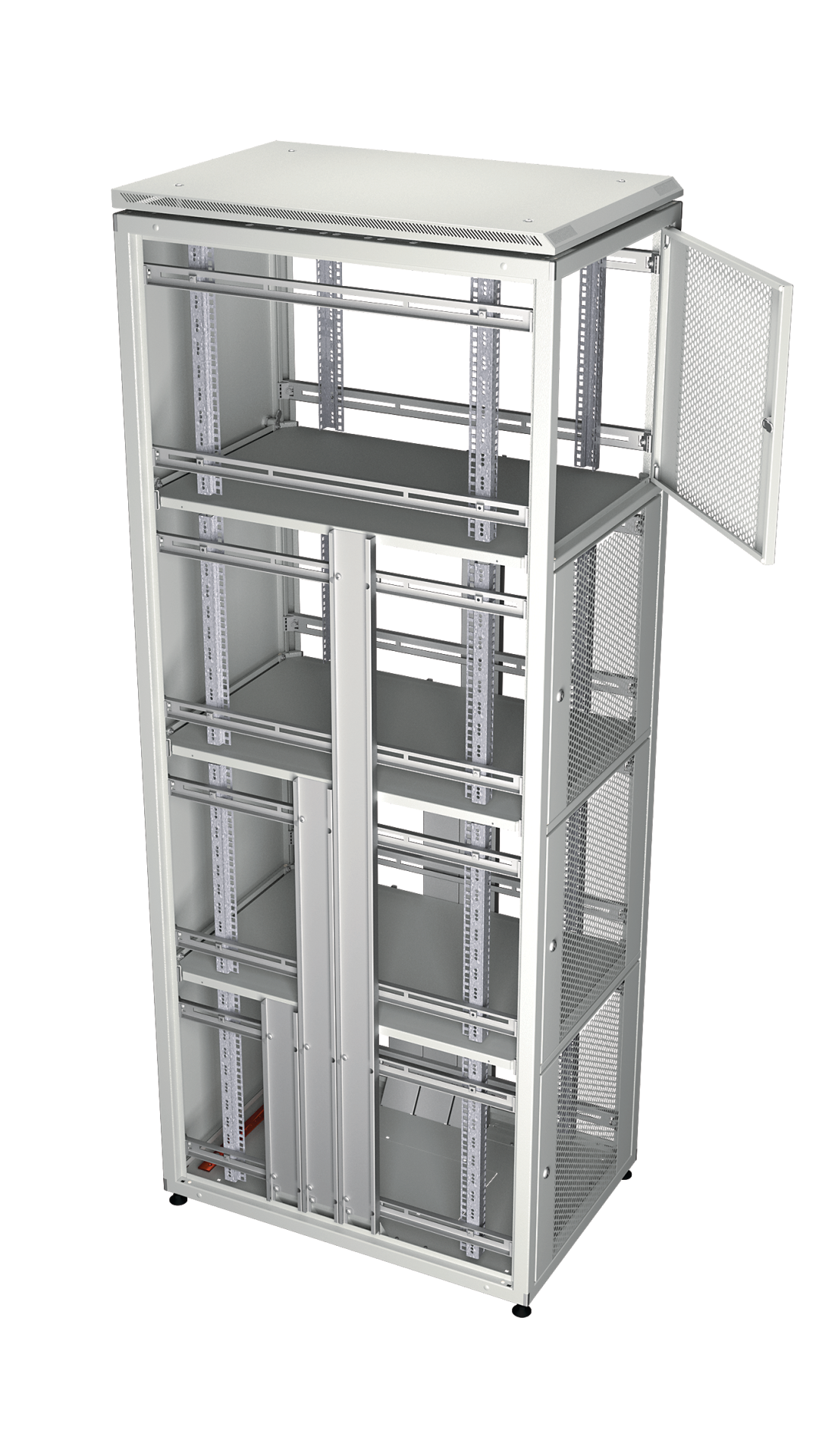

1, 2, 3 or 4 boxes for individual access

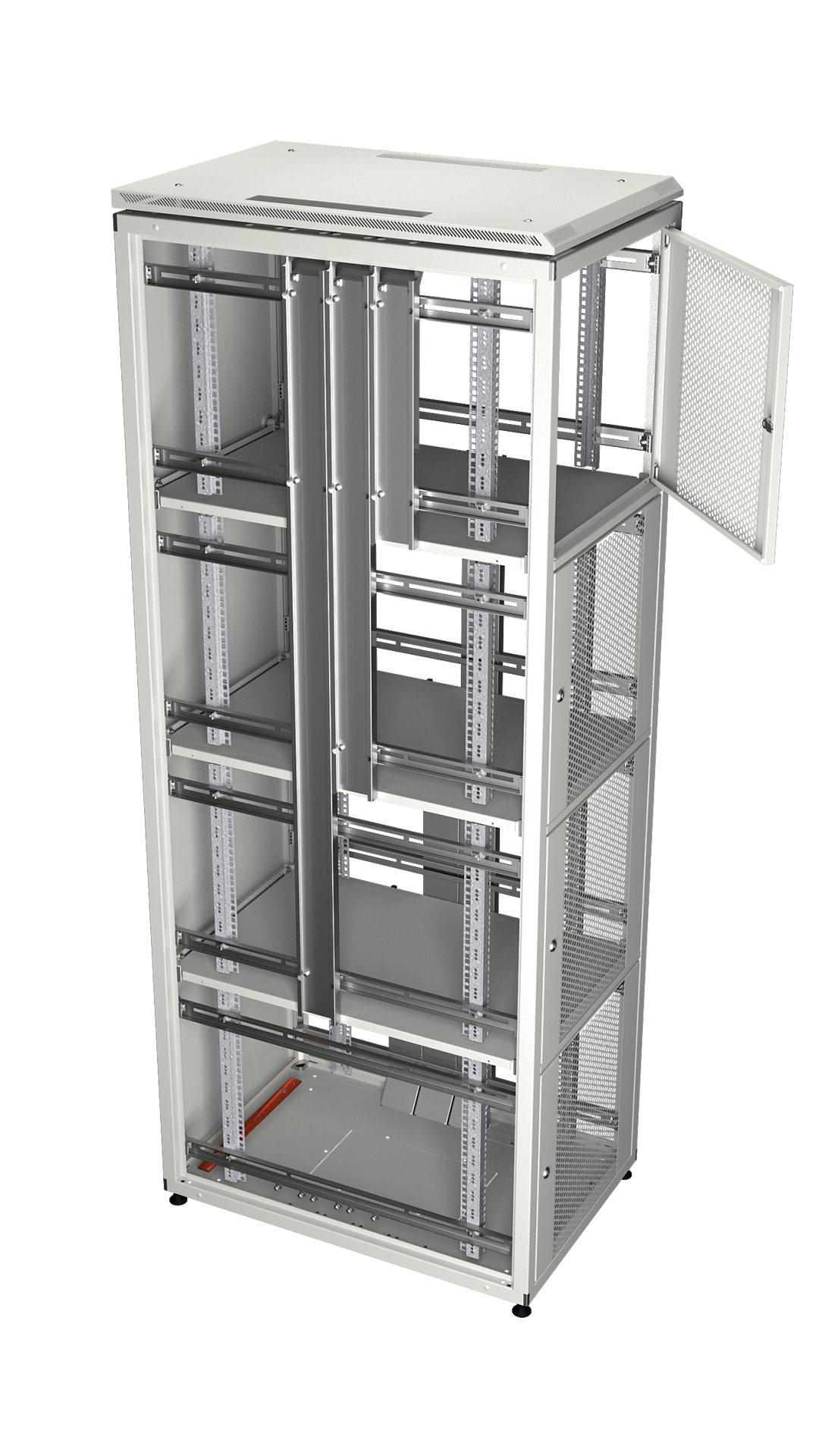

Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01

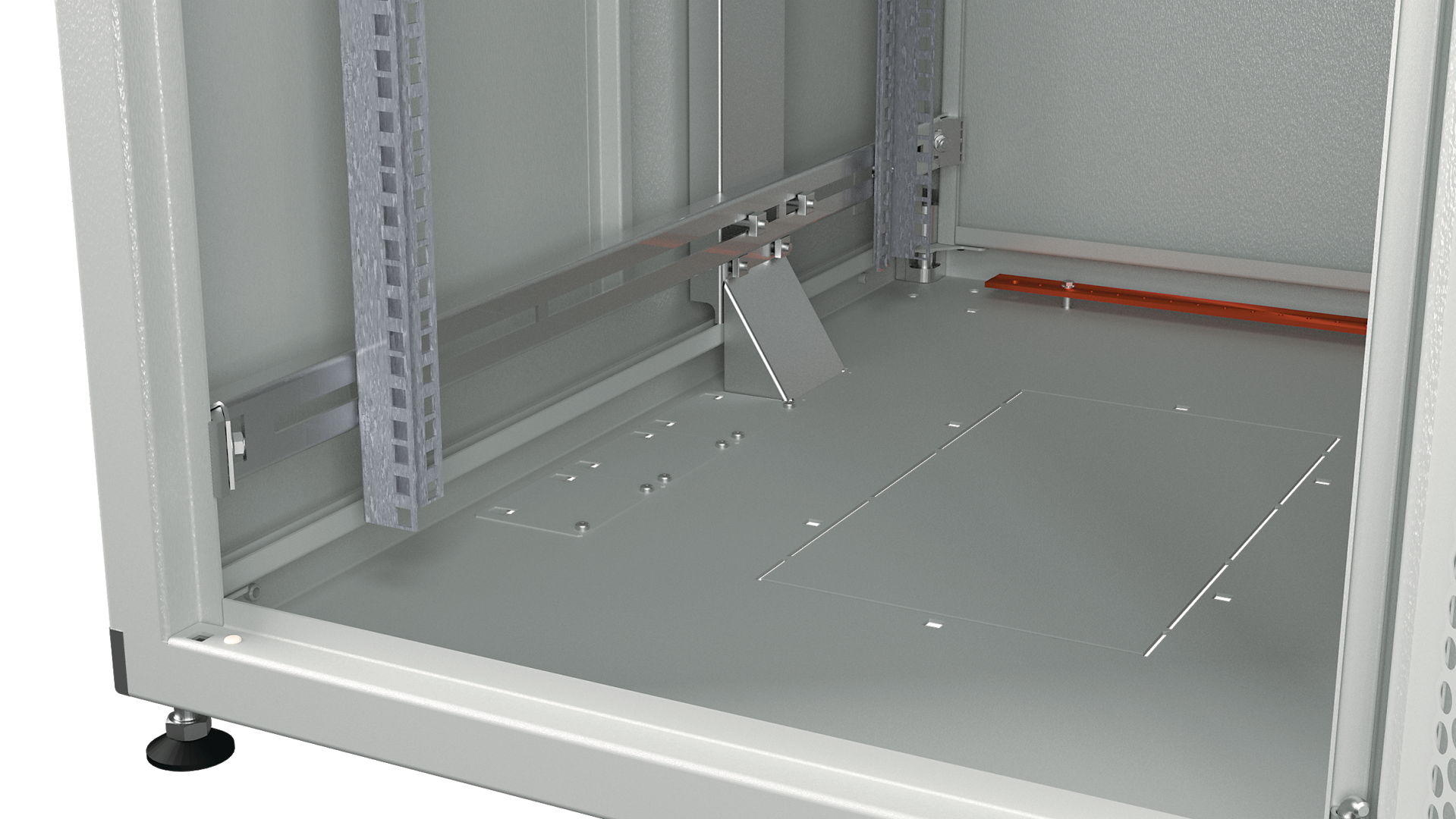

Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx

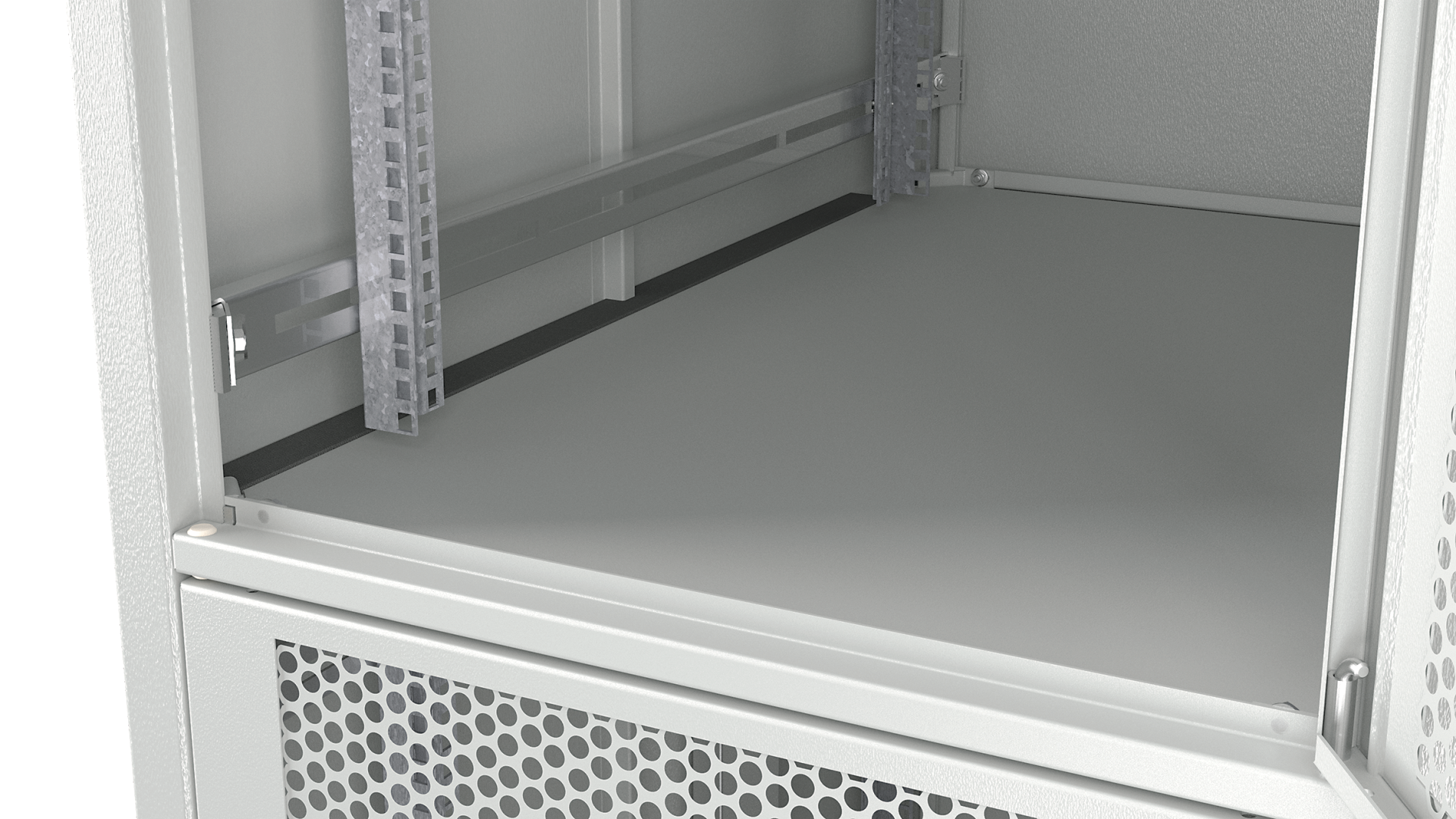

Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01
Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx
Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Technical properties
Cabinet Series: | PRO |
---|---|
Degree of protection: | IP20 |
Demountable: | True |
Material: | steel |
Model: | With permanent frame |
Modular spacing: | 482.6 mm (19 inch) |
Mounting level: | Front and rear |
Surface finishing: | Powder coating |
Type of back door: | Steel perforated 1-part |
Type of front door: | Steel perforated 1-part |
Type of profile rail: | Crank |
Type of ventilation: | Passive |
With backside door: | True |
With earthing: | True |
With front door: | True |
With roof plate: | True |
With sidewall: | True |
With socket: | False |
Variants
Item no. | Name | Depth | Width | Material rear door | Colour | Max. Load Capacity | Front door locking system | With vertical cable management | Material front door | Rear door locking system | Number of height units | Höhe | RAL-Nummer | Anzahl der Türen | Geeignete Lüfter | Anzahl der Boxen | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRO-CL1-4280TS.P1 | Co-Location Rack PRO, 1 x 42U, 800x1000 mm, F+R 1-Part Perforated, RAL9005 | 1000 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 1 x 42 U | 1963 mm | 9005 | 2 | PRO-LFD02BT.x | 1 | |
PRO-CL2-4280TS.P1 | Co-Location Rack PRO, 2 x 20U, 800x1000 mm, F+R 1-Part Perforated, RAL9005 | 1000 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 2 x 20 U | 1963 mm | 9005 | 4 | PRO-LFD02BT.x | 2 | |
PRO-CL3-4280TS.P1 | Co-Location Rack PRO, 3 x 13U, 800x1000 mm, F+R 1-Part Perforated, RAL9005 | 1000 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 3 x 13 U | 1963 mm | 9005 | 6 | PRO-LFD02BT.x | 3 | |
PRO-CL4-4280TS.P1 | Co-Location Rack PRO, 4 x 10U, 800x1000 mm, F+R 1-Part Perforated, RAL9005 | 1000 mm | 800 mm | Steel | black | 600 kg | One point | True | Steel | One point | 4 x 10 U | 1963 mm | 9005 | 8 | PRO-LFD02BT.x | 4 | |
PRO-CL4-4280GR.P1 | Co-Location Rack PRO, 4 x 10HE, 800x1000,mm, F+R 1-tlg. perforiert, RAL7035 | 1000 mm | 800 mm | Steel | grey | 600 kg | One point | True | Steel | One point | 2 x 20 U | 1963 mm | 7035 | 8 | PRO-LFD02BT.x | 4 |
