Features
▪ Comply with IEEE 802.3ae 10GBase-R, IEEE 802.3z
1000Base-X
Equipped with 2 SFP+ ports that support multi-mode,
single-mode, including CWDM/DWDM, or
Direct Attached Cable (DAC) for 1Gbps/10Gbps fiber
transceivers.
▪ Support 3Rs (Re-amplifying, Re-shaping, Re-timing)
optical signal regeneration
The data transfer is transparent and regenerated by 3Rs
between the different fiber optics devices.
▪ Jumbo frame & Transparent mode
Support 9K bytes jumbo frame size and low latency
benefiting from the transparent mode in the network
traffic.
▪ Support Loopback mode
Ensure the circuit quality for installation verification
and troubleshooting by running the loopback test.
▪ Support Signal Loss Alarm
Offer a quick link indication by detecting the signal loss
between two network devices interconnected by the
media converter.

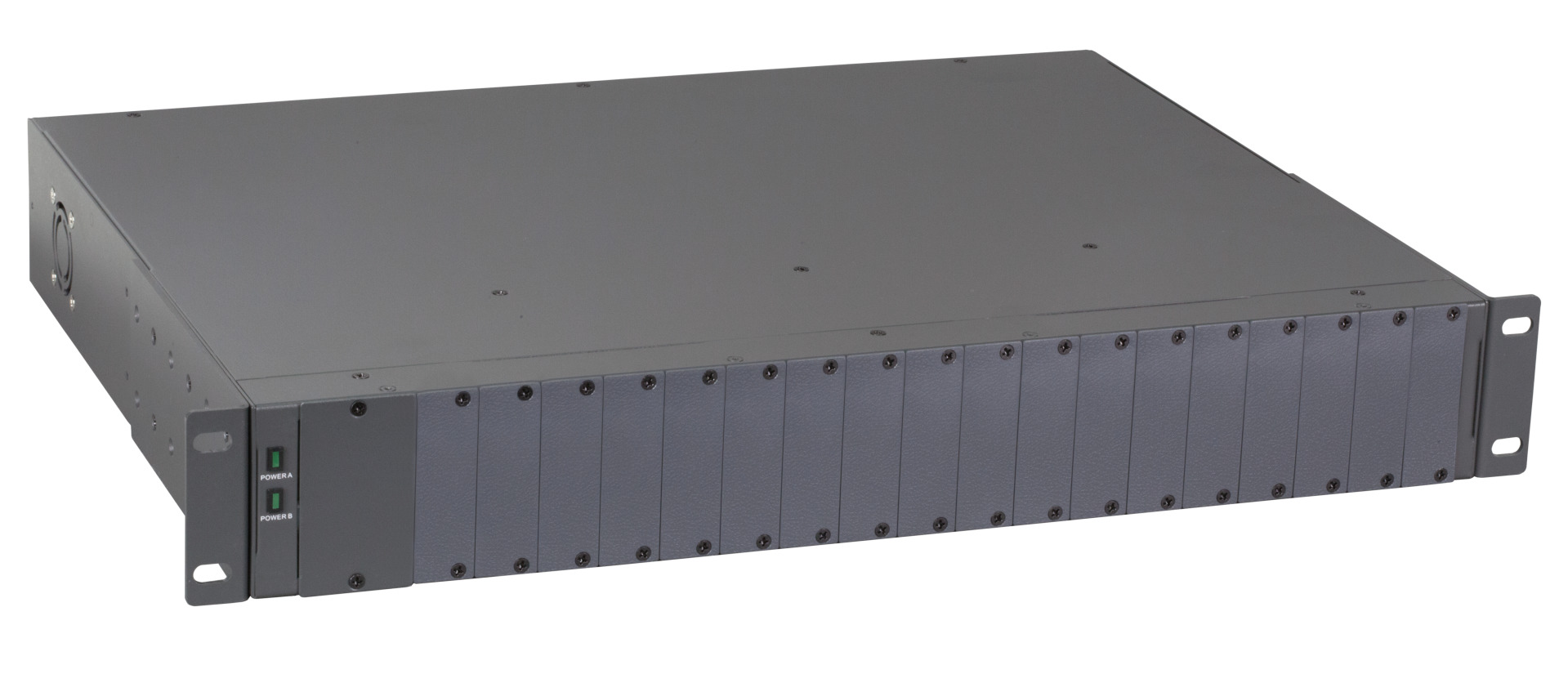

▪ Fully Compatible with MCT-RACK Chassis Series
A space-saving solution for MCT-RACK chassis series to
mix the installation of MCT series converters.
▪ In Rack Management
Support CTS MCT-RACK management, it allows
administrator to configure and monitor the slide-in
media converters such as port speed, shutdown and
SFP DDMI information.


Connection Technology Systems (CTS) MCT-5002FSMSFP+
media converter is a 10G Base-R SFP+ to SFP+ media
converter. MCT-5002FSMSFP+ media converter, featuring
two pluggable transceiver SFP+ ports, extends
transmission distance with 3Rs (Re-amplifying, Re-shaping,
Re-timing) optical signal regeneration for Data Center
application or ISP Mobile DU and Enterprise broadband
service applications.
With the forwarding capacity at the full wire speed,
MCT-5002FSMSFP+ media converter is the most optimized
and simplest solution for dispersed network that
media conversion is required between multi-mode fiber
segments separated due to geographical limit.
MCT-5002FSMSFP+ media converter is fully compliant
with IEEE 802.3z and 802.3ae standards. The installation
and operation are simple and straightforward.
The operation status can be monitored through a set of
diagnostic LED indicators on the front panel. In addition,

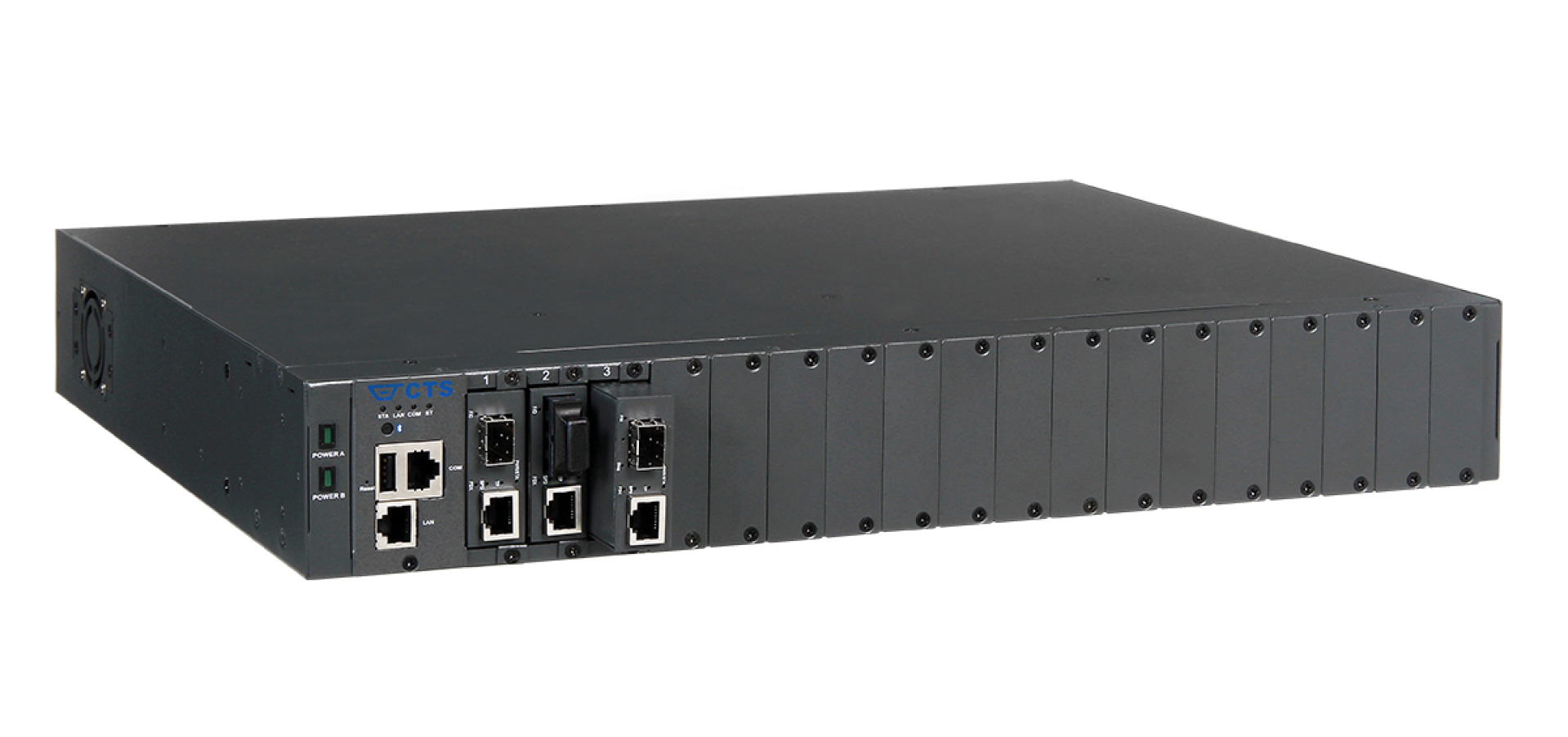

MCT-5002FSMSFP+ can be monitored and slightly
managed when it is inserted into a slot of the
MCT-RACK-MGM chassis series. It is especially designed for
network operators and metro Ethernet providers who
have the need of implementing fiber optical Ethernet
networks over long distance, for FTTX solutions, and are
looking for an effortless and reliable 10G fiber Ethernet
media converter
