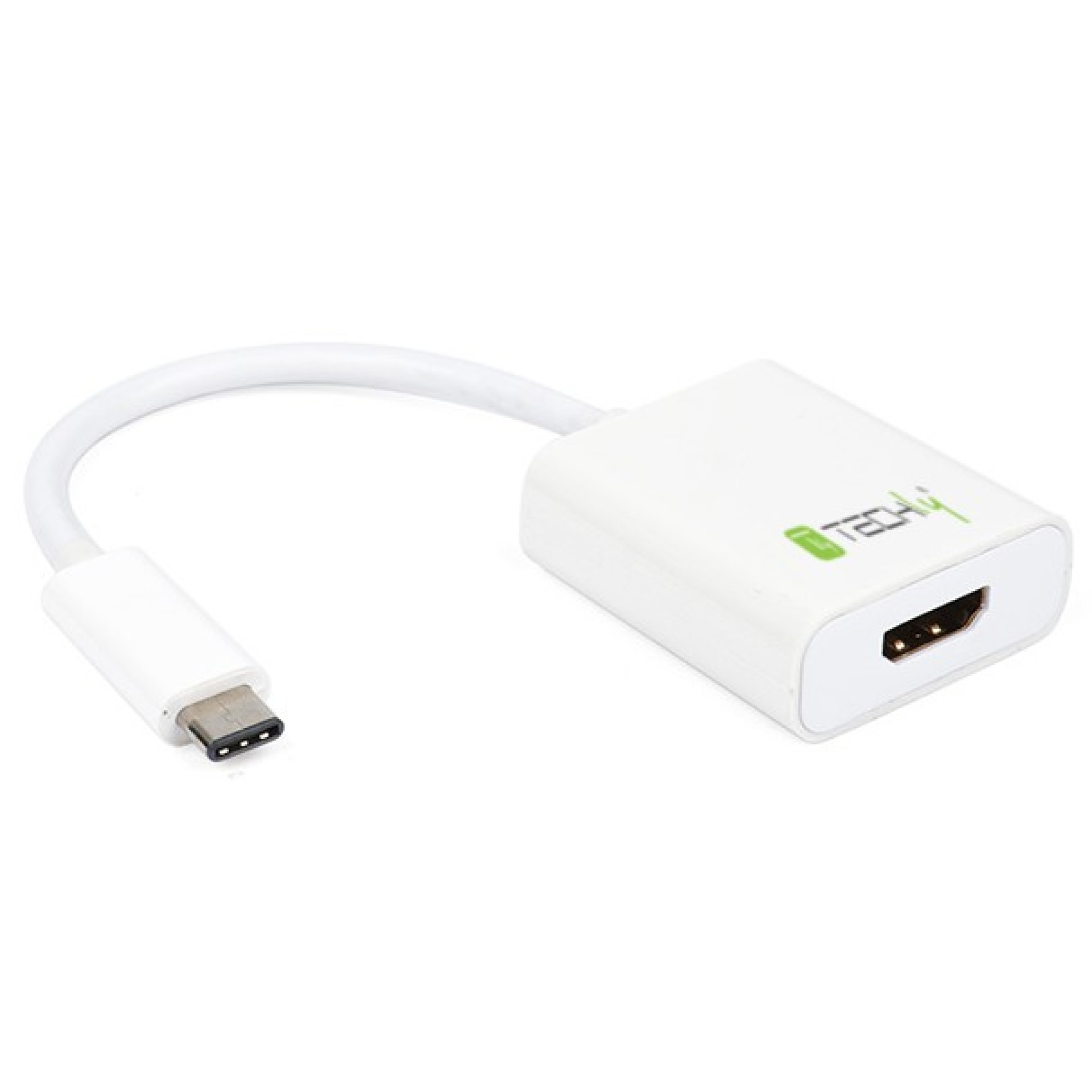

Converter Cable Adapter USB 3.1 Type-C to HDMI
Converter Cable Adapter USB 3.1 Type-C to HDMI
Item number:
IADAP-USB31-HDMI
EAN no.:
8054529020409
Product information for Converter Cable Adapter USB 3.1 Type-C to HDMI

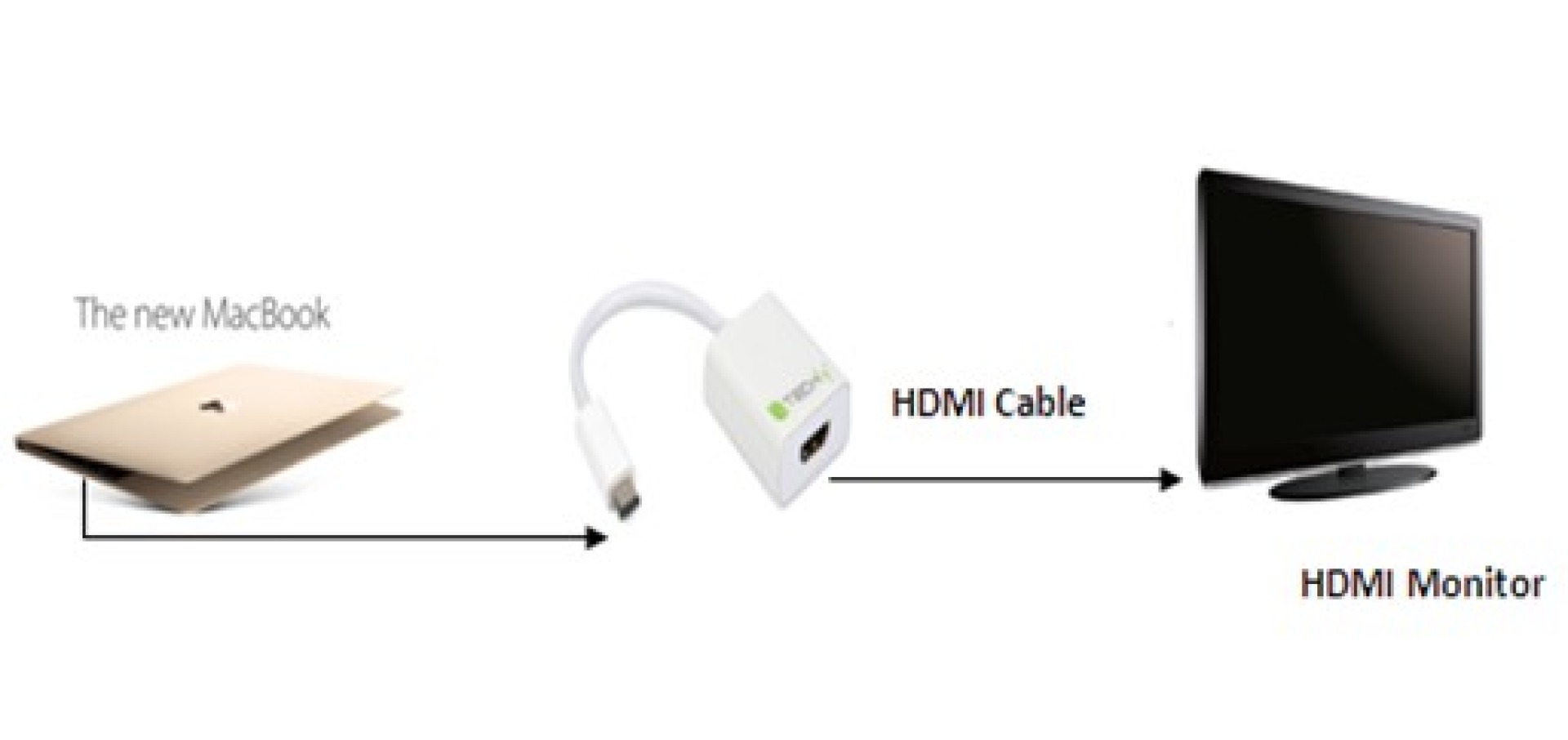

IADAP USB31-HDMI converter allows an additional HDMI monitor to be connected to a desktop or laptop's USB port.
Features
• Input: USB3.1 Type-C and HDMI output
• Reversible USB Type-C connector for easy connection
• Supports data rates of 5.4 Gbps linear (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
• Supports resolutions up to 3840x2600 / 60Hz (mirror mode)
• Converter USB 1.4 to HDMI Type-C 5G
• Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2.8 / 10 / 12bpc
• Supports HDMI 1.4 and previous
• Supports resolutions: 4Kx2K, 1080P, 720P, 480P, 576i, 480i
• Supports HDMI audio
• USB bus powered (no external power required)
Technical specifications
• Input: 1x USB 3.1 Type-C Male
• Output: 1x HDMI 1.4 Female
• Maximum resolution: 3840x2600
Environmental Characteristics
• Operating Temperature: 0-45°C
• Operating Humidity: 10%-85% (non-condensing)
• Storage Temperature: -10°C to +80°C
• Storage Humidity: 5%-90% (non-condensing)
Dimensions
• Width: 41.5 mm
• Depth: 37 mm
• Height: 14.5 mm
• Cable length: 150 mm
Certifications
• EC
• FCC
Package Contents
• 1x USB converter Type-C / HDMI
• 1x User Manual
