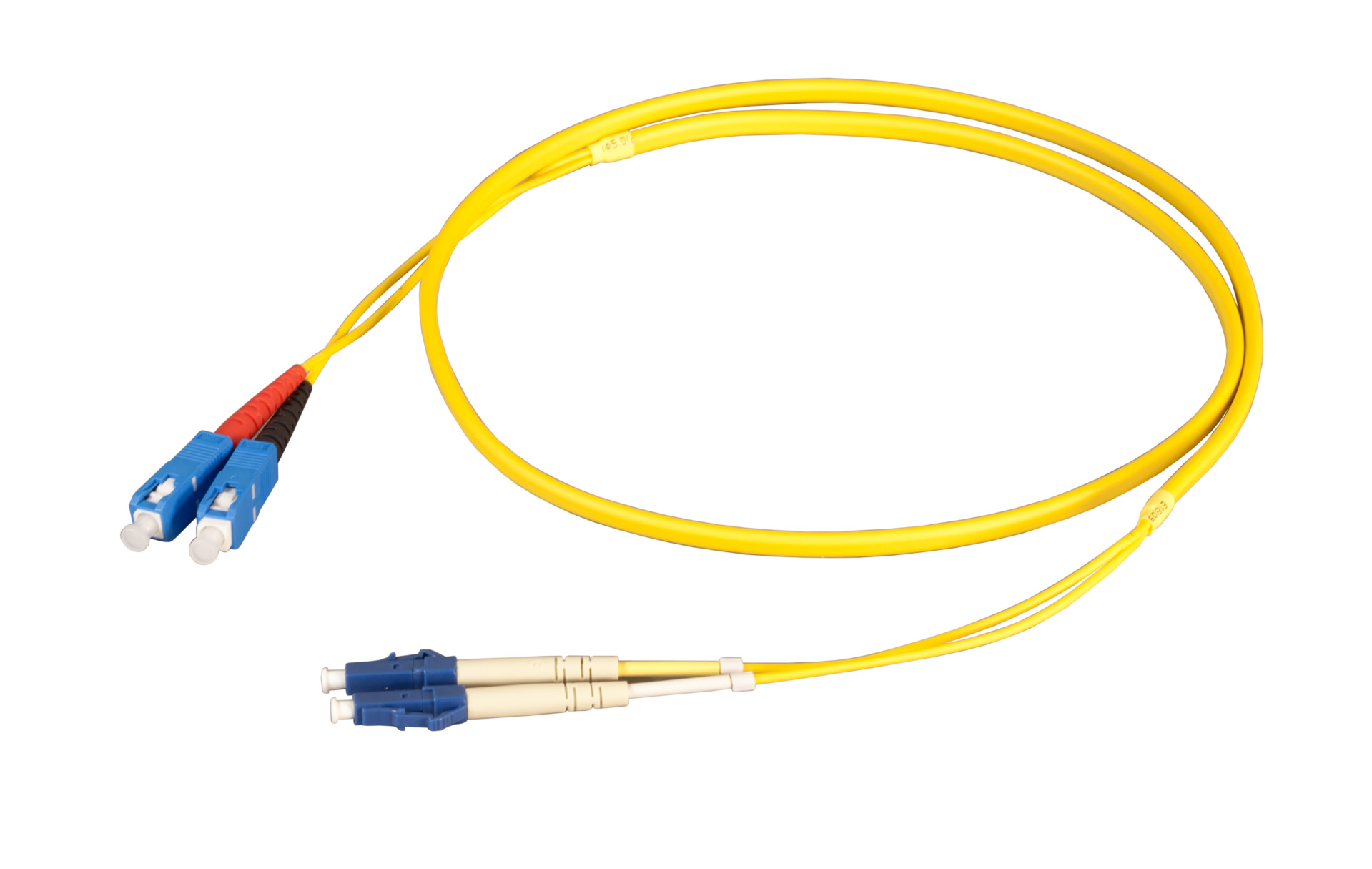

Duplex Patchcable LC-SC 9/125µ, OS2, Flat Twin
Duplex Patchcable Flat-Twin LC-SC OS2 G652D 20m LSZH 3x5mm yellow
Item number:
O0360FT.20
EAN no.:
4049759178871
Product information for Duplex Patchcable Flat-Twin LC-SC OS2 G652D 20m LSZH 3x5mm yellow
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) HH |
| Cable Ø: | 3x5 mm |
| Cabling standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 1310nm: | < 0.2 dB |
| Jacket Material: | LSZH |
| Number of fibres: | 2 |
| Operating Temperature: | -40 – 70 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O0360FT.0,5 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 0,5m LSZH 3x5mm yellow | 0.5 m | ±5 % | |
| O0360FT.1 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 1m LSZH 3x5mm yellow | 1.0 m | ±5 % | |
| O0360FT.2 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 2m LSZH 3x5mm yellow | 2.0 m | ±5 % | |
| O0360FT.3 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 3m LSZH 3x5mm yellow | 3.0 m | ±5 % | |
| O0360FT.5 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 5m LSZH 3x5mm yellow | 5.0 m | ±5 % | |
| O0360FT.7,5 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 7,5m LSZH 3x5mm yellow | 7.5 m | ±5 % | |
| O0360FT.10 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 10m LSZH 3x5mm yellow | 10.0 m | ±5 % | |
| O0360FT.15 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 15m LSZH 3x5mm yellow | 15.0 m | ±5 % | |
| O0360FT.20 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 20m LSZH 3x5mm yellow | 20.0 m | ±5 % | |
| O0360FT.25 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 25m LSZH 3x5mm yellow | 25.0 m | ±5 % | |
| O0360FT.30 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 30m LSZH 3x5mm yellow | 30.0 m | ±5 % | |
| O0360FT.35 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 35m LSZH 3x5mm yellow | 35.0 m | ±5 % | |
| O0360FT.40 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 40m LSZH 3x5mm yellow | 40.0 m | ±5 % | |
| O0360FT.45 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 45m LSZH 3x5mm yellow | 45.0 m | ±5 % | |
| O0360FT.50 | Duplex Patchcable Flat-Twin LC-SC OS2 G652D 50m LSZH 3x5mm yellow | 50.0 m | ±5 % |
