Duplex Jumper SC-SC 50/125µ, OM4, Flat Twin

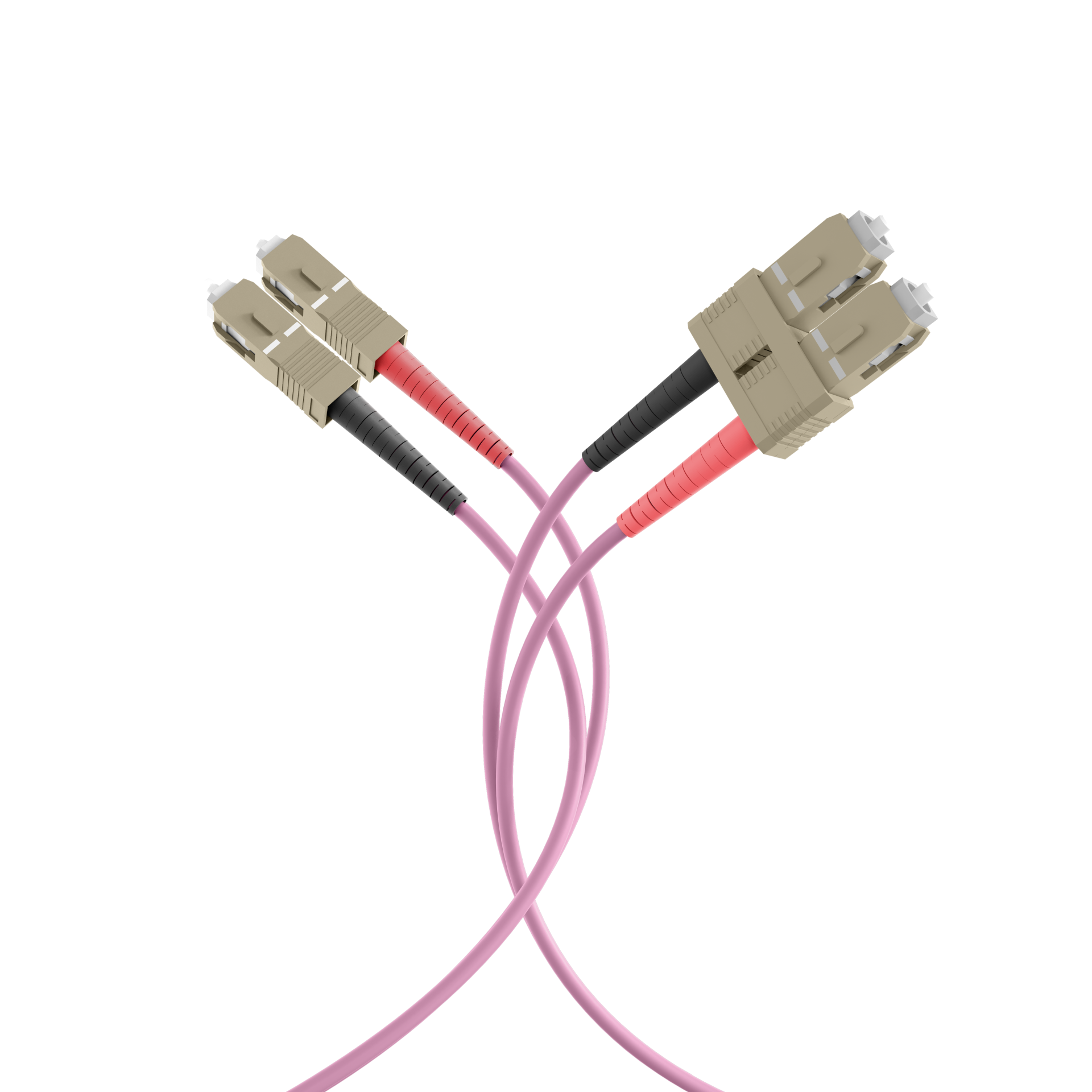

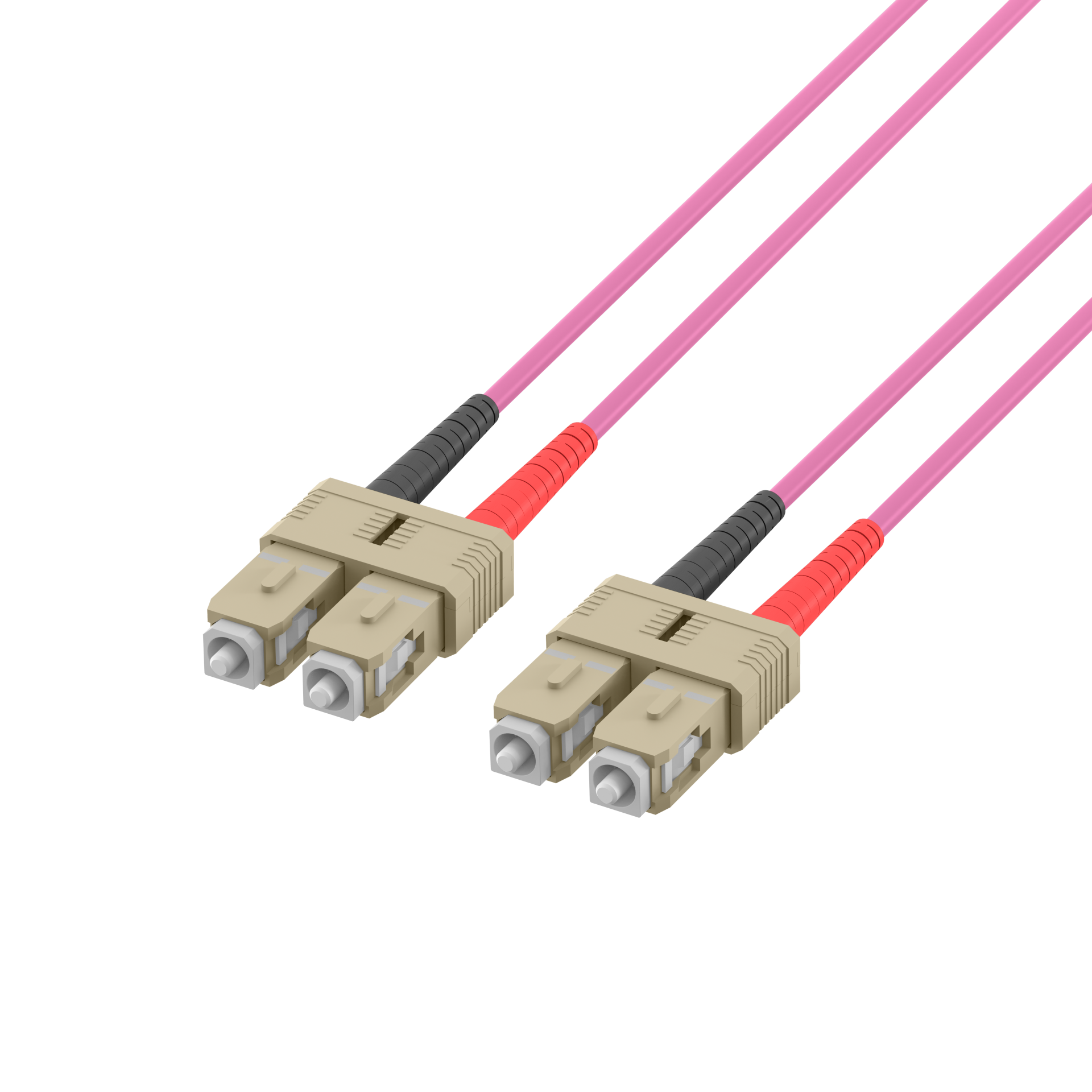

Duplex Patchcable Flat-Twin SC-SC OM4 50m LSZH 3x5mm heatherviolet
Item number:
O0318FT.50
EAN no.:
4049759224240
Product information for Duplex Patchcable Flat-Twin SC-SC OM4 50m LSZH 3x5mm heatherviolet
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) HH |
| Cable Ø: | 3x5 mm |
| Cabling standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | OM4 |
| Colour outer sheath: | erica violet |
| Connector Conform to Standard: | IEC 61754-4 |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0.2 dB |
| Jacket Material: | LSZH |
| Number of fibres: | 2 |
| Operating Temperature: | -40 – 70 °C |
| Quality class Multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | SC duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O0318FT.0,5 | Duplex Patchcable Flat-Twin SC-SC OM4 0,5m LSZH 3x5mm heatherviolet | 0.5 m | ±5 % | |
| O0318FT.1 | Duplex Patchcable Flat-Twin SC-SC OM4 1m LSZH 3x5mm heatherviolet | 1.0 m | ±5 % | |
| O0318FT.2 | Duplex Patchcable Flat-Twin SC-SC OM4 2m LSZH 3x5mm heatherviolet | 2.0 m | ±5 % | |
| O0318FT.3 | Duplex Patchcable Flat-Twin SC-SC OM4 3m LSZH 3x5mm heatherviolet | 3.0 m | ±5 % | |
| O0318FT.5 | Duplex Patchcable Flat-Twin SC-SC OM4 5m LSZH 3x5mm heatherviolet | 5.0 m | ±5 % | |
| O0318FT.7,5 | Duplex Patchcable Flat-Twin SC-SC OM4 7,5m LSZH 3x5mm heatherviolet | 7.5 m | ±5 % | |
| O0318FT.10 | Duplex Patchcable Flat-Twin SC-SC OM4 10m LSZH 3x5mm heatherviolet | 10.0 m | ±5 % | |
| O0318FT.15 | Duplex Patchcable Flat-Twin SC-SC OM4 15m LSZH 3x5mm heatherviolet | 15.0 m | ±5 % | |
| O0318FT.20 | Duplex Patchcable Flat-Twin SC-SC OM4 20m LSZH 3x5mm heatherviolet | 20.0 m | ±5 % | |
| O0318FT.25 | Duplex Patchcable Flat-Twin SC-SC OM4 25m LSZH 3x5mm heatherviolet | 25.0 m | ±5 % | |
| O0318FT.30 | Duplex Patchcable Flat-Twin SC-SC OM4 30m LSZH 3x5mm heatherviolet | 30.0 m | ±5 % | |
| O0318FT.35 | Duplex Patchcable Flat-Twin SC-SC OM4 35m LSZH 3x5mm heatherviolet | 35.0 m | ±5 % | |
| O0318FT.40 | Duplex Patchcable Flat-Twin SC-SC OM4 40m LSZH 3x5mm heatherviolet | 40.0 m | ±5 % | |
| O0318FT.45 | Duplex Patchcable Flat-Twin SC-SC OM4 45m LSZH 3x5mm heatherviolet | 45.0 m | ±5 % | |
| O0318FT.50 | Duplex Patchcable Flat-Twin SC-SC OM4 50m LSZH 3x5mm heatherviolet | 50.0 m | ±5 % |
