Duplex Patchcable LC-SC 9/125µ, OS2, 1.2mm

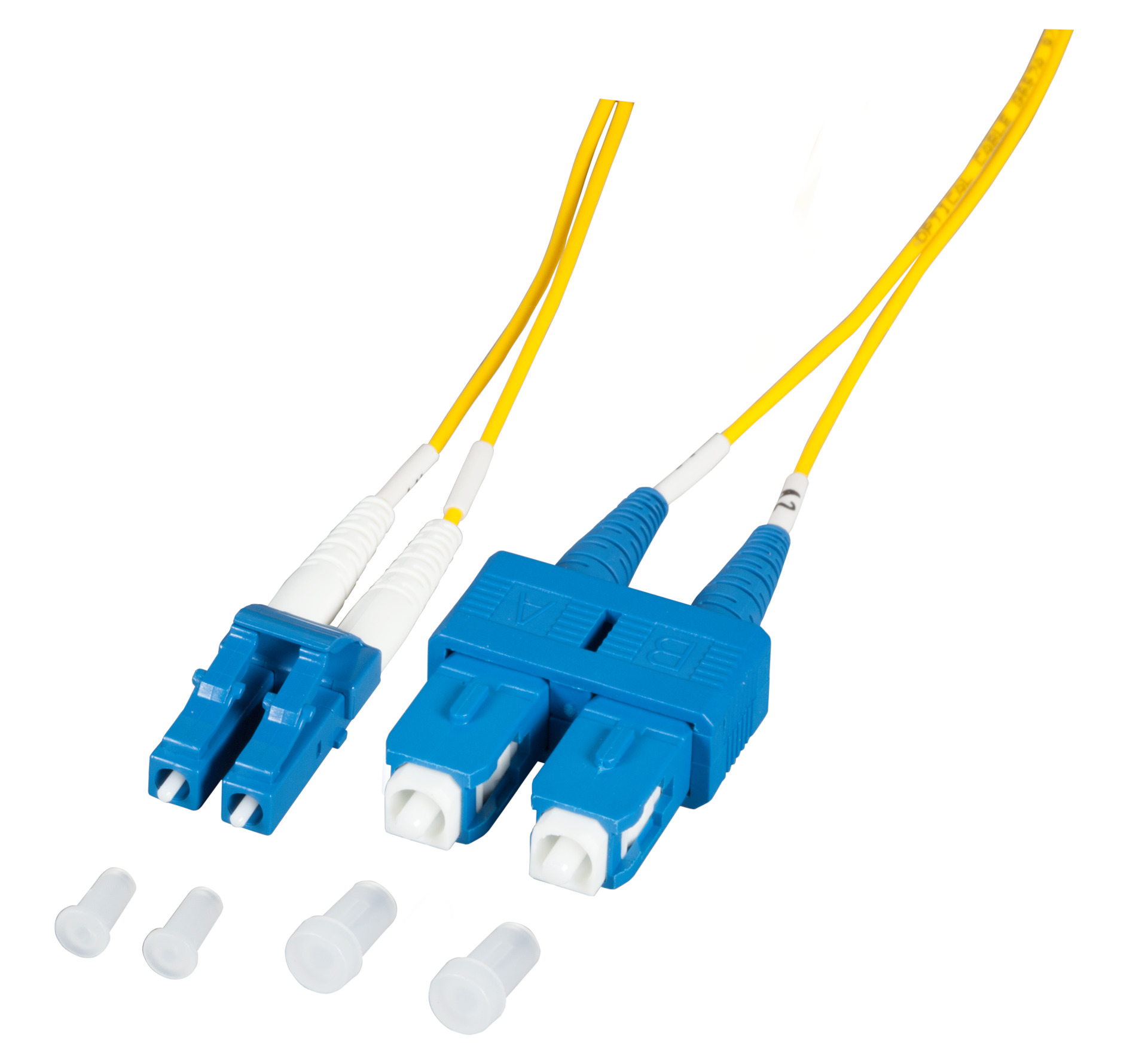

Duplex Patchcable LC-SC OS2 G652D 10m LSZH 1,2mm yellow
Item number:
O0360.10-1.2
EAN no.:
4049759169657
Product information for Duplex Patchcable LC-SC OS2 G652D 10m LSZH 1,2mm yellow
The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.
Characteristics
Space-saving installation due to the small outer diameter
Halogen free and flame retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Connector in colour of category (OS2 is blue)
LC connector in Compact design
EFB fiber connectors meet the quality class Grade A/1 for Multimode according to IEC-61753-122-2 (Draft)
pre-coded
100% tested and with individuell measuring protocol
Characteristics
Space-saving installation due to the small outer diameter
Halogen free and flame retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Connector in colour of category (OS2 is blue)
LC connector in Compact design
EFB fiber connectors meet the quality class Grade A/1 for Multimode according to IEC-61753-122-2 (Draft)
pre-coded
100% tested and with individuell measuring protocol
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 1.2 mm |
| Cabling standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free: | acc. IEC60754-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O0360.0,5-1.2 | Duplex Patchcable LC-SC OS2 G652D 0,5m LSZH 1,2mm yellow | 0.5 m | ±5 % | |
| O0360.1-1.2 | Duplex Patchcable LC-SC OS2 G652D 1m LSZH 1,2mm yellow | 1.0 m | ±5 % | |
| O0360.2-1.2 | Duplex Patchcable LC-SC OS2 G652D 2m LSZH 1,2mm yellow | 2.0 m | ±5 % | |
| O0360.3-1.2 | Duplex Patchcable LC-SC OS2 G652D 3m LSZH 1,2mm yellow | 3.0 m | ±5 % | |
| O0360.5-1.2 | Duplex Patchcable LC-SC OS2 G652D 5m LSZH 1,2mm yellow | 5.0 m | ±5 % | |
| O0360.10-1.2 | Duplex Patchcable LC-SC OS2 G652D 10m LSZH 1,2mm yellow | 10.0 m | ±5 % |
