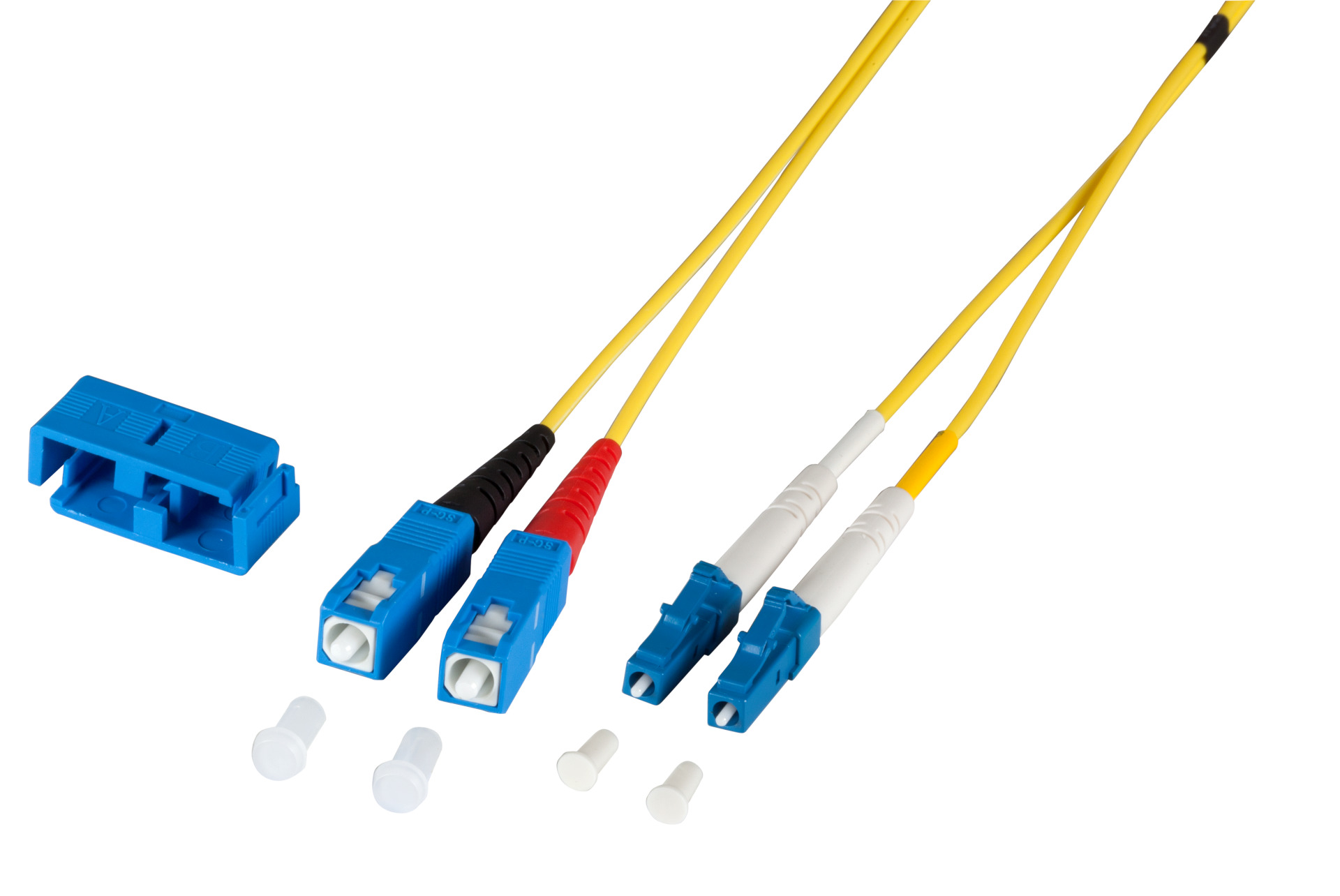

Duplex Patchcable LC-SC 9/125µ, G657.A2 bend insensitive
Duplex Patchcable LC-SC OS2 G657A2 7,5m LSZH 2mm yellow
Item number:
O0360BI.7,5
EAN no.:
4049759104771
Product information for Duplex Patchcable LC-SC OS2 G657A2 7,5m LSZH 2mm yellow
• Compatible to ITU-T G.652D and OS2
• Very dense bendings are possible without loss of energy, see table
• Other fiber qualities and types of connectors on request
• Very dense bendings are possible without loss of energy, see table
• Other fiber qualities and types of connectors on request
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | G657A2 acc. to ITU-T G.657 |
| Colour outer sheath: | yellow |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O0360BI.0,5 | Duplex Patchcable LC-SC OS2 G657A2 0,5m LSZH 2mm yellow | 0.5 m | ±5 % | |
| O0360BI.1 | Duplex Patchcable LC-SC OS2 G657A2 1m LSZH 2mm yellow | 1.0 m | ±5 % | |
| O0360BI.2 | Duplex Patchcable LC-SC OS2 G657A2 2m LSZH 2mm yellow | 2.0 m | ±5 % | |
| O0360BI.3 | Duplex Patchcable LC-SC OS2 G657A2 3m LSZH 2mm yellow | 3.0 m | ±5 % | |
| O0360BI.5 | Duplex Patchcable LC-SC OS2 G657A2 5m LSZH 2mm yellow | 5.0 m | ±5 % | |
| O0360BI.7,5 | Duplex Patchcable LC-SC OS2 G657A2 7,5m LSZH 2mm yellow | 7.5 m | ±5 % | |
| O0360BI.10 | Duplex Patchcable LC-SC OS2 G657A2 10m LSZH 2mm yellow | 10.0 m | ±5 % | |
| O0360BI.15 | Duplex Patchcable LC-SC OS2 G657A2 15m LSZH 2mm yellow | 15.0 m | ±5 % | |
| O0360BI.20 | Duplex Patchcable LC-SC OS2 G657A2 20m LSZH 2mm yellow | 20.0 m | ±5 % | |
| O0360BI.25 | Duplex Patchcable LC-SC OS2 G657A2 25m LSZH 2mm yellow | 25.0 m | ±5 % | |
| O0360BI.30 | Duplex Patchcable LC-SC OS2 G657A2 30m LSZH 2mm yellow | 30.0 m | ±5 % | |
| O0360BI.35 | Duplex Patchcable LC-SC OS2 G657A2 35m LSZH 2mm yellow | 35.0 m | ±5 % | |
| O0360BI.40 | Duplex Patchcable LC-SC OS2 G657A2 40m LSZH 2mm yellow | 40.0 m | ±5 % | |
| O0360BI.45 | Duplex Patchcable LC-SC OS2 G657A2 45m LSZH 2mm yellow | 45.0 m | ±5 % | |
| O0360BI.50 | Duplex Patchcable LC-SC OS2 G657A2 50m LSZH 2mm yellow | 50.0 m | ±5 % |
