Duplex Jumper SC/APC-SC/APC, 9/125µ, OS2

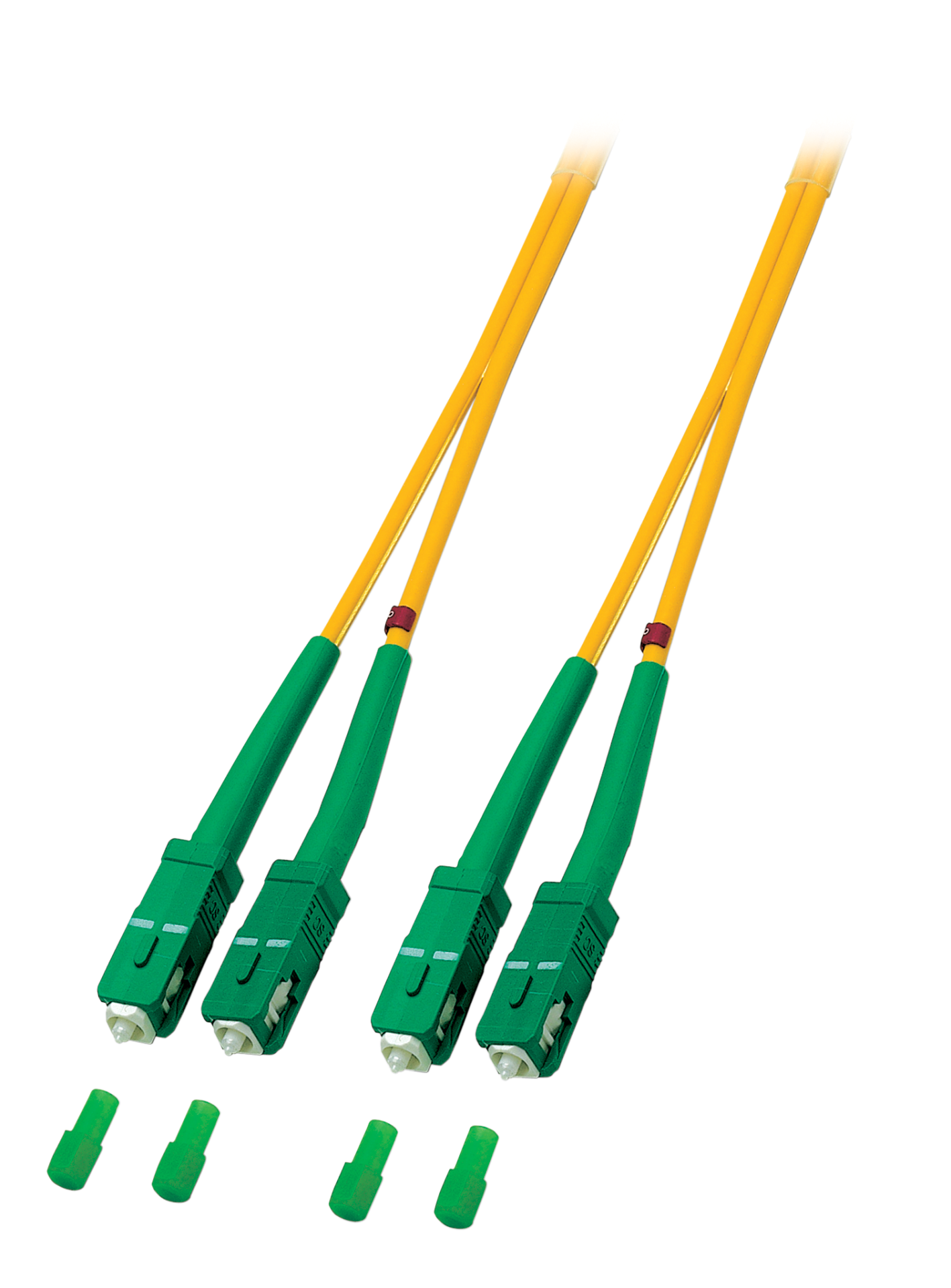

Duplex Patchcable SC/APC-SC/APC OS2 G652D 20m LSZH 3mm yellow
Item number:
O2561.20
EAN no.:
4049759026554
Product information for Duplex Patchcable SC/APC-SC/APC OS2 G652D 20m LSZH 3mm yellow
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Technical properties
| APC version: | True |
|---|---|
| APC version Connector 1: | 8° |
| APC version Connector 2: | 8° |
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector Conform to Standard: | IEC 61754-4 |
| Connector colour 1: | green |
| Connector colour 2: | green |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free: | acc. IEC60754-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Low smoke: | acc. IEC61034-1 |
| Max. Tension: | 160 N |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | SC duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O2561.0,5 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 0,5m LSZH 3mm yellow | 0.5 m | ±5 % | |
| O2561.1 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 1m LSZH 3mm yellow | 1.0 m | ±5 % | |
| O2561.2 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 2m LSZH 3mm yellow | 2.0 m | ±5 % | |
| O2561.3 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 3m LSZH 3mm yellow | 3.0 m | ±5 % | |
| O2561.5 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 5m LSZH 3mm yellow | 5.0 m | ±5 % | |
| O2561.7,5 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 7,5m LSZH 3mm yellow | 7.5 m | ±5 % | |
| O2561.10 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 10m LSZH 3mm yellow | 10.0 m | ±5 % | |
| O2561.15 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 15m LSZH 3mm yellow | 15.0 m | ±5 % | |
| O2561.20 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 20m LSZH 3mm yellow | 20.0 m | ±5 % | |
| O2561.25 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 25m LSZH 3mm yellow | 25.0 m | ±5 % | |
| O2561.30 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 30m LSZH 3mm yellow | 30.0 m | ±5 % | |
| O2561.35 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 35m LSZH 3mm yellow | 35.0 m | ±5 % | |
| O2561.40 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 40m LSZH 3mm yellow | 40.0 m | ±5 % | |
| O2561.45 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 45m LSZH 3mm yellow | 45.0 m | ±5 % | |
| O2561.50 | Duplex Patchcable SC/APC-SC/APC OS2 G652D 50m LSZH 3mm yellow | 50.0 m | ±5 % |
