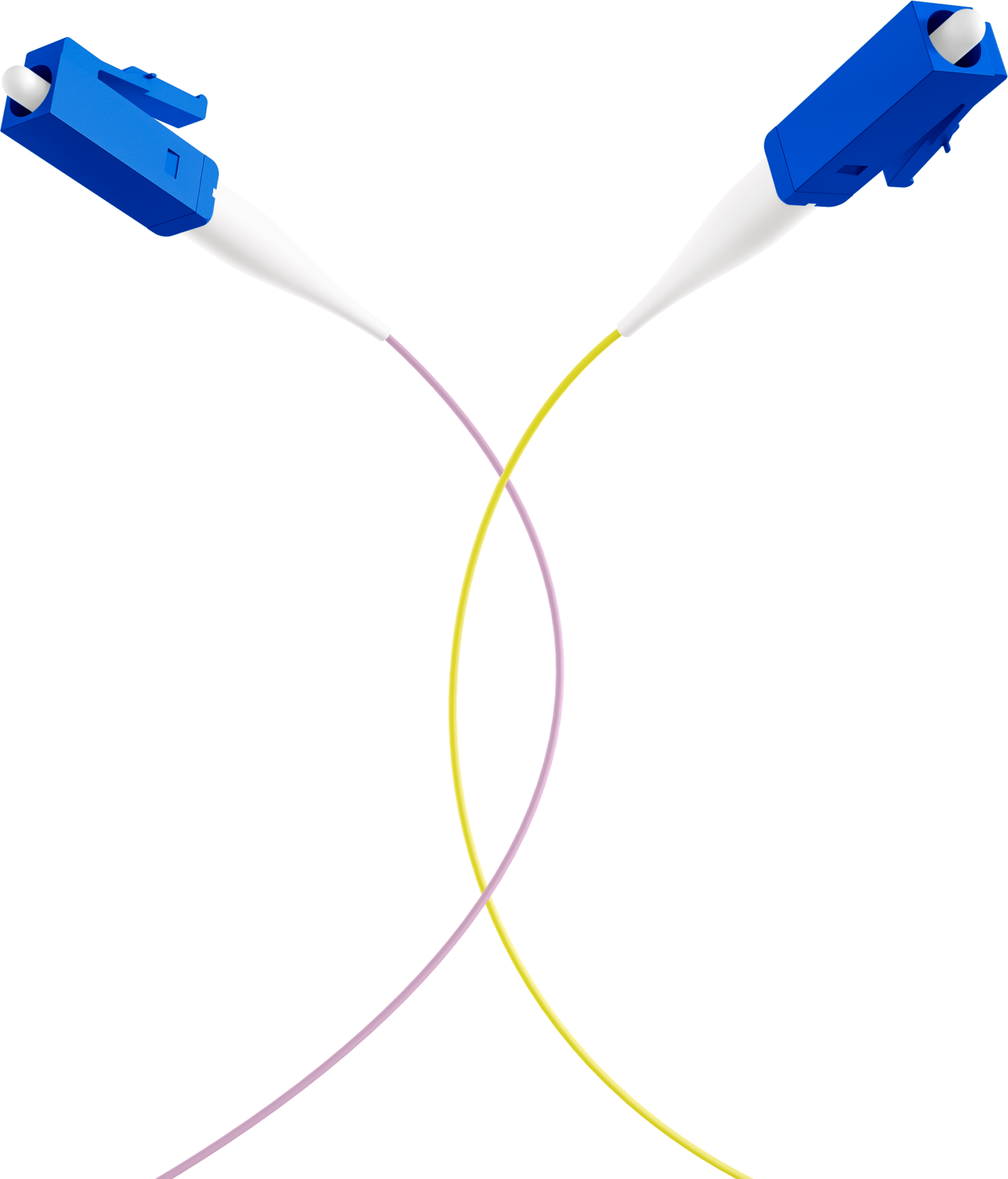

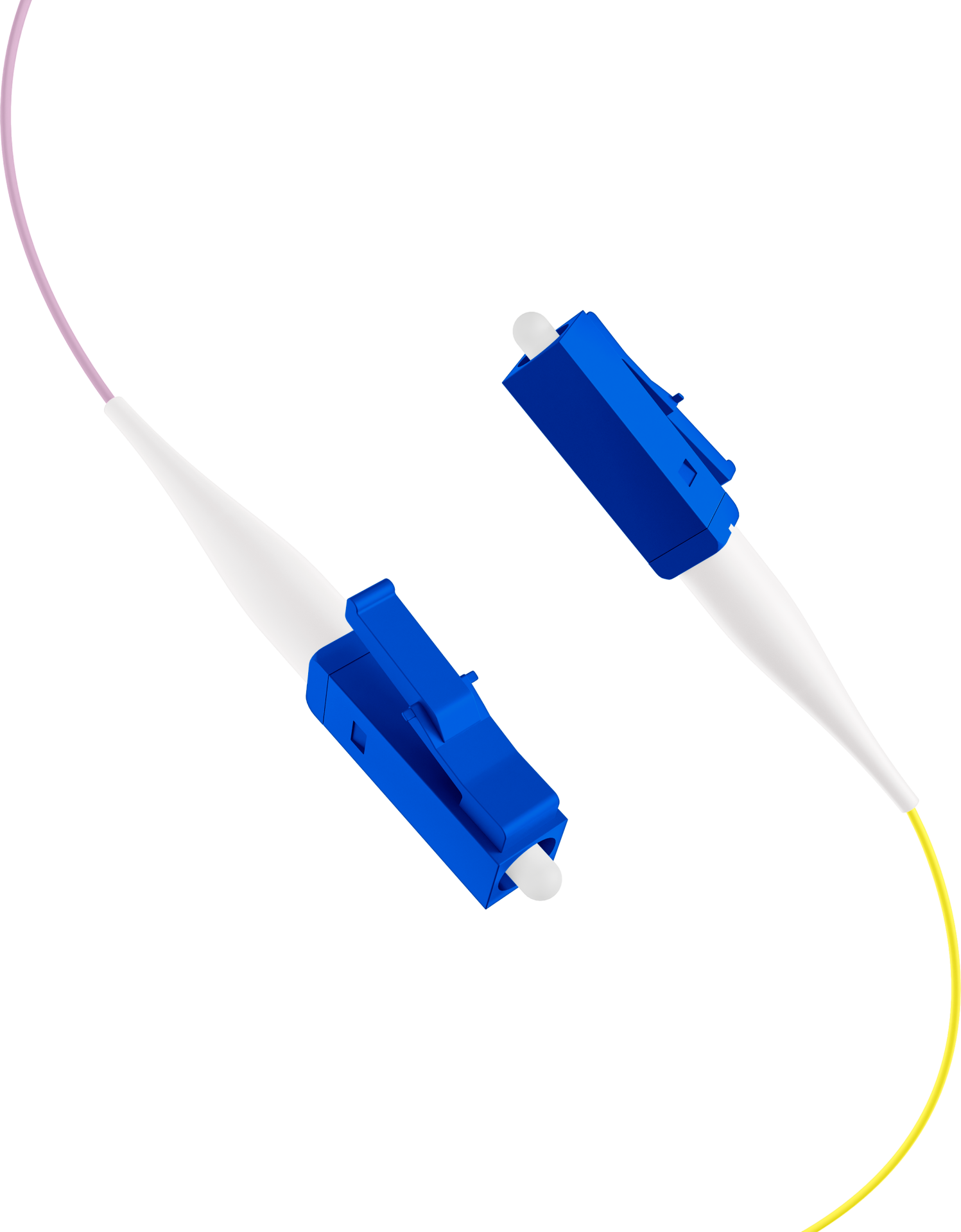

Fiber Pigtail LC OS2 G652D-colored set - 12 pieces
Fiber Pigtail LC OS2 G652D-colored set 2m - 12 pieces
Item number:
O0481.2
EAN no.:
4049759025168
Product information for Fiber Pigtail LC OS2 G652D-colored set 2m - 12 pieces

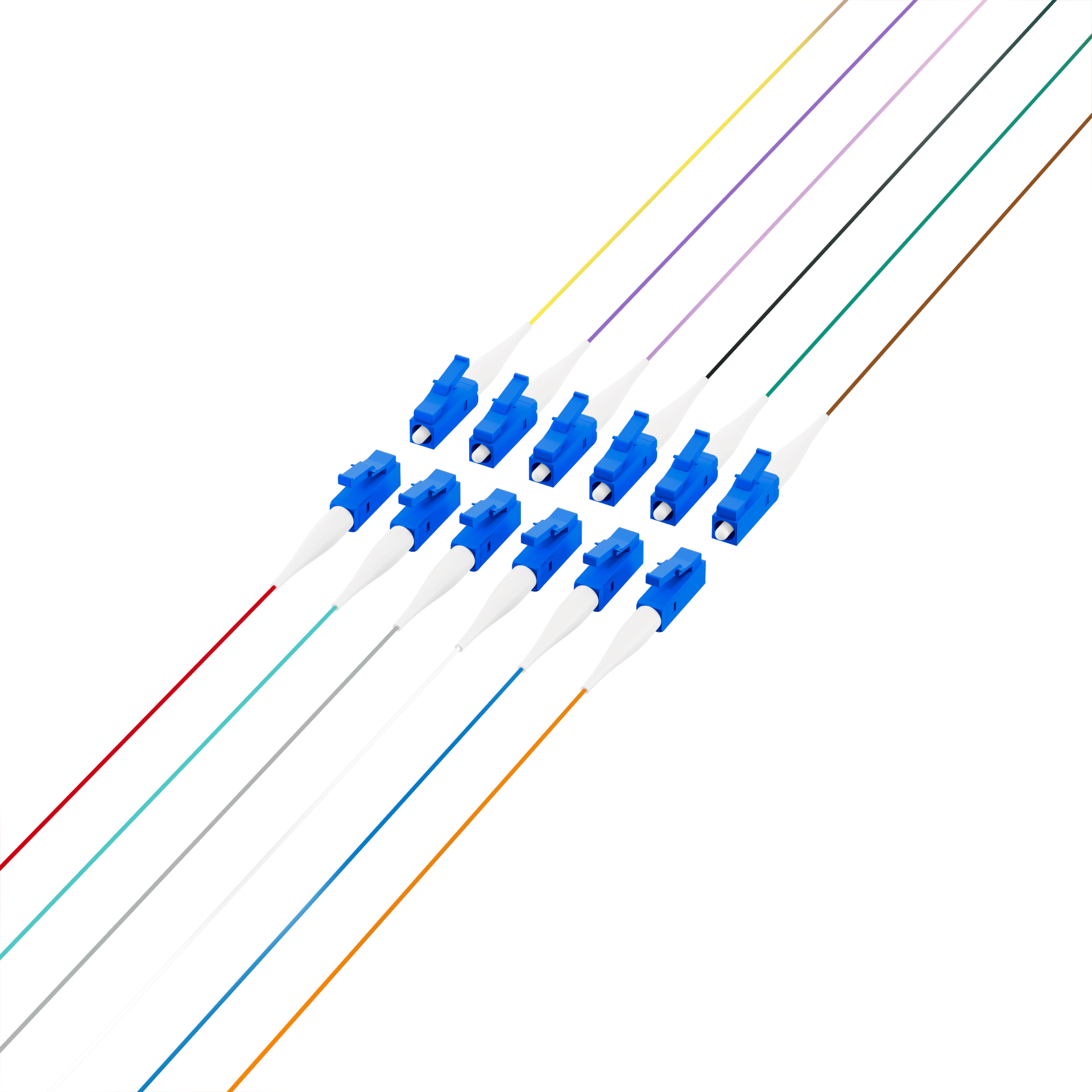

The LC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | Put-on |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | blue |
| Connector Conform to Standard: | IEC61754-20 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket Material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Type: | Conductor pigtail |
| Type of connector: | LC |
