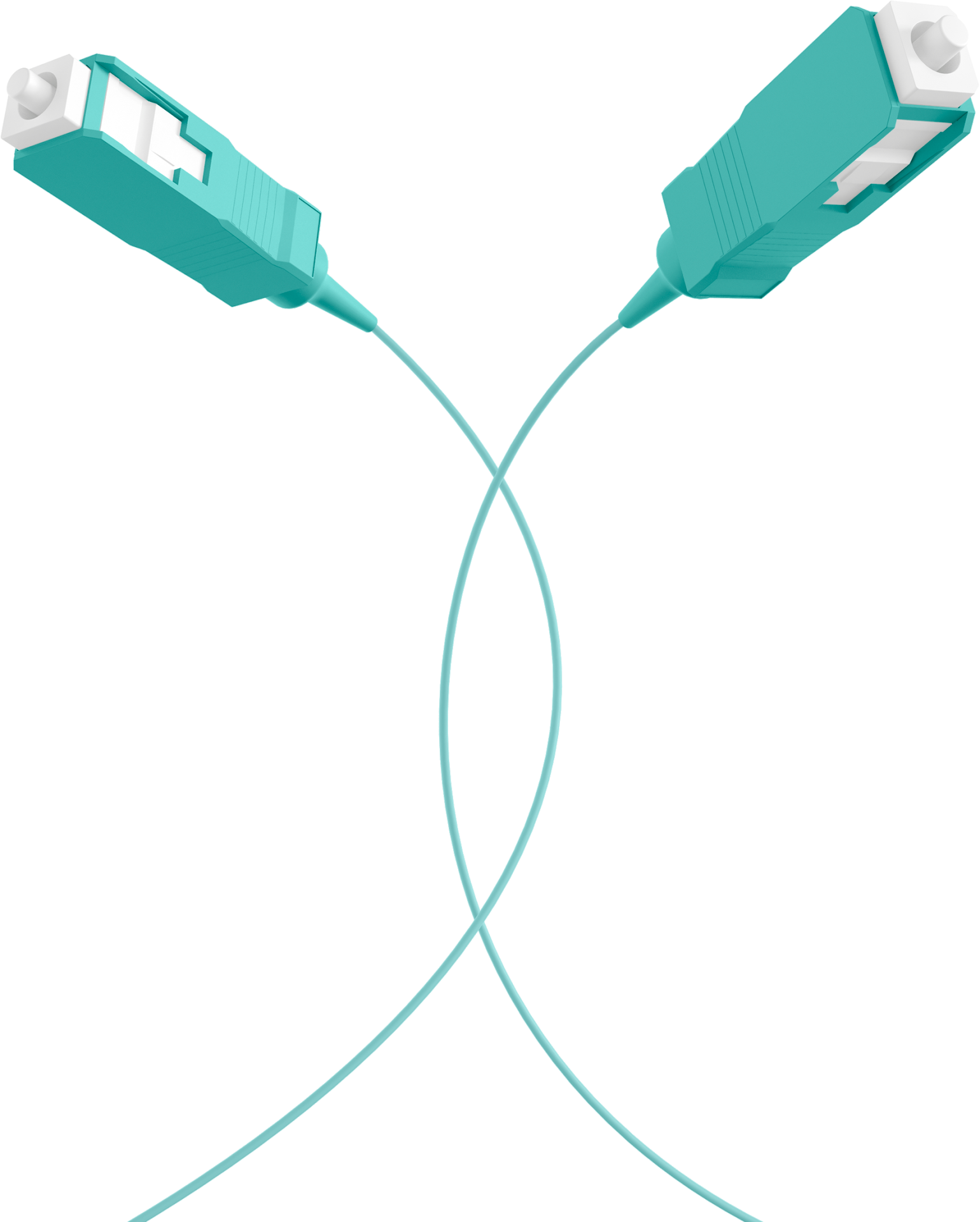

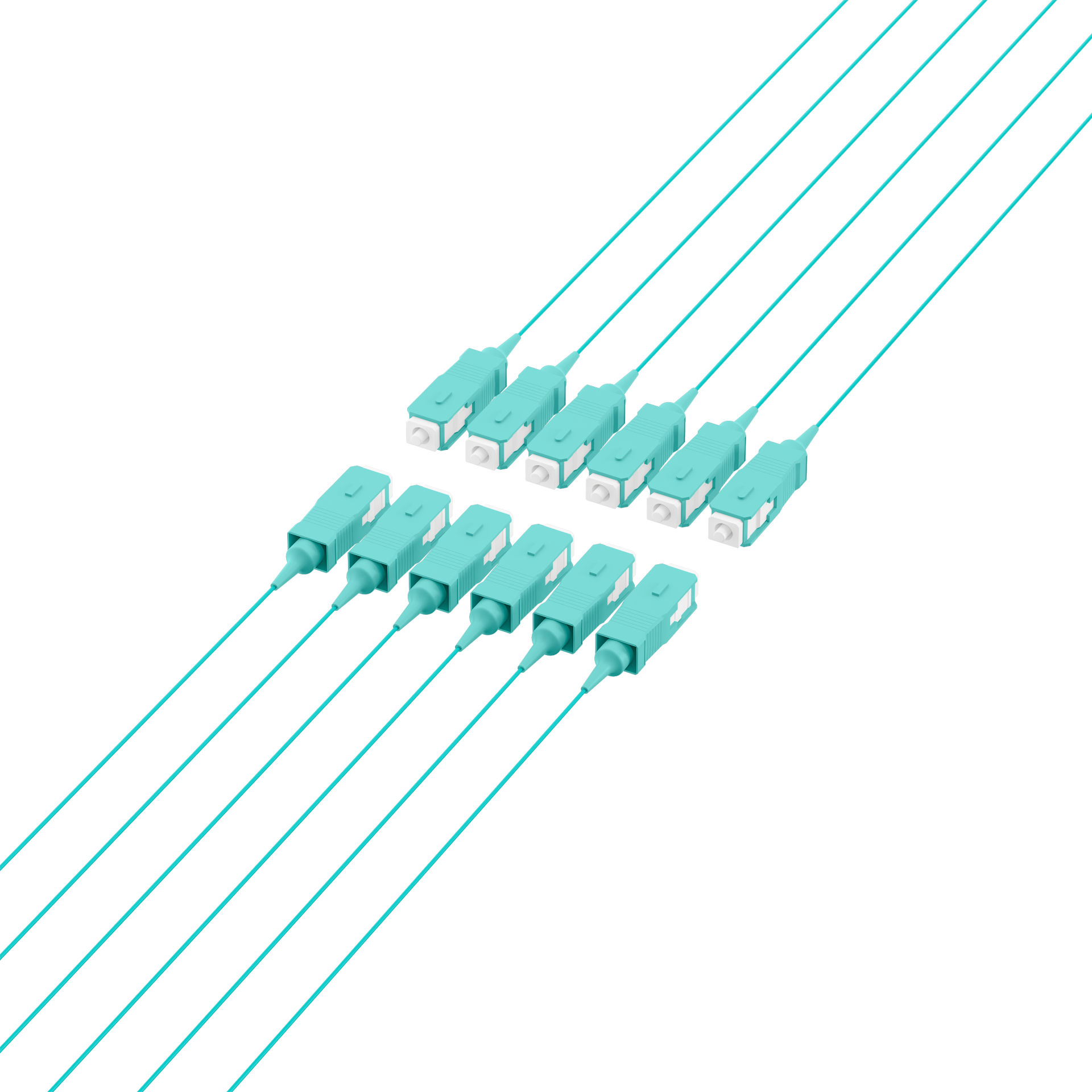

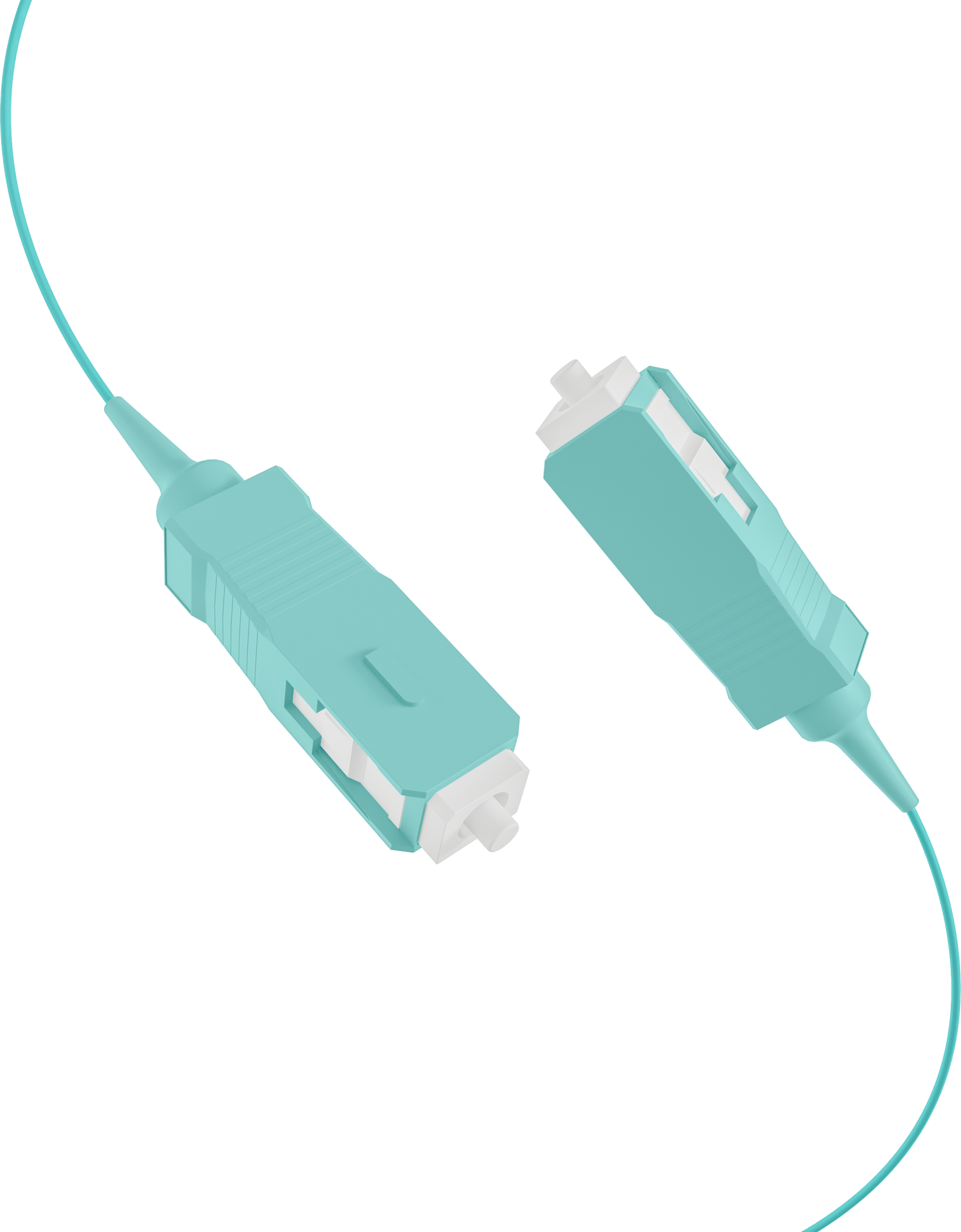

Fiber Pigtail SC OM3 -Aqua - 1 piece
Fiber Pigtail SC OM3 -Aqua 2m - 1 piece
Item number:
O3623.2
EAN no.:
4049759023188
Product information for Fiber Pigtail SC OM3 -Aqua 2m - 1 piece
The SC fibrer pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | Put-on |
| Bend optimized fiber: | OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM3 |
| Colour: | aqua |
| Connector Colour: | beige |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multi mode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket Material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class Multimode: | A/1 according to IEC-61753-222-2 |
| Type: | Conductor pigtail |
| Type of connector: | SC |
