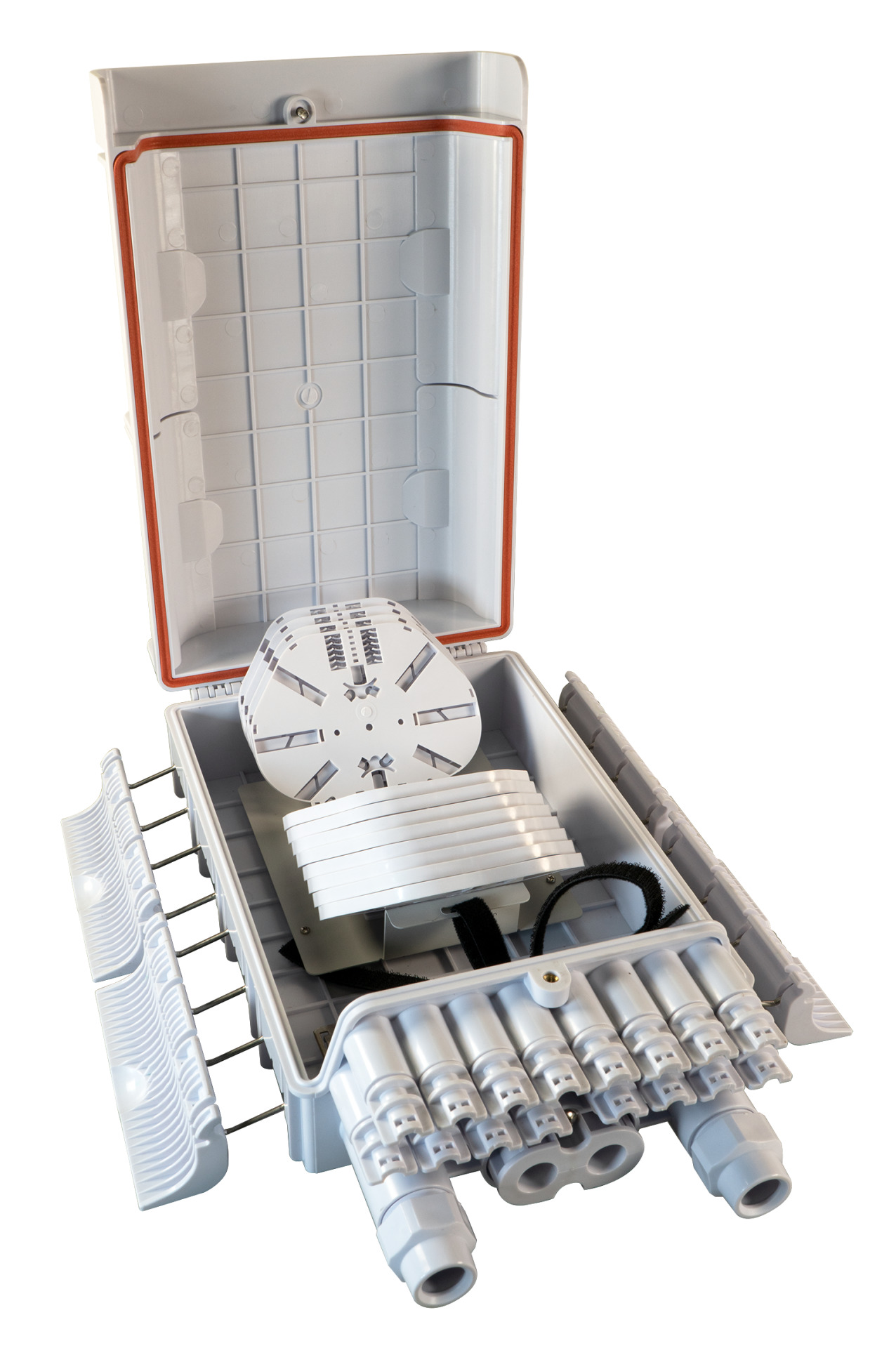

FTTH IP65 Connectionbox for 96 fiber
FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Item number:
FTTH-BOX-OUT-6
EAN no.:
4049759243029
Product information for FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
Technical properties
| Cable entry without cable gland: |
2 x 15mm 2 x 18mm 16 x 2-3mm |
|---|---|
| Cable sheath support: | True |
| Colour: | grey |
| Dimension: | 232 x 358.5 x 130.5 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | True |
| Holder for splitter: | True |
| IP Protection: | IP65 |
| Material: | Plastic |
| Mounting method: | Wall mounting |
| Number of Fibres: | 96 |
| Possibility of mast mounting: | True |
| Scope of application: | Outdoor |
| Temperature range: | -25 – 70 °C |
| Type of Splice protection: | Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
