HDBitT HDMI Extender Set, max. 120m
HDBitT Extender Sender/Receiver over IP, with IR, 120m
Item number:
IDATA-EXTIP-383V4
Product information for HDBitT Extender Sender/Receiver over IP, with IR, 120m
The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the position where the display is located.
Technical specifications
• Transmitter Kit and IR receiver with HDMI HDbitT
• Transmission protocol: HDbitT
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: UTP / STP Cat. 5e / 6
• Transmission distance up to 120m, transmission distance for 1080p 60Hz Full HD on a single Cat. 6 cable
• IR Signal: Supports IR devices 20-60KHz
• Operating Temperature: 0°C - 60°C
• Power supply DC5V / 1A
• TX consumption: 3.5W;
• RX consumption: 3W
Installation Requirements
• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
• HDMI screens as SDTV, projector with HDMI port.
• Network cables: Network cables UTP / STP Cat. 5e / 6 that meet the standard EIA568B
• Transmission length: 80m Cat. 5 / Cat. 5e, 100m / Cat. 6, 120m

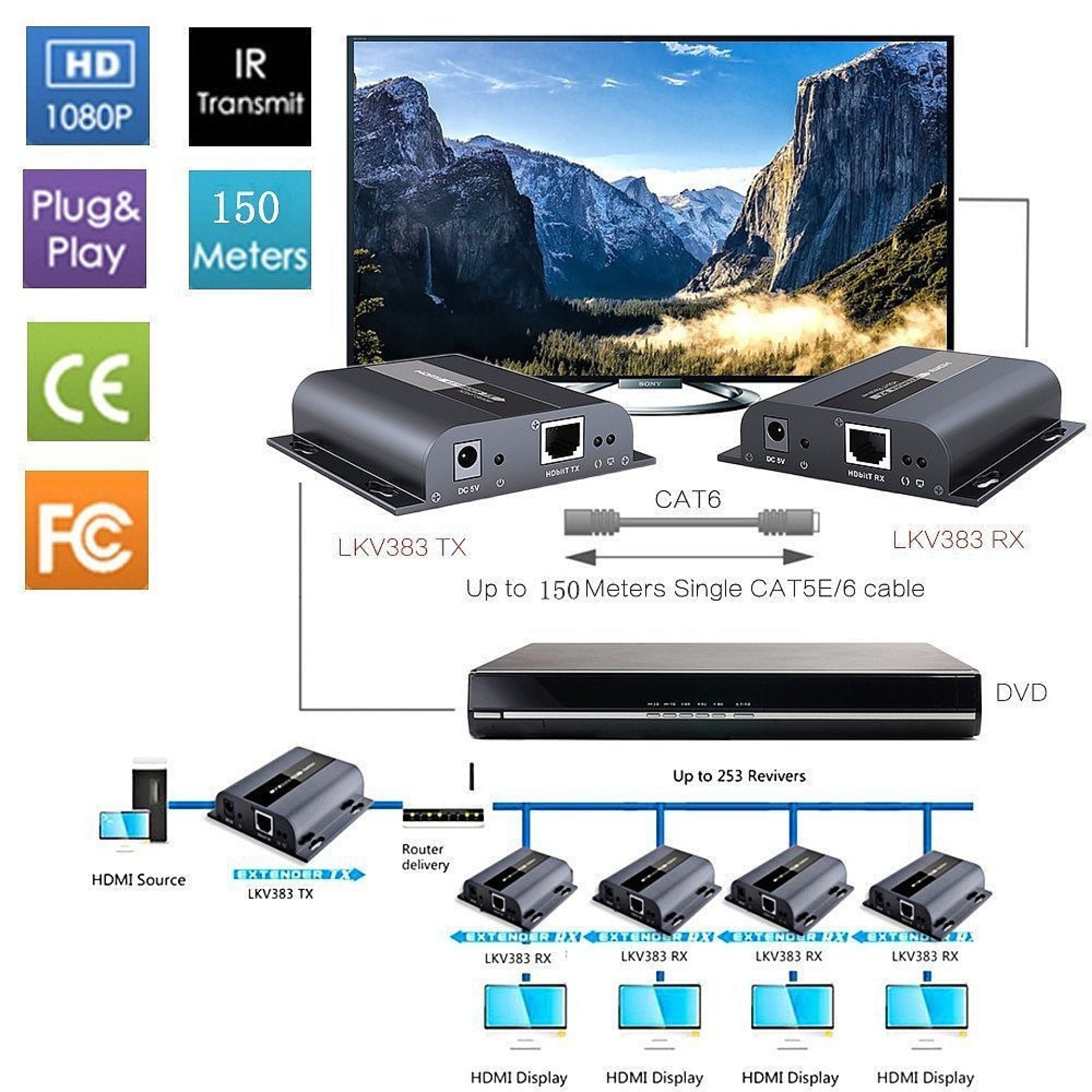

Connections
• Point-to-point connection: up to 120 meters transmission distance through single Cat. 6 cable (with a high quality cable can reach up to 150 meters)
• Connection with Router: Using a router / repeater, you can reach unlimited extensions.
• Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.
Dimensions
• Width: 96.8 mm
• Depth: 94 mm
• Height: 23.7 mm
Certifications
• EC
• FCC
• RoHS
• WEEE

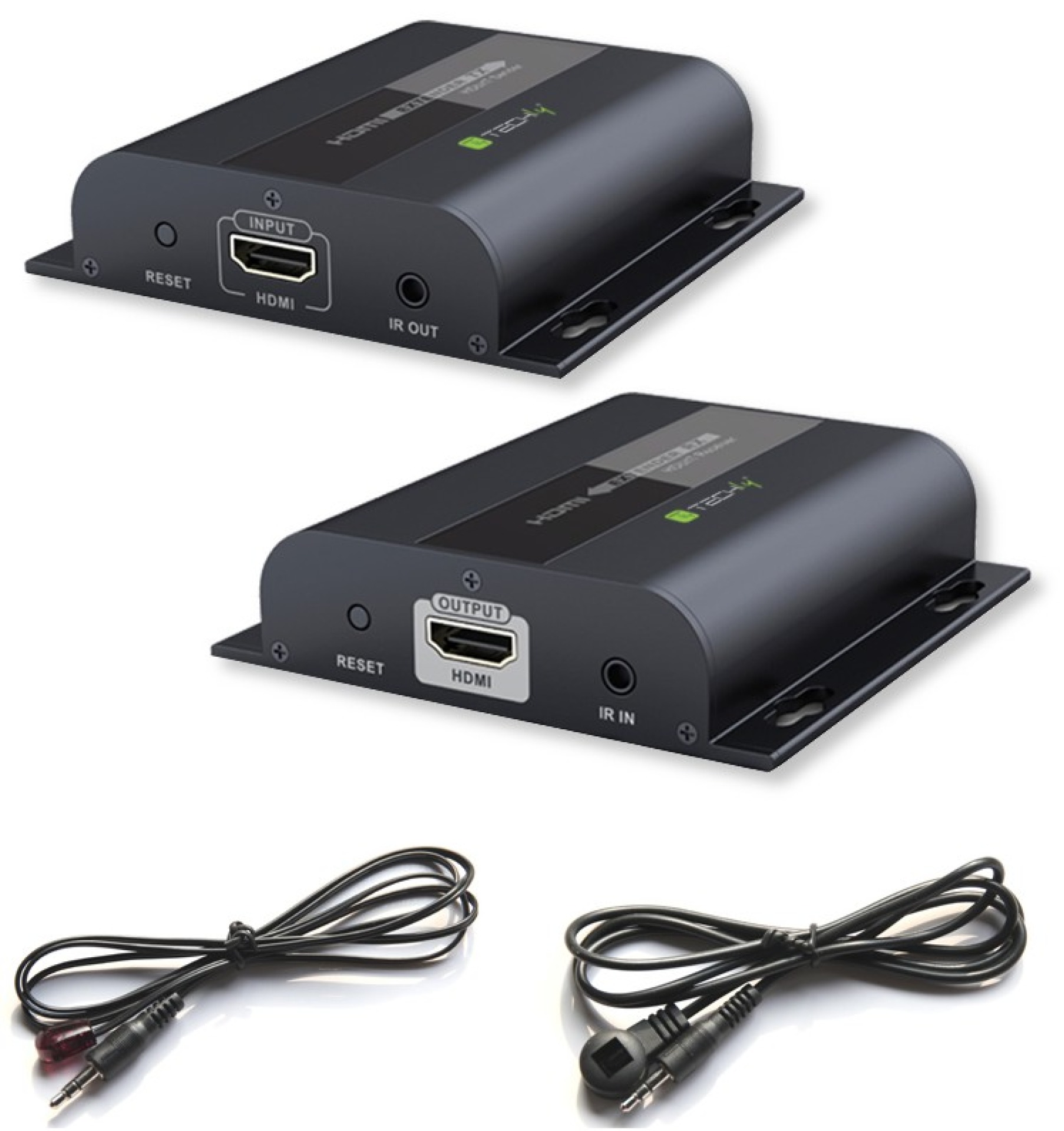

Package Contents
• 1x HDMI EXTENDER Transmitter TX
• 1x HDMI EXTENDER Receiver RX
• 2x Power Supply DC5V / 1A
• 1x extension cable IR Blaster
• 1x IR receiver extension cable
• 1x Instruction Manual
Technical specifications
• Transmitter Kit and IR receiver with HDMI HDbitT
• Transmission protocol: HDbitT
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: UTP / STP Cat. 5e / 6
• Transmission distance up to 120m, transmission distance for 1080p 60Hz Full HD on a single Cat. 6 cable
• IR Signal: Supports IR devices 20-60KHz
• Operating Temperature: 0°C - 60°C
• Power supply DC5V / 1A
• TX consumption: 3.5W;
• RX consumption: 3W
Installation Requirements
• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
• HDMI screens as SDTV, projector with HDMI port.
• Network cables: Network cables UTP / STP Cat. 5e / 6 that meet the standard EIA568B
• Transmission length: 80m Cat. 5 / Cat. 5e, 100m / Cat. 6, 120m
Connections
• Point-to-point connection: up to 120 meters transmission distance through single Cat. 6 cable (with a high quality cable can reach up to 150 meters)
• Connection with Router: Using a router / repeater, you can reach unlimited extensions.
• Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.
Dimensions
• Width: 96.8 mm
• Depth: 94 mm
• Height: 23.7 mm
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents
• 1x HDMI EXTENDER Transmitter TX
• 1x HDMI EXTENDER Receiver RX
• 2x Power Supply DC5V / 1A
• 1x extension cable IR Blaster
• 1x IR receiver extension cable
• 1x Instruction Manual
Technical properties
| Max. resolution: | 1920 × 1080 (FulHD) |
|---|---|
| Number of monitor outputs: | - |
| Suitable for 19 inch mounting: | False |
| Video interface: | HDMI |
Variants
| Item no. | Name | Number of monitor outputs | Number of camera inputs | |
|---|---|---|---|---|
| IDATA-EXTIP-383V4 | HDBitT Extender Sender/Receiver over IP, with IR, 120m | - | 1 | |
| IDATA-EXTIP-383RV4 | HDBitT HDMI additional receiver | 1 | - |
