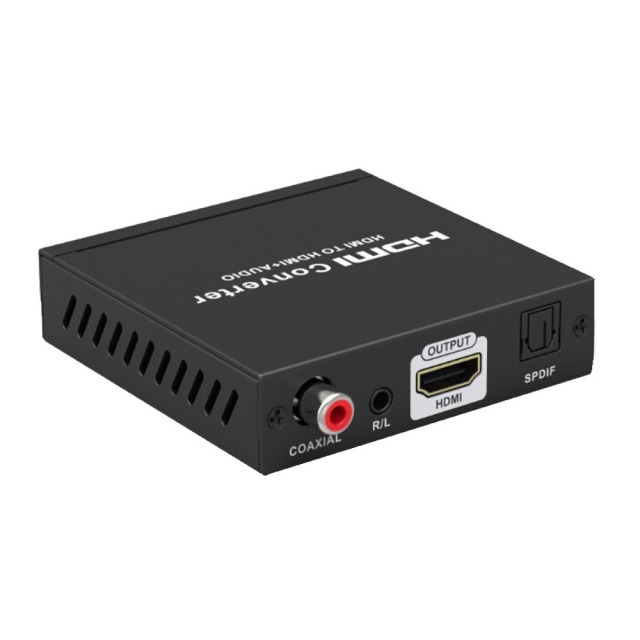

HDMI 4K Audio Extractor

HDMI 4K Audio Extractor
Item number: IDATA-HDMI-EAC

Product information for HDMI 4K Audio Extractor

The IDATA HDMI-EAC allows you to separate the signal of a source in ultra high definition and obtain a high quality video signal and an audio signal. The audio signal thus separated is sent to the amplifier via the SPDIF port, coaxial or 3.5 mm L / R audio port.

Features
Separate the audio signal from HDMI and supply it separately
Converts an HDMI input to an HDMI Video + Audio output (SPDIF + R / L + COAXIAL)
Supports HDMI2.0, HDCP2.2, HDCP1.4
Support HDCP1.4 to HDCP2.2, HDCP2.2 to HDCP1.4 conversion
Support 3D video format
Support ARC function
Supports HDR
Supports resolution up to 4Kx2K @ 60Hz UltraHD
Supports YUV4: 2: 0/4: 2: 2/4: 4: 4 and RGB 4: 4: 4
Lossless transmission
Plug and Play, simple installation

Technical specifications
HDMI2.0 compliant
HDCP compliant: HDCP 2.2, HDCP1.4
Supported HDMI Resolutions: 480i / 480p / 576i / 576p / 1080i / 1080p @ 60Hz / 4Kx2K @ 24/25/30 / 60Hz
Supported audio formats: Dolby, DTS, LPCM
Maximum transfer speed: 18Gbps
HDMI input cable distance: ≤5m (AWG24)
HDMI output cable distance: ≤ 5m (AWG24)
Power supply
Voltage / current: DC5V / 1A
Consumption: 2W

Environmental characteristics
Operating temperature: 0 ° to 50 °C
Operating temperature: -10 ° to 70 °C
Operating humidity: 5 to 90% non-condensing

Dimensions
Width: 80 mm
Depth: 80 mm
Height: 19.5 mm
Weight: 175 g

Certifications
CE
FCC
WEEE

Package Contents
IDATA HDMI-EAC audio extractor
5V 1A power supply
Instruction Manual

Technical properties

Suitable for 19 inch mounting: False
