HDMI Extender over CAT6/6a/7 with cable 30m
HDMI Extender over CAT6/6a/7 with cable 30m
Item number:
IDATA-EXT-E30D
EAN no.:
8057685301153
Product information for HDMI Extender over CAT6/6a/7 with cable 30m

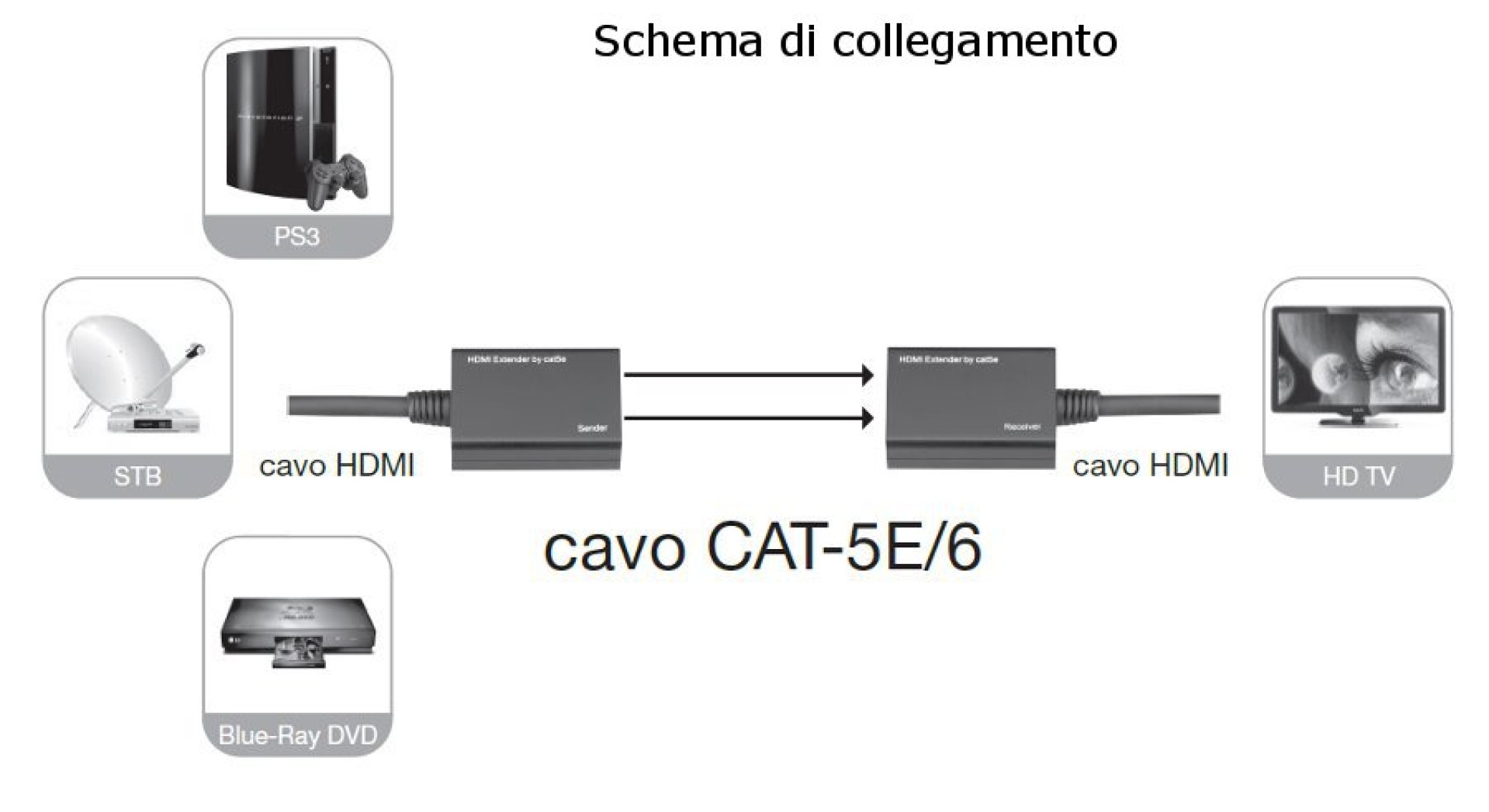

This HDMI Extender over Cat. 5e / 6 uses two UTP cables to extend the signal to a HDTV display up to 30 meters with a resolution of 1080p.
Characteristics
• Pair consisting of receiver and transmitter is a full functional module and requires no configuration
• Cable Cat. 5e / 6 replaces the HDMI cable to achieve a longer transmission distance
• Complies with IEEE-568B
• The distance signal transmission can reach 30 meters 1080p using UTP cable
• Compact size
• Supports full 1080p display resolution
• Supports bandwidth up to 165MHz / 1.65Gbps per channel (4.95Gbps all channel)
• Supports 8-bit deep color per channel (24bit all channel)
• HDCP pass-through
• Supports uncompressed audio such LPCM
• Supports compressed audio DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• Supports all 3D formats
Specifications
• Video input signal 0.5 -1.0 volts p-p
• Input DDC Signal 5 volts p -p (TTL)
• Maximum Single Link Range 1920x1080p
• HDMI video output
• Transmission distance: With UTP cable 30m 1080p
• Supported HDMI resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Environmental information
• Operating temperature: 0 to + 70°C
• Operating humidity: 10% to 85% RH (non-condensing)
• Storage Temperature: -10 ° to + 80 °
• Storage humidity: 5% to 95% RH (non-condensing)
• Power supply: not required
Package Contents

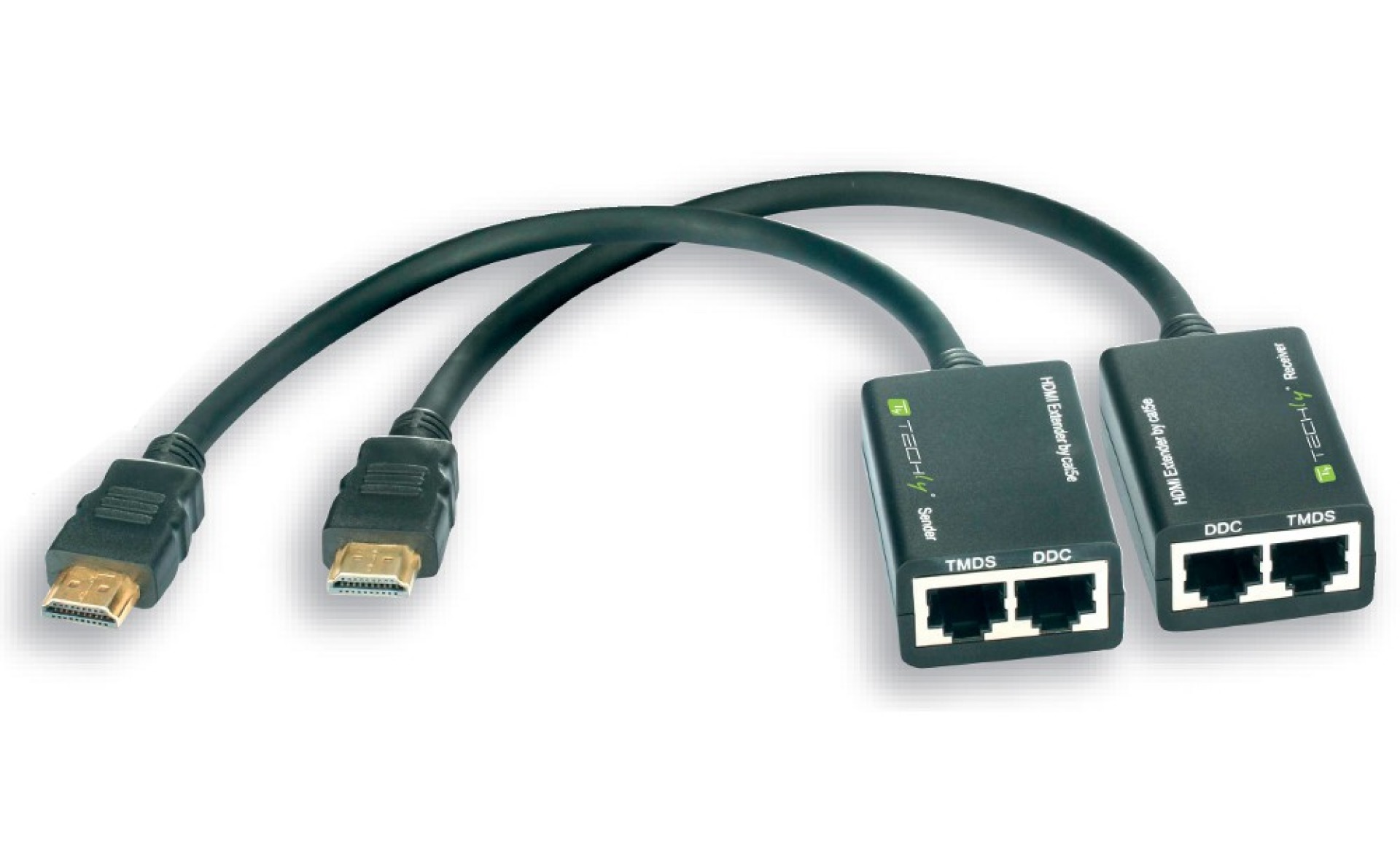

• HDMI Receiver

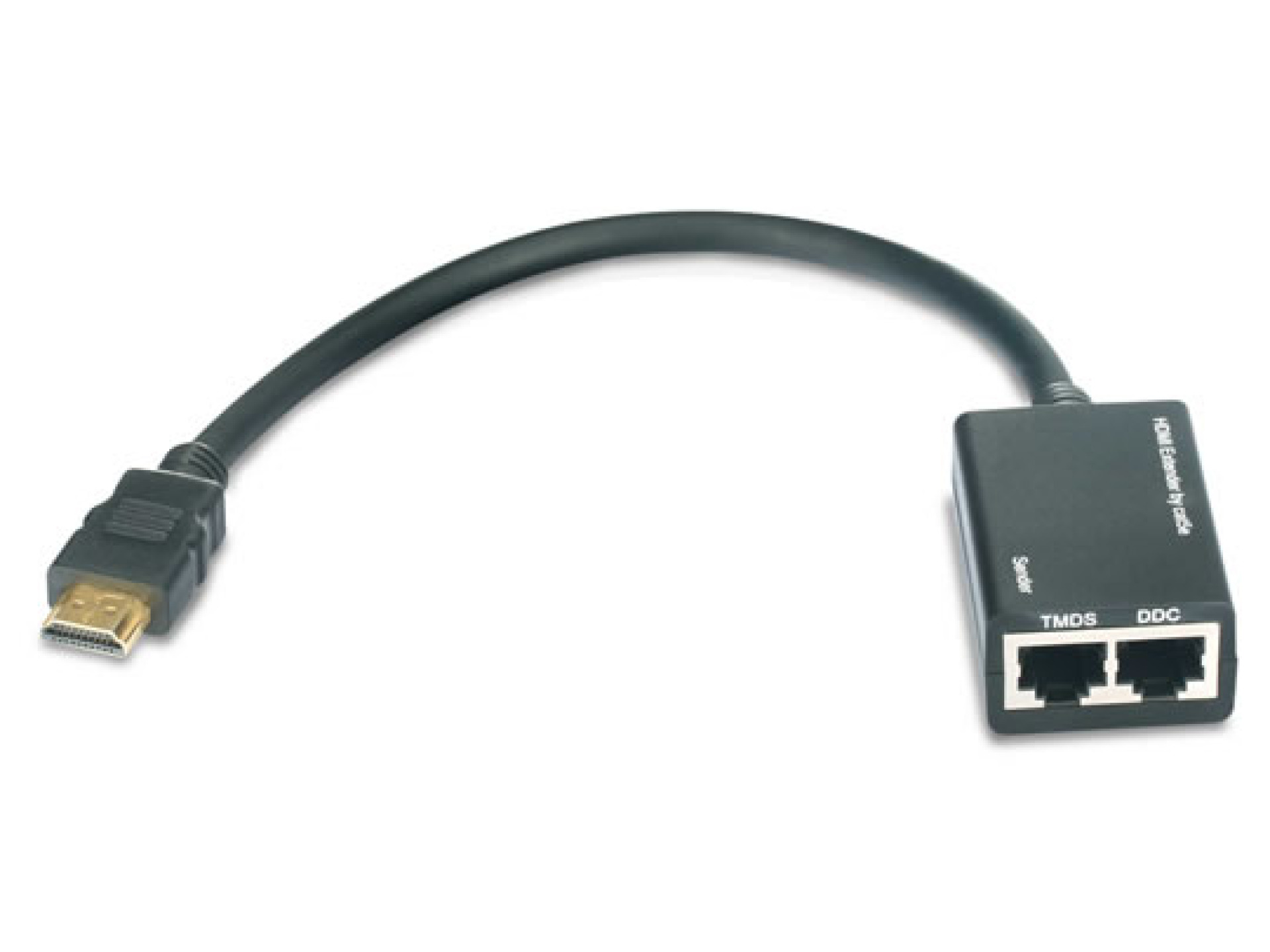

• HDMI Transmitter
• Instruction Manual
• Color: Black
