HDMI Switch 4X1 Quad Multi-Viewer

HDMI Switch 4X1 Quad Multi-Viewer
Item number: IDATA-HDMI-41MV
EAN no.: 8051128102260

Product information for HDMI Switch 4X1 Quad Multi-Viewer

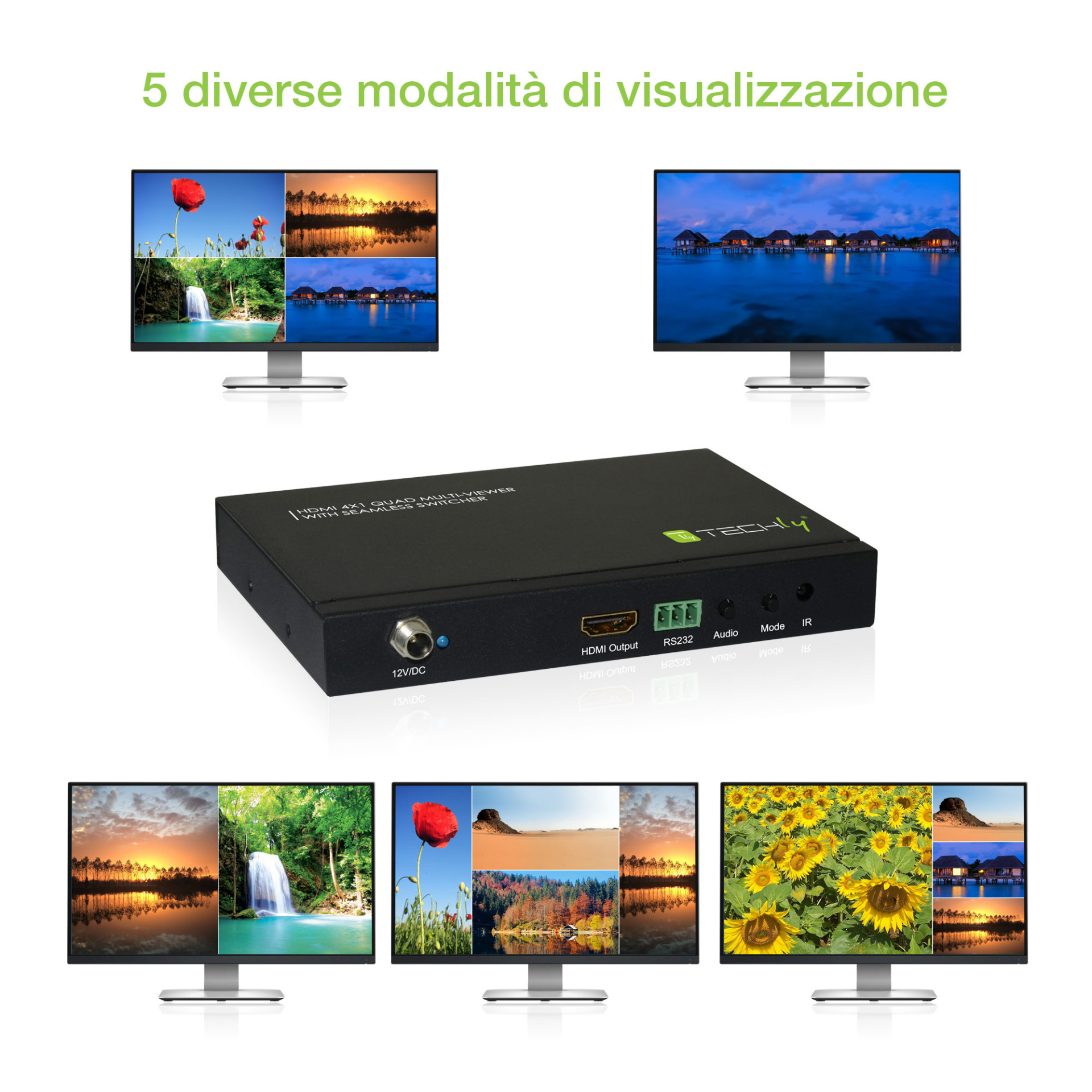

This HDMI 4x1 switch is a seamless switch with Multiview high performance features. It supports four HDMI input sources which can be displayed on one screen in five Multiview modes: it integrates video signals from 4 different video sources for viewing on a single monitor. For the four connected inputs, it also functions as a switch with fast switching between seamless sources. It can be controlled by various ways, through the front panel button, IR, RS232 control, etc.

Features
  • HDMI 4x1 Multi-viewer with seamless switcher

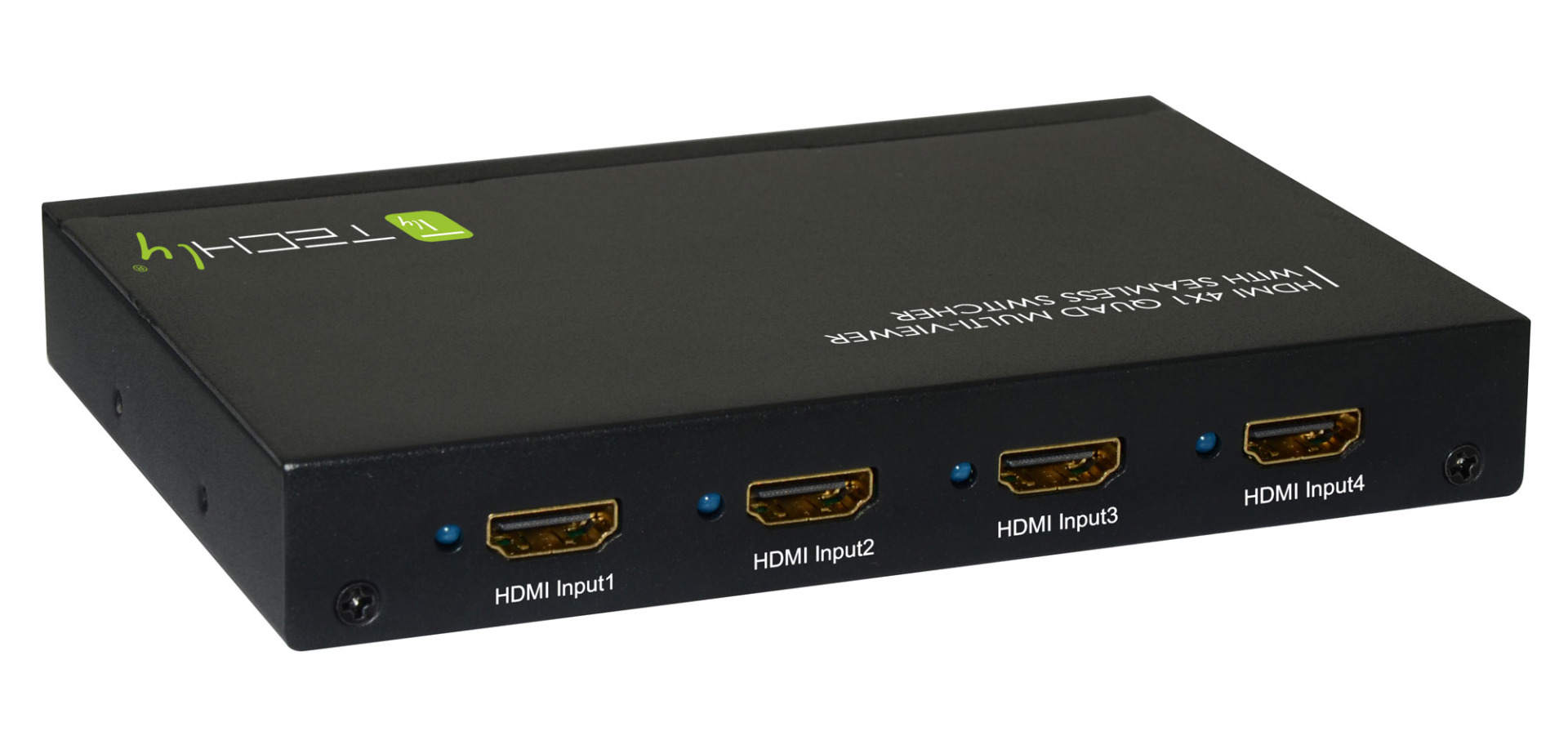

  • Up to 4 HD sources and it is capable of scaling and dimensioning the images and send them to a single Full HD display for Multiple view
  • Compliant with HDMI 1.3a and HDCP 1.2
  • Supports High Definition resolution up to Full HD 1080p
  • Supports 4 in 1 Quad Multi-viewer and seamless switch (with same resolution)
  • Quick switch between the HDMI sources (Seamless)
  • Supports scaler up and scaler down function

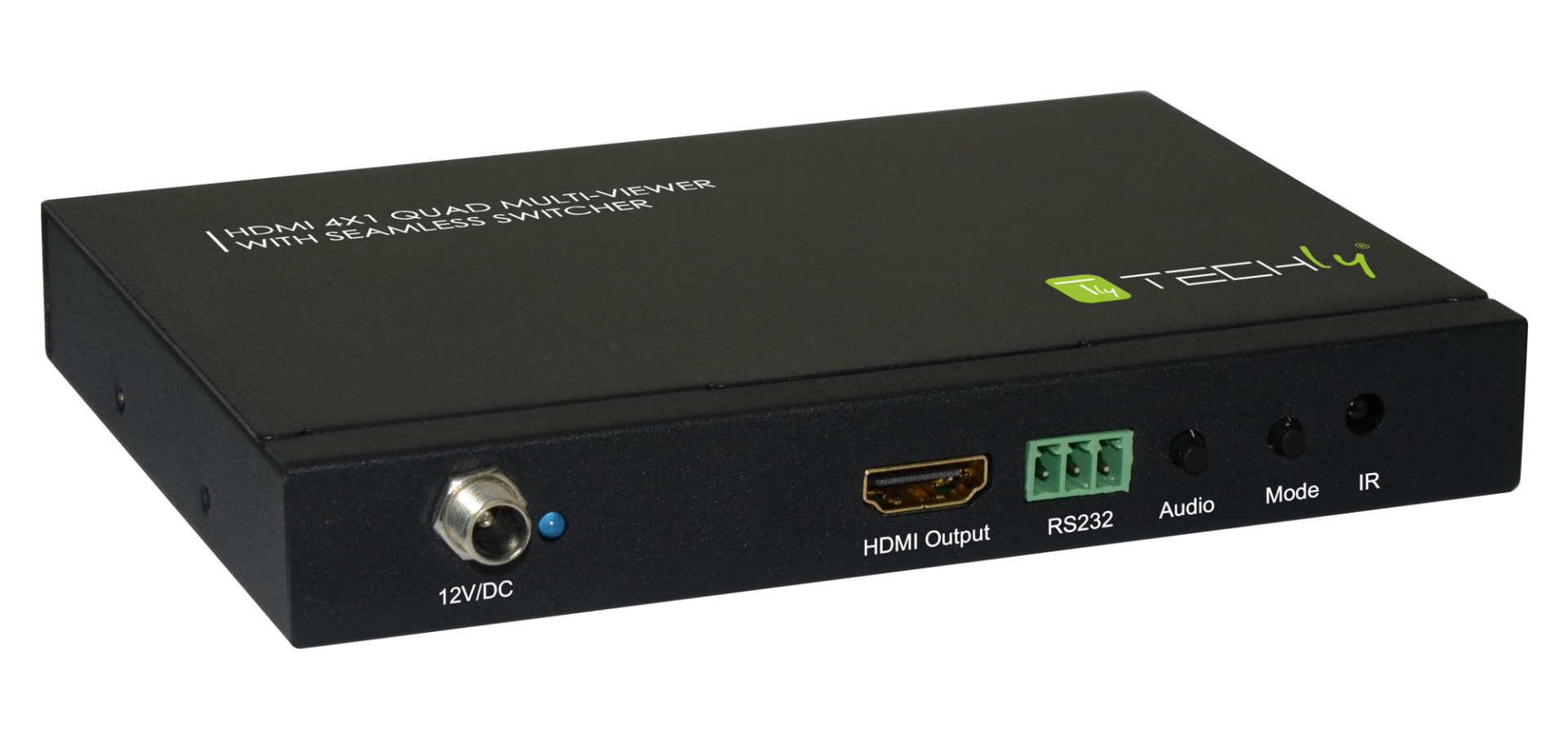

  • Supports button, IR control, RS232 control
  • Supports multi output resolution
  • Material: metal
  • Color: black


  • Technical specifications
  • Maximum Single Link Range: 1920x1080@60
  • HDMI input/Output connector: Tipo A 19 pin
  • Vertical Frequency Range: 50/60Hz
  • Video amplifier Bandwidth: 2.25Gbps
  • Input resolution: 480i60Hz, 480p60Hz, 576i50Hz, 576i60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz
  • Output resolution: 720p, 1080p


  • Application
  • Video switch
  • Surveillance for multi camera
  • Car quad monitor
  • Video format converter
  • Multimedia panel


  • Dimensions
  • Width: 148.5 mm
  • Deep: 103 mm
  • Height: 21.5 mm
  • Weight: 342 g


  • Environmental specifications
  • Operating temperature: 0°C to +70°C
  • Operating humidity: 10% to 85%RH (no condensation)
  • Storage temperature: -10°C to 80°C
  • Storage humidity: 5% to 90%RH (no condensation)


  • Power

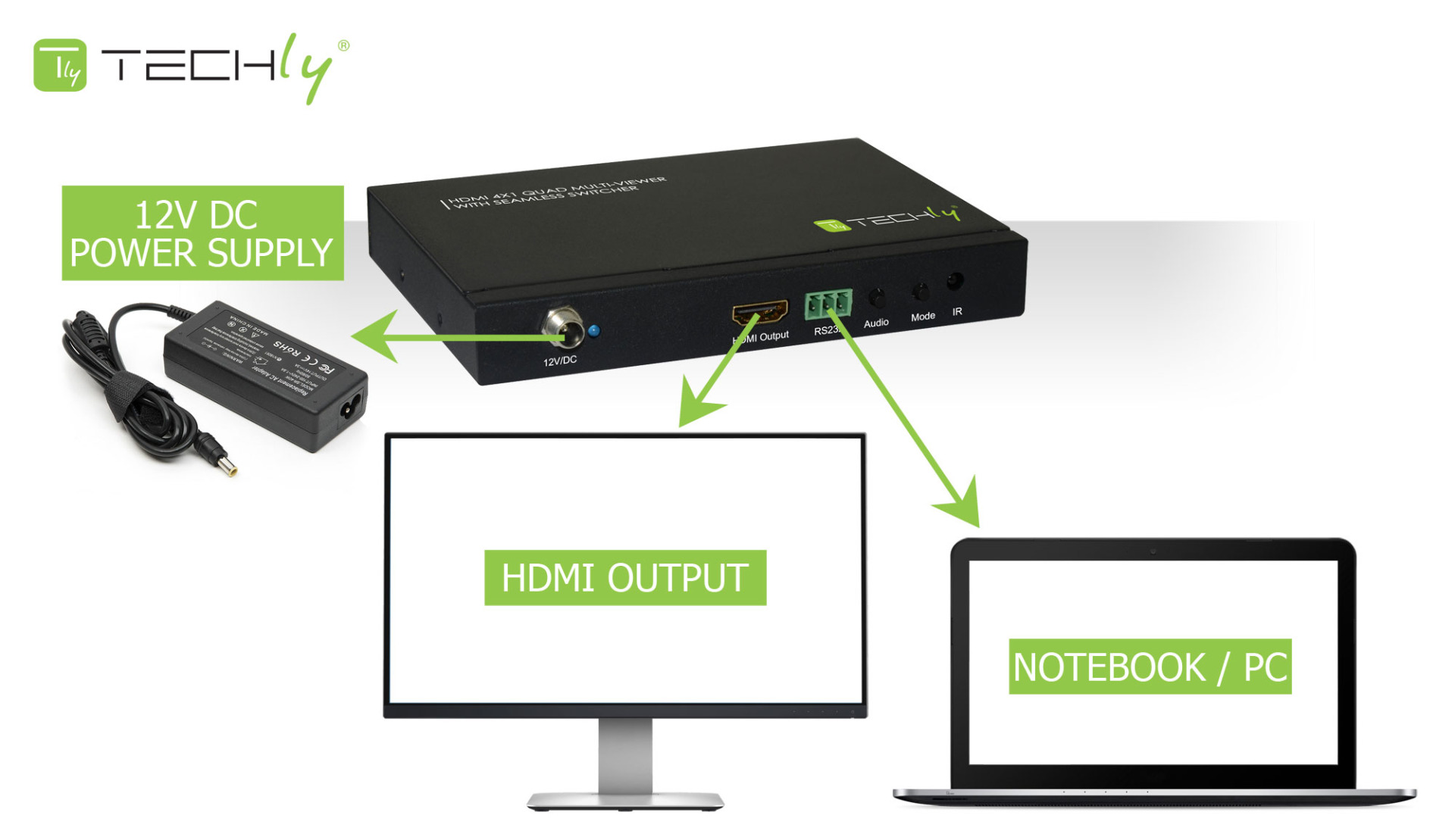

  • External power supply: 12V DC@2A
  • Power consumption: 10W


  • Package contents
  • HDMI 4x1 Multi-viewer with seamless switcher
  • Power supply 5V / 2A
  • User’s manual
  • Remote control
