Heavy-Duty Sliding Rails for PRO
Heavy-Duty Sliding Rails, Cabinet Depth 800 mm, for PRO
Item number:
PRO-SGL08
EAN no.:
4049759219567
Product information for Heavy-Duty Sliding Rails, Cabinet Depth 800 mm, for PRO
For mounting of heavy devices in network or server cabinets
Mounting at the front and rear-sided 19" profiles
Max. load 100 kg
Material steel sheet
PU 2 pieces
Mounting at the front and rear-sided 19" profiles
Max. load 100 kg
Material steel sheet
PU 2 pieces
Technical properties
| Cabinet Series: | PRO |
|---|---|
| Material: | Metal |
| Model: | Device carrier |
Variants

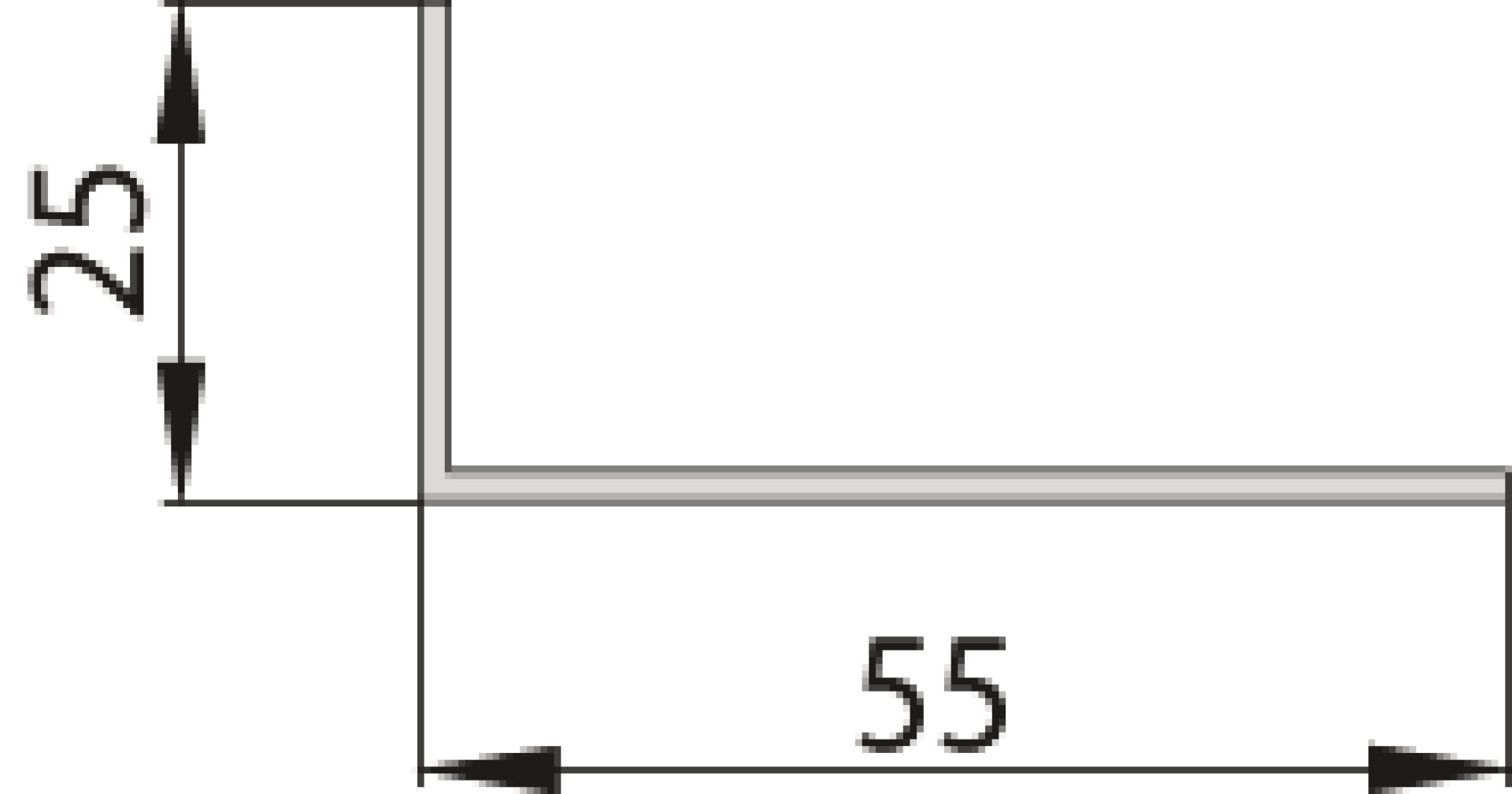

| Item no. | Name | Max. Load | Depth | Breite | Höhe | Für Schranktiefe | |
|---|---|---|---|---|---|---|---|
| PRO-SGL06 | Heavy-Duty Sliding Rails, Cabinet Depth 600 mm, for PRO | 100 kg | 350 mm | 55 mm | 25 mm | 600 mm | |
| PRO-SGL08 | Heavy-Duty Sliding Rails, Cabinet Depth 800 mm, for PRO | 100 kg | 550 mm | 55 mm | 25 mm | 800 mm | |
| PRO-SGL10 | Heavy-Duty Sliding Rails, Cabinet Depth 1000 mm, for PRO | 100 kg | 750 mm | 55 mm | 25 mm | 1000 mm | |
| PRO-SGL12 | Heavy-Duty Sliding Rails, Cabinet Depth 1200 mm, for PRO | 100 kg | 1000 mm | 55 mm | 25 mm | 1200 mm |
