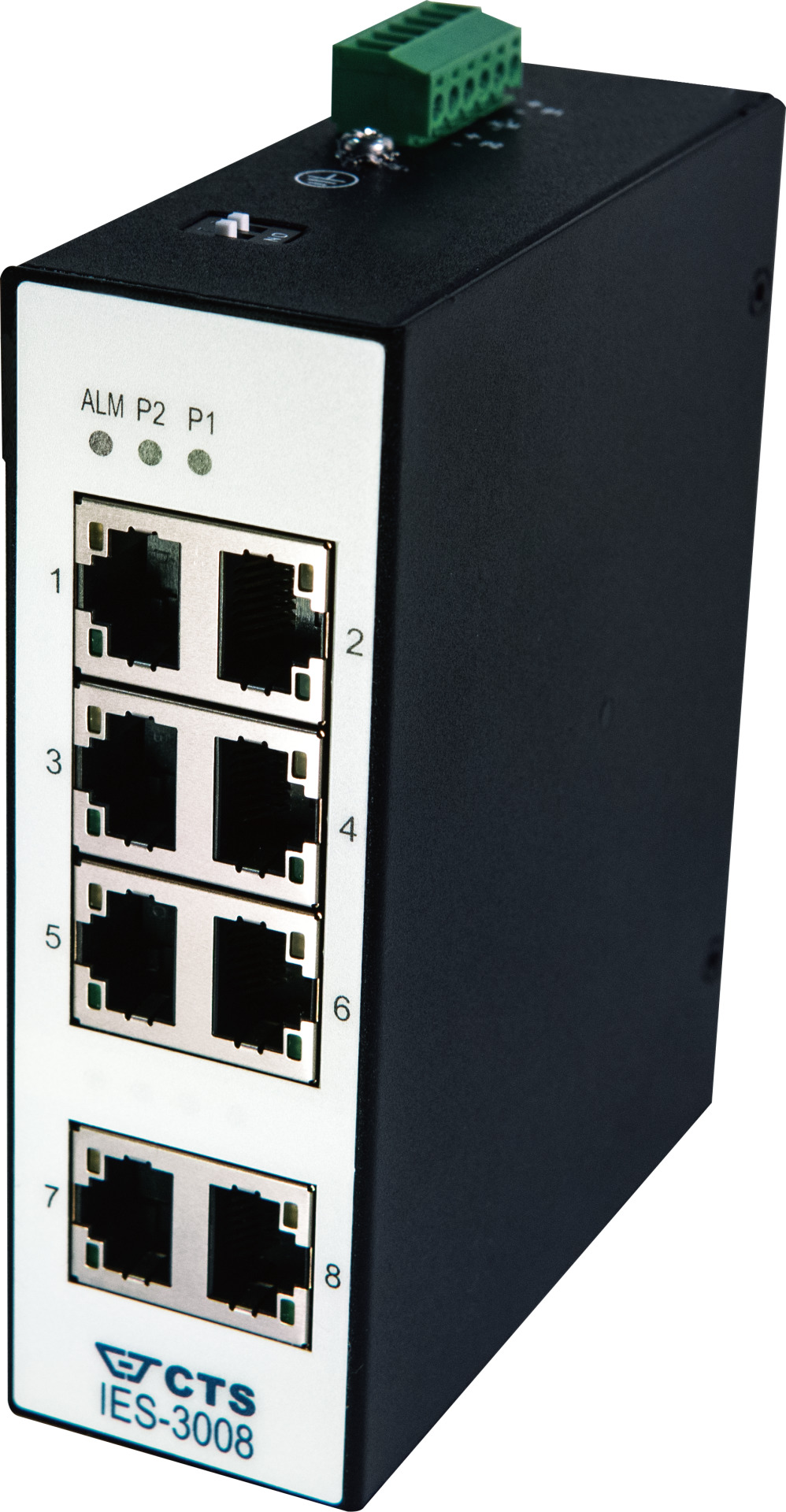

IES-3008, Industrial Switch 8x 10/100/1000T
Industrial Switch 8x 10/100/1000T
Item number:
IES-3008
EAN no.:
4049759214722
Product information for Industrial Switch 8x 10/100/1000T
Wide range of operation voltage 12 .. 58 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: DR-15-24
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: DR-15-24
Technical properties
| Degree of protection: | IP30 |
|---|---|
| Depth: | 69.9 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 117.8 mm |
| Manufacturer: | CTS |
| Mounting method: | DIN rail (top hat rail) |
| Number of 10/100/1000 Mbps RJ45-Ports: | 8 |
| Temperature range: | -40 – 75 °C |
| Width: | 39.0 mm |
