INFRALAN® Frame Set for Keystone Moduls

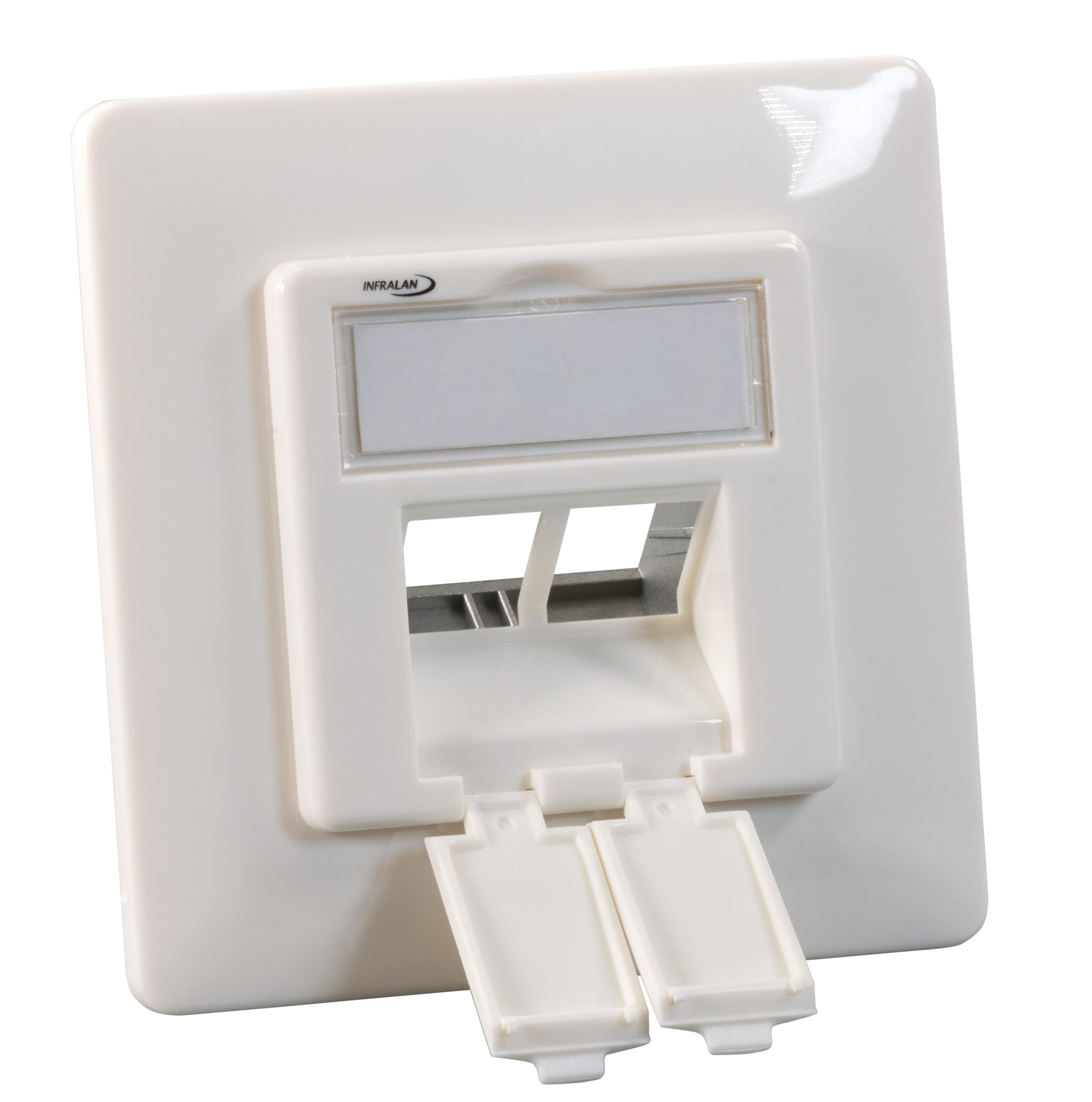

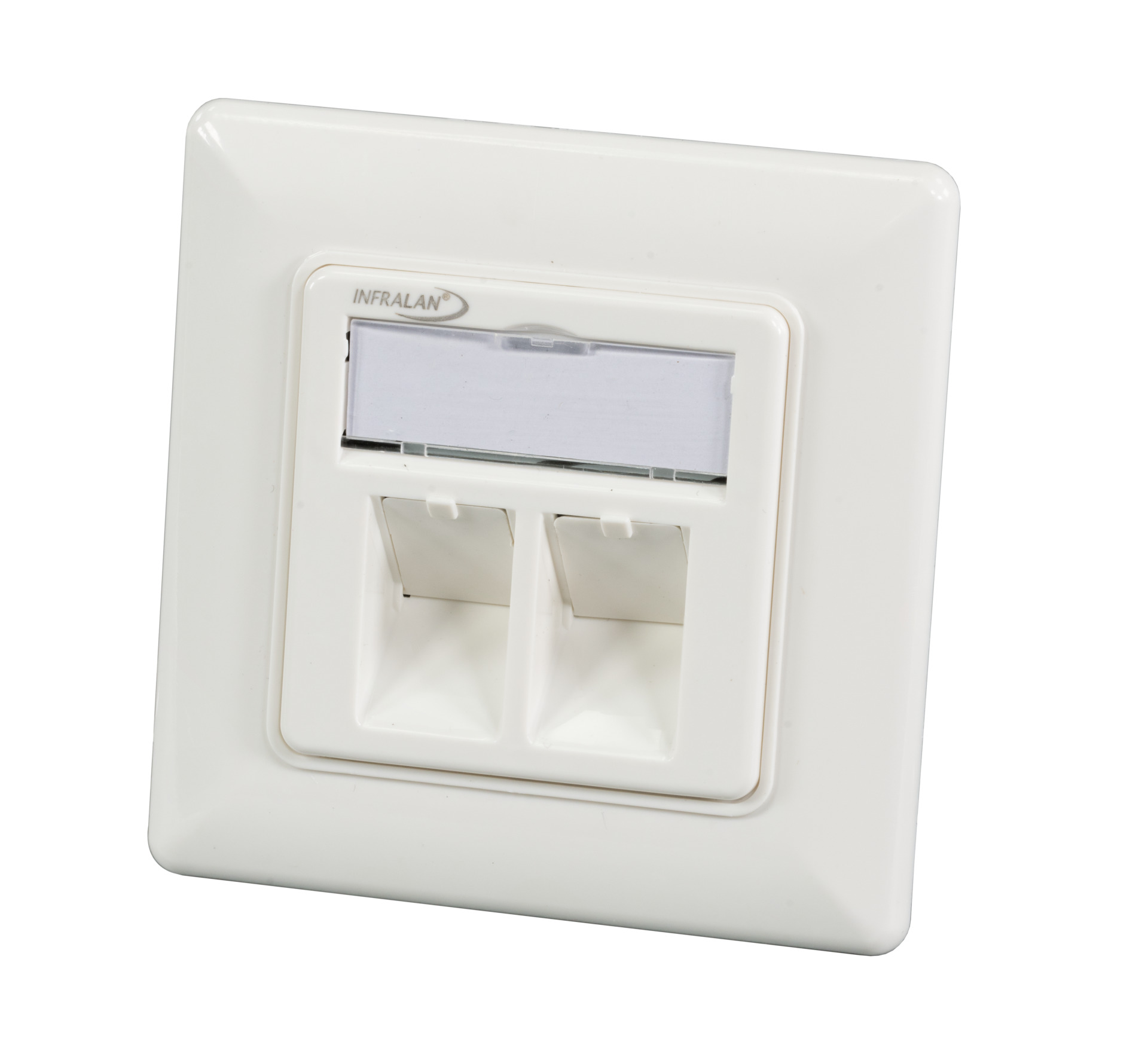

INFRALAN® 2-Port UAE Frame Set for Keystone, Slimline IKS-6A-PVP, design capable
Item number:
IMT-02-RK-WS-DF
EAN no.:
4049759194697
Product information for INFRALAN® 2-Port UAE Frame Set for Keystone, Slimline IKS-6A-PVP, design capable
To accommodate all INFRALAN® RJ45 Keystone modules

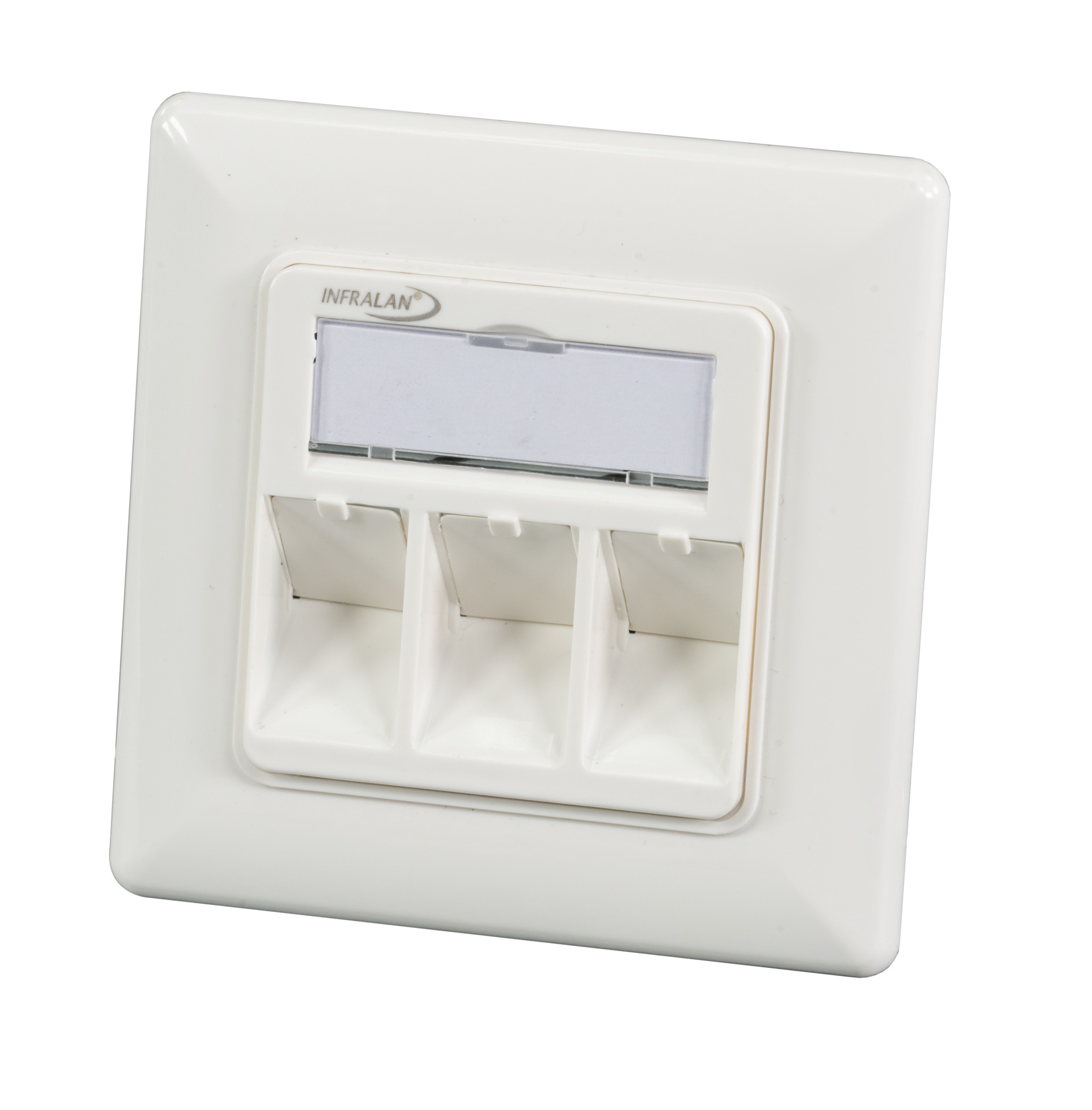

Frame set in 1-port, 2-port or 3-port
40° outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
Separate earthing latch for Faston 6.3mm blade receptacle

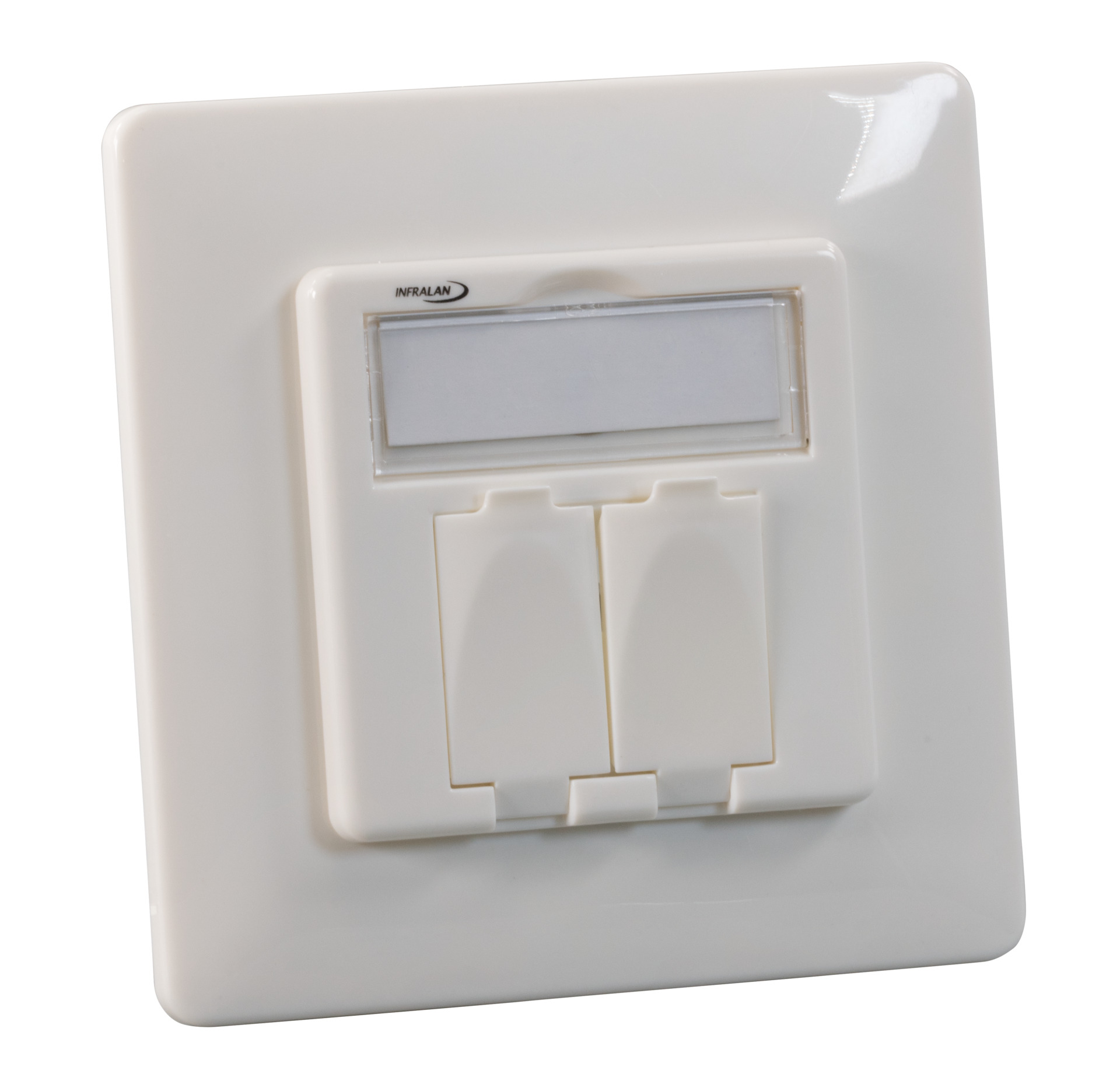

With dust protection flaps and integrated labelling field
Frame set in 1-port, 2-port or 3-port
40° outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
Separate earthing latch for Faston 6.3mm blade receptacle
With dust protection flaps and integrated labelling field
Technical properties
| Assembly arrangement: | Basic element with central cover plate |
|---|---|
| Halogen free: | False |
| Imprintable label: | with indication plate |
| Luster terminal: | False |
| Material: | Plastic |
| Material quality: | other |
| Mounting method: | Flush mounted (plaster) |
| Suitable for degree of protection (IP): | - |
| Support ring: | True |
| Surface finishing: | matt |
| Surface protection: | other |
| Transparent: | False |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
| With strain relief: | False |
Variants
| Item no. | Name | RAL-number (similar) | Colour | |
|---|---|---|---|---|

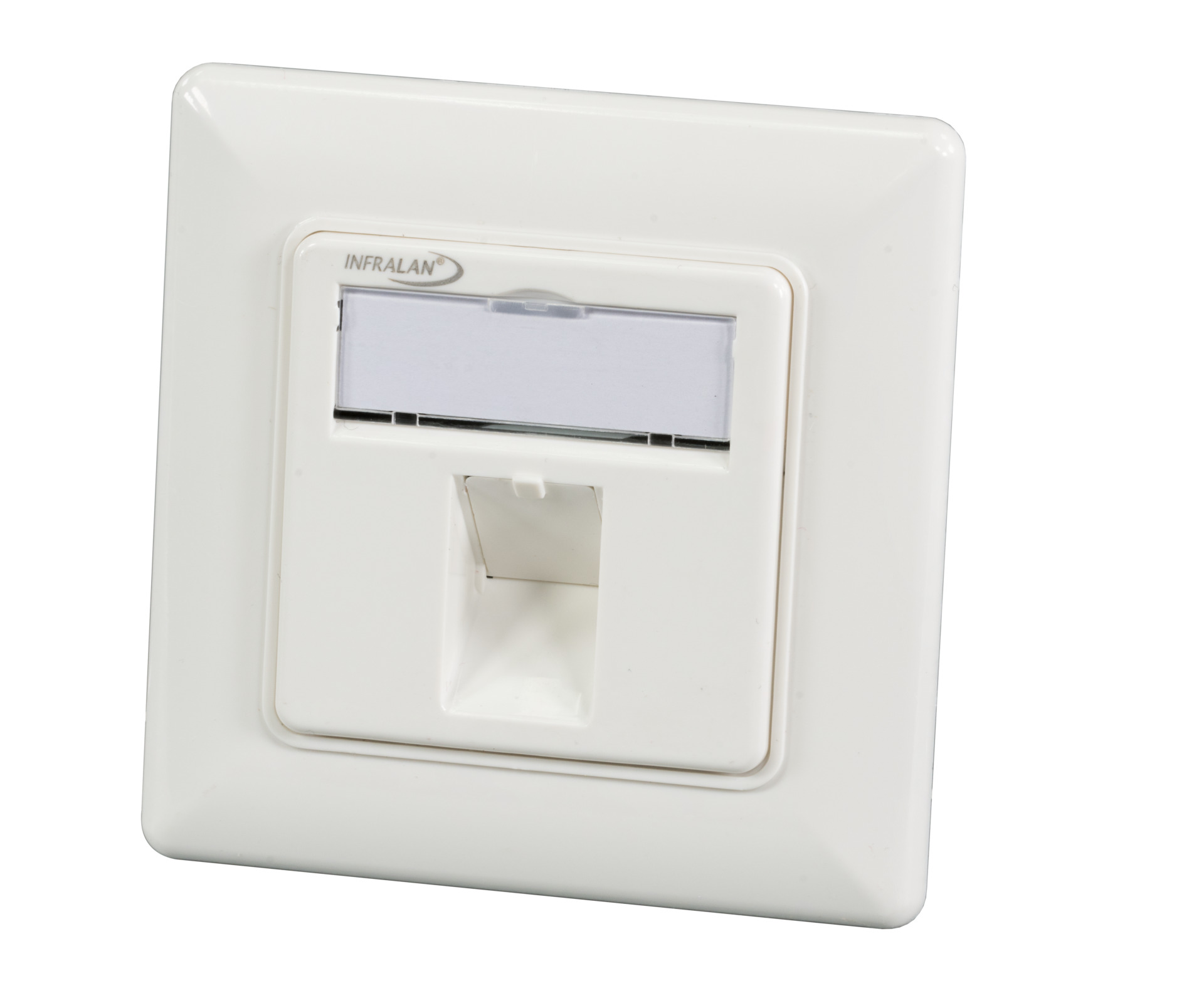

| IMT-01-RK-WS-KP | INFRALAN® 1-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls | 9010 | white | |
| IMT-02-RK-WS-DF | INFRALAN® 2-Port UAE Frame Set for Keystone, Slimline IKS-6A-PVP, design capable | 9010 | white | |
| IMT-02-RK-WS-KP | INFRALAN® 2-Port Frame Set, RAL9010, for all INFRALAN® Keystone Moduls | 9010 | white |
