INFRALAN® LC Adapter in plastic housing

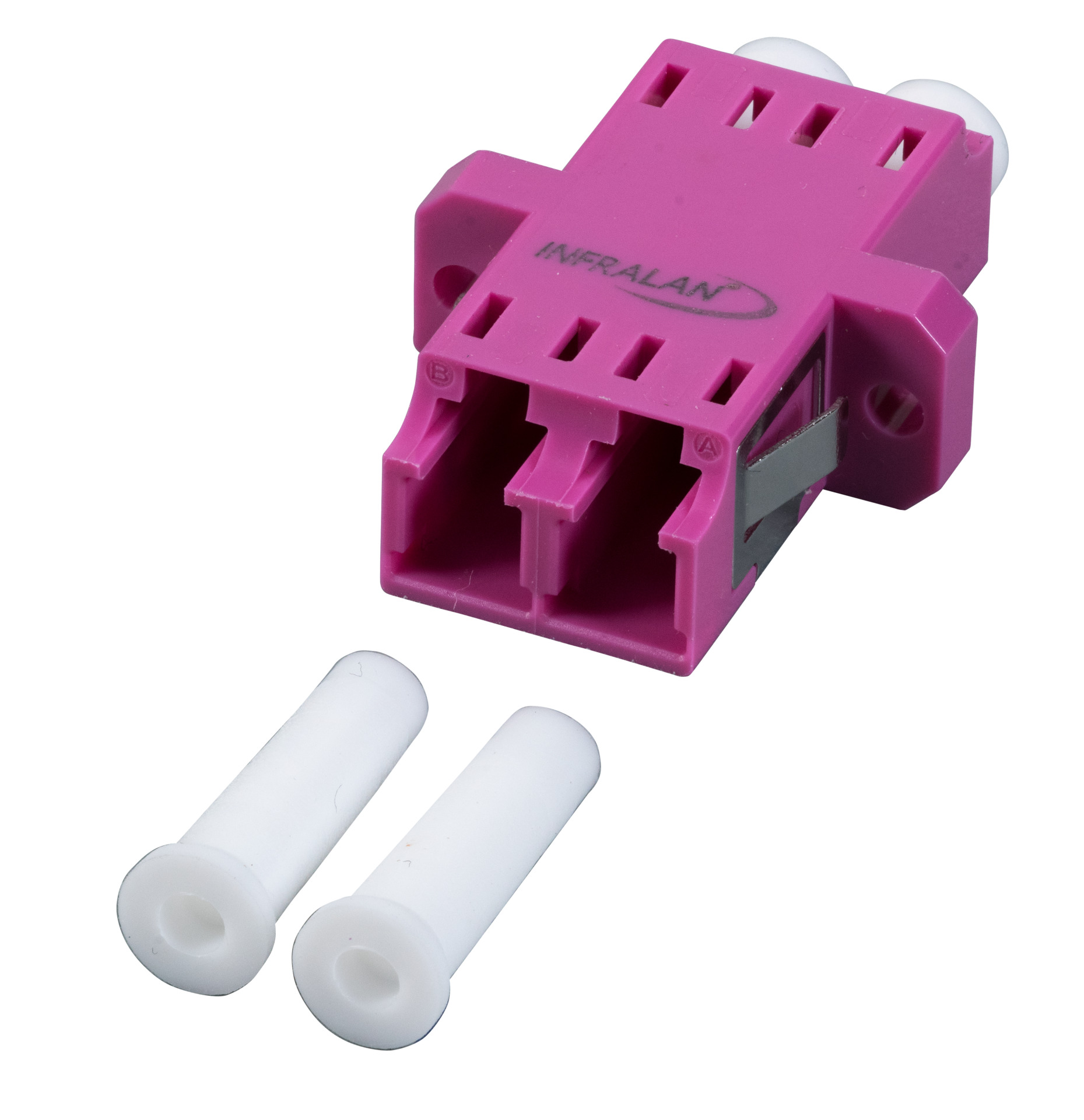

INFRALAN® adapter LC Duplex OM4 erica violet
Item number:
IKL-LCDU-MM-K-EV
EAN no.:
4049759194239
Product information for INFRALAN® adapter LC Duplex OM4 erica violet
The INFRALAN® LC Duplex adapter in coloured plastic housing according to fiber class
For SC-Simplex breakouts
Conform to DIN EN 61754-20
Higher stability due to one-piece design and low sensitivity to temperature fluctuations
Mounting options via clips or sheet metal screws ST2.5
For SC-Simplex breakouts
Conform to DIN EN 61754-20
Higher stability due to one-piece design and low sensitivity to temperature fluctuations
Mounting options via clips or sheet metal screws ST2.5
Technical properties
| Accessories: | Self-Tapping Screw |
|---|---|
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Length: | 29,2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating Temperature: | -40 – 85 °C |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Width: | 22.0 mm |
