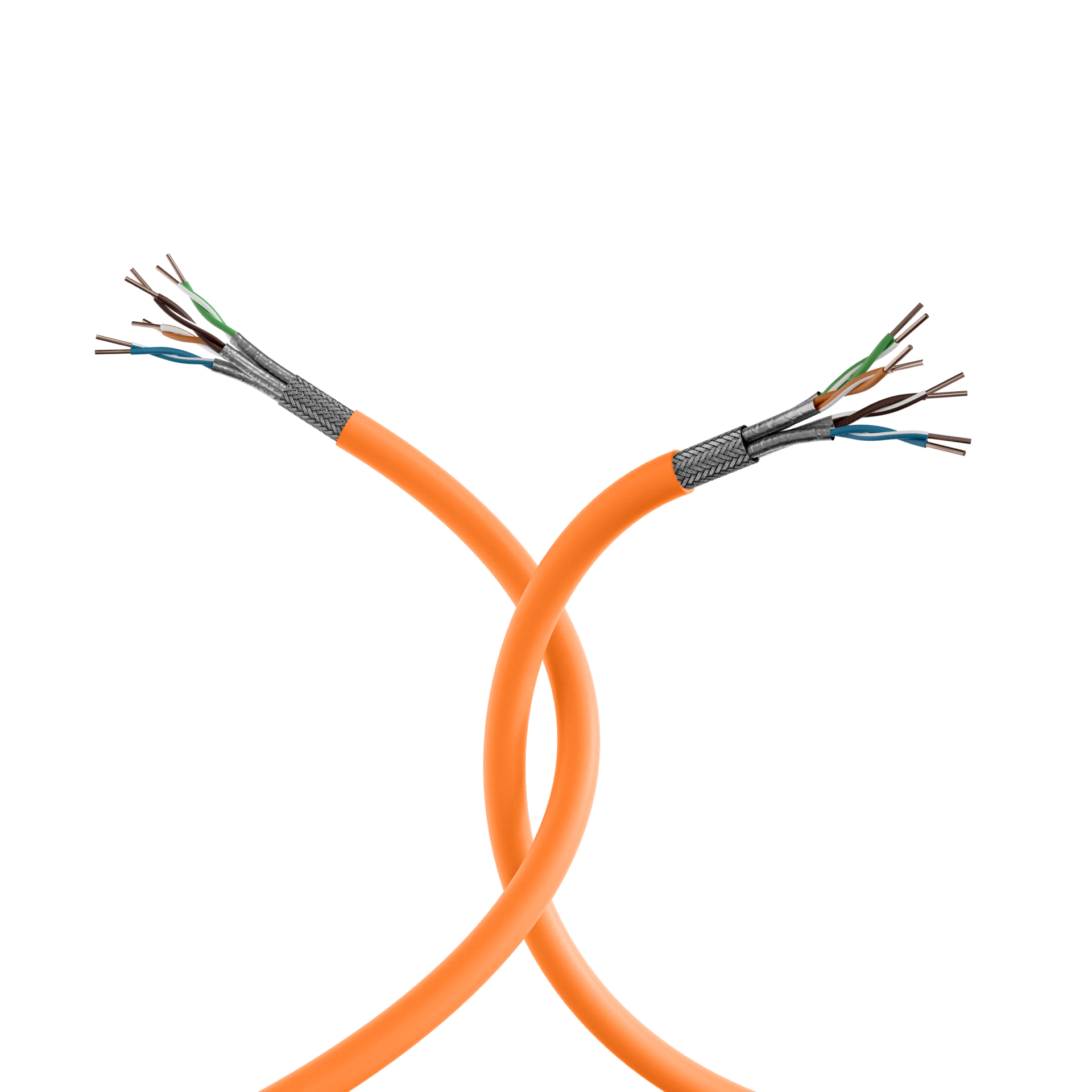

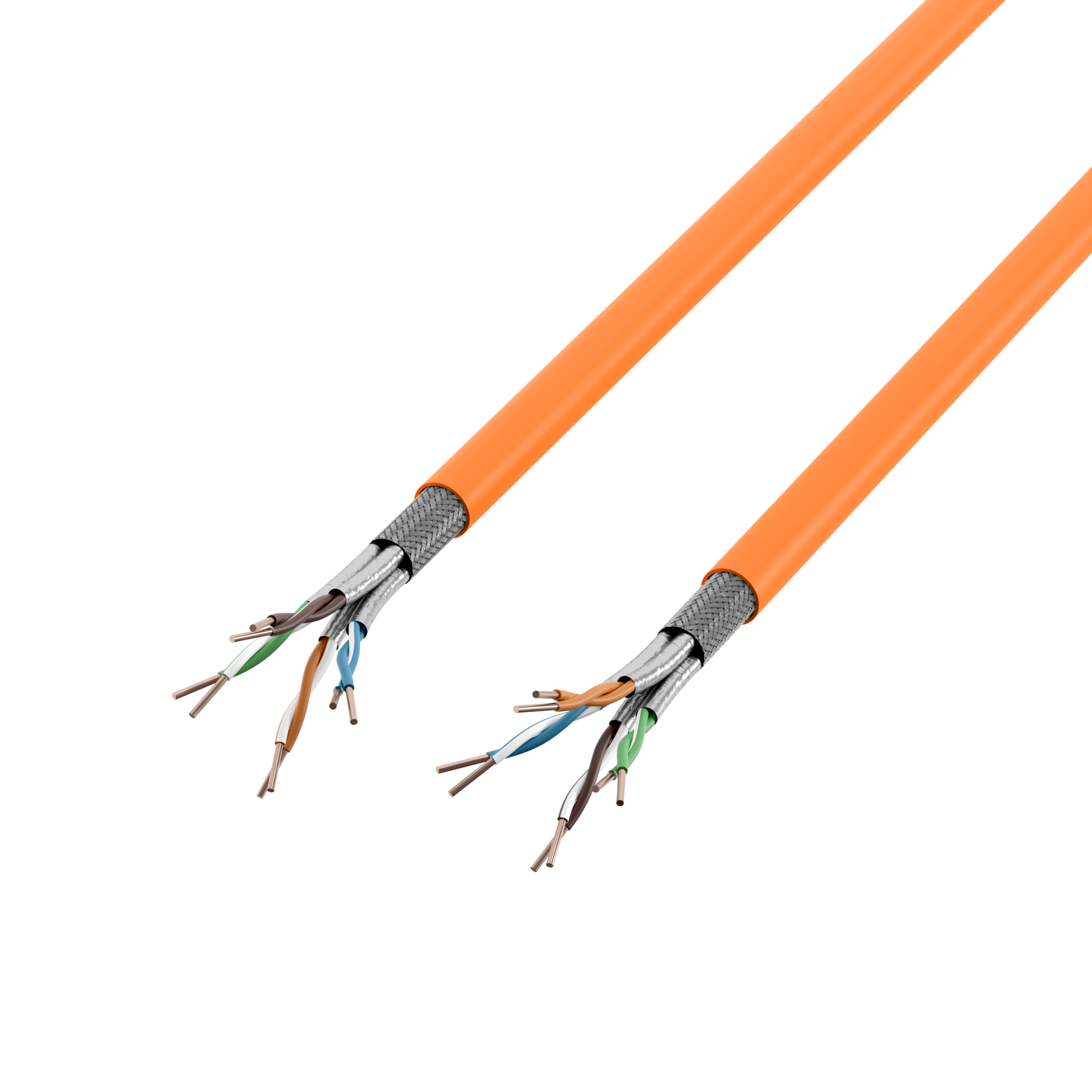

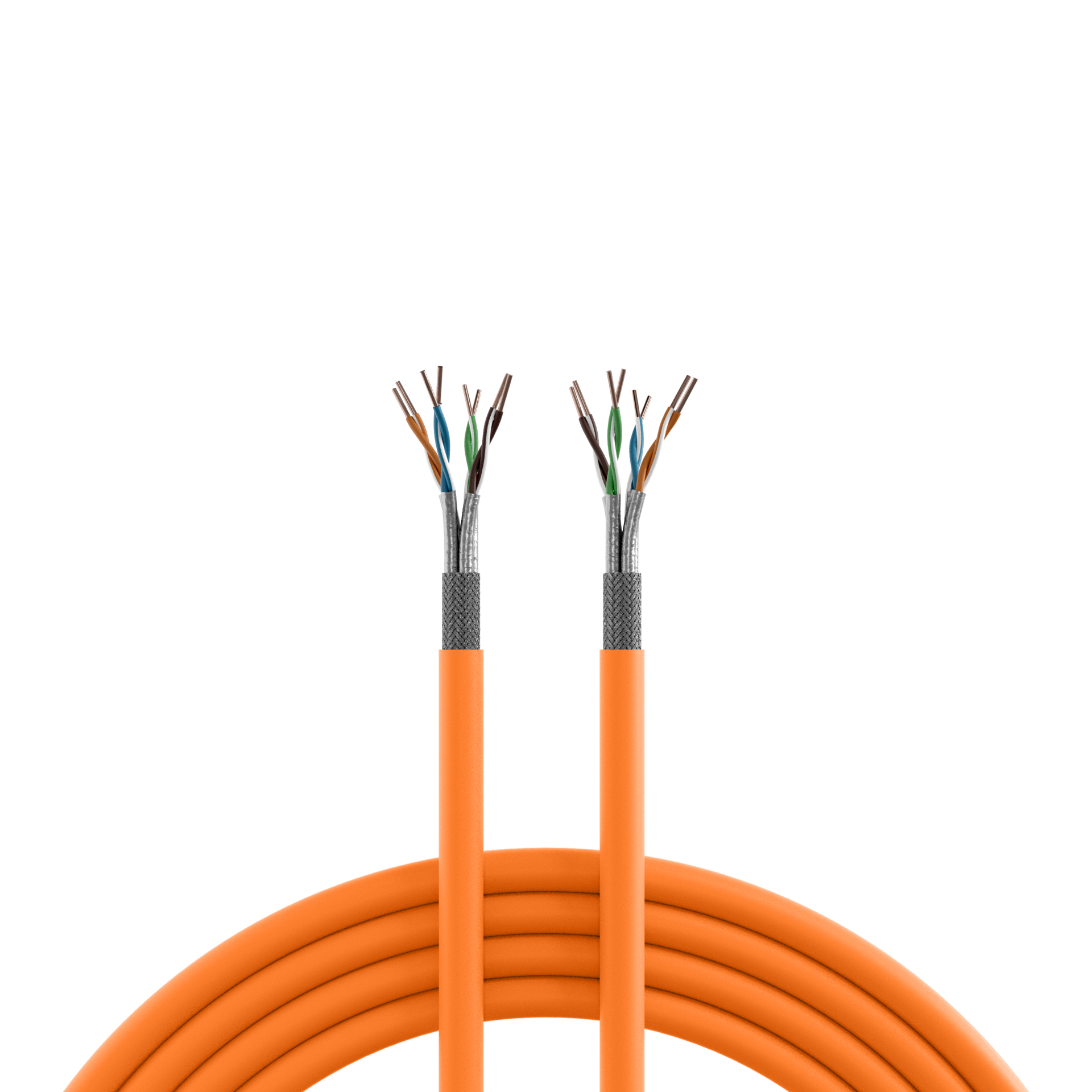

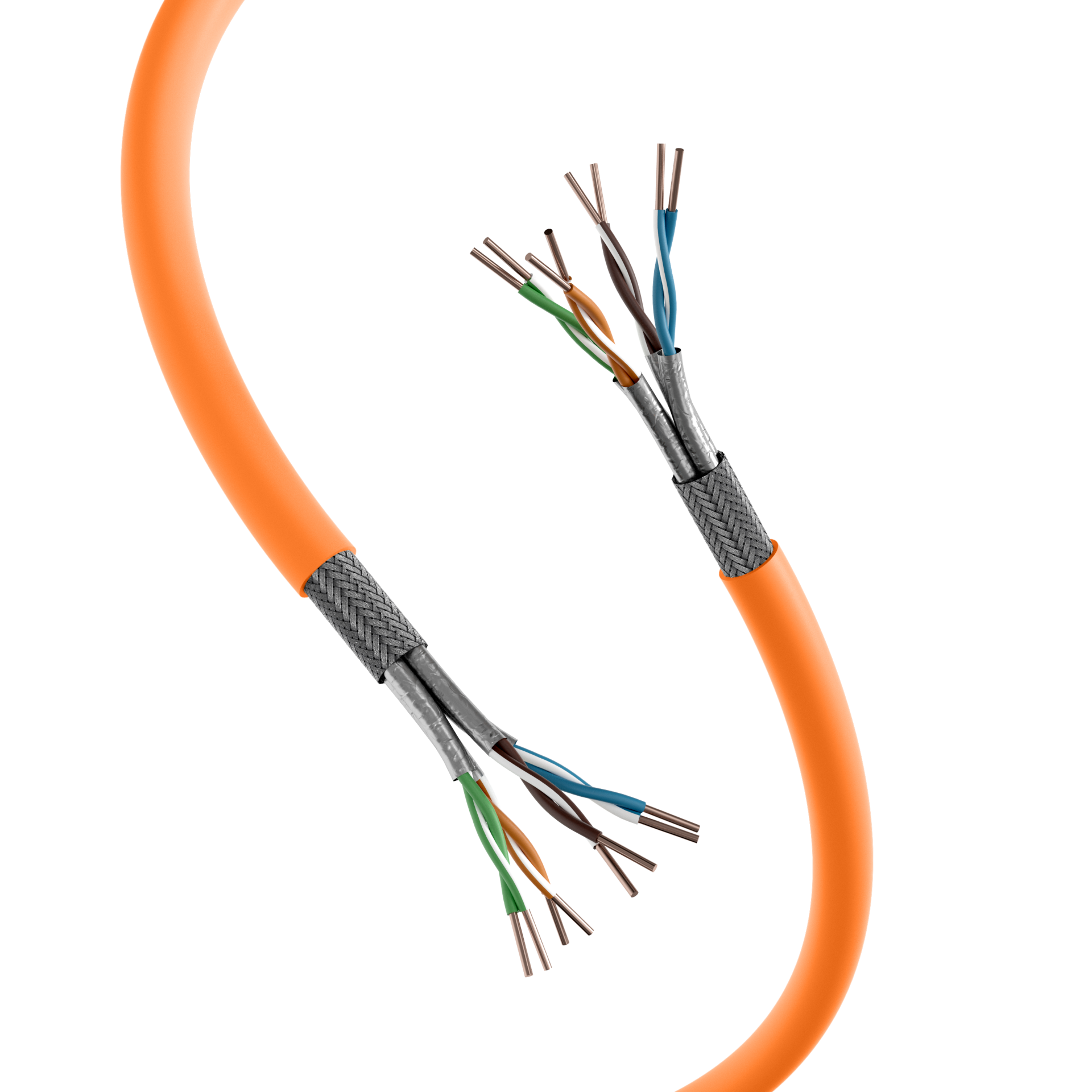

INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca
INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 250m
Item number:
99980.250-CPR
EAN no.:
4049759182236
Product information for INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 250m
The INFRALAN® installation cable 99980.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical properties
| AWG-size: | 23/1 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable: |
EN 50288-4-1 IEC 61156-5 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 EN 50288 ISO/IEC 11801 |
| Capacity to earth: | nom. 43 nF/km |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | 80 dB |
| Coupling attenuation Type: | Type 2 |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Euro class: | Eca |
| Flame retardant: | acc. EN 60332-1 |
| Halogen free: | acc. EN 60754-1/2 |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket Material: | FRNC-B |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (according to EN 61034-2): | False |
| Max. Freuqency: | 1000 MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Permitted cable outer temperature after assembling without vibration: | -20 – 60 °C |
| Permitted cable outer temperature during assembling/handling: | 0 – 50 °C |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | 12 mOhm/m |
| Transfer impedance at 10MHz: | 10 mOhm/m |
| Transfer impedance at 30MHz: | 30 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistance: | no |
Variants
| Item no. | Name | Colour outer sheath | RAL colour | Number of cores | Type | Length | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99980.100-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m | orange | RAL2003 | 8 | simplex | 100.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980.1-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange | orange | RAL2003 | 8 | simplex | 1.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980.250-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 250m | orange | RAL2003 | 8 | simplex | 250.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980.25-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 25m | orange | RAL2003 | 8 | simplex | 25.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 500m | orange | RAL2003 | 8 | simplex | 500.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980.50-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 50m | orange | RAL2003 | 8 | simplex | 50.0 m | 26 kg/km | 54,5 kg/km | 110 N | 7,3 mm | 590 MJ/km | |
| 99980DX.100-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 100m | orange | RAL2003 | 2x8 | duplex | 100.0 m | 52 kg/km | 109,2 kg/km | 220 N | 7,2 x 15,0 mm | 1190 MJ/km | |
| 99980DX.250-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 250m | orange | RAL2003 | 2x8 | duplex | 250.0 m | 52 kg/km | 109,2 kg/km | 220 N | 7,2 x 15,0 mm | 1190 MJ/km | |
| 99980DX.25-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 25m | orange | RAL2003 | 2x8 | duplex | 25.0 m | 52 kg/km | 109,2 kg/km | 220 N | 7,2 x 15,0 mm | 1190 MJ/km | |
| 99980DX.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 500m | orange | RAL2003 | 2x8 | duplex | 500.0 m | 52 kg/km | 109,2 kg/km | 220 N | 7,2 x 15,0 mm | 1190 MJ/km | |
| 99980DX.50-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 50m | orange | RAL2003 | 2x8 | duplex | 50.0 m | 52 kg/km | 109,2 kg/km | 220 N | 7,2 x 15,0 mm | 1190 MJ/km |
