INFRALAN® Duplex Patchcable LC-SC 50/125µ, OM5

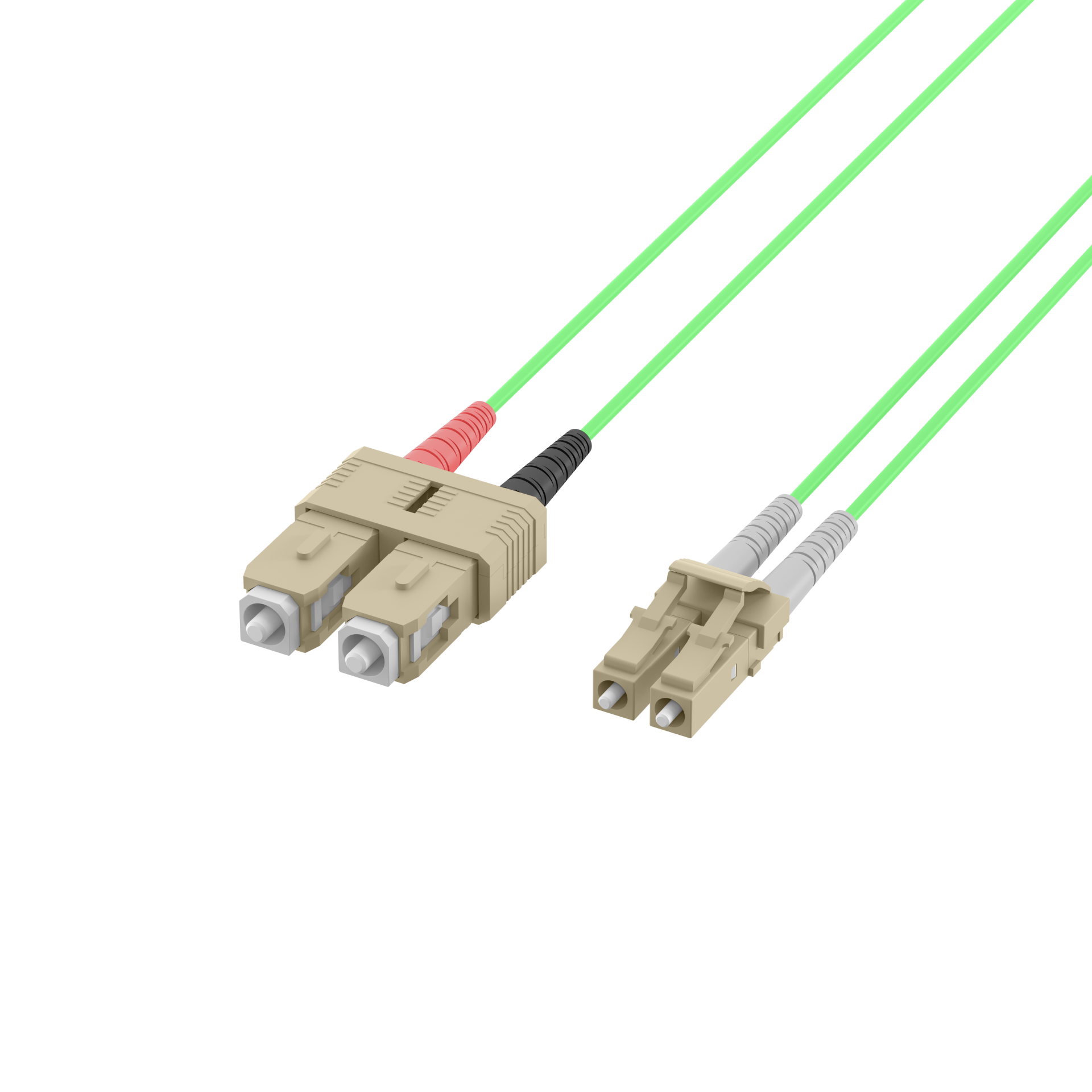

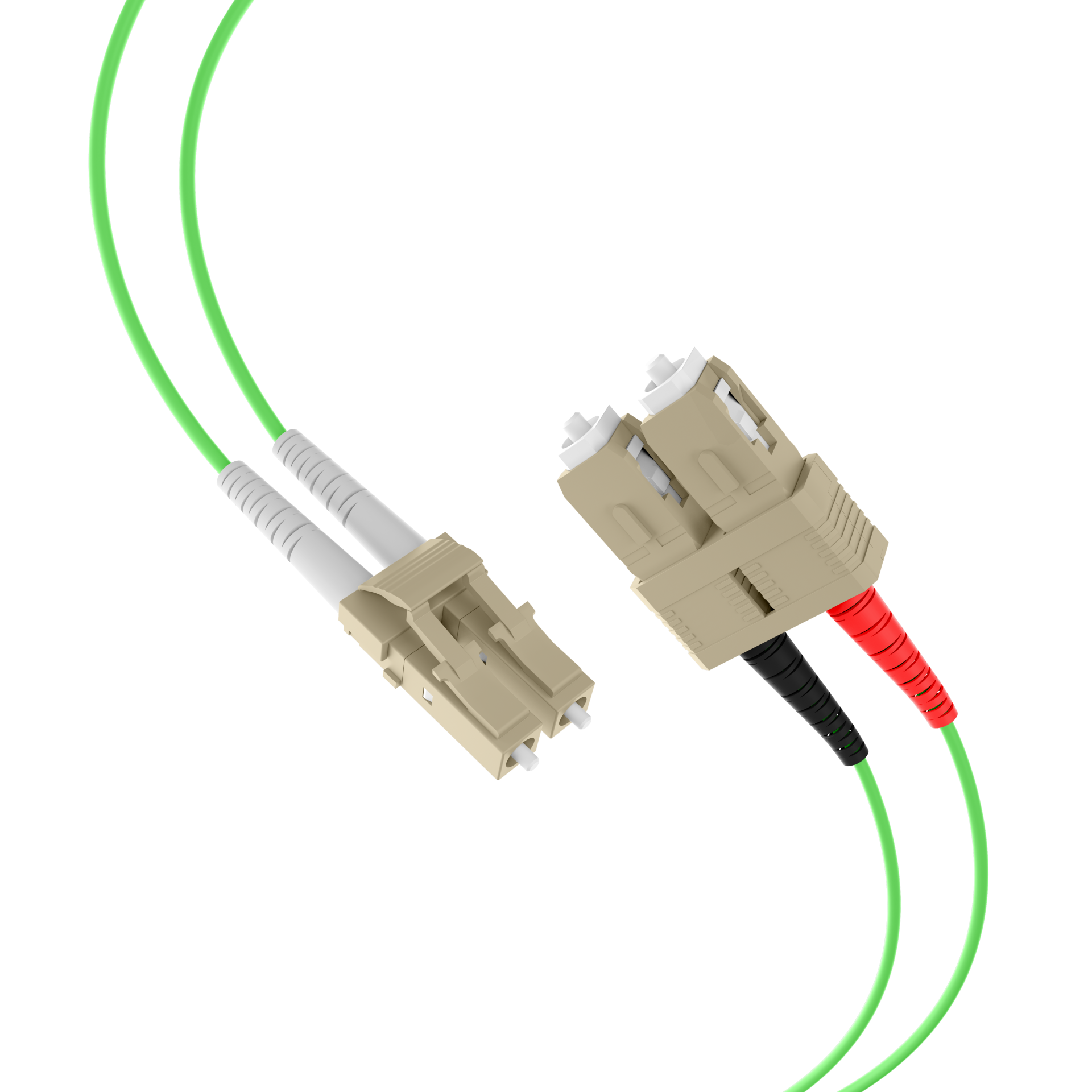

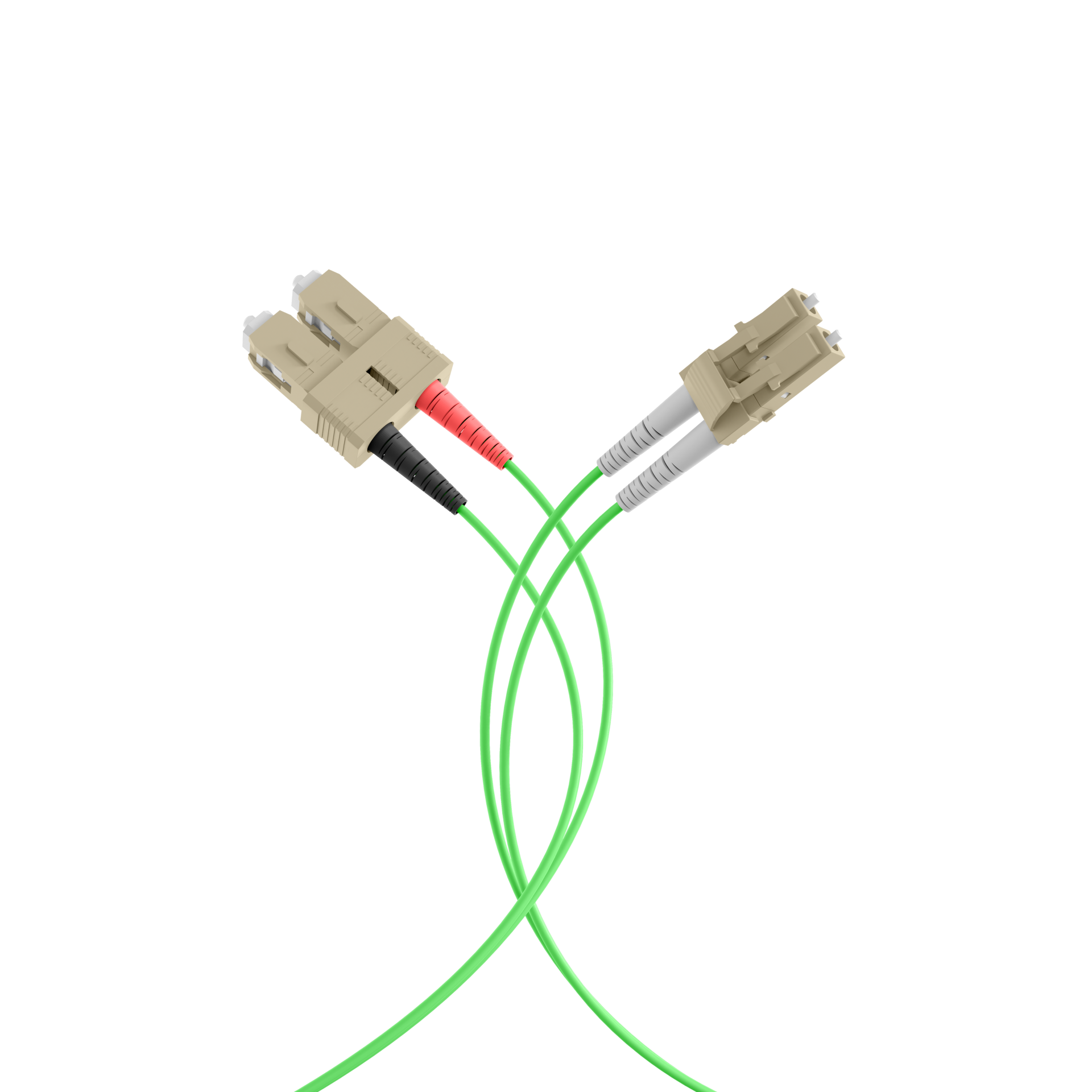

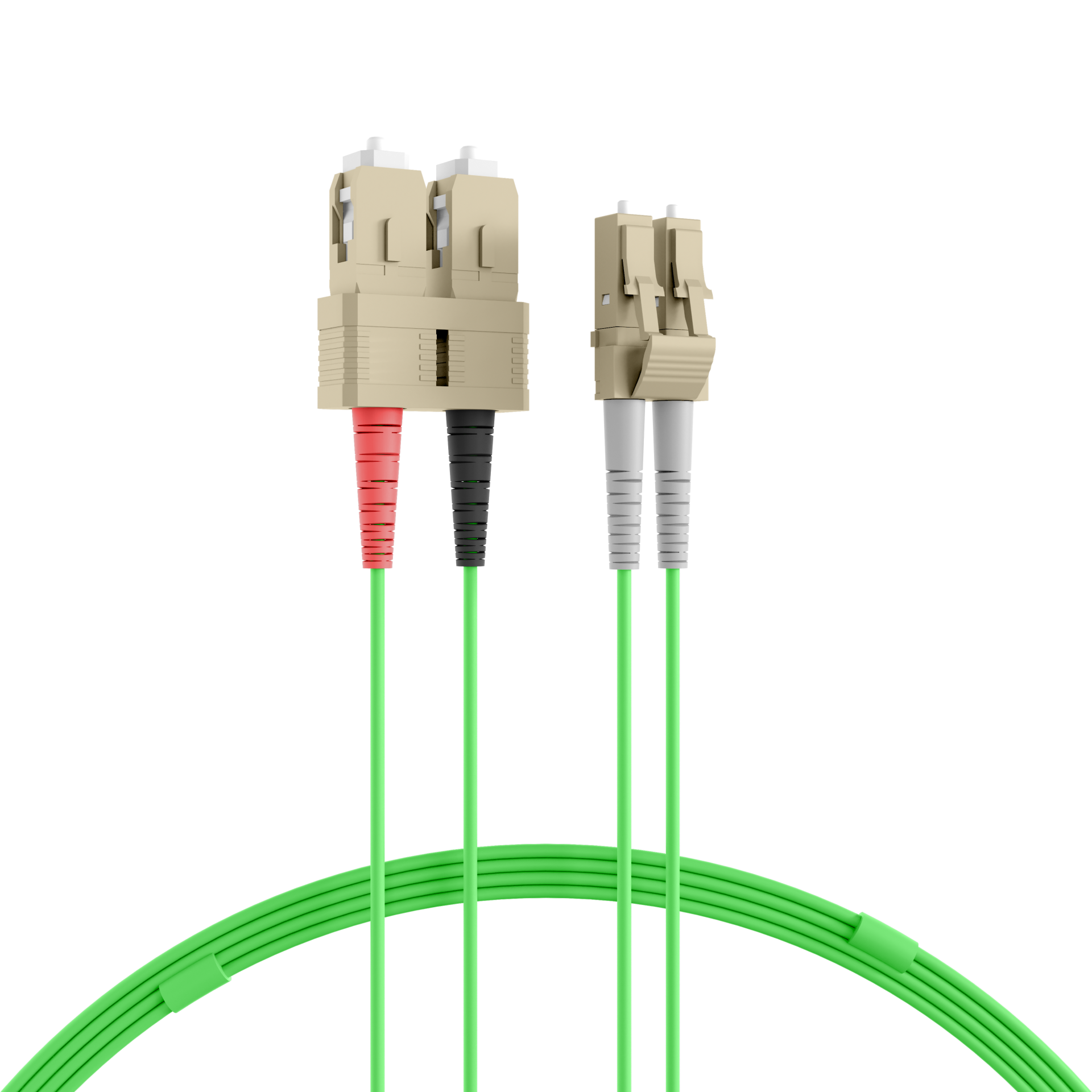

INFRALAN® Duplex Patchcable LC-SC OM5 5m LSZH 2mm limegreen
Item number:
IPL-DR-LCUSCU-5-0500
EAN no.:
4049759196547
Product information for INFRALAN® Duplex Patchcable LC-SC OM5 5m LSZH 2mm limegreen
The INFRALAN® LC-SC fiber optic patch cables consist of defined components that are conform to structured cabling according to ISO/IEC 11801 and EN50173-x. The connectors used comply with IEC 61754-20 and IEC 61754-4 and meet the quality class B/2 according to IEC 61753-1 for the singlemode version and the quality class A/1 according to IEC 61753-122-2 for the multimode versions. The assembled patch cable has a halogen-free and flame-retardant sheath that complies with IEC 60754-2, IEC 60332-1 and IEC 61034 standards.
Application:
Connecting active components
Connecting passive components
Connection of active connection elements
Industrial cable connections
subscriber connections
Delivery:
The INFRALAN® LC-SC fiber optic patch cable is packed in a polybag containing a measurement report and clips for coding. Furthermore, the fiber is marked on the outer sheath with the INFRALAN® logo.
Application:
Connecting active components
Connecting passive components
Connection of active connection elements
Industrial cable connections
subscriber connections
Delivery:
The INFRALAN® LC-SC fiber optic patch cable is packed in a polybag containing a measurement report and clips for coding. Furthermore, the fiber is marked on the outer sheath with the INFRALAN® logo.
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM5 acc. to IEC60793-2-10 type A1a.4 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 2.0 mm |
| Category: | OM5 |
| Colour outer sheath: | lime green |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0,2 dB |
| Jacket Material: | LSZH |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 70 °C |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | SC duplex |
Variants
| Item no. | Name | Length | |
|---|---|---|---|
| IPL-DR-LCUSCU-5-0050 | INFRALAN® Duplex Patchcable LC-SC OM5 0,5m LSZH 2mm limegreen | 0.5 m | |
| IPL-DR-LCUSCU-5-0100 | INFRALAN® Duplex Patchcable LC-SC OM5 1m LSZH 2mm limegreen | 1.0 m | |
| IPL-DR-LCUSCU-5-0200 | INFRALAN® Duplex Patchcable LC-SC OM5 2m LSZH 2mm limegreen | 2.0 m | |
| IPL-DR-LCUSCU-5-0300 | INFRALAN® Duplex Patchcable LC-SC OM5 3m LSZH 2mm limegreen | 3.0 m | |
| IPL-DR-LCUSCU-5-0500 | INFRALAN® Duplex Patchcable LC-SC OM5 5m LSZH 2mm limegreen | 5.0 m | |
| IPL-DR-LCUSCU-5-0750 | INFRALAN® Duplex Patchcable LC-SC OM5 7,5m LSZH 2mm limegreen | 7.5 m | |
| IPL-DR-LCUSCU-5-1000 | INFRALAN® Duplex Patchcable LC-SC OM5 10m LSZH 2mm limegreen | 10.0 m |
