INFRALAN® Splice box sliding version SC OM4

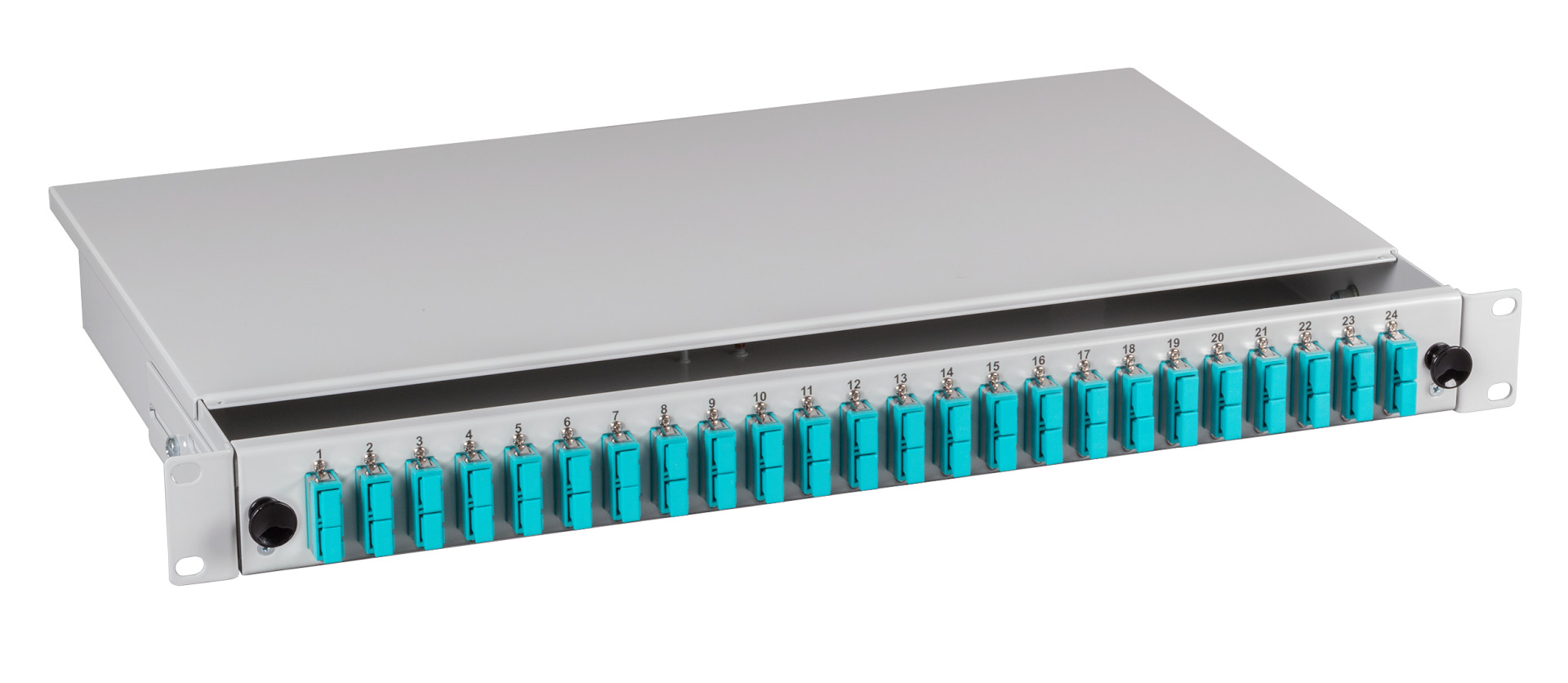

INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OM4
Item number:
ISB-SCDU-24-4-GR-ABA
EAN no.:
4049759196837
Product information for INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OM4
Completely equipped INFRALAN® splice box with adapter and through-dyed pigtails
The SC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of SC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket

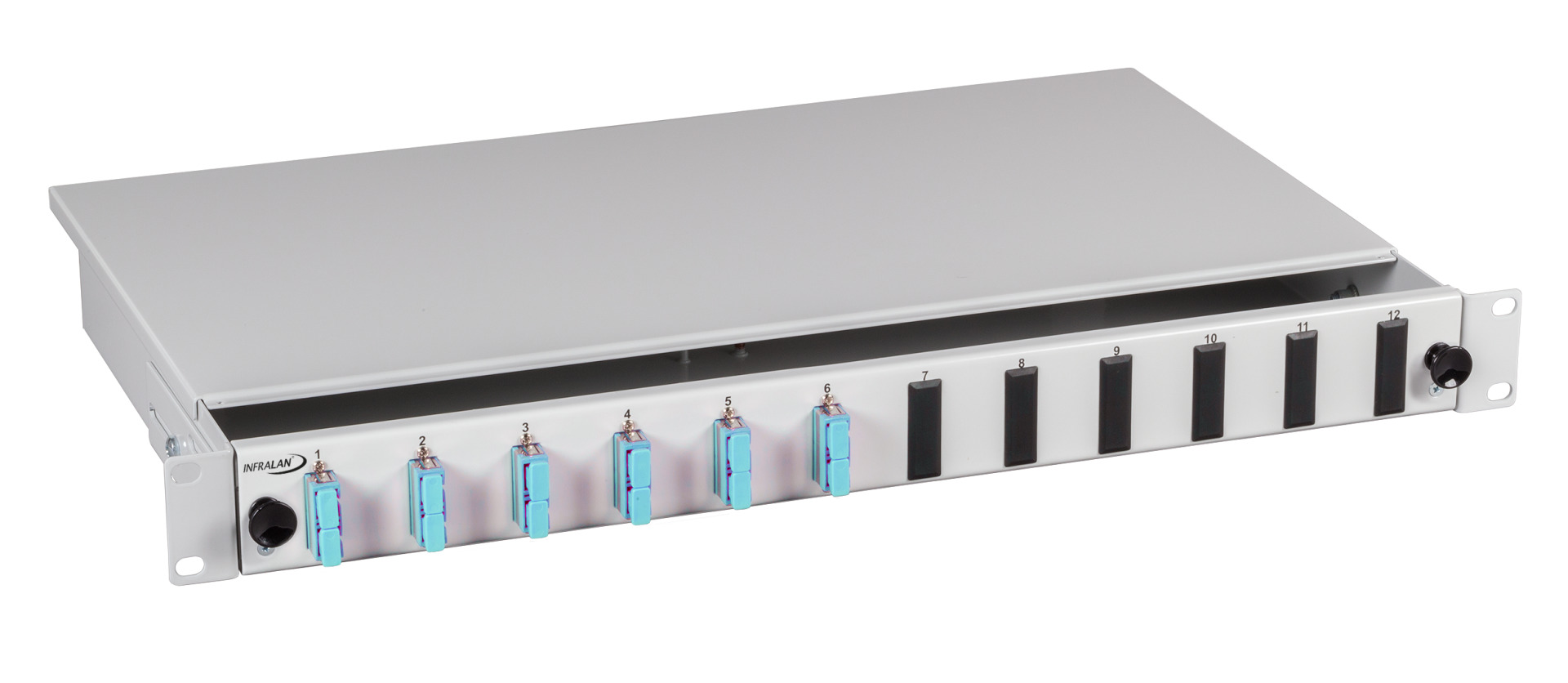

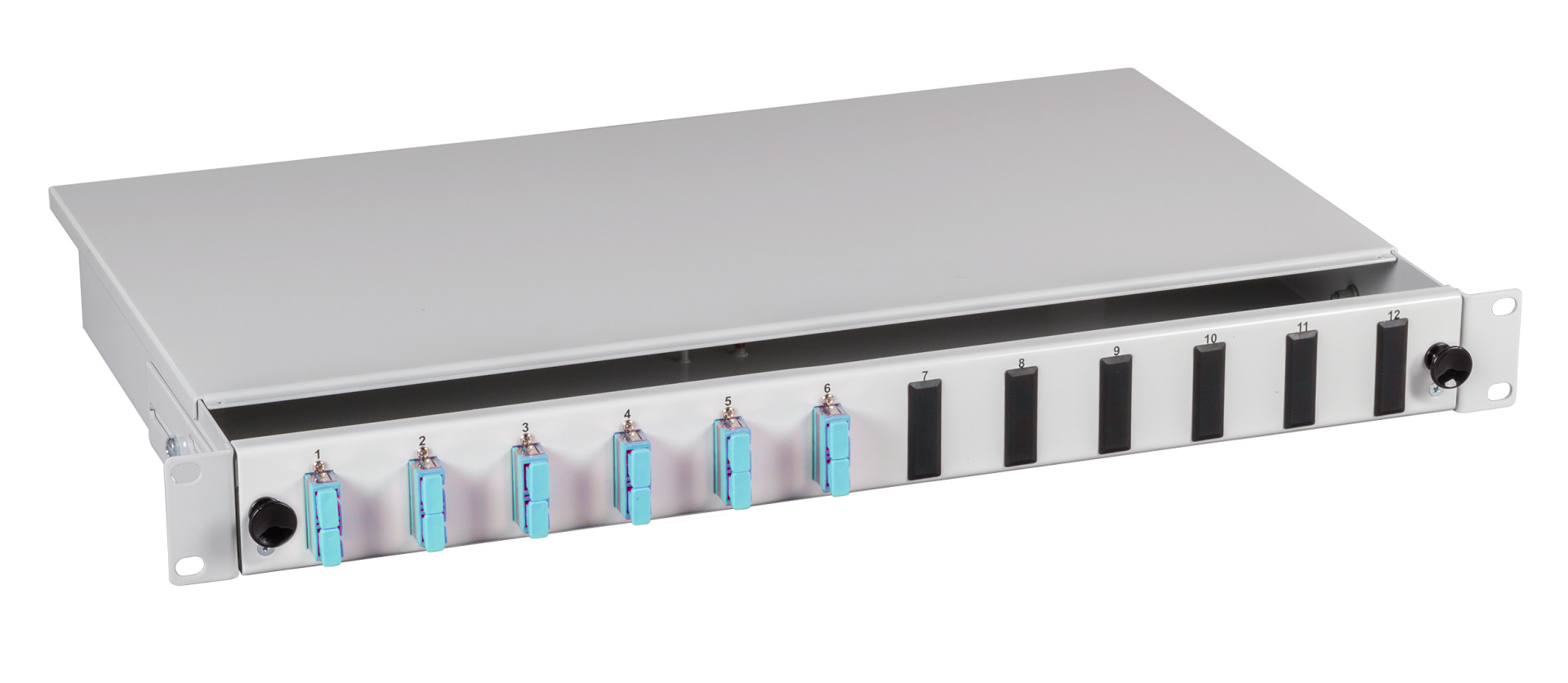

All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
The SC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of SC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Colour | Type of connector external | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| ISB-SCDU-06-4-SW-ABA | INFRALAN® Splicebox sliding version SC, 12 stripped pigtails/ 6 adapter, OM4 | black | SC-Duplex | 6 | 12 x SC | 9005 | SC-Duplex | violett | |
| ISB-SCDU-12-4-SW-ABA | INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OM4 | black | SC-Duplex | 12 | 24 x SC | 9005 | SC-Duplex | violett | |
| ISB-SCDU-24-4-SW-ABA | INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OM4 | black | SC-Duplex | 24 | 48 x SC | 9005 | SC-Duplex | violett | |
| ISB-SCDU-06-4-GR-ABA | INFRALAN® Splicebox sliding version SC, 12 stripped pigtails/ 6 adapter, OM4 | grey | SC-Duplex | 6 | 12 x SC | 7035 | SC-Duplex | violett | |
| ISB-SCDU-12-4-GR-ABA | INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OM4 | grey | SC-Duplex | 12 | 24 x SC | 7035 | SC-Duplex | violett | |
| ISB-SCDU-24-4-GR-ABA | INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OM4 | grey | SC-Duplex | 24 | 48 x SC | 7035 | SC-Duplex | violett |
