INFRALAN® U-DQ(ZN)BH 50/125µ, OM3 B2ca

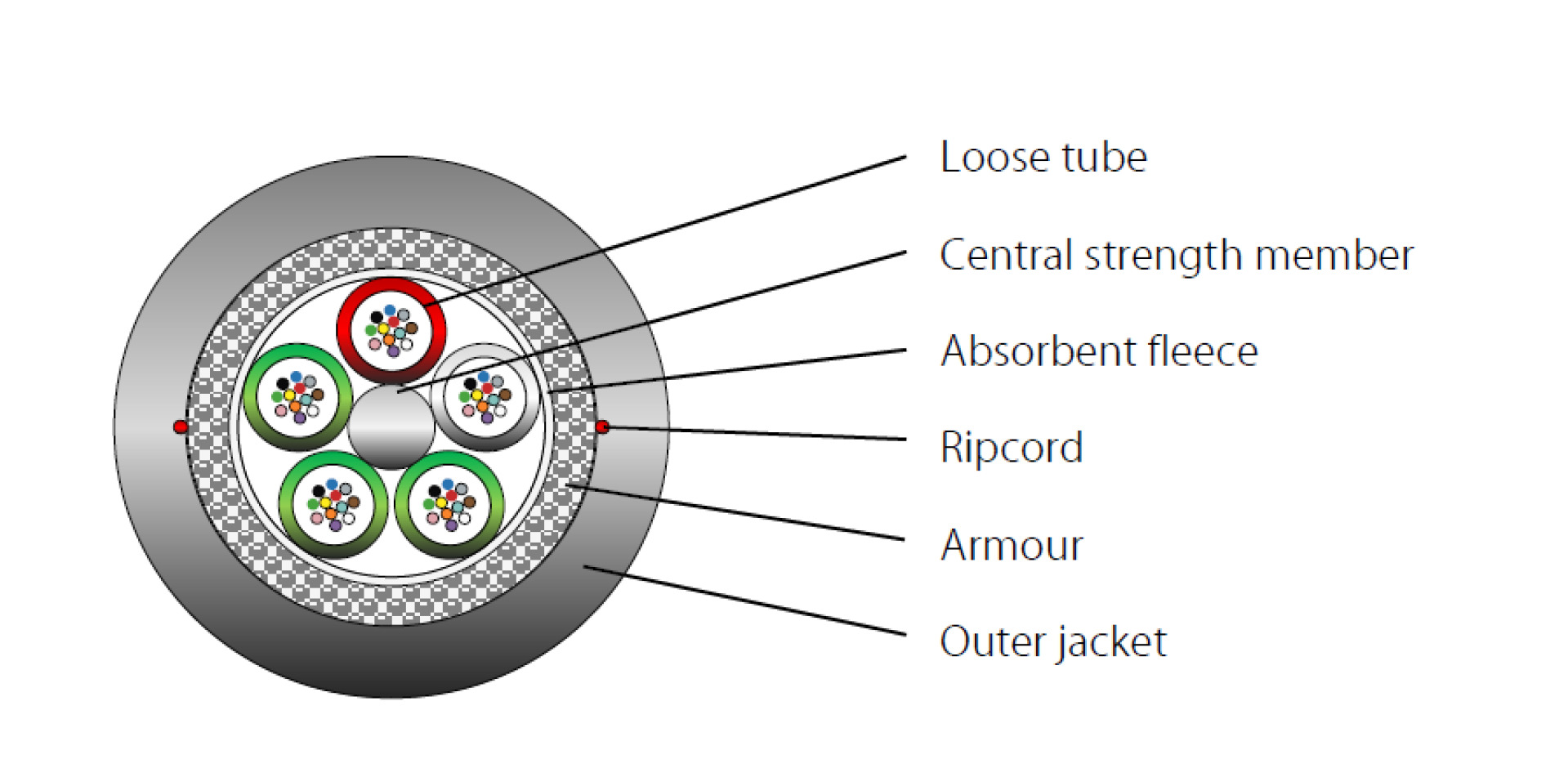

INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) B2ca 5000N LSZH black 11.2mm
Item number:
54408.3LOM3-CPR
EAN no.:
4049759235413
Product information for INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) B2ca 5000N LSZH black 11.2mm
Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
Technical properties
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Euro Class: | B2ca |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | According to EN 60332-1-2 |
| Halogen free: | acc. EN 60754-1/2 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 |
| IL max. (dB/km) 1300nm: | 0.7 |
| Jacket Material: | LSZH |
| Longitudinally watertight: | 3/24 m/h |
| Longitudinal water blocking: | True |
| Low smoke: | acc. to EN 61034-2 |
| Low smoke (according to EN 61034-2): | True |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | False |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Temperature Range (Installation): | -5 – 60 °C |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Type of tube: | Stranded loose tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Variants
| Item no. | Name | Construct | Biegeradius | VDE-Bezeichnung | Kabel Ø | Zugkraft Verlegung | Gewicht | |
|---|---|---|---|---|---|---|---|---|
| 54408.3LOM3-CPR | INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) B2ca 5000N LSZH black 11.2mm | 8G ( 1 x 8 ) Multimode OM3 | 170 mm | U-DQ(ZN)BH 8G50/125 | 11,2 mm | 5000 N | 136 kg/km | |
| 54412.3LOM3-CPR | INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) B2ca 5000N LSZH black 11.2mm | 12G ( 1 x 12 ) Multimode OM3 | 170 mm | U-DQ(ZN)BH 12G50/125 | 11,2 mm | 5000 N | 136 kg/km | |
| 54424.3LOM3-CPR | INFRALAN® U-DQ(ZN)BH OM3 24G (2x12) B2ca 5000N LSZH black 11.2mm | 24G ( 2 x 12 ) Multimode OM3 | 170 mm | U-DQ(ZN)BH 24G50/125 | 11,2 mm | 5000 N | 136 kg/km | |
| 54448.3LOM3-CPR | INFRALAN® U-DQ(ZN)BH OM3 48G (4x12) B2ca 5000N LSZH black 11.2mm | 48G (4 x 12) Multimode OM3 | 170 mm | U-DQ(ZN)BH 48G50/125 | 11,2 mm | 5000 N | 136 kg/km |
