INFRALAN® U-DQ(ZN)BH OM4 Eca 5000N LSZH black
INFRALAN® U-DQ(ZN)BH OM4 48G (4x12) Eca 5000N LSZH black 11.2mm
Item number:
54548.2D-E5
Product information for INFRALAN® U-DQ(ZN)BH OM4 48G (4x12) Eca 5000N LSZH black 11.2mm
This universal fiber optic cable is ideal for LAN, MAN and WAN backbones, both indoors and outdoors. It can be laid directly in the ground (in a sand bed) or in pipes and offers effective rodent protection.

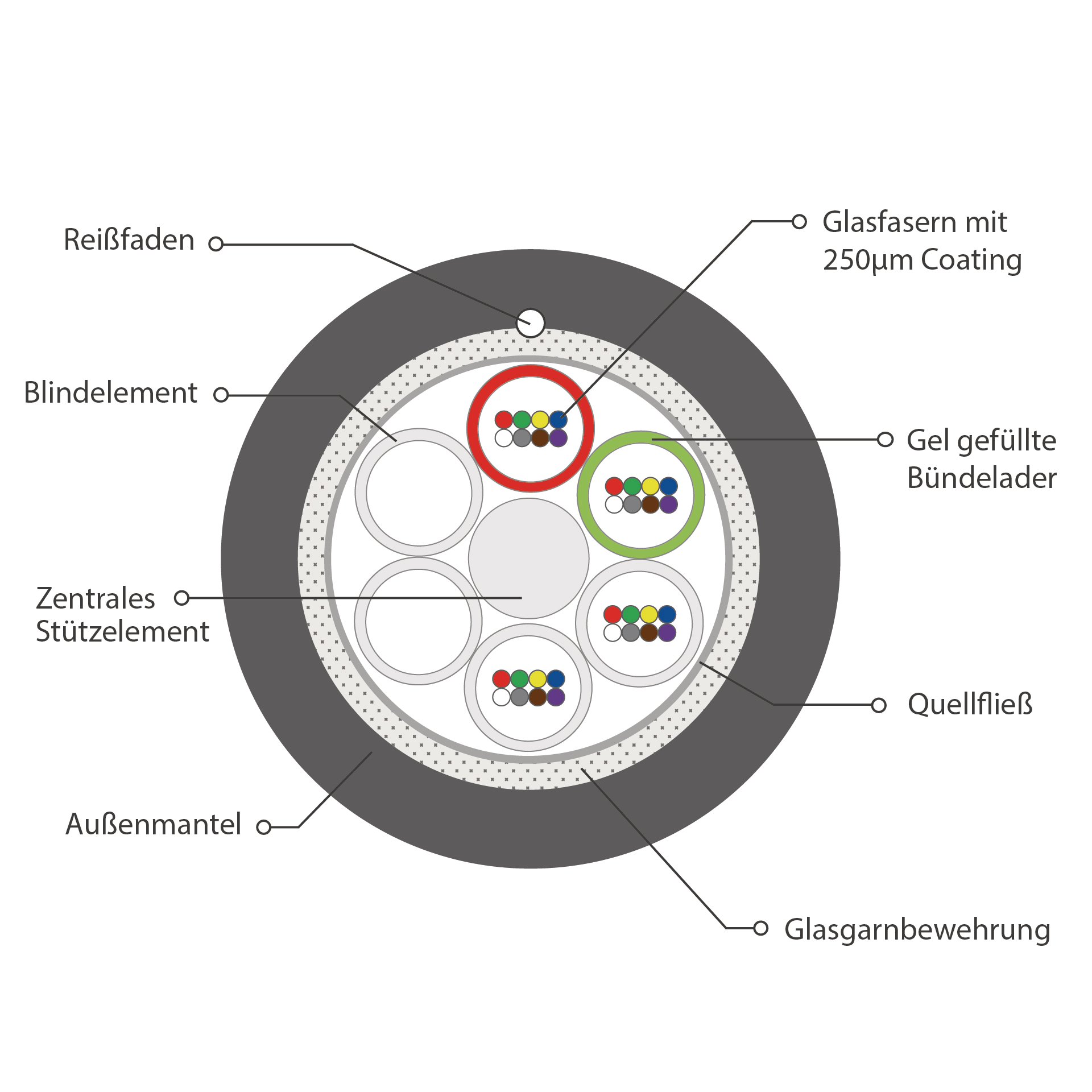

The stranded, gel-filled loose tube ensures reliable, structured cabling. With a metal-free, longitudinally watertight construction and a tensile strength of 5.0 kN, it is particularly robust.
The halogen-free, flame-retardant jacket complies with IEC60332-1 and Eurobrand class Eca, which also makes it safe for indoor use. The cable exceeds the requirements of EN50173-1 and ISO/IEC11801, ideal for high-performance networks.
The stranded, gel-filled loose tube ensures reliable, structured cabling. With a metal-free, longitudinally watertight construction and a tensile strength of 5.0 kN, it is particularly robust.
The halogen-free, flame-retardant jacket complies with IEC60332-1 and Eurobrand class Eca, which also makes it safe for indoor use. The cable exceeds the requirements of EN50173-1 and ISO/IEC11801, ideal for high-performance networks.
Technical properties
| Application: | Inside/outside |
|---|---|
| Blow in: | False |
| Cable metal free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Euro Class: | Eca |
| Fiber marking: | Colour |
| Fibre category: | OM4 |
| Fibre type: | Multimode 50/125 |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Halogen free: | Yes |
| Jacket Material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Type of tube: | verseilte Bündelader |
| UV resistance: | True |
| With rodent protection: | True |
