U-DQ(ZN)BH 9/125µ G657A 5000N
![](https://www.efb-elektronik.de/media/c0/66/51/1652202153/G657A1_Faserklasse-Biegeoptimiert.jpg)

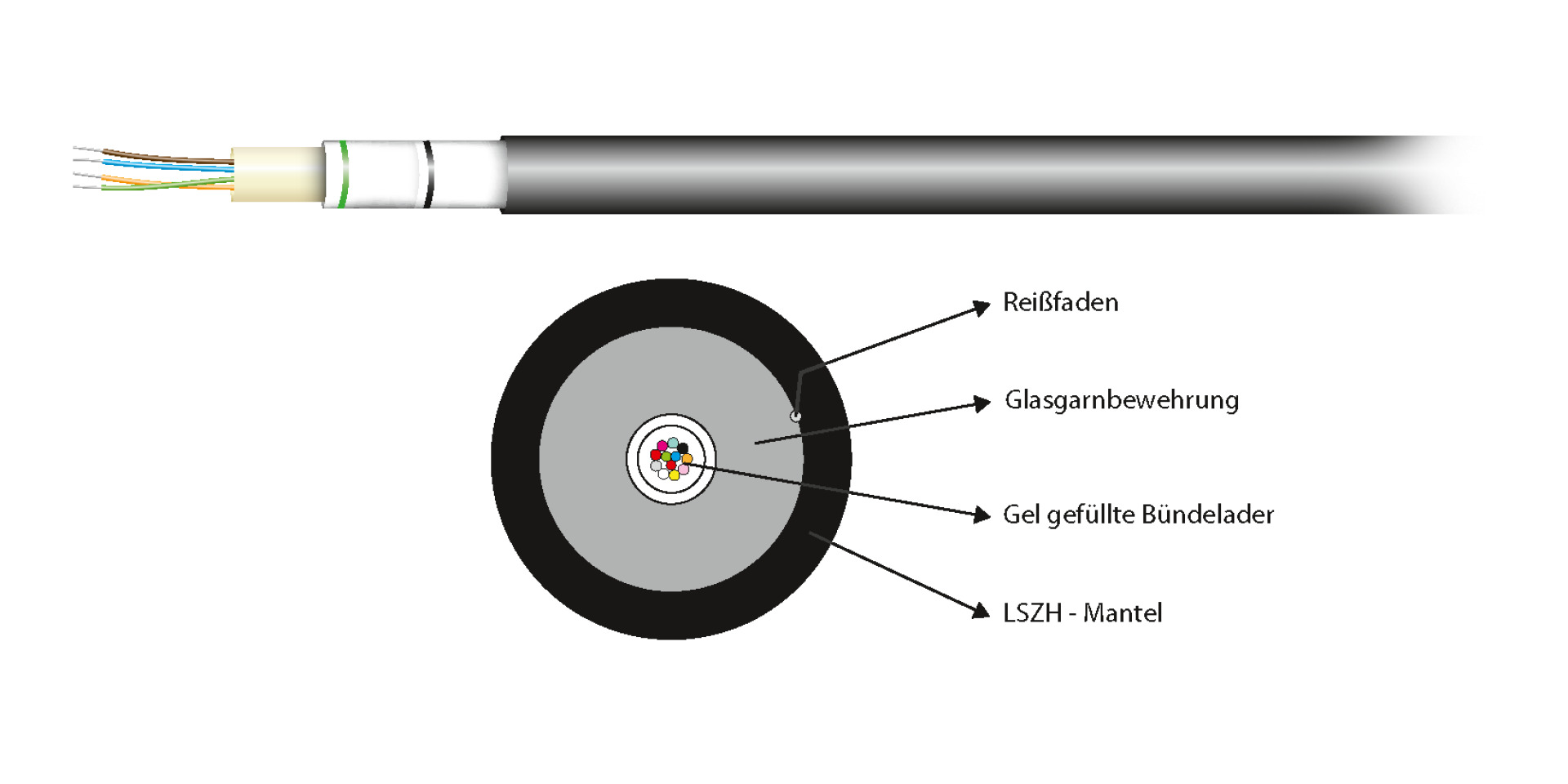

INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1
Item number:
54448.1L-CPR
EAN no.:
4049759180546
Product information for INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1
Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
Technical properties
Application: | Inside/outside |
---|---|
Armouring: | True |
Blow in: | False |
Cable metal free: | True |
Circuit integrity: | False |
Colour outer sheath: | black |
Crush resistance: | 150 N/dm |
Euro Class: | Eca |
Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
Fiber marking: | Colour |
Fibre category: | G657.A1 |
Fibre type: | Single mode 9/125 |
Flame retardant: | According to EN 60332-1-2 |
Halogen free: | acc. EN 60754-1/2 |
Halogen free (according to EN 60754-1/2): | True |
Harmonised Standard: | EN 50575 |
IL max. (dB/km) 1310nm: | 0.36 |
IL max. (dB/km) 1550nm: | 0.22 |
Jacket Material: | LSZH |
Longitudinally watertight: | 3/24 m/h |
Longitudinal water blocking: | True |
Low smoke: | acc. EN 61034-2 |
Low smoke (according to EN 61034-2): | True |
Oil resistant: | No |
Oil resistant (acc. EN 60811-2-1): | False |
Radial water blocking: | False |
Rayleigh Backscatter Coefficient 1310nm: | 1.4676 |
Rayleigh Backscatter Coefficient 1550nm: | 1.4682 |
Resistant to chemicals: | False |
Temperature Range (Installation): | -20 – 60 °C |
Temperature range (Operation): | -40 – 80 °C |
Temperature range (Storage): | -40 – 80 °C |
Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
Tube marking: | Colour |
Tube Ø: | 2.3 mm |
Type of tube: | Central tube |
UV resistance: | True |
With rodent protection: | True |
With strain relief: | True |
Variants
Item no. | Name | Construct | Biegeradius | VDE-Bezeichnung | Kabel Ø | Zugkraft Verlegung | Gewicht | |
---|---|---|---|---|---|---|---|---|
544144.1L | U-DQ(ZN)BH OS2 144E (12x12) Eca 5000N LSZH black 11.2mm G657A1 | 144E ( 12 x 12 ) Singlemode G.657.A1 | 240 mm | U-DQ(ZN)BH 144E9/125 | 16,0 mm | 5000 N | 240 kg/km | |
54448.1L-CPR | INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1 | 48E ( 4 x 12 ) Singlemode G.657.A1 | 170 mm | U-DQ(ZN)BH 48E9/125 | 11,2 mm | 5000 N | 130 kg/km | |
54496.1L-CPR | INFRALAN® U-DQ(ZN)BH OS2 96E (8x12) Eca 5000N LSZH black 13.1mm G657A1 | 96E ( 8 x 12 ) Singlemode G.657.A1 | 200 mm | U-DQ(ZN)BH 96E9/125 | 13,1 mm | 5000 N | 165 kg/km |
