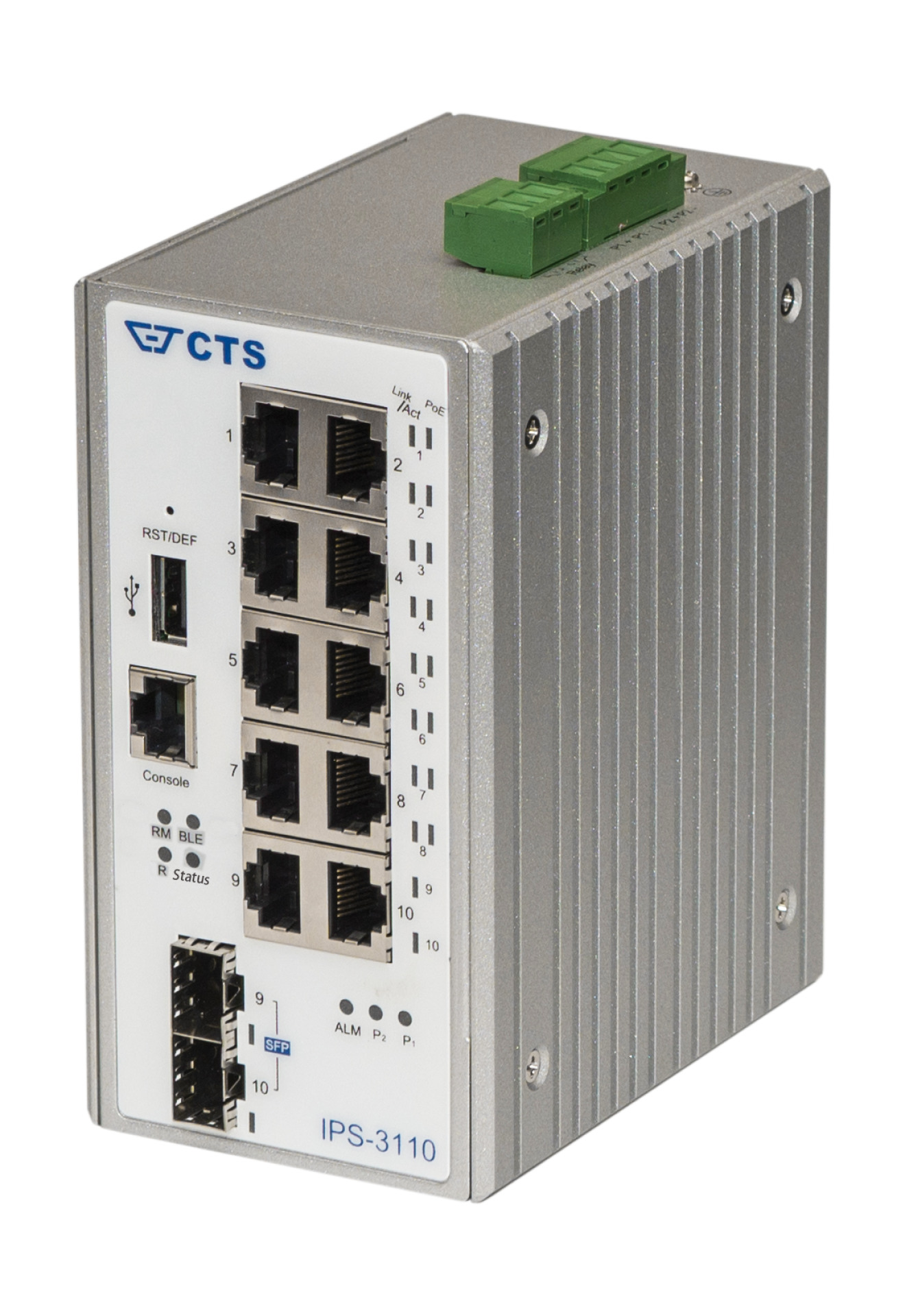

IPS-3110SFP, Industrial Switch 8x 100/1000T RJ45, 2x Combo 100/1000 RJ45/SFP
L2 DIN-Rail-Switch 8x 100/1000T RJ45, 2x Combo 100/1000 RJ45/SFP
Item number:
IPS-3110SFP
Product information for L2 DIN-Rail-Switch 8x 100/1000T RJ45, 2x Combo 100/1000 RJ45/SFP
8 x PoE Injector IEEE802.3at/af with up to 30 W per port
Management: SNMP, WEB, CLI
Features: IGMP, QOS, VLAN and much more
Dual Rate SFP Slot for 100-FX and 1000-BaseX
Wide range of operation voltage 12 .. 48 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP40
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply : DR-240-48
Management: SNMP, WEB, CLI
Features: IGMP, QOS, VLAN and much more
Dual Rate SFP Slot for 100-FX and 1000-BaseX
Wide range of operation voltage 12 .. 48 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP40
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply : DR-240-48
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Degree of protection: | IP40 |
| Depth: | 110.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 135.0 mm |
| Layer 2: | True |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | True |
| Manufacturer: | CTS |
| Max. PoE per Port: | 30 W |
| Model: | PoE+ |
| Mounting method: | DIN rail (top hat rail) |
| Number of 10/100/1000 Mbps RJ45-Ports: | 8 |
| Number of combination-ports RJ45/Mini GBIC: | 2 |
| Number of ports PoE: | 8 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 73.0 mm |
