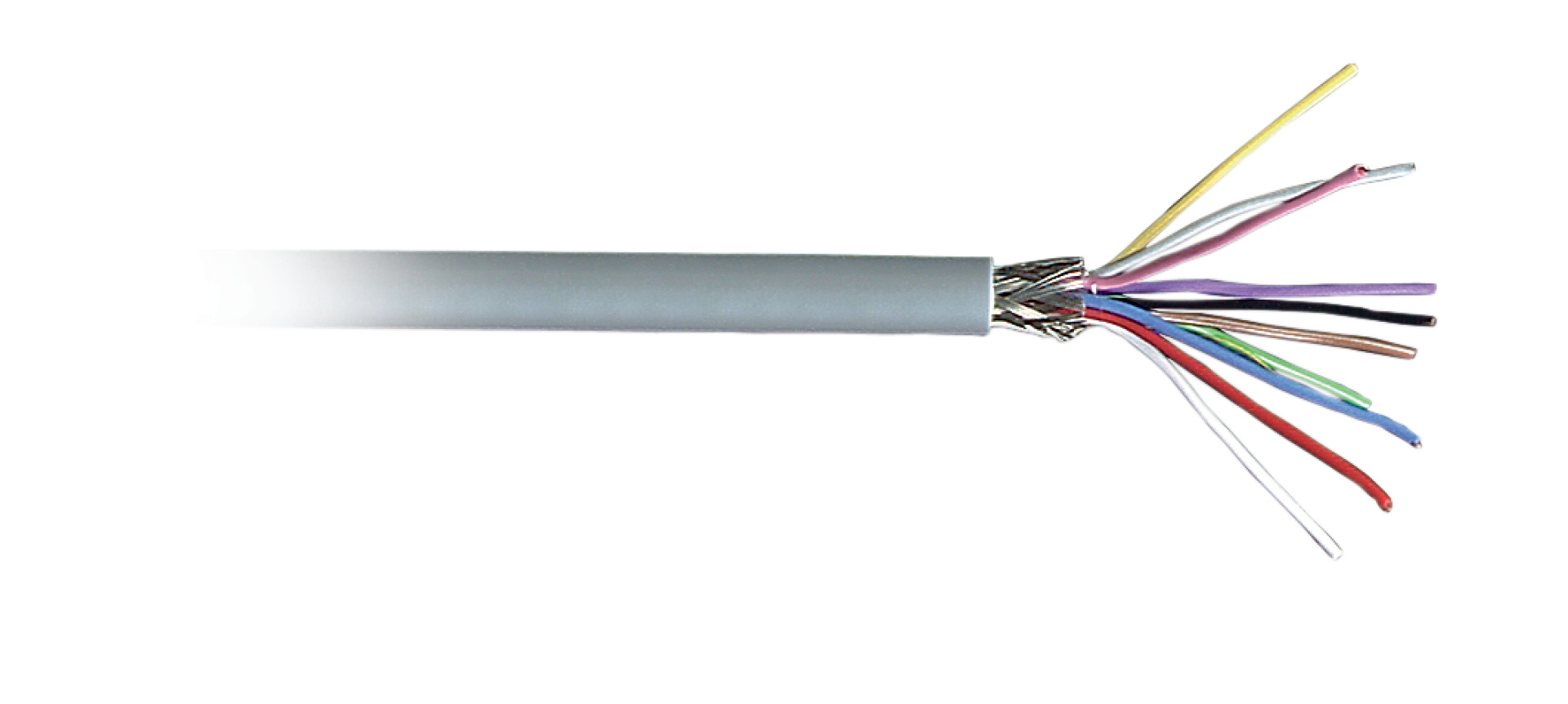

Control Cable LIYCY, 10x0,14 mm² shielded, grey
Liycy 10x0,14mm² RAL 7001 shielded, grey
Item number:
90010.1
EAN no.:
4049759073916
Product information for Liycy 10x0,14mm² RAL 7001 shielded, grey
• RAL7001, grey
• Drum size: 1000 metres roll
• Drum size: 1000 metres roll
Technical properties
AWG-size: | - |
---|---|
Category: | 5 |
Conductor category: | Class 2 = stranded |
Conductor material: | CU, tinned |
Core identification: | colour |
Core insulation: | PVC |
Diameter conductor: | 0.25 mm |
Flame retardant: | According to IEC/EN 60332-1-2 |
Halogen free (acc. EN 50267-2-2): | False |
Jacket Material: | PVC |
Low smoke (according to EN 61034-2): | False |
NVP value: | - % |
Nominal cross section conductor: | 0.14 mm² |
Permitted cable outer temperature after assembling without vibration: | 80 – °C |
Permitted cable outer temperature during assembling/handling: | 70 – °C |
Screen over stranding: | braiding |
Screen over stranding element: | without |
Stranding element: | False |
