Cat.7 600 MHz S/FTP Kerpen Megaline F-6-90 S/F flex 4P H
![](https://www.efb-elektronik.de/media/bf/18/84/1652202152/Cat.7.jpg)
![](https://www.efb-elektronik.de/media/fe/5c/08/1652202152/FRNC_B.jpg)

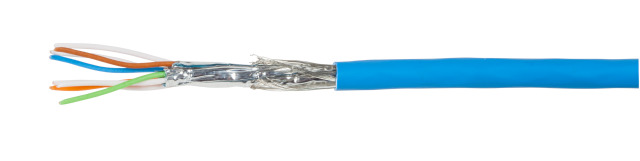

MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau
Item number:
99728.1
EAN no.:
4049759085735
Product information for MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau
Exceeding the requirements of Category 7 according to EN50288 and IEC61156. Excellent NEXT, exzellent shielding characteristics, low Skew, bandwith 900 MHz. Ideal for all class D to F multimedia applications (video, data, voice), >10 GbE according to IEEE 802.3, Cable sharing, VoiP, PoE.
Technical properties
AWG-size: | 27/7 |
---|---|
Bending radius (dynamic): | 50 mm |
Bending radius (static): | 25 mm |
Cable: | IEC 61156-6 |
Cable Construction: | S/FTP |
Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
Category: | 7 |
Characteristic impedance: | 100 ± 5 Ohm |
Conductor category: | Class 2 = stranded |
Conductor material: | Cu, tinned |
Core identification: | Colour |
Core insulation: | Foam-Skin-PE |
Coupling attenuation: | 80 dB |
Delay skew: | 2,5 ns/100m |
Euro class: | Dca |
Flame retardant: | According to IEC/EN 60332-1-2 |
Halogen free: | acc. EN 60754-1/2 |
Halogen free (acc. EN 50267-2-2): | True |
Harmonised Standard: | EN 50575 |
Installation standard: | EN 50174 |
Insulation resistance (500V): | 5000 MOhm/km |
Jacket Material: | FRNC-B |
Loop resistance: | 340 Ohm/km |
Low smoke: | acc. EN 61034-2 |
Low smoke (according to EN 61034-2): | False |
Max. Freuqency: | 600 MHz |
NVP value: | 78 % |
Nominal cross section conductor: | - mm² |
Permitted cable outer temperature after assembling without vibration: | -20 – 60 °C |
Permitted cable outer temperature during assembling/handling: | 0 – 50 °C |
PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
Resistance unbalance: | 3 % |
Screen over stranding: | braiding |
Screen over stranding element: | Foil |
Separation class acc. EN50174-2: | D |
Stranding element: | Pairs |
Test voltage DC, 1 min: | 1000 V |
UV resistance: | no |
Variants
Item no. | Name | Number of cores | Length | Colour outer sheath | Type | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | |
---|---|---|---|---|---|---|---|---|---|---|---|
99728.100 | MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau,100M | 8 | 100.0 m | grey | simplex | 17 kg/km | 34 kg/km | 40 N | 5,7 mm | 0,33 MJ/m | |
99728.1 | MegaLine F6-90 S/F flex PIMF S/FTP, 900 MHz, H, grau | 8 | 1.0 m | grey | simplex | 17 kg/km | 34 kg/km | 40 N | 5,7 mm | 0,33 MJ/m |
