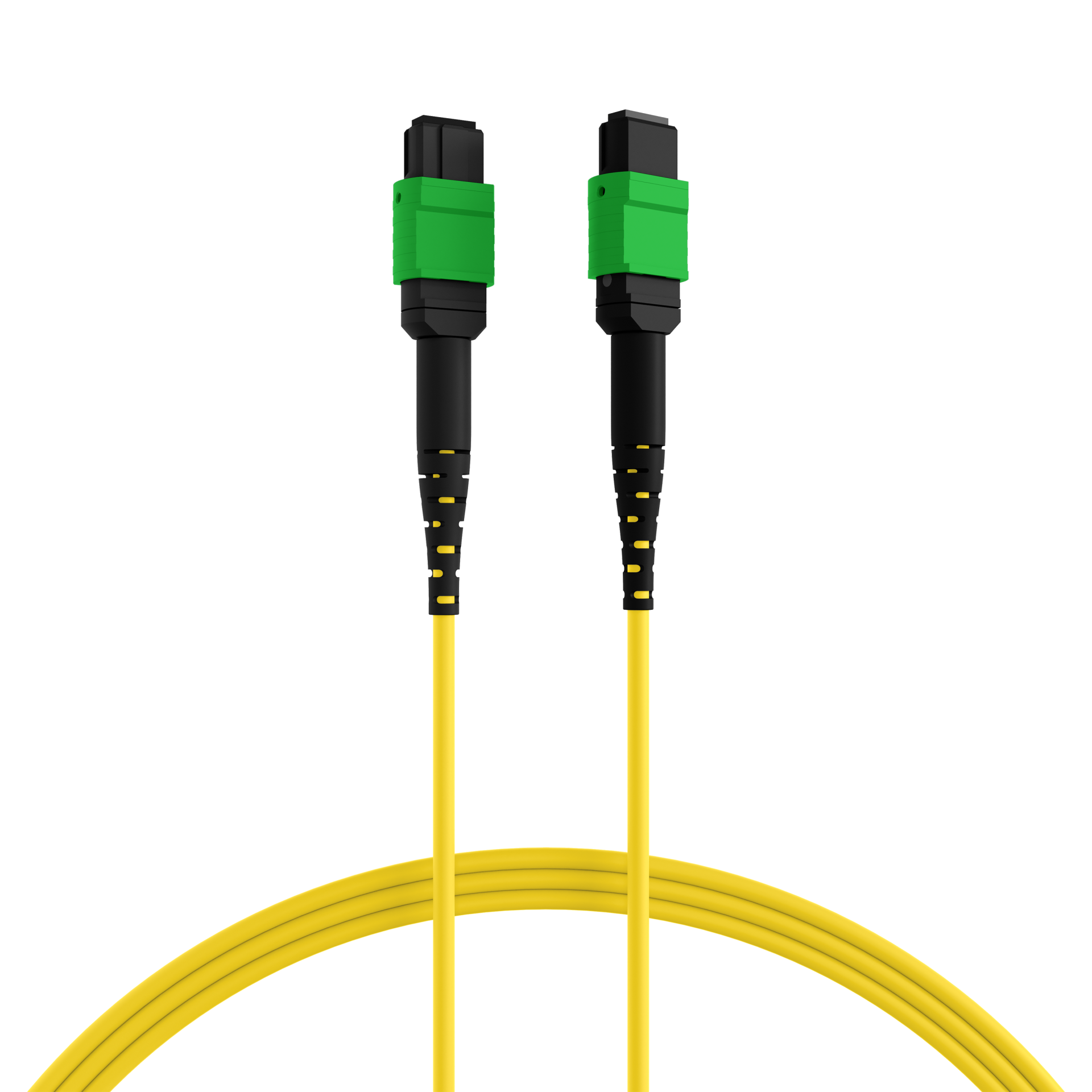

MTP®-F/MTP®-F 36-fiber matrix Patch cable OS2, Code A
MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 15m
Item number:
MTPF36MTPFOS2-15-A
EAN no.:
4049759237288
Product information for MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 15m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Technical properties
| Cable Diameter: | 9.0 mm |
|---|---|
| Category: | OS2 |
| Coding: | Type A straight |
| Colour outer sheath: | yellow |
| Connector connection 1: | MTP-F |
| Connector connection 2: | MTP-F |
| Fibre type: | G657A1 9/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Operating Temperature: | 0 – 50 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Variants
| Item no. | Name | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | Length | |
|---|---|---|---|---|---|---|
| MTPF36MTPFOS2-5-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 5m | 3 x MTP® female | 36 | 3 x MTP® female | 5.0 m | |
| MTPF36MTPFOS2-10-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 10m | 3 x MTP® female | 36 | 3 x MTP® female | 10.0 m | |
| MTPF36MTPFOS2-15-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 15m | 3 x MTP® female | 36 | 3 x MTP® female | 15.0 m | |
| MTPF36MTPFOS2-20-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 20m | 3 x MTP® female | 36 | 3 x MTP® female | 20.0 m | |
| MTPF36MTPFOS2-25-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 25m | 3 x MTP® female | 36 | 3 x MTP® female | 25.0 m | |
| MTPF36MTPFOS2-30-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 36 fibers Typ A LSZH yellow 30m | 3 x MTP® female | 36 | 3 x MTP® female | 30.0 m |
