MTP®-F/MTP®-F 48-fiber matrix Patch cable OS2, Code A
![](https://www.efb-elektronik.de/media/c0/66/51/1652202153/G657A1_Faserklasse-Biegeoptimiert.jpg)
![](https://www.efb-elektronik.de/media/e1/b4/4a/1652202154/100-Gbit.jpg)

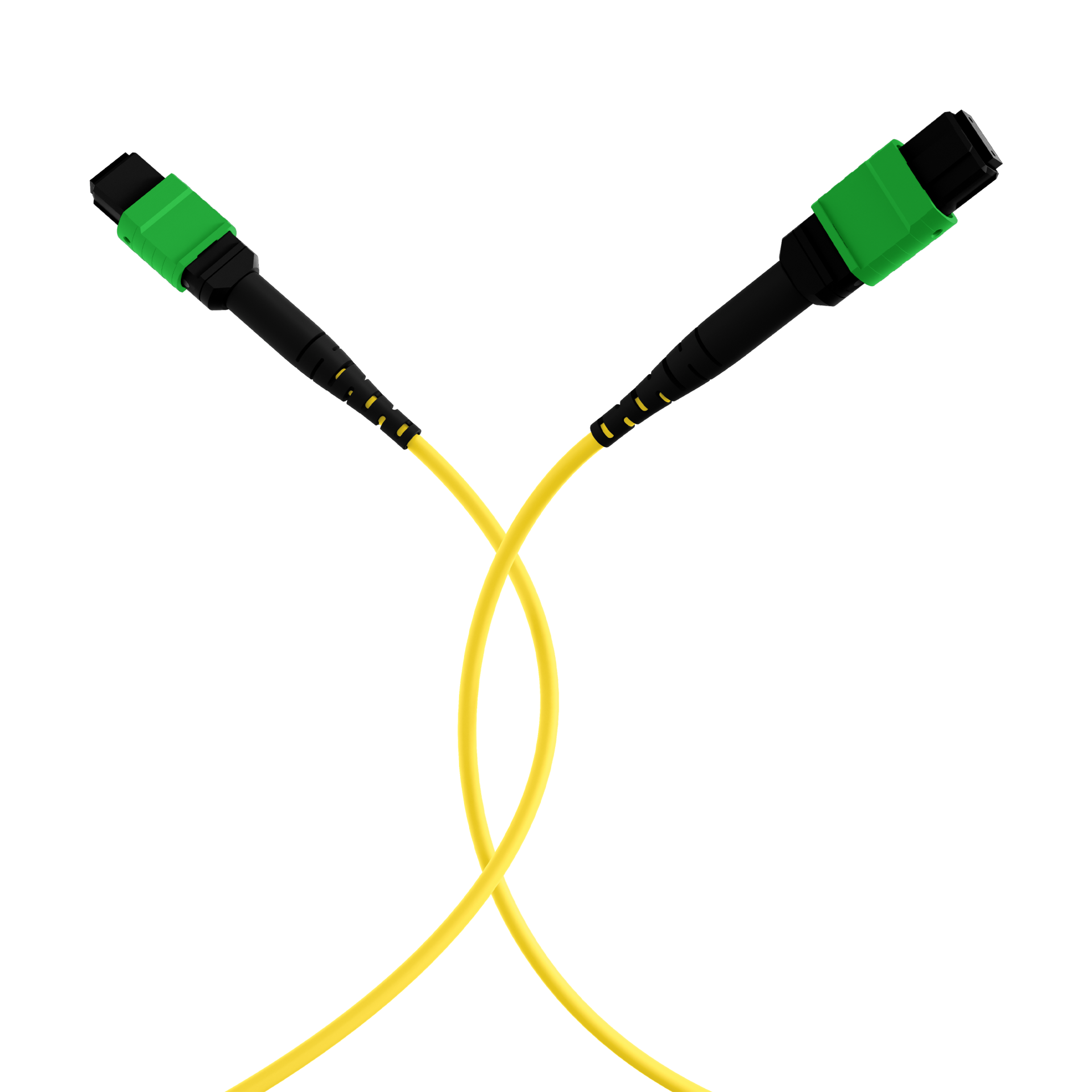

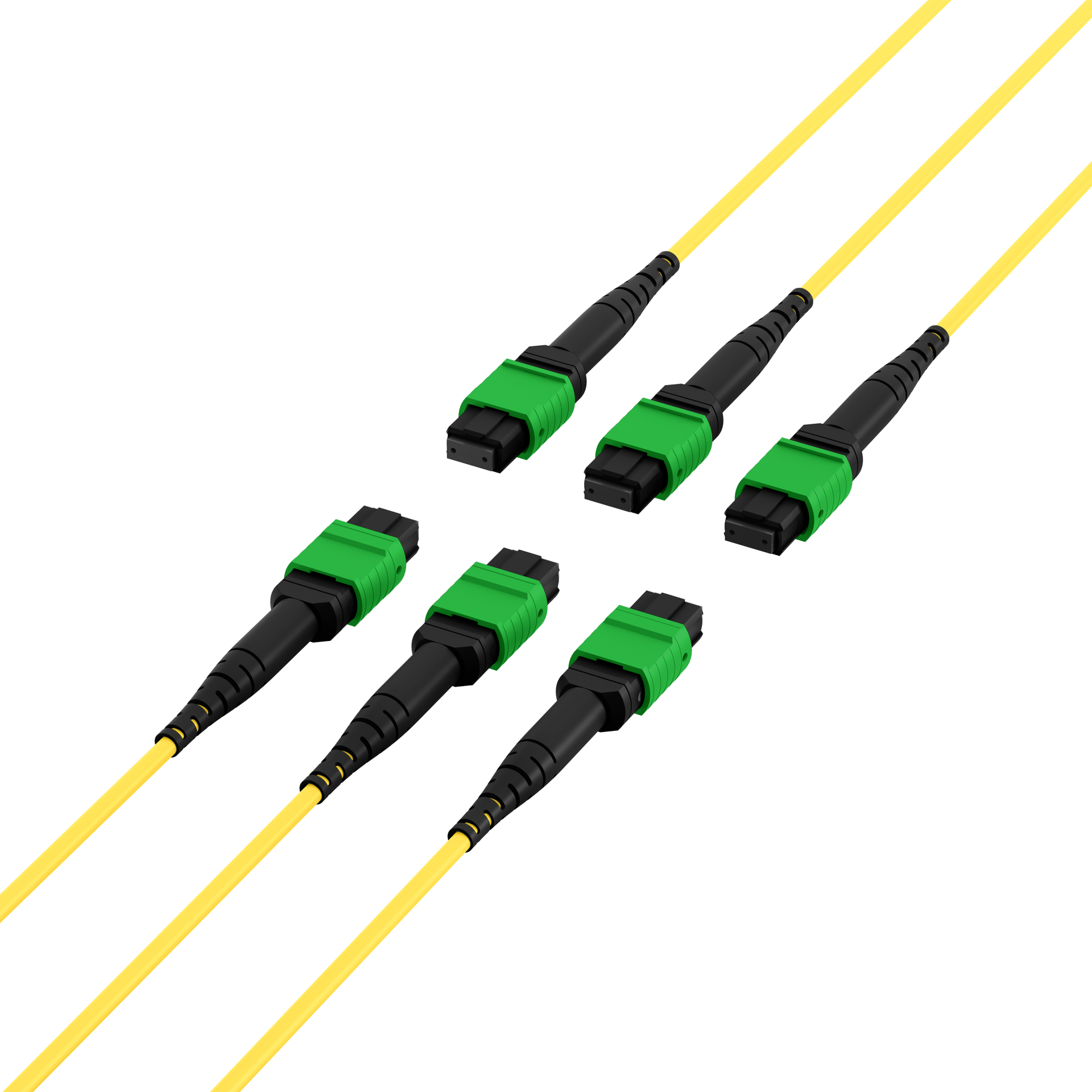

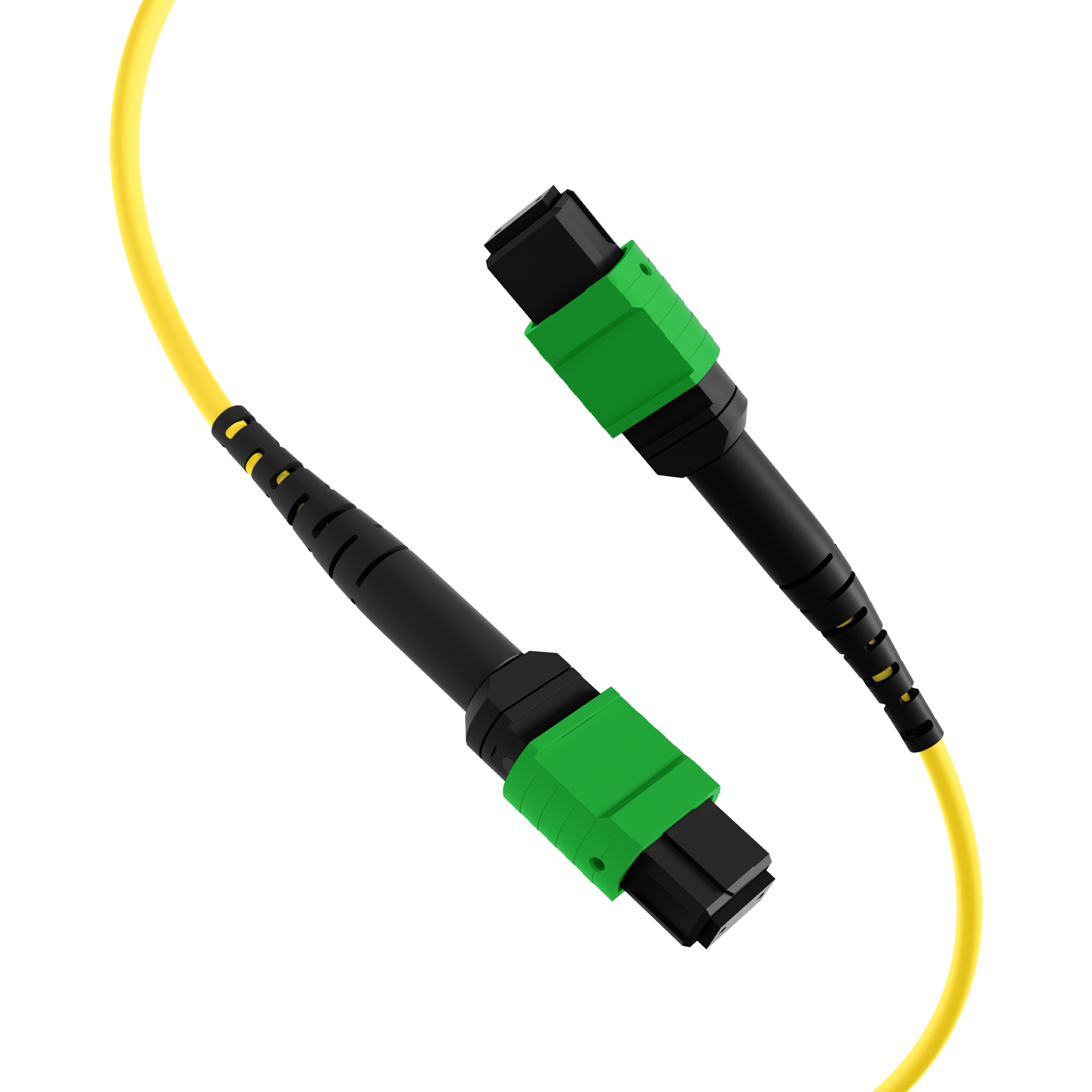

MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 25m
Item number:
MTPF48MTPFOS2-25-A
EAN no.:
4049759237417
Product information for MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 25m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Technical properties
Cable Diameter: | 9.0 mm |
---|---|
Category: | OS2 |
Coding: | Type A straight |
Colour outer sheath: | yellow |
Connector connection 1: | MTP-F |
Connector connection 2: | MTP-F |
Fibre type: | G657A1 9/125 |
Halogen free (according to EN 50267-2-3): | True |
Jacket Material: | LSZH |
Operating Temperature: | 0 – 50 °C |
Storage Temperature: | -20 – 70 °C |
With rodent protection: | False |
Variants
Item no. | Name | Length | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | |
---|---|---|---|---|---|---|
MTPF48MTPFOS2-5-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 5m | 5.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOS2-10-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 10m | 10.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOS2-15-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 15m | 15.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOS2-20-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 20m | 20.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOS2-25-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 25m | 25.0 m | 4 x MTP® female | 48 | 4 x MTP® female | |
MTPF48MTPFOS2-30-A | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 48 fibers Typ A LSZH yellow 30m | 30.0 m | 4 x MTP® female | 48 | 4 x MTP® female |
