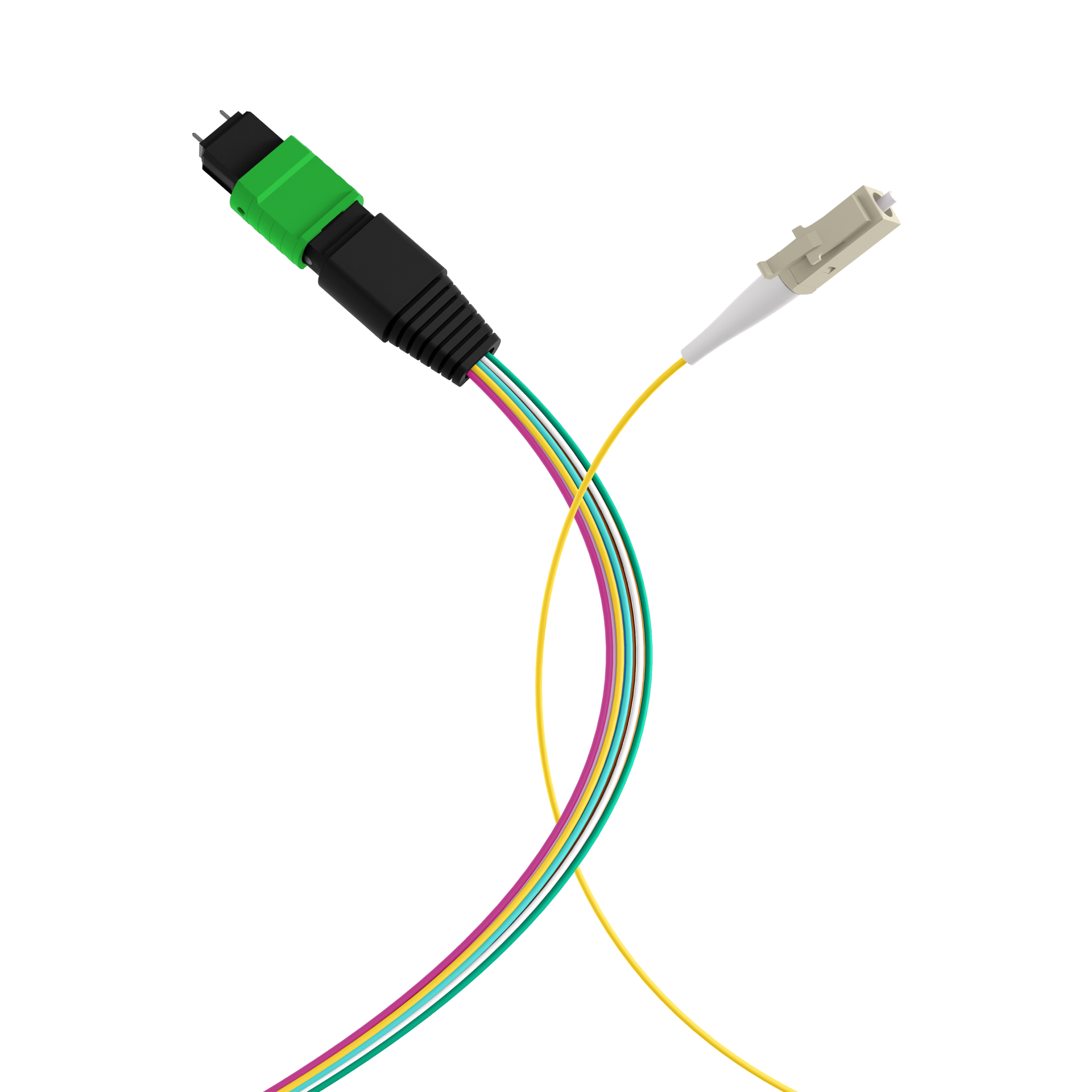

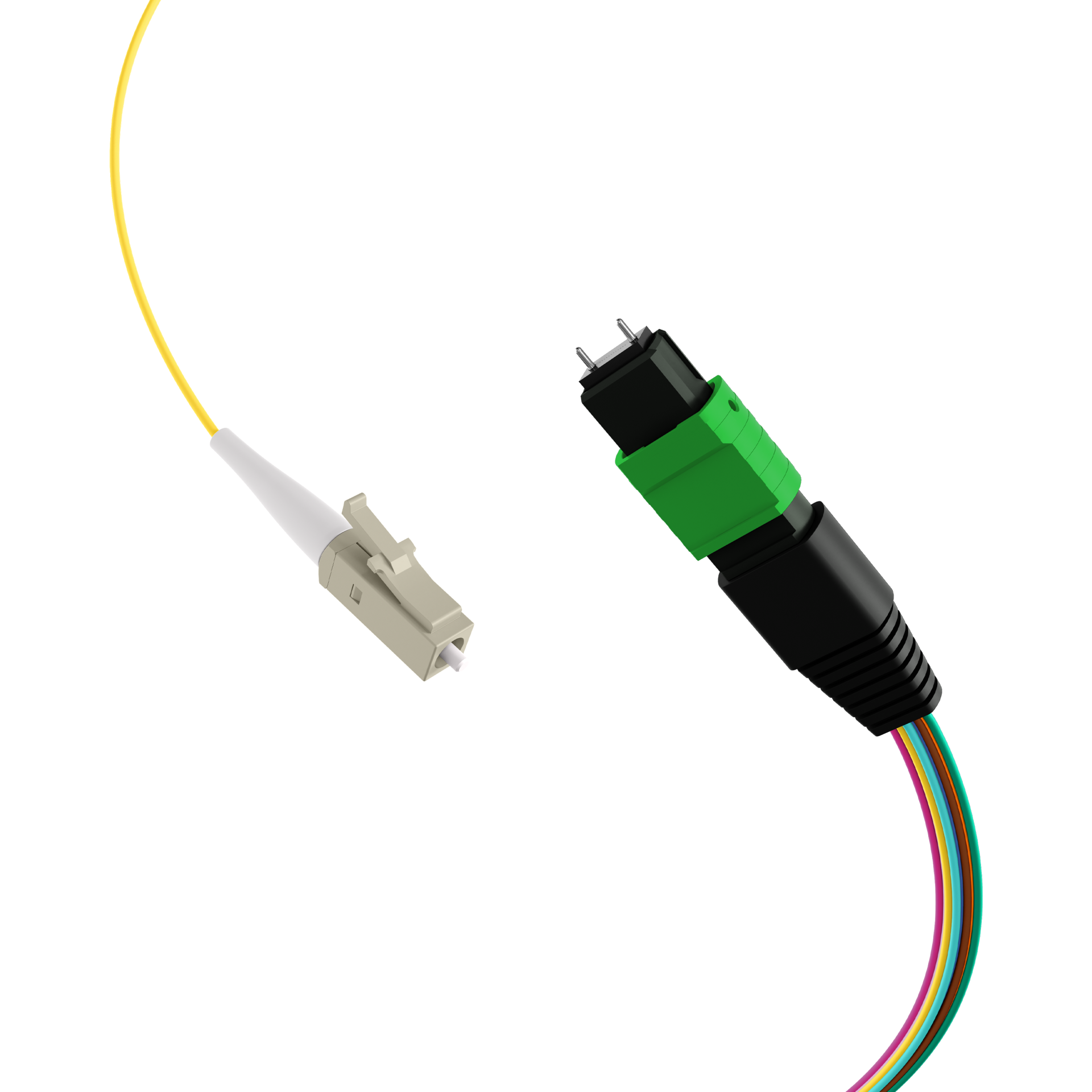

Fanout Cable MTP®-Male/LC/APC 12-fiber OS2
MTP®/APC(M)-LC/APC Fanout cable OS2 12 fibers Typ B LSZH yellow 1m
Item number:
MTPM12LCAPC-1
EAN no.:
4049759250416
Product information for MTP®/APC(M)-LC/APC Fanout cable OS2 12 fibers Typ B LSZH yellow 1m
Application: Suitable for transmission links up to 100 Gigabit

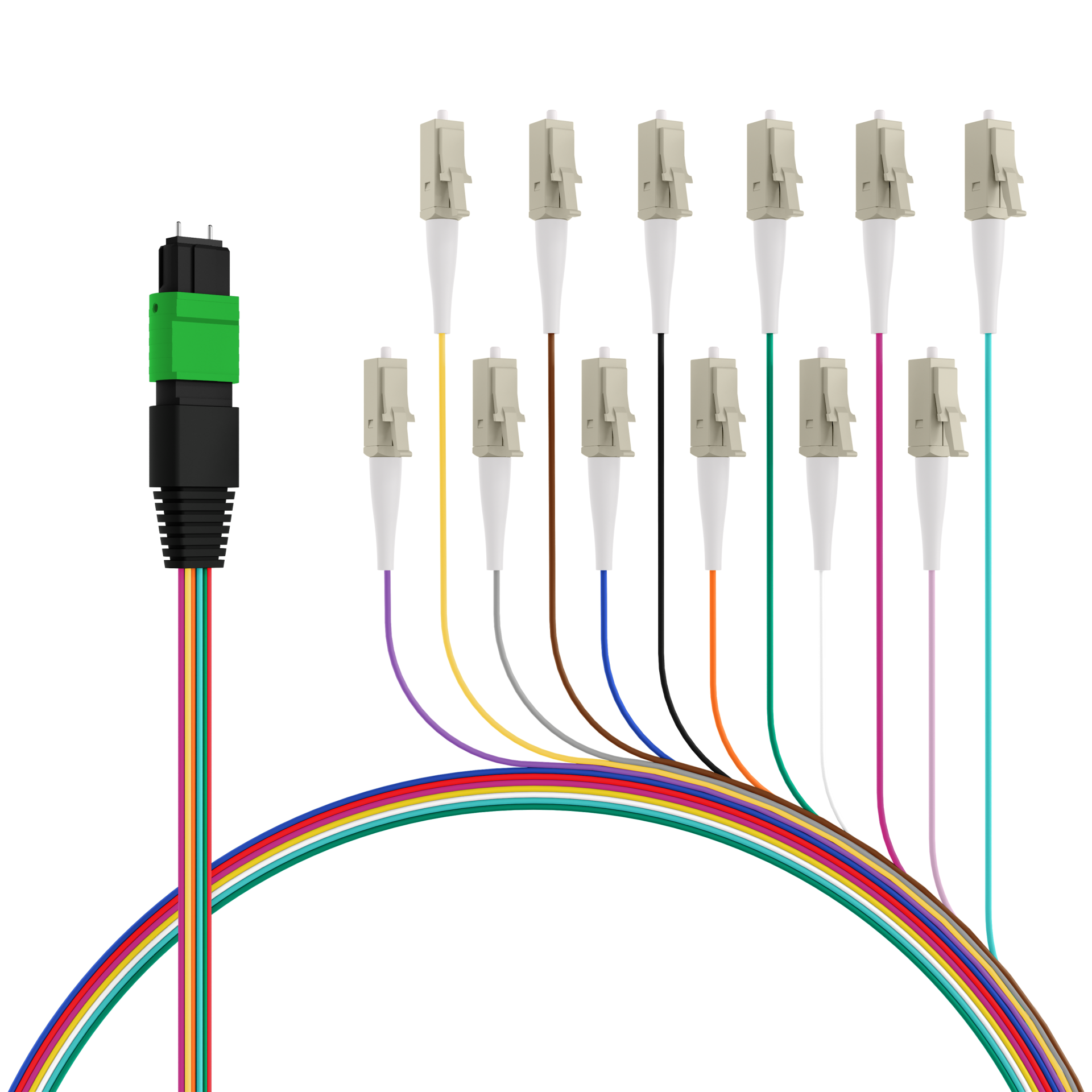

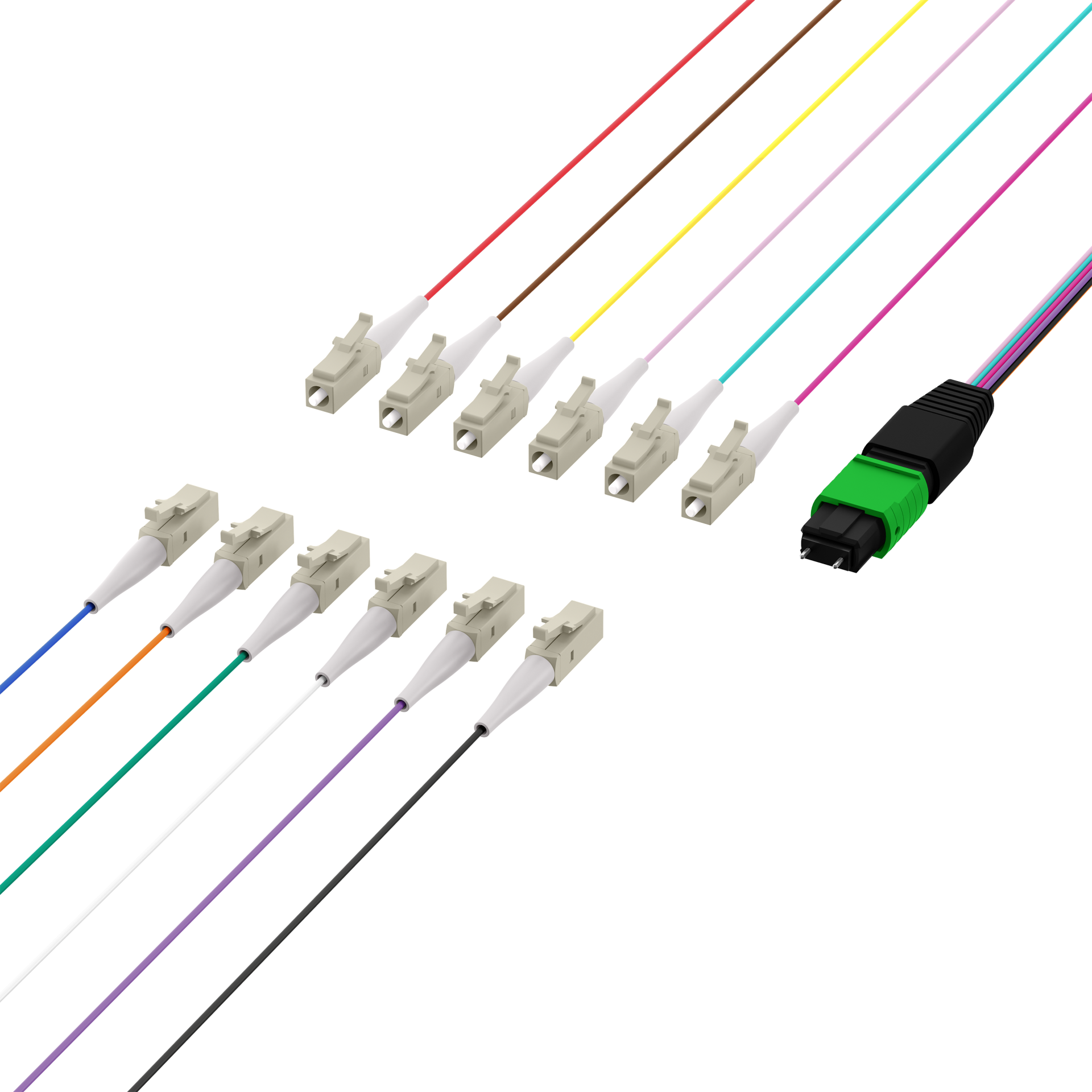

Construction: 1 multi-connector MTP® on one side,
12 Single connector on the other side (e.g. LC)
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Construction: 1 multi-connector MTP® on one side,
12 Single connector on the other side (e.g. LC)
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 12 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Technical properties
| Category: | OS2 |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | LC/APC |
| Crossed: | False |
| Fibre type: | OS2 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| With rodent protection: | False |
Variants
| Item no. | Name | Number of connectors connection 1 | Number of connectors connection 2 | Length | Number of fibres | |
|---|---|---|---|---|---|---|
| MTPM12LCAPC-0,4 | MTP®/APC(M)-LC/APC Fanout cable OS2 12 fibers Typ B LSZH yellow 0,4m | 1 x MTP® male | 12 x LC/APC | 0.4 m | 12 | |
| MTPM12LCAPC-1 | MTP®/APC(M)-LC/APC Fanout cable OS2 12 fibers Typ B LSZH yellow 1m | 1 x MTP® male | 12 x LC/APC | 1.0 m | 12 |
