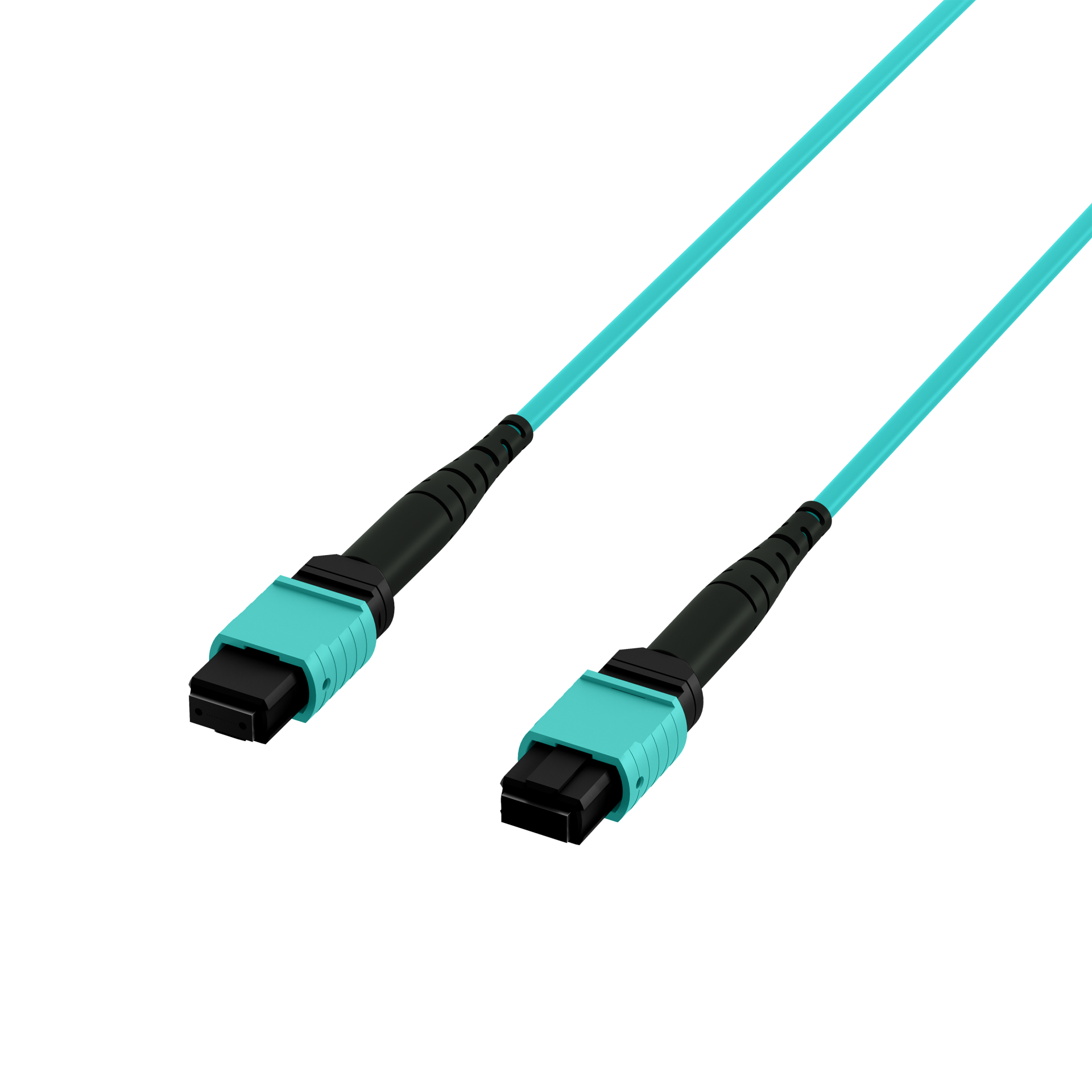

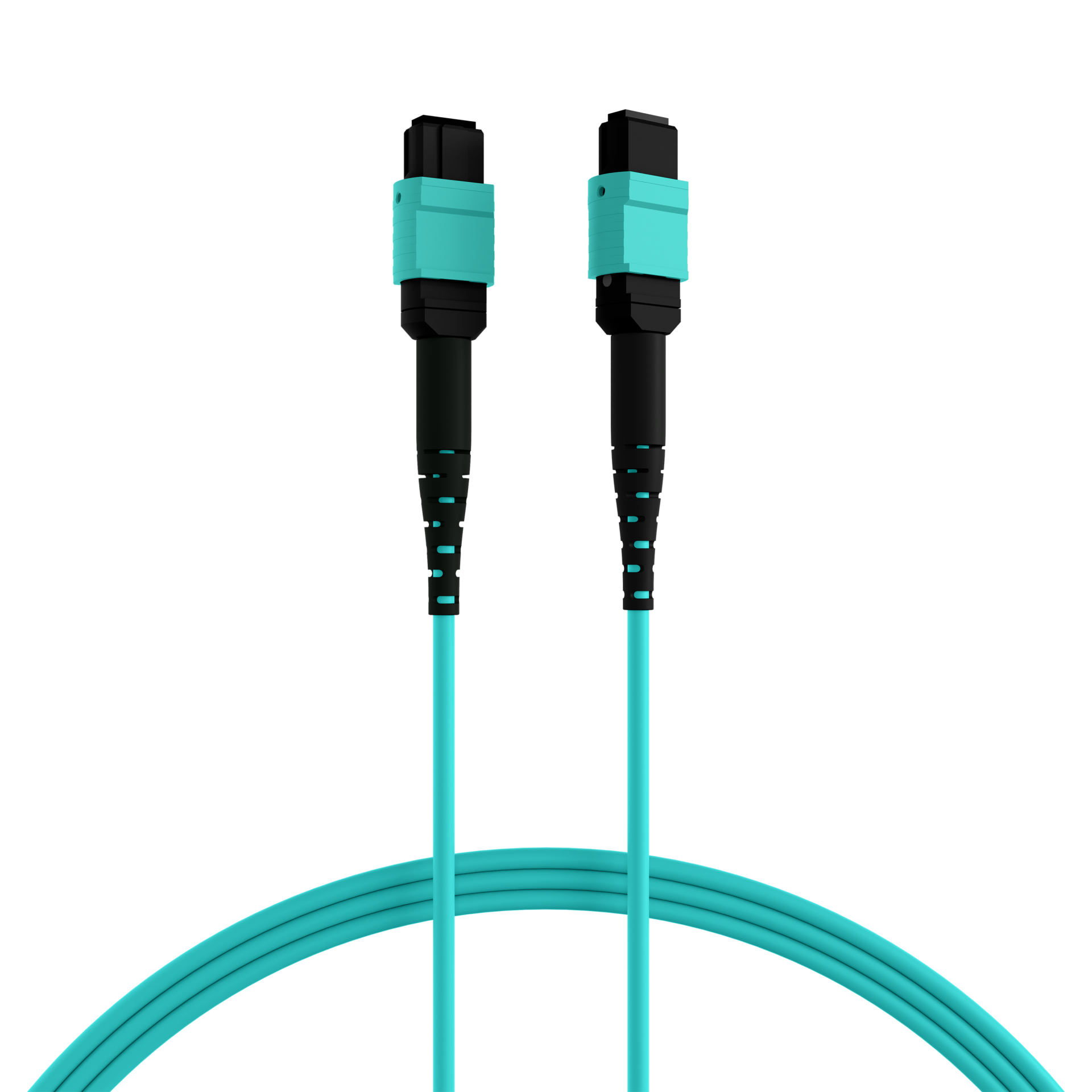

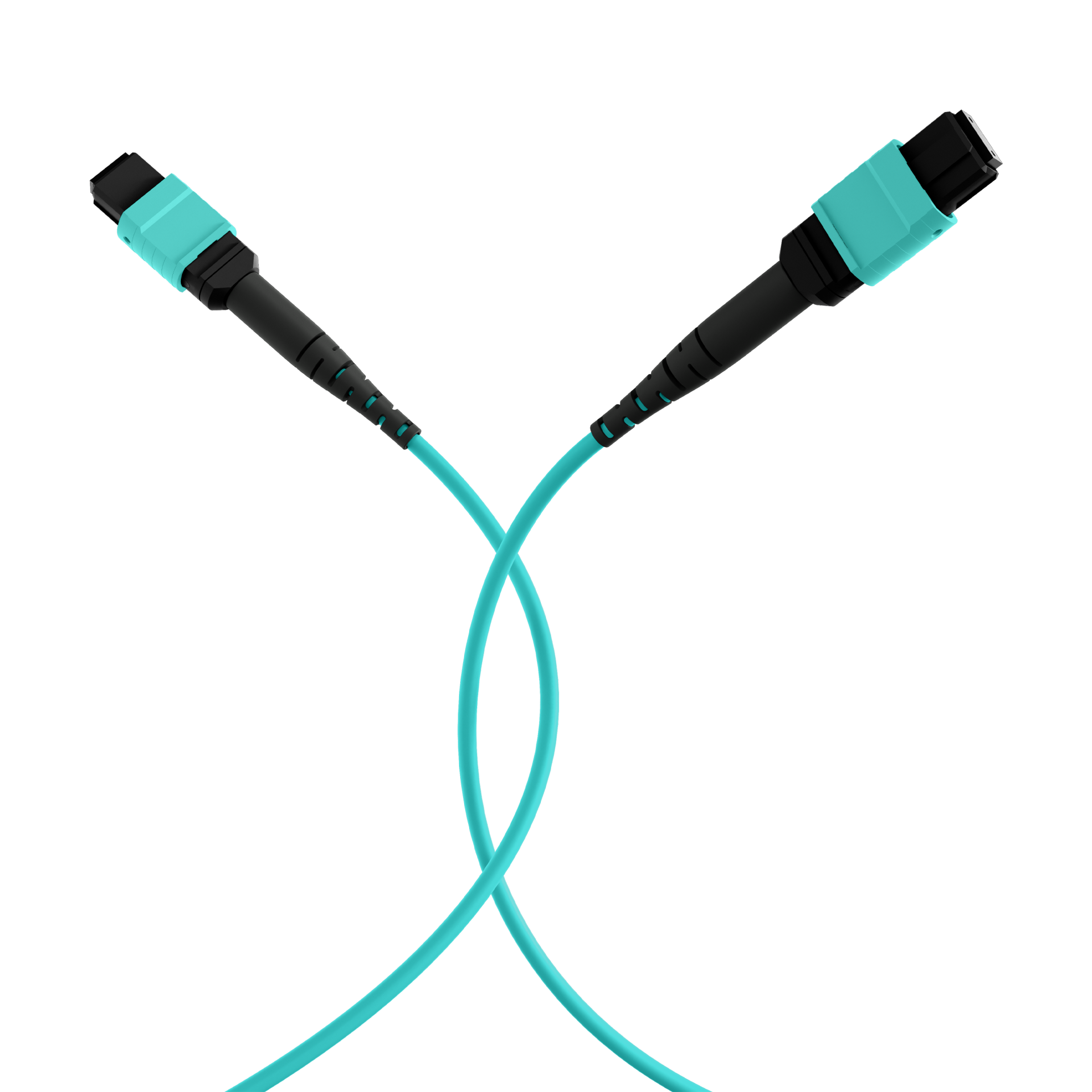

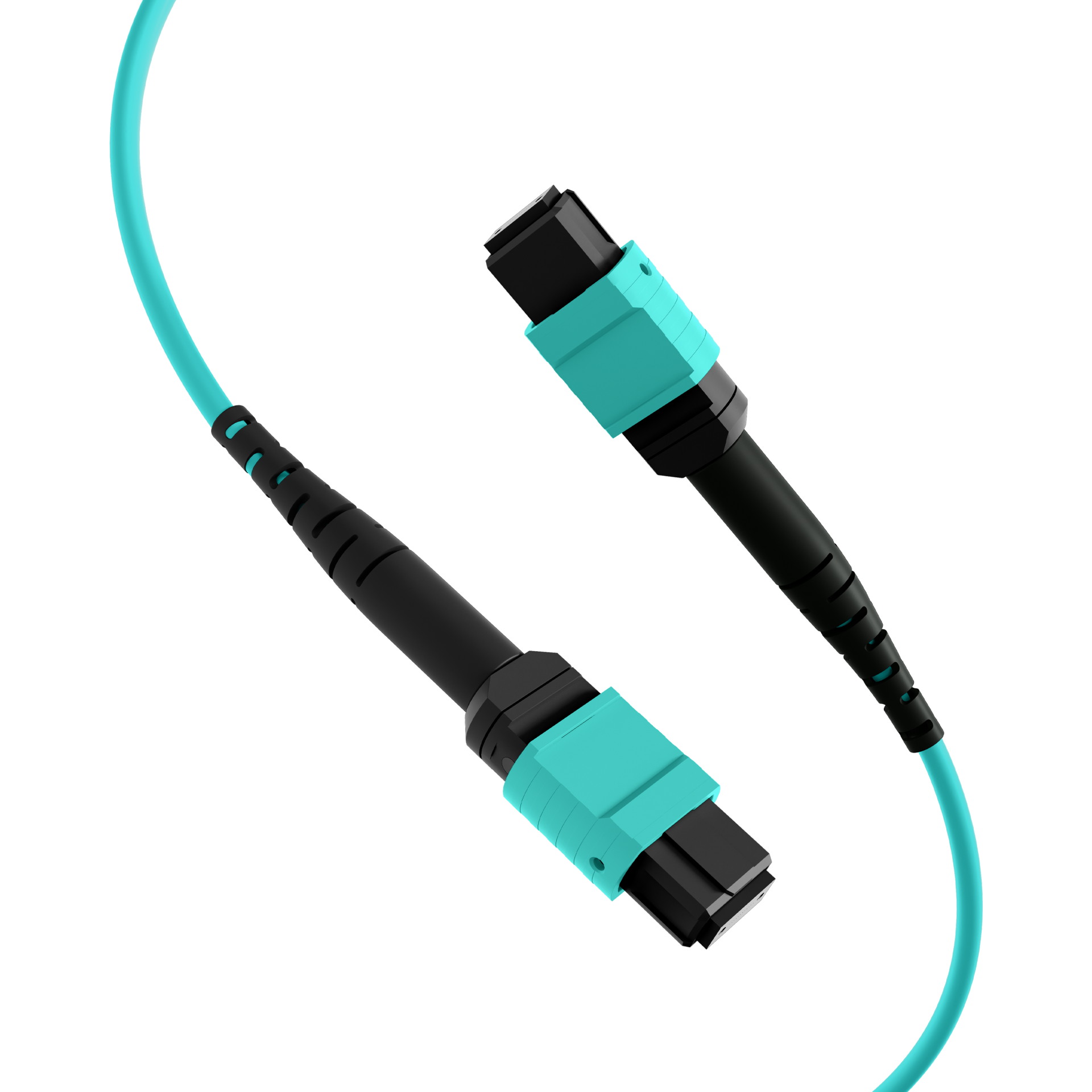

MTP®-F/MTP®-F 12-fiber patch cable OM3, Code B
MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 3m
Item number:
MTPF12MTPFOM3-3
EAN no.:
4049759229528
Product information for MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 3m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
Technical properties
| Cable Diameter: | 3.0 mm |
|---|---|
| Category: | OM3 |
| Coding: | Type B crossed |
| Colour outer sheath: | aqua |
| Connector connection 1: | MTP-F |
| Connector connection 2: | MTP-F |
| Fibre type: | OM3 50/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Operating Temperature: | 0 – 50 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Variants
| Item no. | Name | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | Length | |
|---|---|---|---|---|---|---|
| MTPF12MTPFOM3-0,5 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 0,5m | 1 x MTP® female | 12 | 1 x MTP® female | 0.5 m | |
| MTPF12MTPFOM3-1 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 1m | 1 x MTP® female | 12 | 1 x MTP® female | 1.0 m | |
| MTPF12MTPFOM3-2 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 2m | 1 x MTP® female | 12 | 1 x MTP® female | 2.0 m | |
| MTPF12MTPFOM3-3 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 3m | 1 x MTP® female | 12 | 1 x MTP® female | 3.0 m | |
| MTPF12MTPFOM3-5 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 5m | 1 x MTP® female | 12 | 1 x MTP® female | 5.0 m | |
| MTPF12MTPFOM3-7,5 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 7,5m | 1 x MTP® female | 12 | 1 x MTP® female | 7.5 m | |
| MTPF12MTPFOM3-10 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 10m | 1 x MTP® female | 12 | 1 x MTP® female | 10.0 m | |
| MTPF12MTPFOM3-15 | MTP®(F)-MTP®(F) Patch cable OM3 12 fibers Typ B LSZH aqua 15m | 1 x MTP® female | 12 | 1 x MTP® female | 15.0 m | |
| MTPF12MTPFOM3-25 | MTP®(F)-MTP®(F) Patchkabel OM3 12 Fasern,Typ B LSZH aqua 25m | 1 x MTP® female | 12 | 1 x MTP® female | 25.0 m |
