MTP®-F/MTP®-F 36-fiber matrix Patch cable OM4, Code A

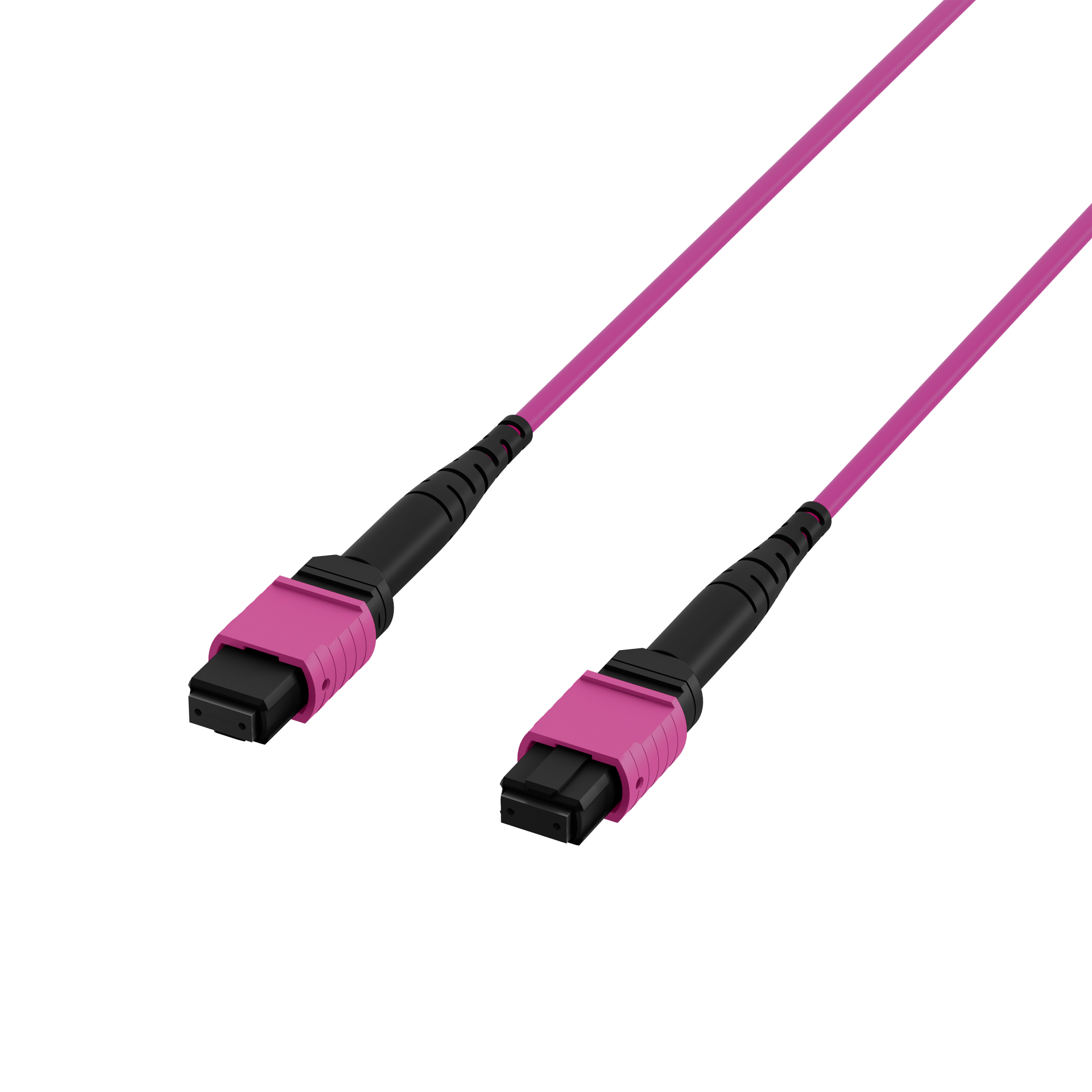

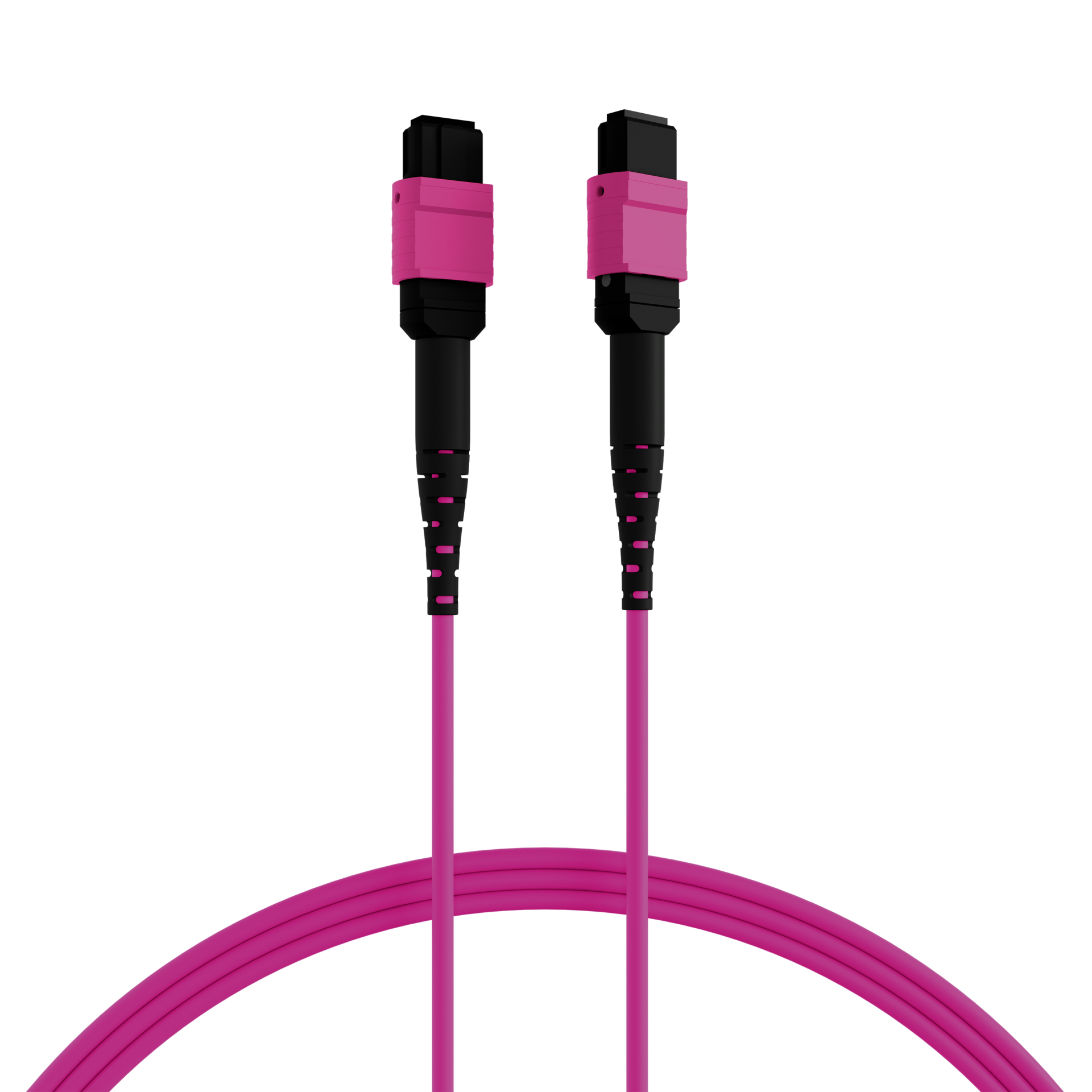

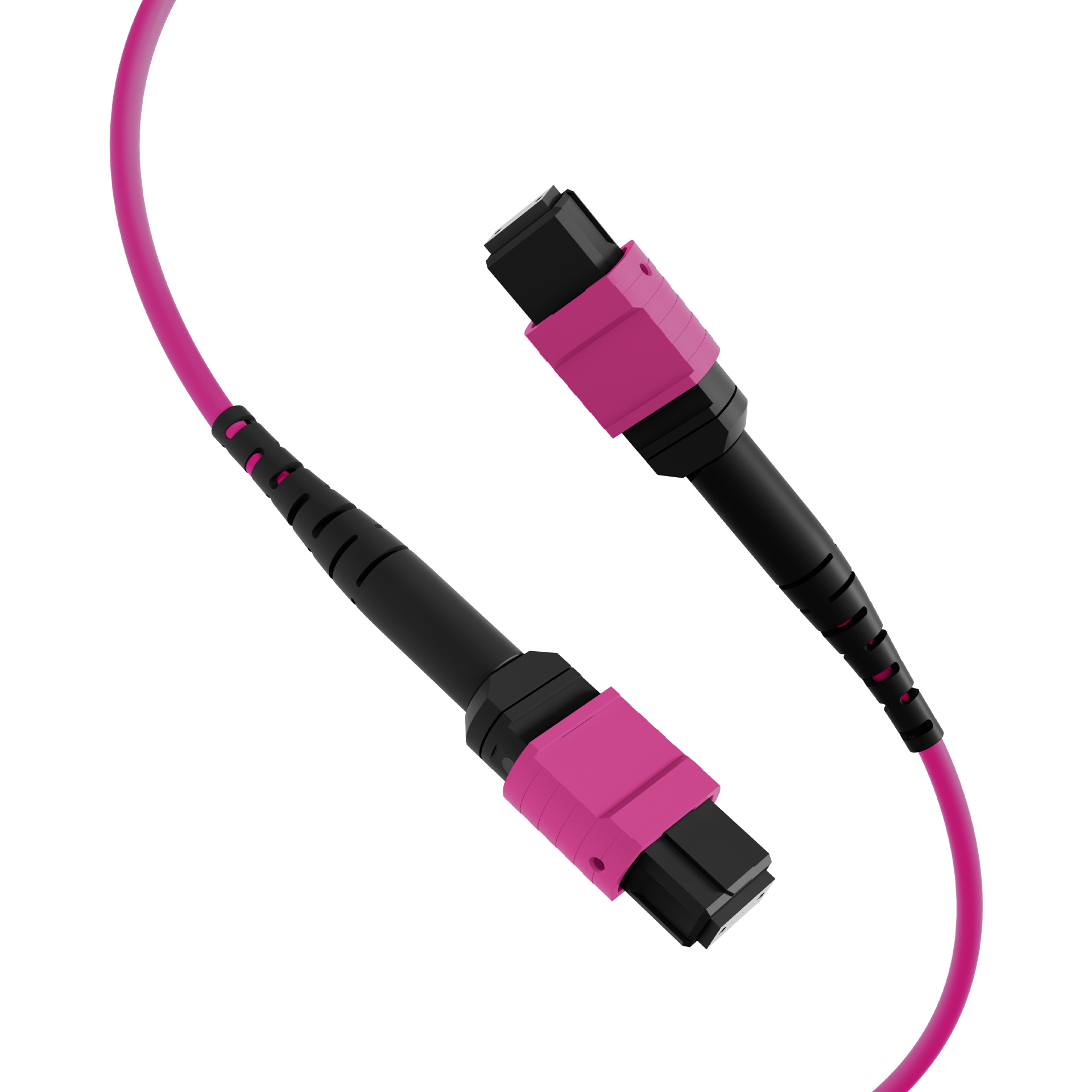

MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 15m
Item number: MTPF36MTPFOM4-15-A
EAN no.: 4049759237226

Product information for MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 15m

Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow

Available lengths: 1m up to 100m

Note: In each MTP® transmission link, a type B (crossed) patch cable is required

Technical properties

Cable Diameter: 9.0 mm
Category: OM4
Coding: Type A straight
Colour outer sheath: erica violet
Connector connection 1: MTP-F
Connector connection 2: MTP-F
Fibre type: OM4 50/125
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Operating Temperature: 0 – 50 °C
Storage Temperature: -20 – 70 °C
With rodent protection: False

Variants

Item no. Name Number of connectors connection 1 Number of fibres Number of connectors connection 2 Length
MTPF36MTPFOM4-5-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 5m 3 x MTP® female 36 3 x MTP® female 5.0 m
MTPF36MTPFOM4-10-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 10m 3 x MTP® female 36 3 x MTP® female 10.0 m
MTPF36MTPFOM4-15-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 15m 3 x MTP® female 36 3 x MTP® female 15.0 m
MTPF36MTPFOM4-20-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 20m 3 x MTP® female 36 3 x MTP® female 20.0 m
MTPF36MTPFOM4-25-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 25m 3 x MTP® female 36 3 x MTP® female 25.0 m
MTPF36MTPFOM4-30-A MTP®(F)-MTP®(F) Patch cable OM4 36 fibers Typ A LSZH erica-violet 30m 3 x MTP® female 36 3 x MTP® female 30.0 m
