Fanout Cable MTP®-Male/LC 8-fiber OM4
MTP®(M)-LC Fanout cable OM4 8 fibers Typ B LSZH erica-violet 0,4m
Item number:
MTPM08LCOM4-0,4
EAN no.:
4049759241162
Product information for MTP®(M)-LC Fanout cable OM4 8 fibers Typ B LSZH erica-violet 0,4m
Application: Suitable for transmission links up to 100 Gigabit
Construction: 1 multi-connector MTP® Male on one side,
8 Single connector on the other side (e.g. LC)

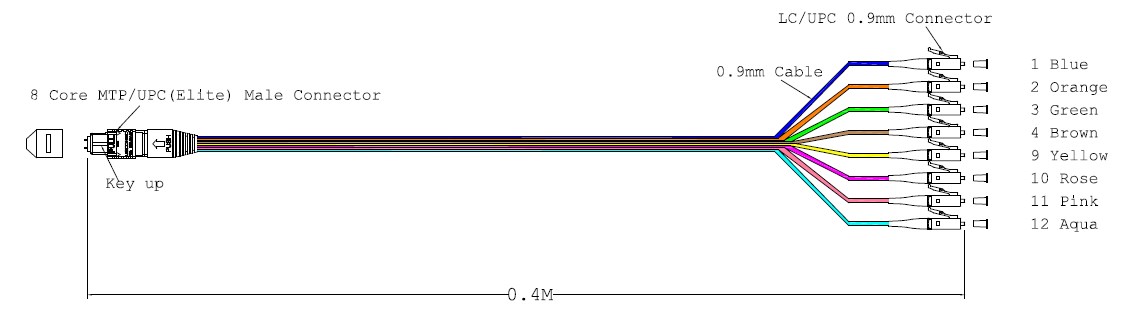

Assignment MTP 1-4 + 9-12
LowLoss
version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Construction: 1 multi-connector MTP® Male on one side,
8 Single connector on the other side (e.g. LC)
Assignment MTP 1-4 + 9-12
LowLoss
version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Cable diameter single-connector: 900µm
Colour: OM4, OM3 and OS2 acc. to colour code DIN VDE 0888
Technical properties
| Category: | OM4 |
|---|---|
| Connector connection 1: | MTP-M |
| Connector connection 2: | SC |
| Crossed: | False |
| Fibre type: | OM4 50/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| With rodent protection: | False |
Variants
| Item no. | Name | Number of connectors connection 1 | Number of connectors connection 2 | Number of fibres | Length | |
|---|---|---|---|---|---|---|
| MTPM08LCOM4-0,4 | MTP®(M)-LC Fanout cable OM4 8 fibers Typ B LSZH erica-violet 0,4m | 1 x MTP® male | 8 x LC | 8 | 0.4 m | |
| MTPM08LCOM4-1 | MTP®(M)-LC Fanout cable OM4 8 fibers Typ B LSZH erica-violet 1m | 1 x MTP® male | 8 x LC | 8 | 1.0 m |
