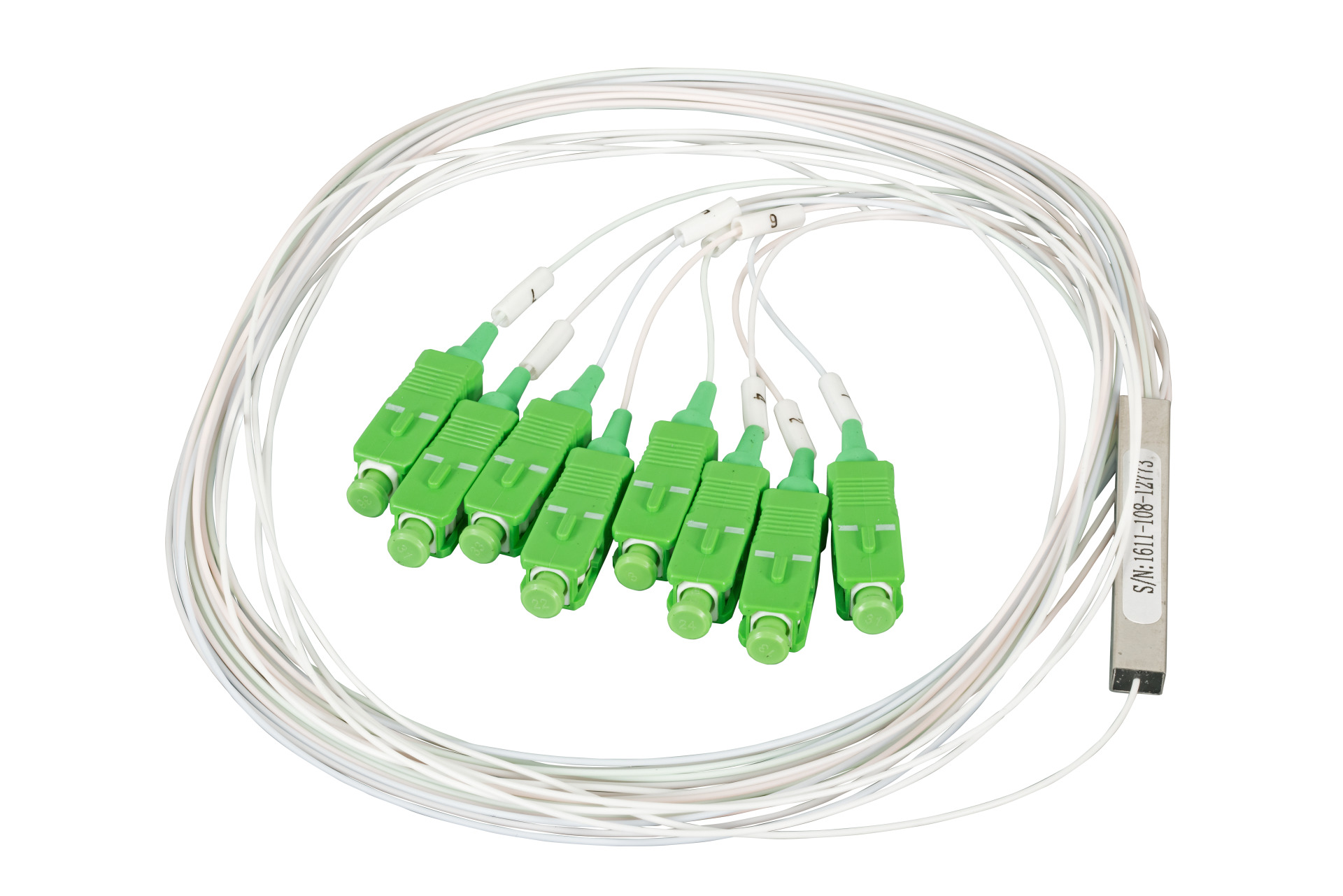

PLC Splitter SC/APC
PLC Splitter 1 open End to 32 SC/APC, 9/125µ G657A1
Item number:
FTTH-PLC32-SCA
EAN no.:
4049759205676
Product information for PLC Splitter 1 open End to 32 SC/APC, 9/125µ G657A1
Singlemode G657A1 Fiber
900µm Fiber
Entry side without connector
Output side with SC/APC connector
Main application in optical distributor boxes
900µm Fiber
Entry side without connector
Output side with SC/APC connector
Main application in optical distributor boxes
Technical properties
| Application: | CAT V |
|---|---|
| Colour: | metal |
| Insertion loss (inc. connector): | < 17.0 dB |
| Number of connectors front side: | - |
| Type of accessory/spare part: | PLC Splitter |
Variants
| Item no. | Name | Connection type rear | Split | Breite | Höhe | Länge | Anschlussart vorne | Einfügedämpfung (mit Stecker) | |
|---|---|---|---|---|---|---|---|---|---|
| FTTH-PLC4-SCA | PLC Splitter 1 open End to 4 SC/APC, 9/125µ G657A1 | SC/APC | 1 to 4 | 7 mm | 4 mm | 55 mm | offen | < 7,4 dB | |
| FTTH-PLC8-SCA | PLC Splitter 1 open End to 8 SC/APC, 9/125µ G657A1 | SC/APC | 1 to 8 | 7 mm | 4 mm | 55 mm | offen | < 10,5 dB | |
| FTTH-PLC16-SCA | PLC Splitter 1 open End to 16 SC/APC, 9/125µ G657A1 | SC/APC | 1 to 16 | 12 mm | 4 mm | 60 mm | offen | < 13,8 dB | |
| FTTH-PLC32-SCA | PLC Splitter 1 open End to 32 SC/APC, 9/125µ G657A1 | SC/APC | 1 to 32 | 20 mm | 6 mm | 80 mm | offen | < 17,0 dB | |
| FTTH-PLC64-SCA | PLC Splitter 1 open End to 64 SC/APC, 9/125µ G657A1 | SC/APC | 1 to 64 | 40 mm | 6 mm | 100 mm | offen | < 20,6 dB |
