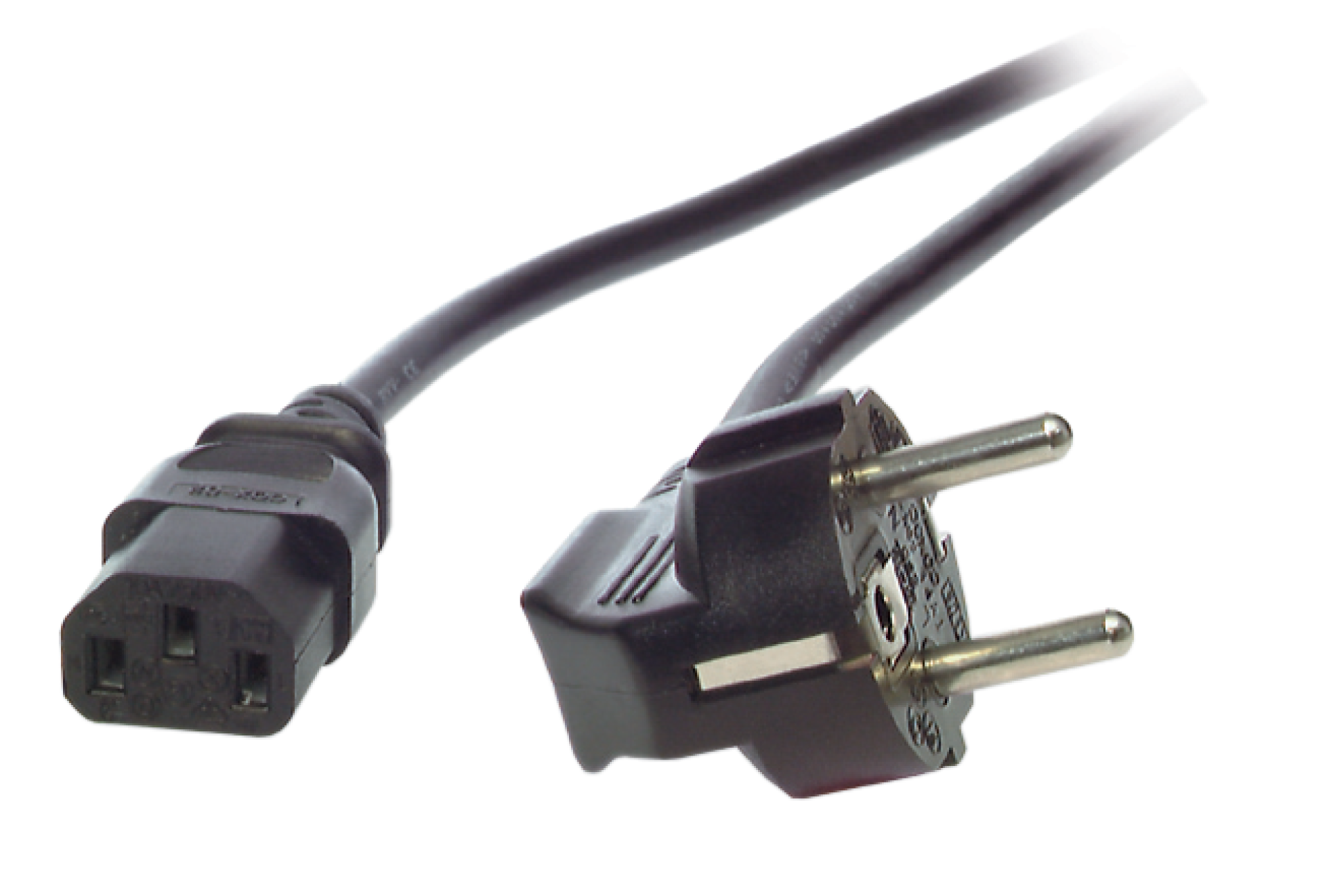

Power Cable CEE7/7 90° - C13 180°, Black
Power Cable CEE7/7 90° - C13 180°, Black 5.0 m, 3 x 1.00 mm²
Item number:
EK504.5V2
EAN no.:
4049759205164
Product information for Power Cable CEE7/7 90° - C13 180°, Black 5.0 m, 3 x 1.00 mm²
10 A / 250 V VDE tested
Suitable for Germany, Belgium, France and further
Suitable for Germany, Belgium, France and further
Technical properties
| Colour outer sheath: | black |
|---|---|
| Connection 1: | Socket outlet with protective contact, right-angled |
| Connection 2: | Cold device plug straight, female |
| Halogen free: | False |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | Ja |
| Spiralized cable: | False |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | False |
Variants
| Item no. | Name | Length | Colour outer sheath | Leiternennquerschnitt | Außendurchmesser ca. | |
|---|---|---|---|---|---|---|
| EK504.0,5V2 | Power Cable CEE7/7 90° - C13 180° Black 0.5 m, 3 x 0.75 mm² | 0.5 m | black | 0,75 mm² | 6,5 mm | |
| EK504.0,75V2 | Power Cable CEE7/7 90° - C13 180° Black 0.75 m, 3 x 0.75 mm² | 0.75 m | black | 0,75 mm² | 6,5 mm | |
| EK504.1V2 | Power Cable CEE7/7 90° - C13 180° Black 1,0 m, 3 x 0.75 mm² | 1.0 m | black | 0,75 mm² | 6,5 mm | |
| EK504.2V2 | Power Cable CEE7/7 90° - C13 180°, Black 2.0 m, 3 x 0.75 mm² | 2.0 m | black | 0,75 mm² | 6,5 mm | |
| EK504.3V2 | Power Cable CEE7/7 90° - C13 180°, Black 3.0 m, 3 x 1.00 mm² | 3.0 m | black | 1,00 mm² | 7,0 mm | |
| EK504.5V2 | Power Cable CEE7/7 90° - C13 180°, Black 5.0 m, 3 x 1.00 mm² | 5.0 m | black | 1,00 mm² | 7,0 mm |
