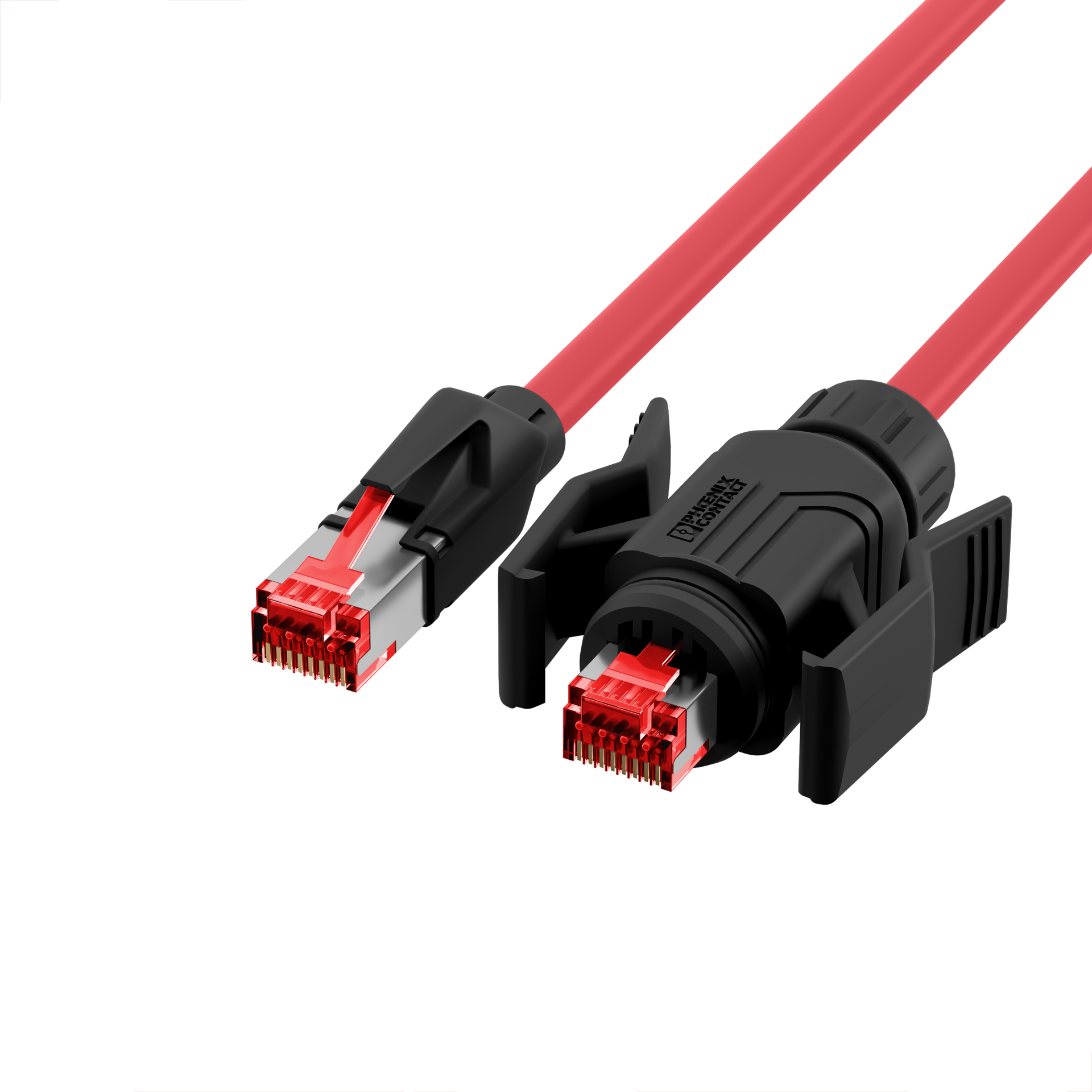

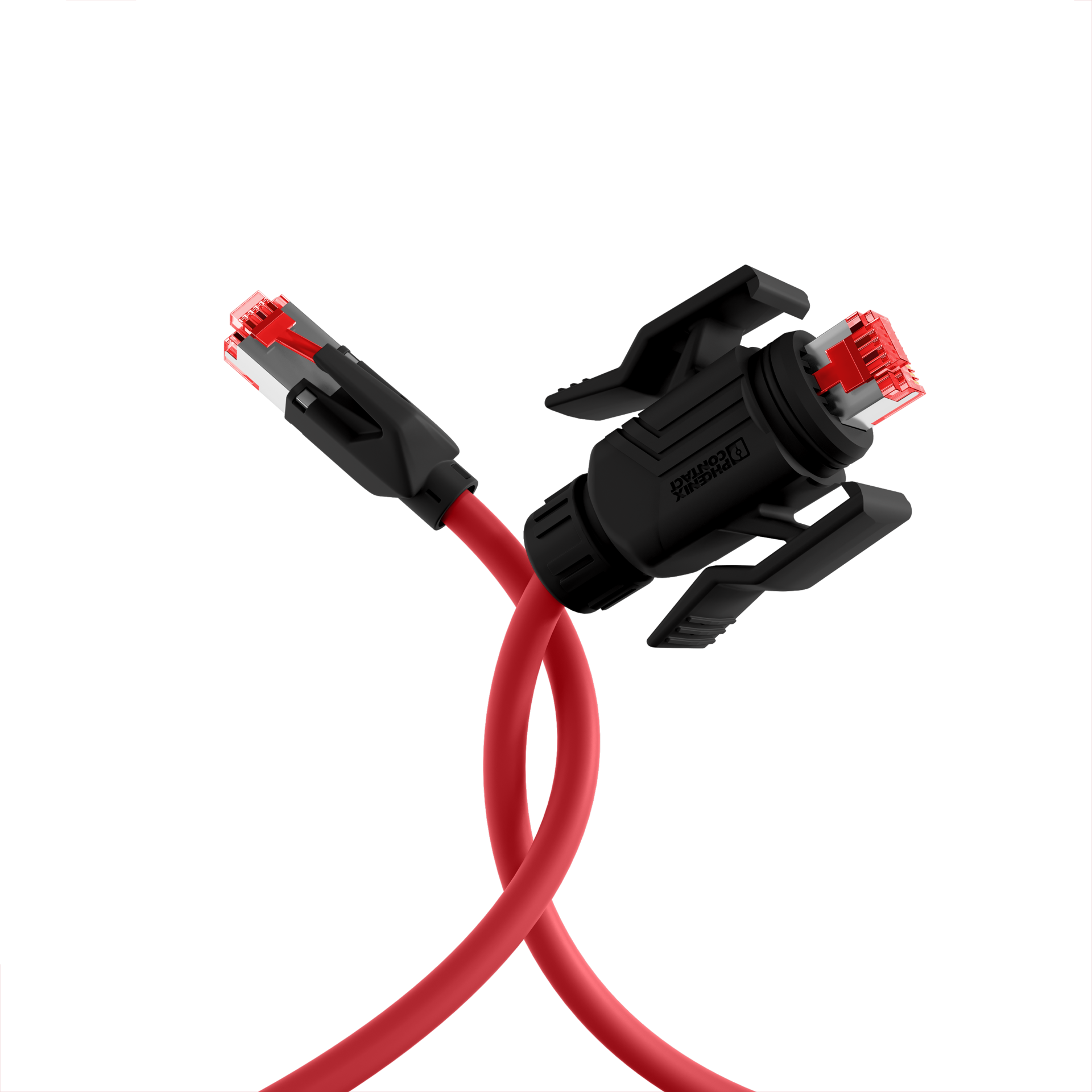

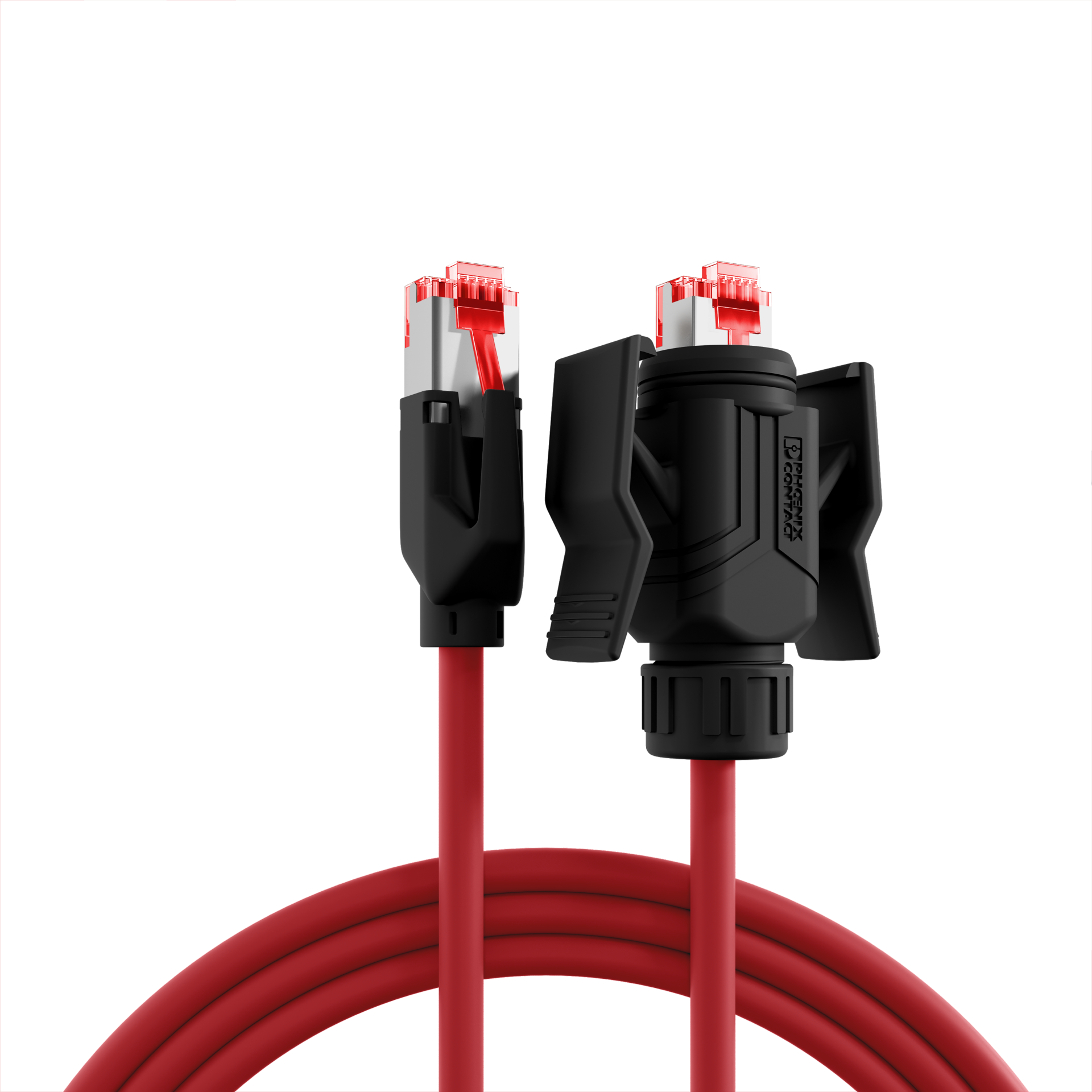

RJ45 Patch Cord Cat.6A S/FTP PUR TM21 1xIP67 for 53730.1V2
RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 1m
Item number:
K8670.1
EAN no.:
4049759115371
Product information for RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 1m
RJ45 patch cable Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2
The Cat.6A (IEC) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG27/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
The Cat.6A (IEC) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG27/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.
Technical properties
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | 25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS27 Cat.7 PUR |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (IEC) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | red |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated µ" gold plated |
| Current Rating: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | True |
| Flame retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Halogen free: | True |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket Material: | Polyurethan (PUR) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | True |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | acc. EN60811-2-1 |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP67 |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -35 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UV resistance: | acc. IEC60068-2-5 |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K8670.0,5 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 0,5m | 0.5 m | ±5 % | |
| K8670.1 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 1m | 1.0 m | ±5 % | |
| K8670.2 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 2m | 2.0 m | ±5 % | |
| K8670.3 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 3m | 3.0 m | ±5 % | |
| K8670.5 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 5m | 5.0 m | ±5 % | |
| K8670.7,5 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 7,5m | 7.5 m | ±5 % | |
| K8670.10 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 10m | 10.0 m | ±5 % | |
| K8670.15 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 15m | 15.0 m | ±5 % | |
| K8670.20 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 20m | 20.0 m | ±5 % | |
| K8670.50 | RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 50m | 50.0 m | ±5 % |
