RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow
RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 15m
Item number:
DCK1001GE.15
EAN no.:
4049759059125
Product information for RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 15m

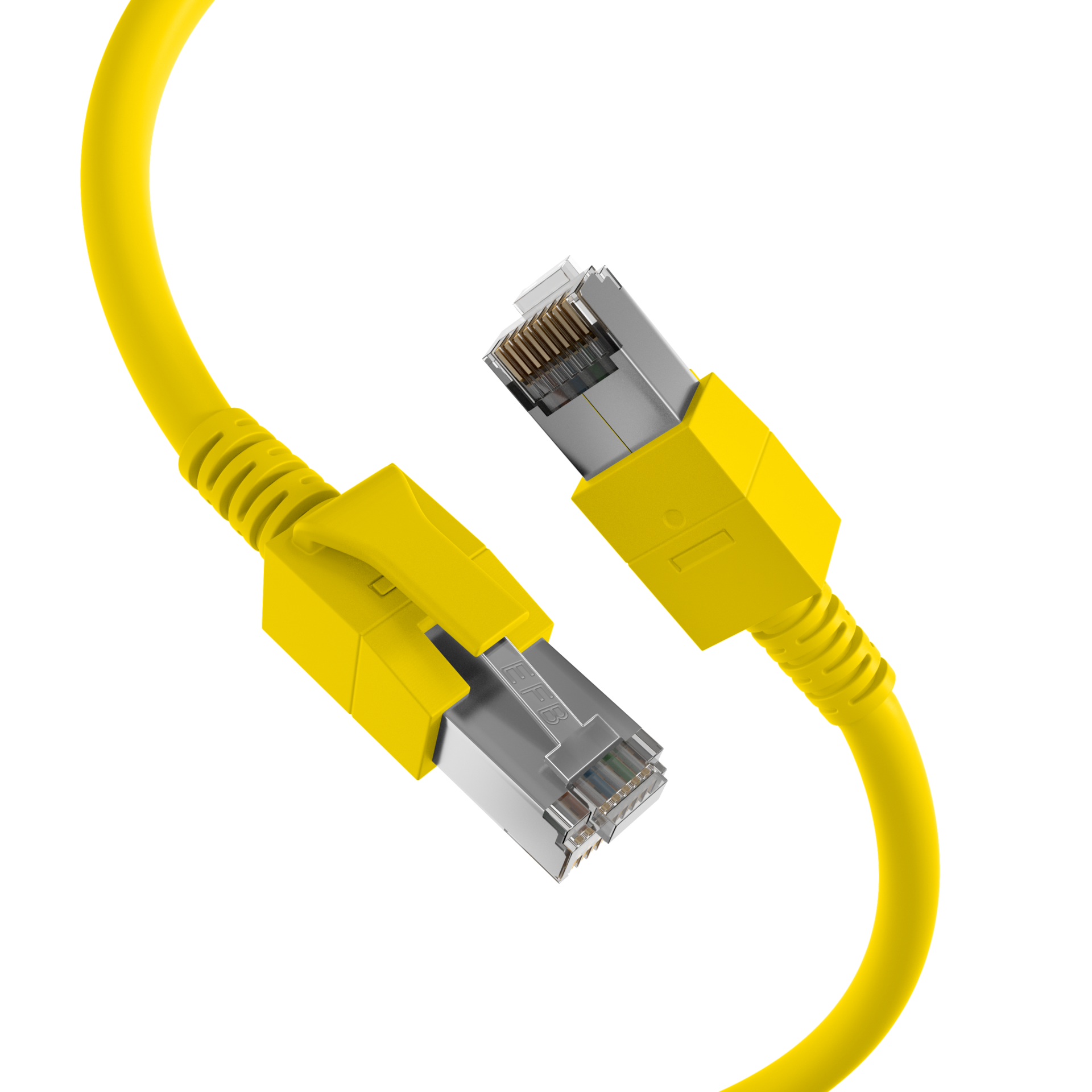

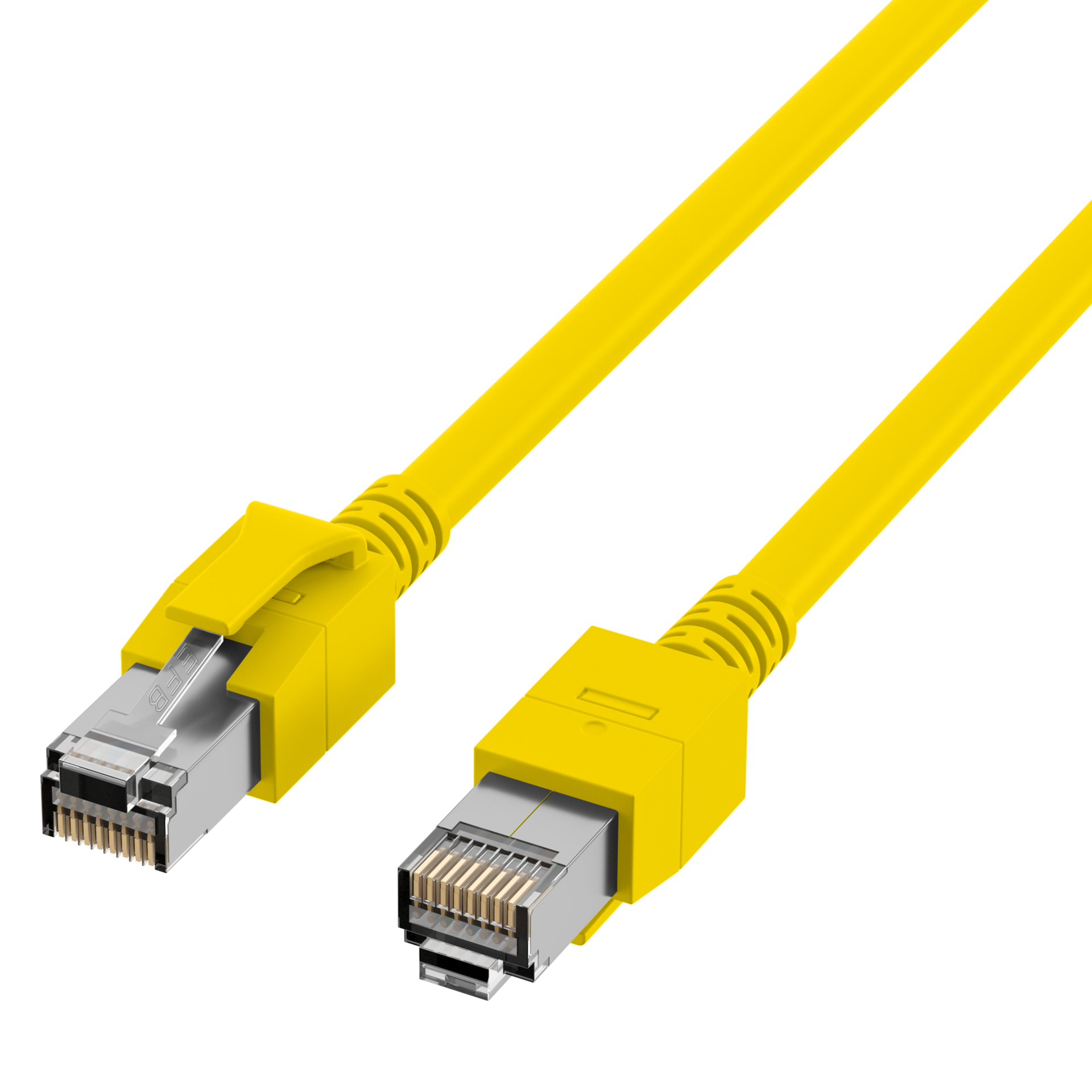

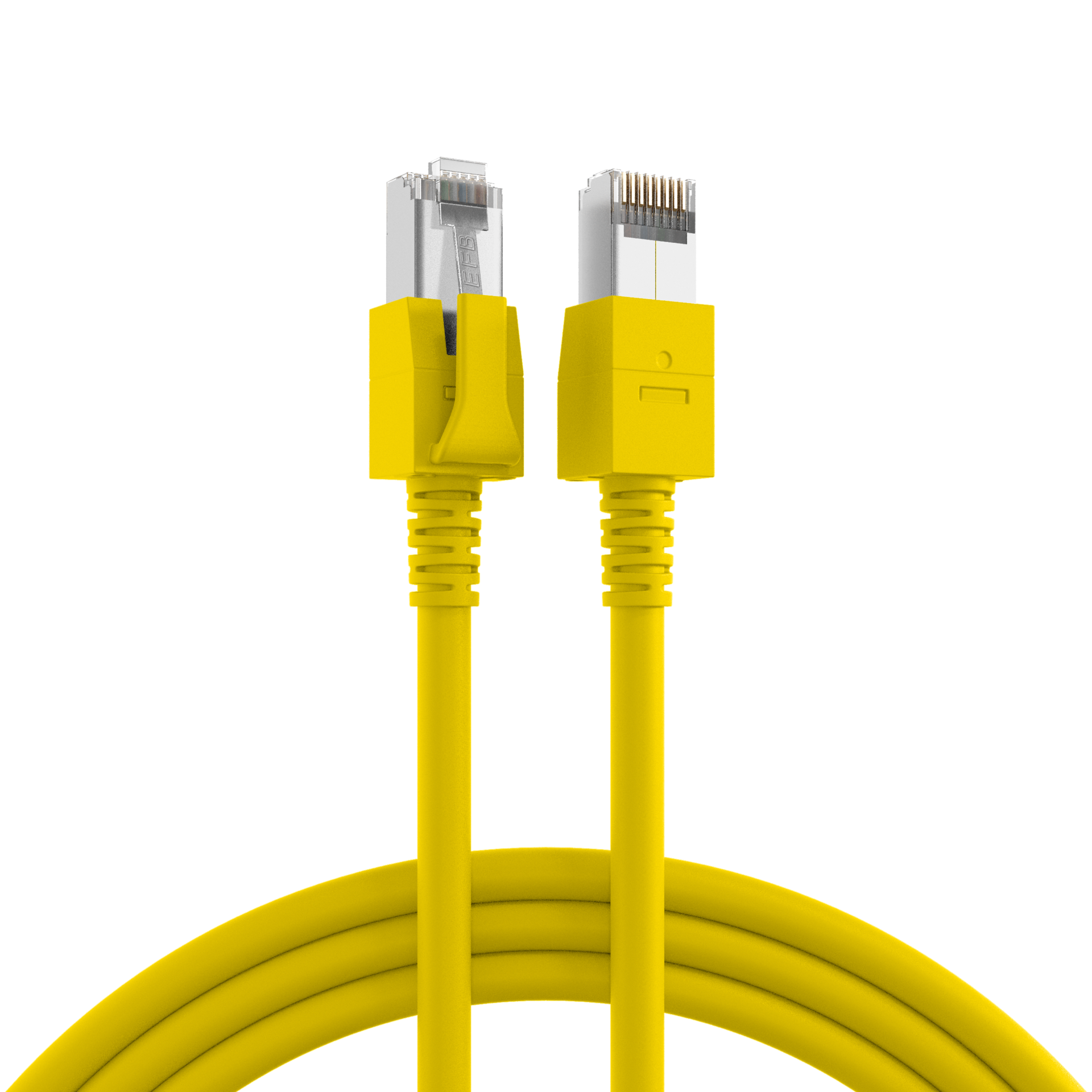

RJ45 patch cable Cat.6A S/FTP FRNC VC LED
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection< br>• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

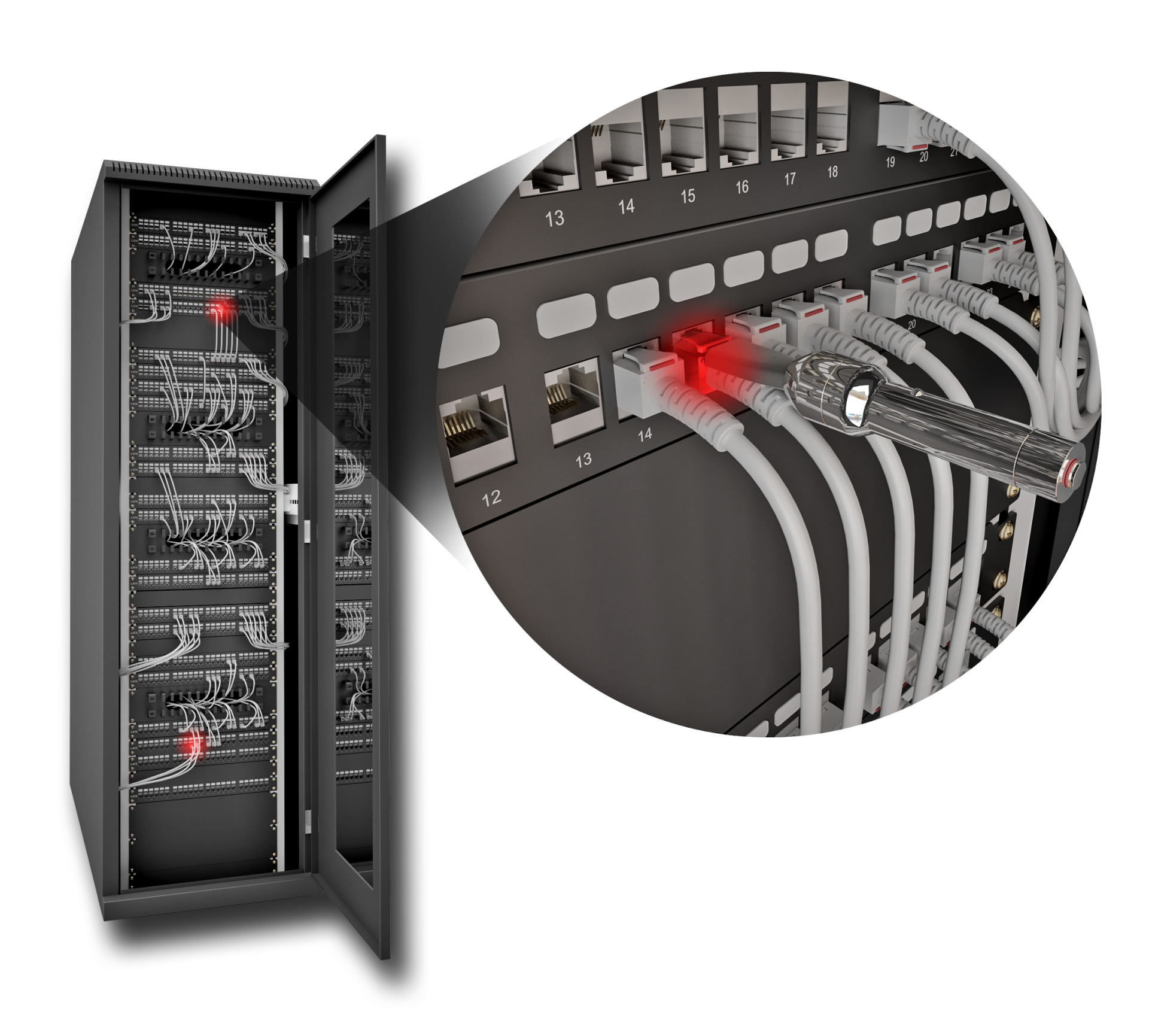

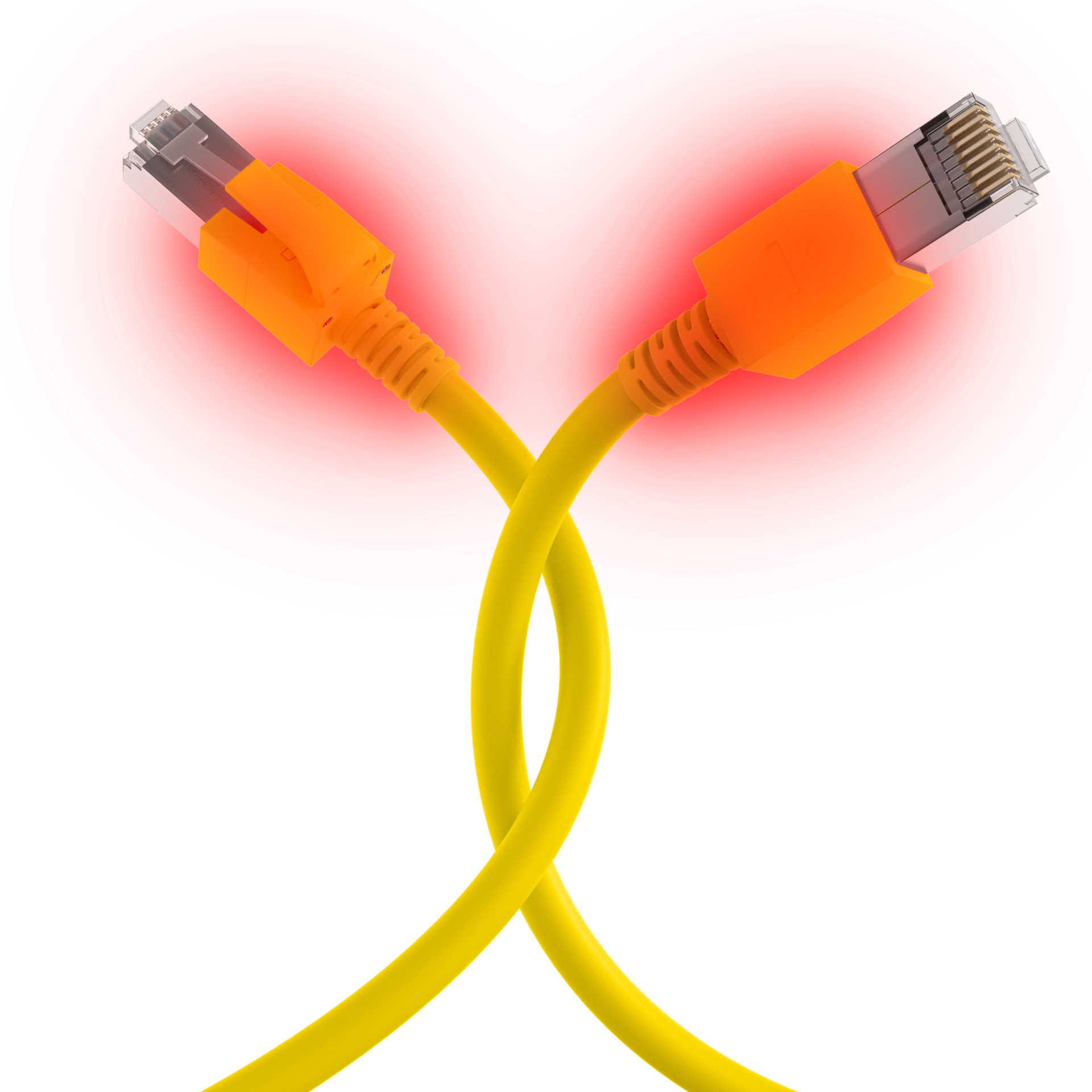

The RJ45 LED connector makes it easy to track the cable route. The assignment is according to TIA/EIA 568B and is 1:1.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection< br>• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 LED connector makes it easy to track the cable route. The assignment is according to TIA/EIA 568B and is 1:1.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 500 MHz.
Technical properties
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | yellow |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 165 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 LED |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame retardant: | acc. IEC60332-3 |
| Halogen-free: | yes |
| Halogen free: | True |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | > 5000 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 330 Ω/km |
| Low smoke: | acc. IEC61034 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.2 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature range (Operation): | -25 – 60 °C |
| Total screening: | >65 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| DCK1001GE.0,5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 0,5m | 0.5 m | ±5 % | |
| DCK1001GE.1 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 1m | 1.0 m | ±5 % | |
| DCK1001GE.1,5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 1,5m | 1.5 m | ±5 % | |
| DCK1001GE.2 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 2m | 2.0 m | ±5 % | |
| DCK1001GE.3 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 3m | 3.0 m | ±5 % | |
| DCK1001GE.5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 5m | 5.0 m | ±5 % | |
| DCK1001GE.7 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 7m | 7.0 m | ±5 % | |
| DCK1001GE.15 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 15m | 15.0 m | ±5 % | |
| DCK1001GE.20 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED yellow 20m | 20.0 m | ±5 % |
